INFACO KmA3020 Maxi Kit Instruction Manual

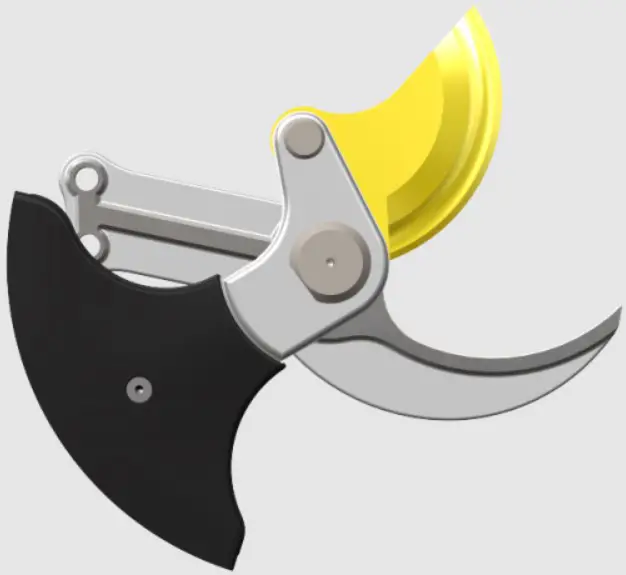

Product Overview

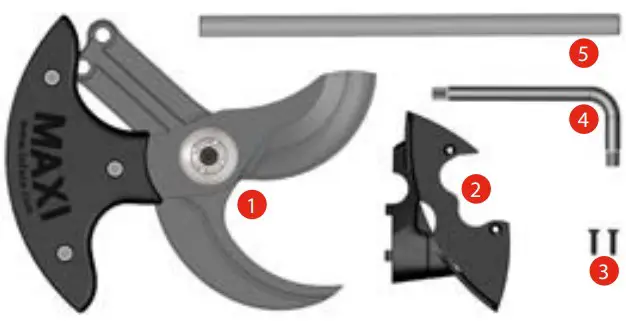

| N° | REF | name |
| 1 | / | “Maxi Kit” cutting head |
| 2 | 921CR | Removable cover |
| 3 | V312 | Plastic 3×12 (x2) countersunk screw |
| 4 | CLET30 | 30 TORX wrench |
| 5 | 750R | Extension |
Assembly video available on the web site:
www.infaco.com.
For all these operations you must disconnect the pruning shears.
To change the cutting head on your equipment, it is strongly recommended to request assistance from your dealer, who is authorised to give you all necessary advice.

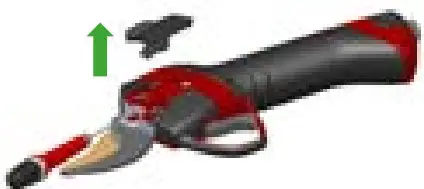

DISASSEMBLY
A. Remove the two cover screws (V320).

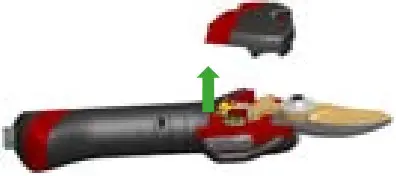

B. Take off the removable cover (921C).

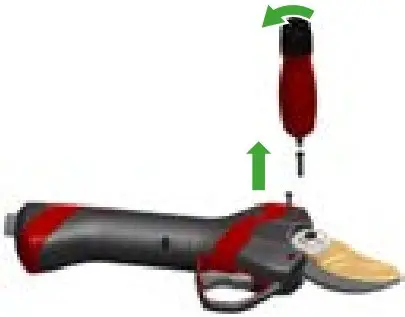

C. Remove the cover protecting the hook screws (921CV) using a flat tipped screwdriver.

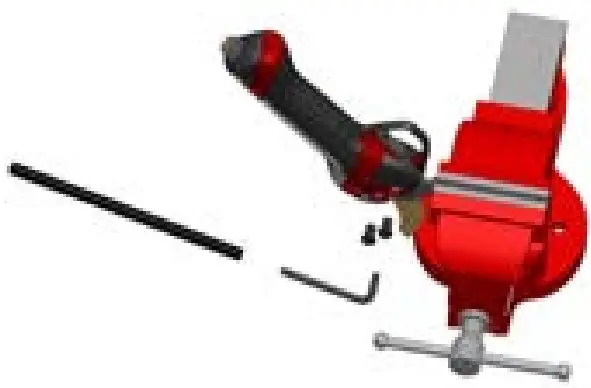

D. Remove the two hook screws (906V) using the TORX wrench (CLET30) and the extension (750R). Only moderately tighten the vise.

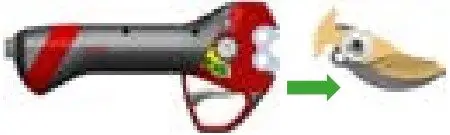

E. Remove the Kit.
ASSEMBLY
F. Grease the pinion teeth using Extreme performance grease (952GA).

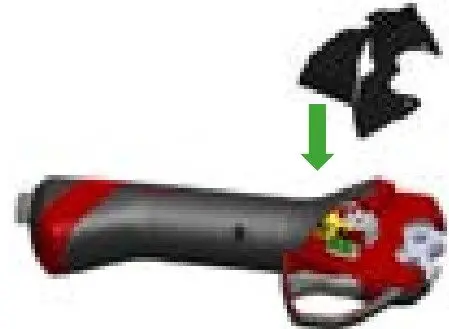

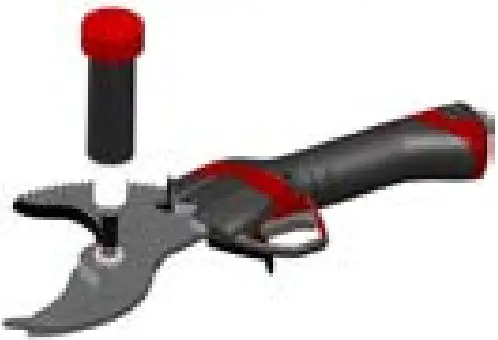

G. Place the Maxi Kit finger protection (921CR2).
H. Screw in the screw (V312).

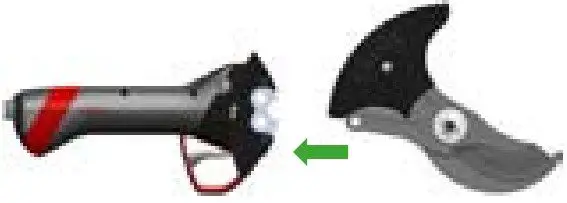

I. Place the Maxi Kit on the pruning shears.

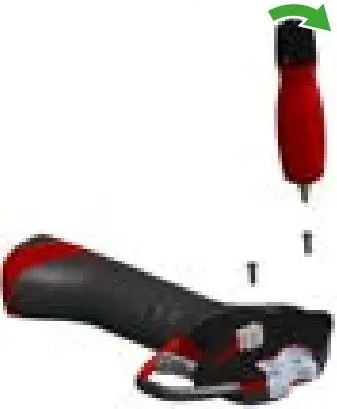

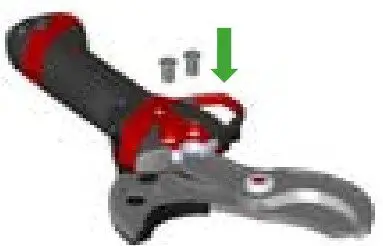

J. Screw in the two hook screws (906V) without tightening.

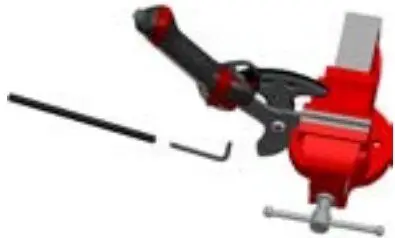

K. Using the TORX wrench (CLET30) and the extension (750R), tighten the two hook screws (906V). Only moderately tighten the vise.

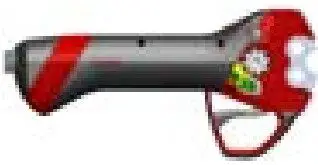

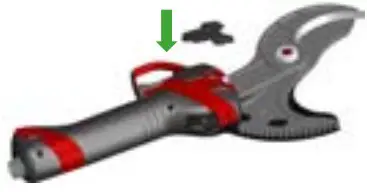

L. Place the hook screw protection cover (921CR).

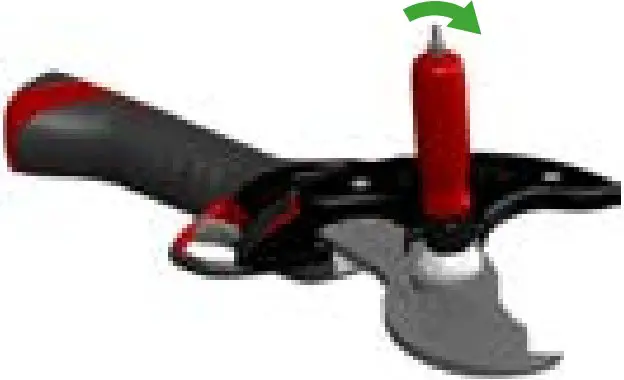

M. Loosen the screw (V56TB).

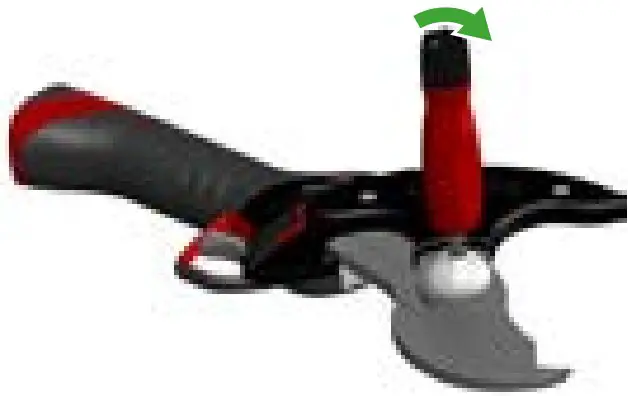

N. Unscrew the nut (910EM) by a quarter turn.
O. Using the grease gun (952P), grease the kit through the greasing cap (809B) until the grease appears between the blade and the nut (810E).
P. Re-tighten the nut (810E).
Q. Lock the screw (V56TB).
To start the tool, please refer to page 7 of the user manual, “Powering on”. If necessary, refer to page 16 “Adjustable blade opening / overlap”, of the user manual for adjustable blade opening or overlap.
Be careful not to lose any parts.
