SETUP RACK
GEWA G3

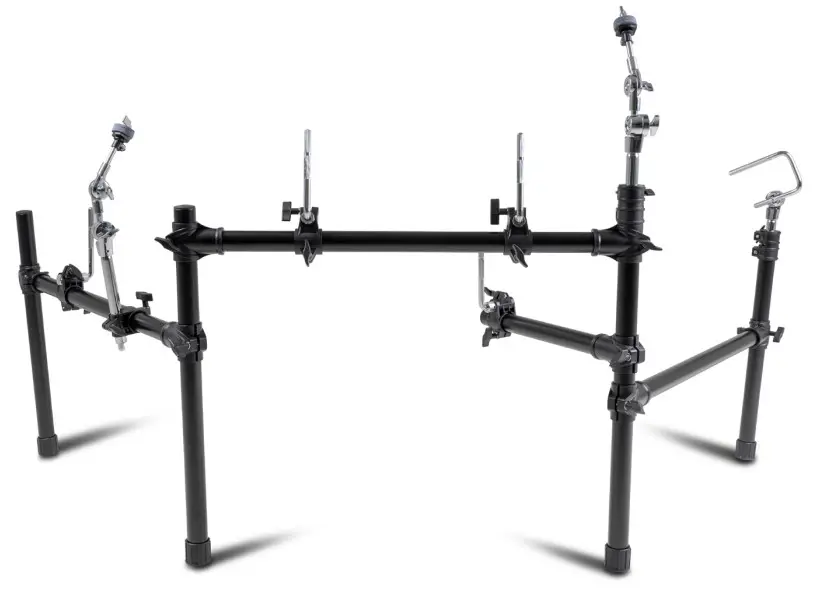

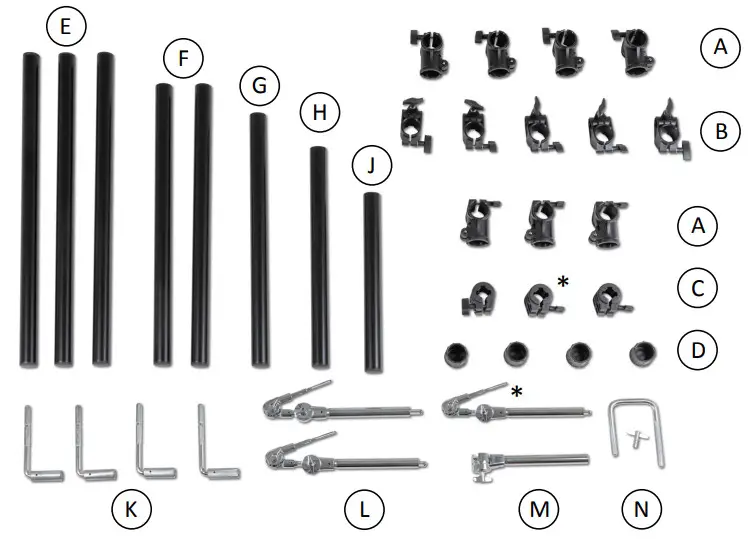

G3 PARTS
| LETTER | DESCRIPTION | QUANTITY |
| A | Connector | 7 |
| B | Clamps / L-Rod & Cymbal Arm Holder | 5 |
| C | Clamps / Cymbal Arm & Module Holder | 2 (+1*) |
| D | Caps / Feet | 4 |
| E | Horizontal Bars | 3 |
| F | Vertical Bars (Front) | 2 |
| G | Vertical Bars (Left) | 1 |
| H | Vertical Bars (Right) / Module Holder | 1 |
| J | Horizontal Bar / Snare Drum Pad | 1 |
| K | L-Rod (pad mounting) | 4 |
| L | Cymbal Boom Arm | 2 (+1*) |

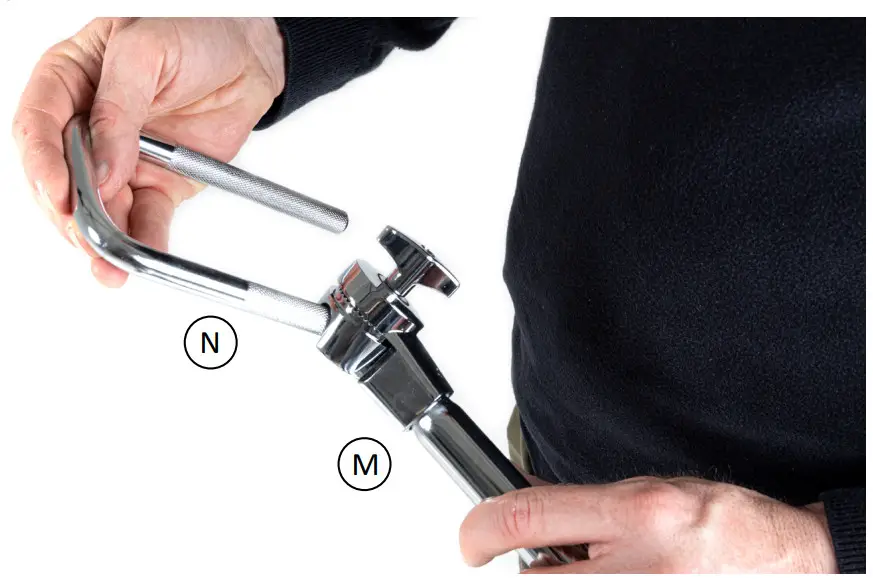

| M | Module Holder Part 1 | 1 |
| N | Module Holder Part 2 | 1 |
| * SPARE PART |
G3 Electronic Hi-Hat Cymbals User Guide
STEP BY STEP

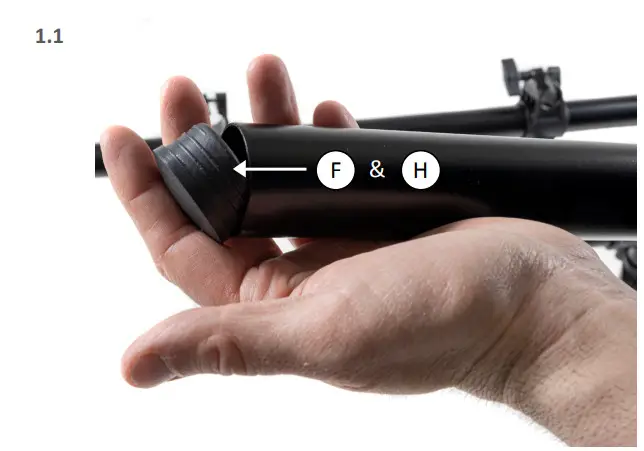

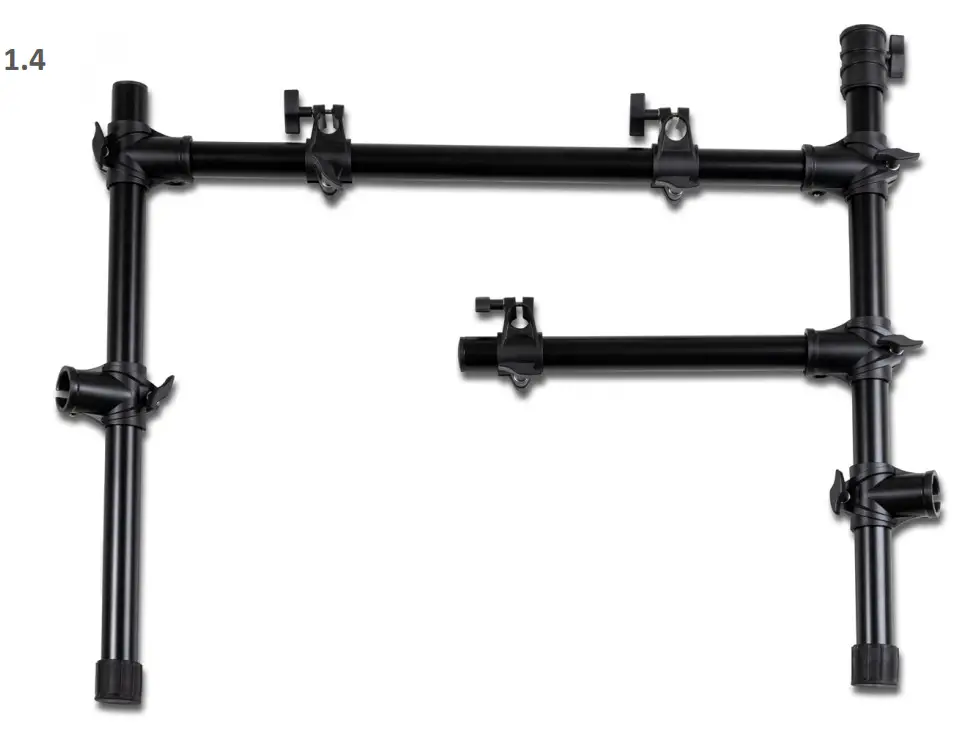

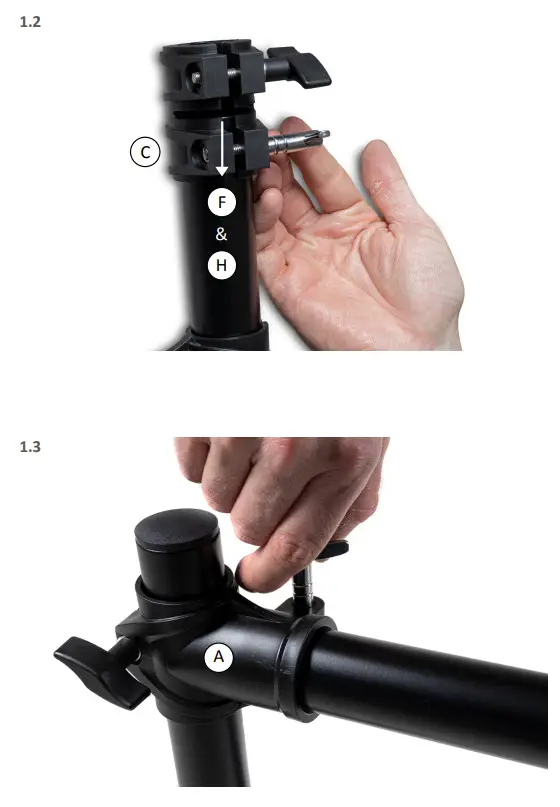

STEP 1 / FRONT
HELPFUL DETAILS
STEP BY STEP

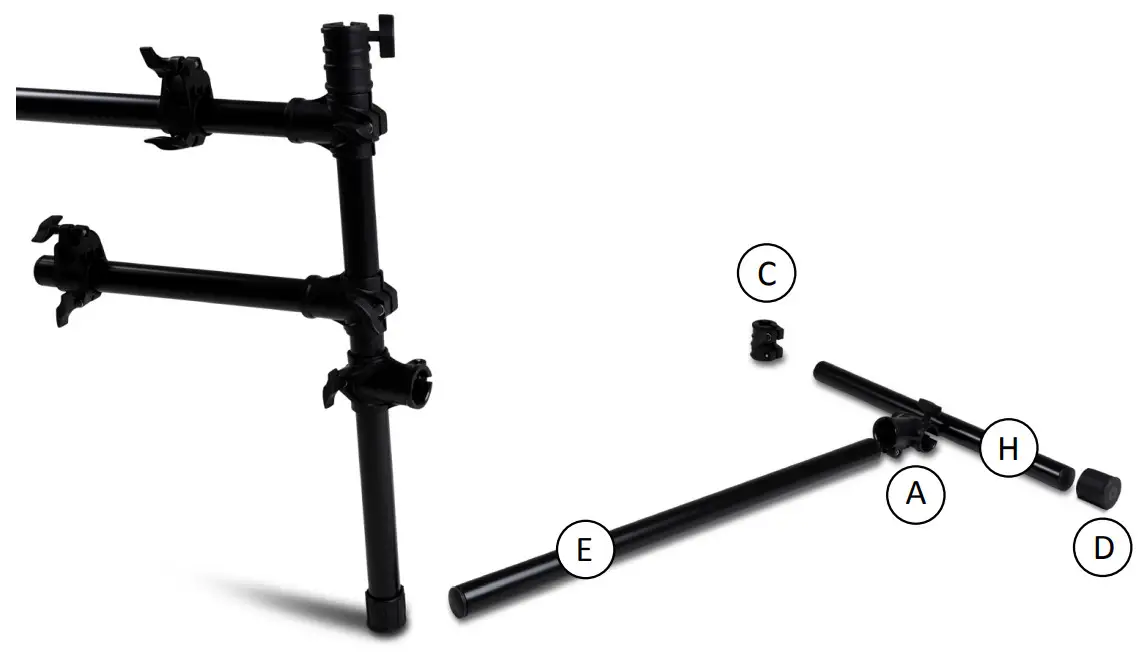

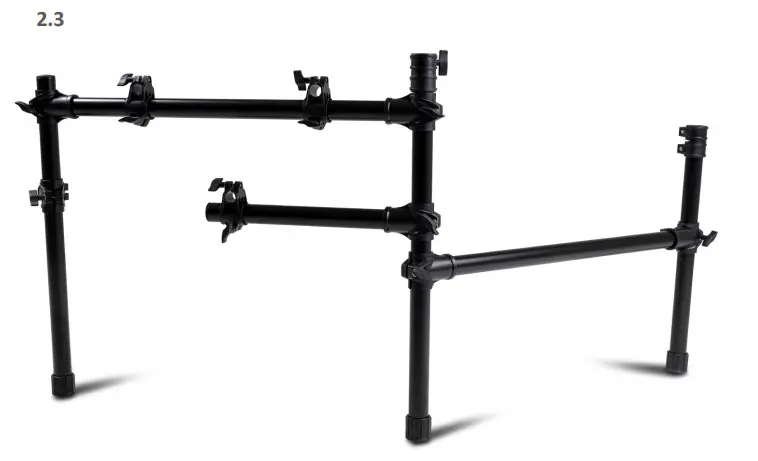

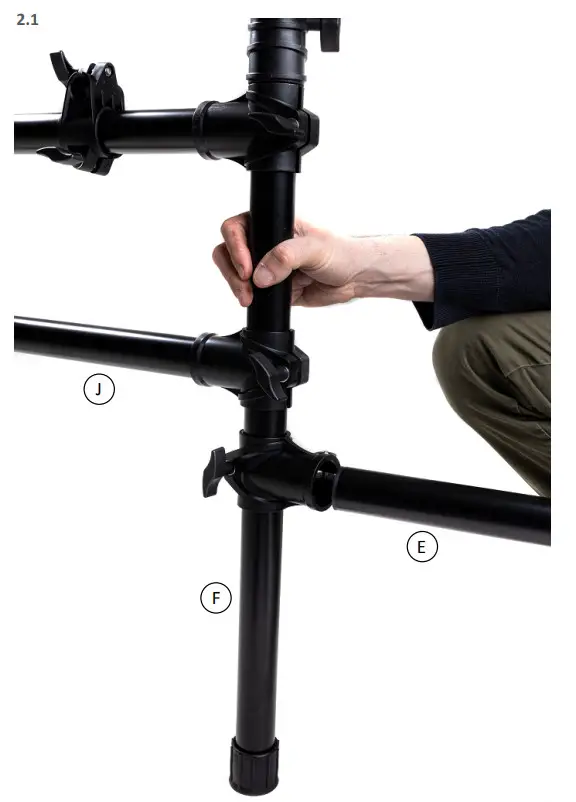

STEP 2 / RIGHT
HELPFUL DETAILS
STEP BY STEP

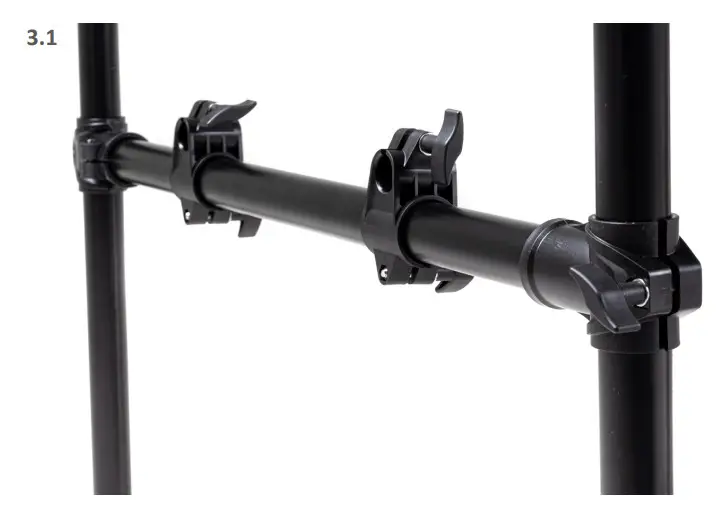

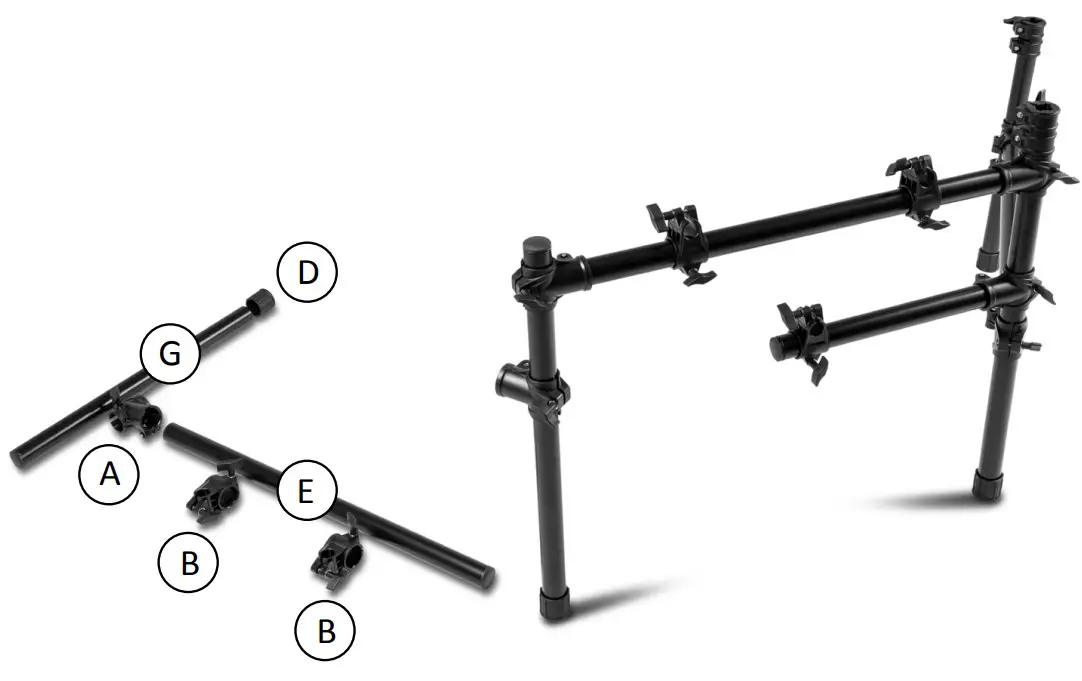

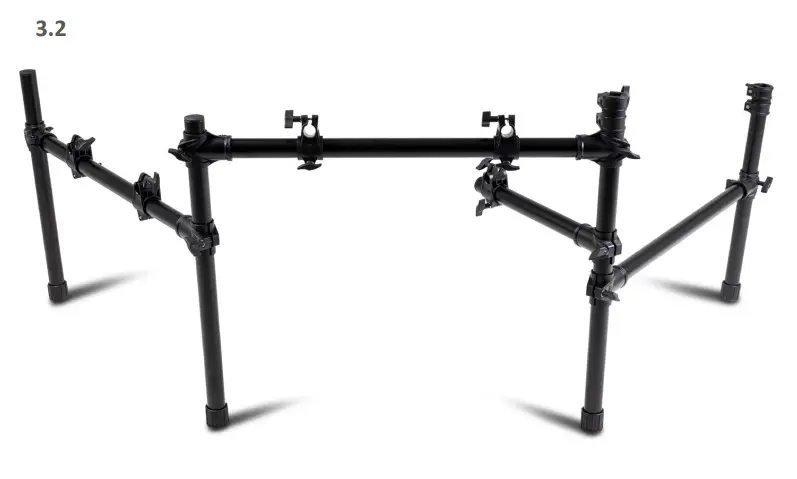

STEP 3 / LEFT
HELPFUL DETAILS
STEP BY STEP
STEP 4 / MODULE HOLDER
HELPFUL DETAILS
STEP BY STEP

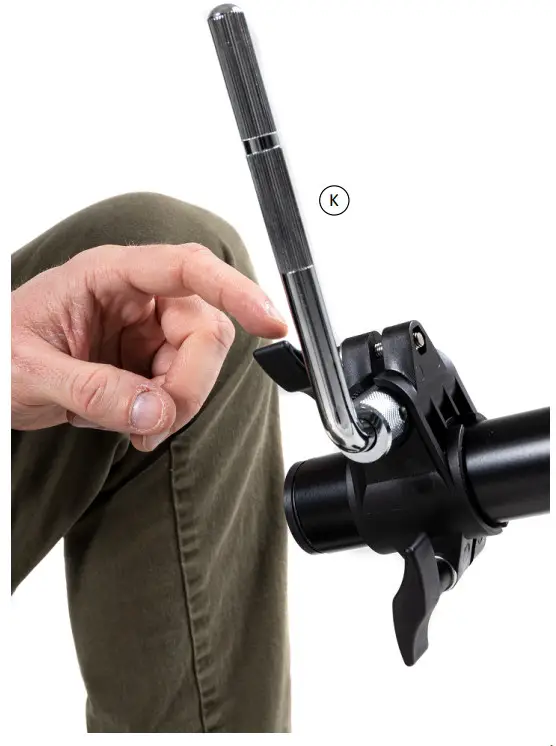

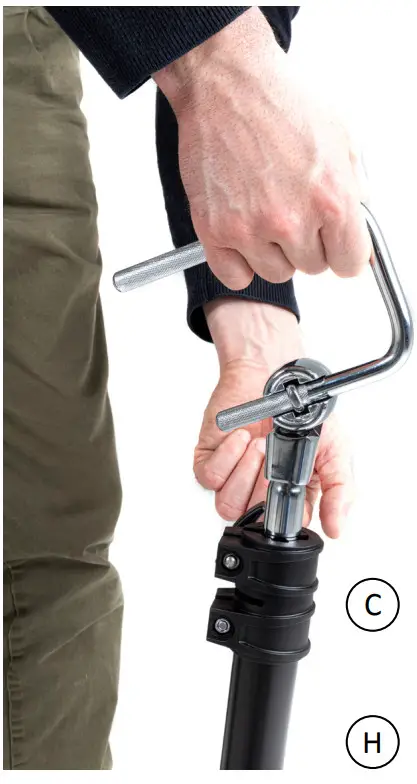

STEP5/L-ROD(4x)
STEP BY STEP

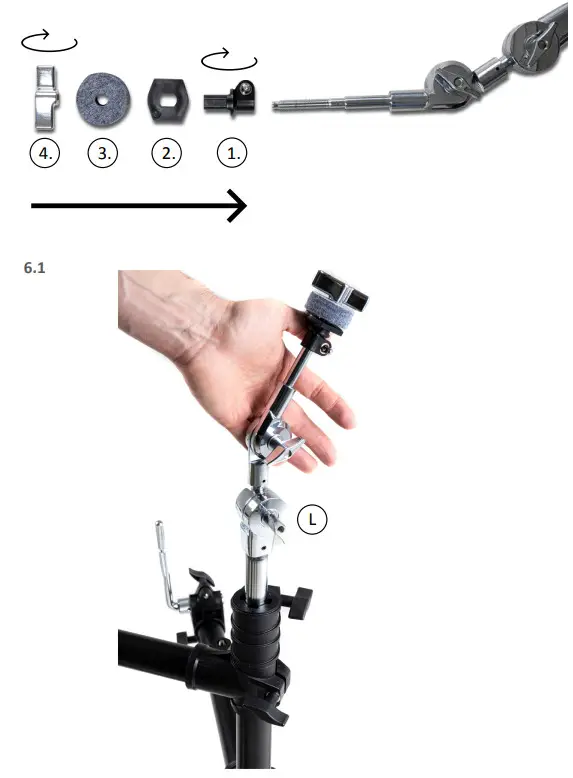

STEP6/CYMBALBOOMARM(2x)
Manufacturer:
GEWA music GmbH
Oelsnitzer Str. 58
08626 Adorf
GERMANY
www.gewadrums.com
Version 1.0
changes and errors excepted
GEWA Drums - english
