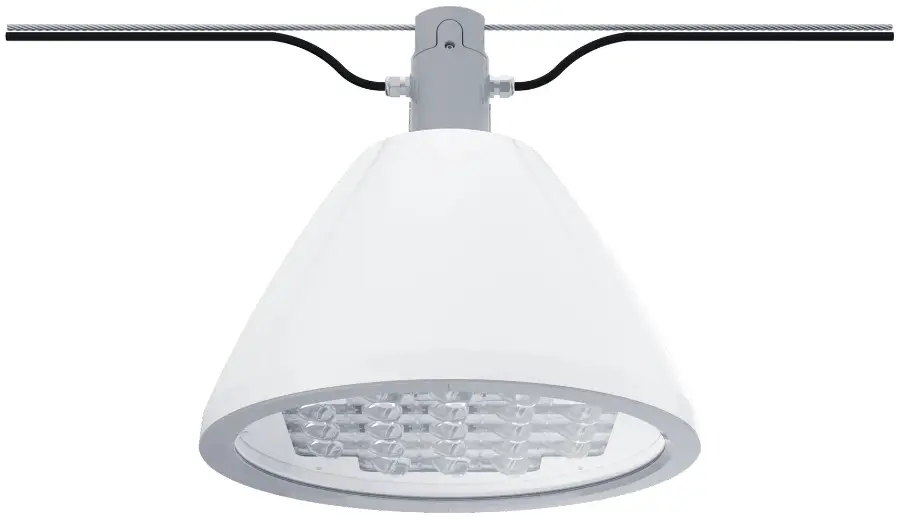

FAGERHULT SE-566 80 Habo Opalume Catenary Suspended Luminaire Instruction Manual
Opalume Catenary
Opalume Ø400
- Max weight 7,7 kg
- Max projected area
- From below 0,186 m²
- From the side 0,089 m²
Opalume Ø500
- Max weight 14,9 kg
- Max projected area
- From below 0,351 m²
- From the side 0,139 m²

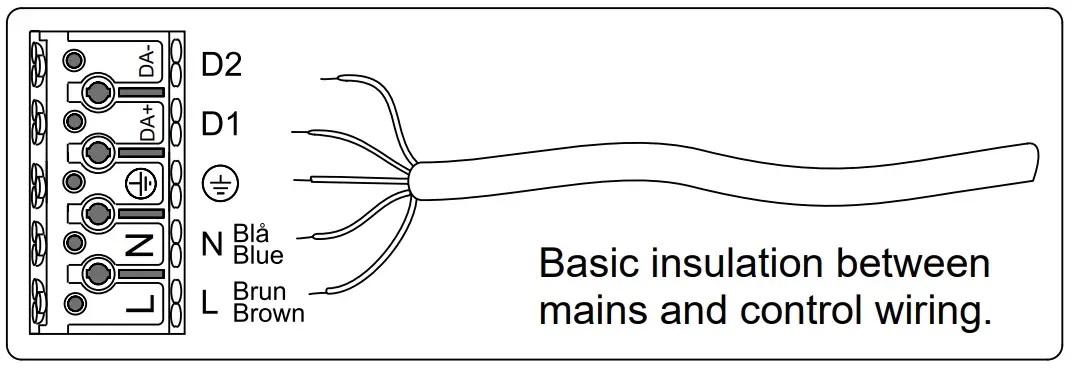

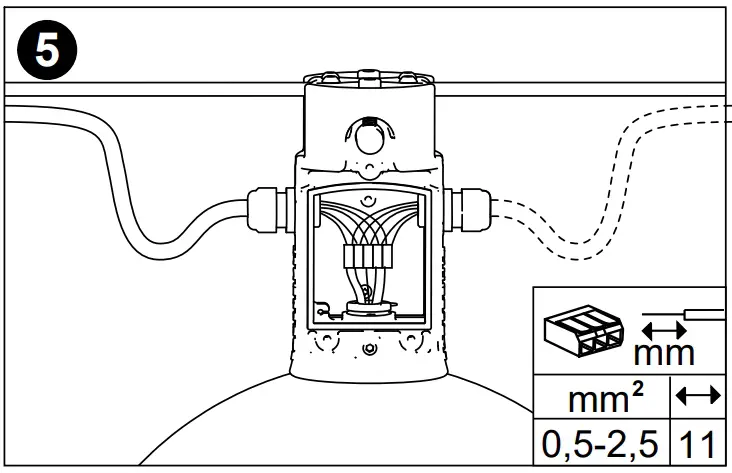

 | Class I | Class II |
| On/Off | L N  | L N |
| DALI | L N DA DA | L N DA DA |
Basic insulation between mains and control wiring.
It is appropriate that this information is passed on to the users of the installation.

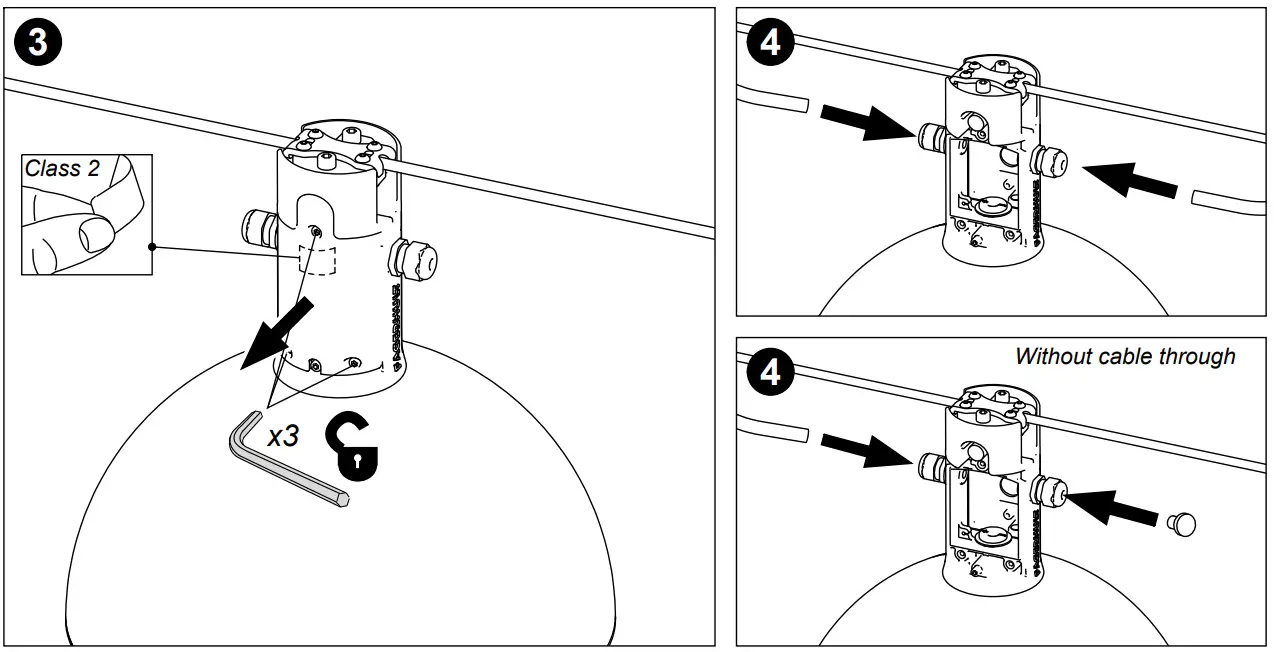

Important to place the plastic lid back after installation on Class 2 luminaire
Class II
If the cord of this luminaire is damaged, it shall exclusively be replaced by the manufacturer, or by the manufacturer designated person.
The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 1 m is not expected.
The light source shall only be replaced by the manufacturer or his designated person.

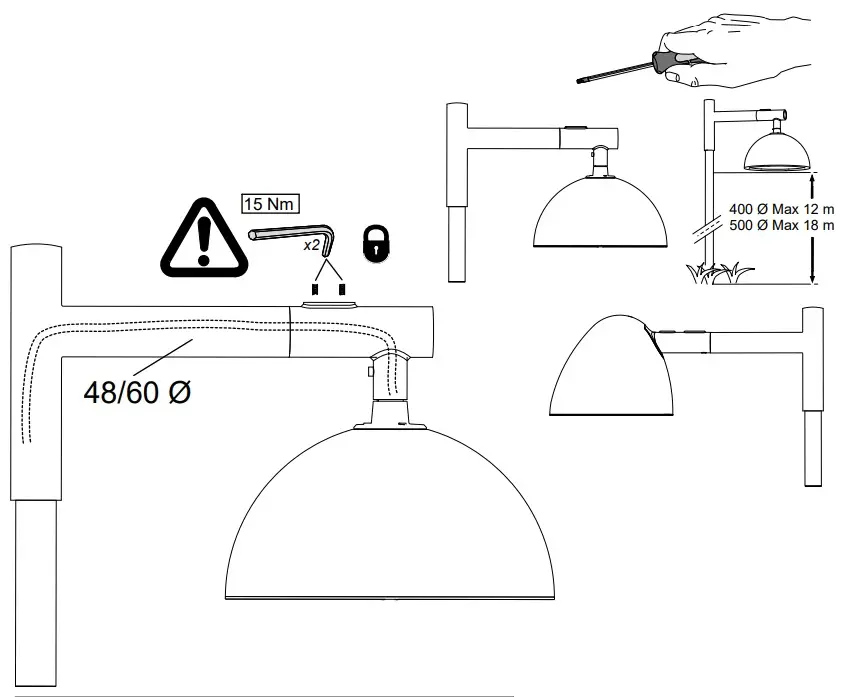

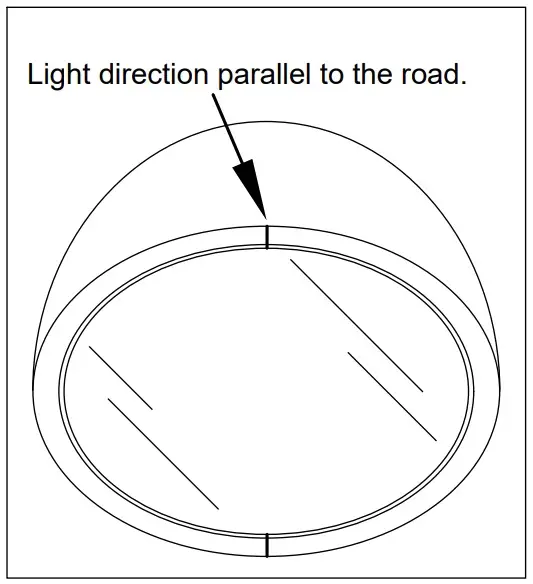

Opalume Pole
It is appropriate that this information is passed on to the users of the installation.
Class II
If the cord of this luminaire is damaged, it shall exclusively be replaced by the manufacturer, or by the manufacturer designated person.
- Opalume Ø400
- Max weight 10,3 kg
Max projected area
- From below 0,186 m²
- From the side 0,089 m²
- Opalume Ø500
- Max weight 19,9 kg
Max projected area
- From below 0,351 m²
- From the side 0,139 m²
The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 1 m is not expected.
The light source shall only be replaced by the manufacturer or his designated person.
