onnline 4316400 Onnbasic II Industrial Luminaire
This product contains light source which has energy efficiency class A++.

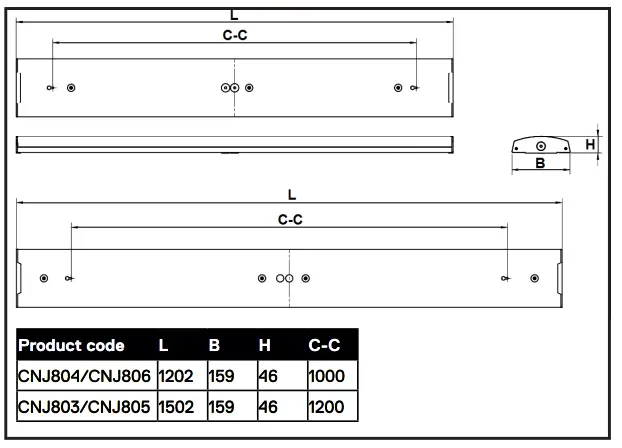

DIMENSIONS

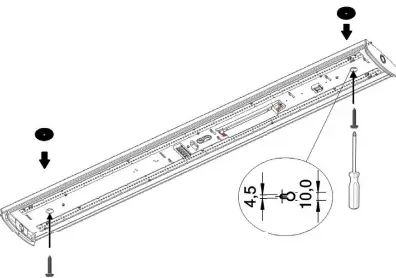

INSTALLATION
Disconnect luminaire before in-stallation, change of driver setting and change of sensor settings.
ATTENTION!
Observe precautions for handling electrostatic discharge sensitive devices.
Screws not included!

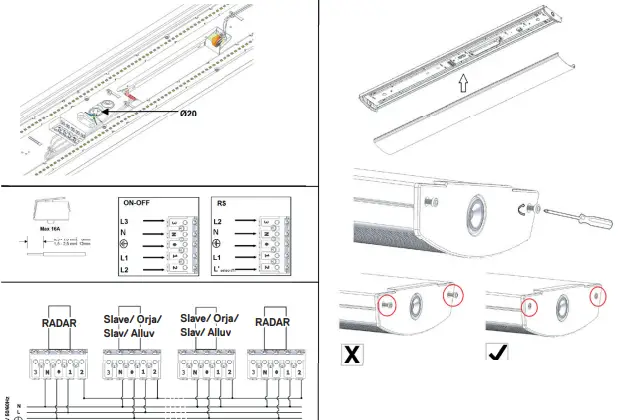

Waring diagram for MASTER and SLAV for RAD version
Put the cover back to the frame. Lock the cover with Serews on both gables.

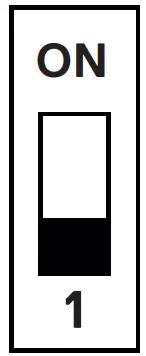

| Power selection/ Tehon valinta/ Effektval/ Võimsuse valimine (Default setting/ Oletusasetus/ Standardinställning/ Vaikeseade = ON) | |||
| Product | PIN | Effect/ Teho/ Effekt/ Võimsus | Luminous flux/ Valovirta / Ljusflöde/ Valgusvoog |
| CNJ804 / CNJ806 | ON | 36W | 4200 lm |
| 1 | 28W | 3400 lm | |
| CNJ803 / CNJ805 | ON | 44W | 5400 lm |
| 1 | 35W | 4300 lm | |
SERVICE
Clean the surface of the luminaire with a soft cloth.

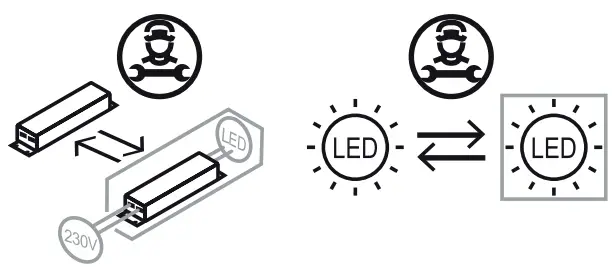

Light source and converter shall only be replaced by manufacturer or qualified person.
RECYCLING

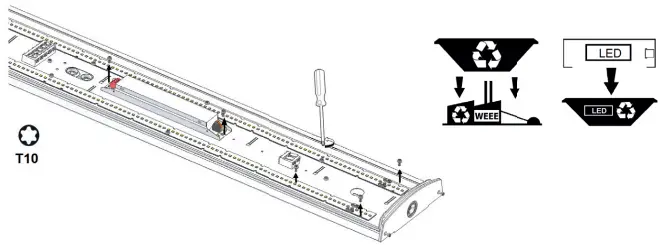

Disassemble LED-PCB, converter, other electronics and remaining components from the frame. Sorting before recycling.
