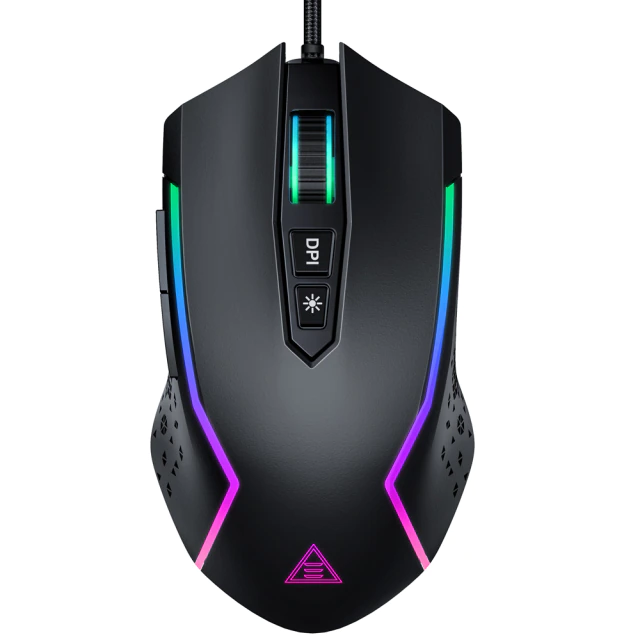

EKSA EM100 RGB Gaming Mouse

• Model：EM100
• Weight: 125g (including wire)

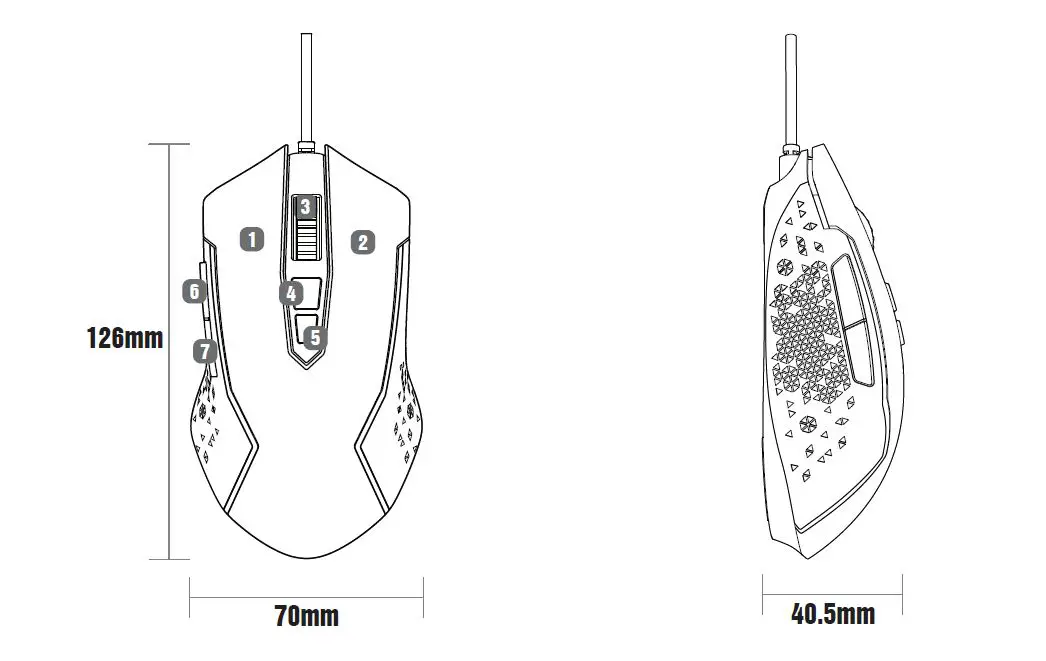

• Dimensions: 126mm * 70mm * 40.5mm
• Programmable buttons：7 buttons
• Cable: 1.5M wire; Diameter 3.0MM
• Interface: USB
• Cable color: Black
• Foot pad: UPE
• Resolution: 800-8000 DPI Standard: 1600 DPI
• Working voltage/current: 5V—80mA
• Compatibility： Win 7/Win 8/Win 10/Windows VISTA /Windows XP/Mac RGB mode: 6 kinds of RGB light Effect mode

Button Functions

• Left button
• Right button
• Mid button
• DPI button
• RGB adjustable button
• Forward
• Backward

There is 6 level DPI for setting at random.

• green 800dpi
• purple 1600dpi
• blue  2400dpi
• red  3200dpi
• cyan 4800dpi
• yellow 8000dpi
• RGB Lighting Modes

Click the RGB adjustable button to switch between 6 light modes circularly.
