Technical Data
8RJ11-1 Data Outlets
Owner’s Manual
8RJ11-1 Data Outlets
Brief product description:
The subtle design will blend with any décor – suitable for domestic or commercial installations.
Features:
- White moulded round edge, sleek and slim with softly rounded edges
- Shuttered socket
- RJ45 with IDC terminals
- Cat 6 outlet supports data transfer speeds of up to 10Gbps at 250MHz up to 164 feet
- Screw cover caps for a sleek appearance
- Anti-microbial certified – manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria

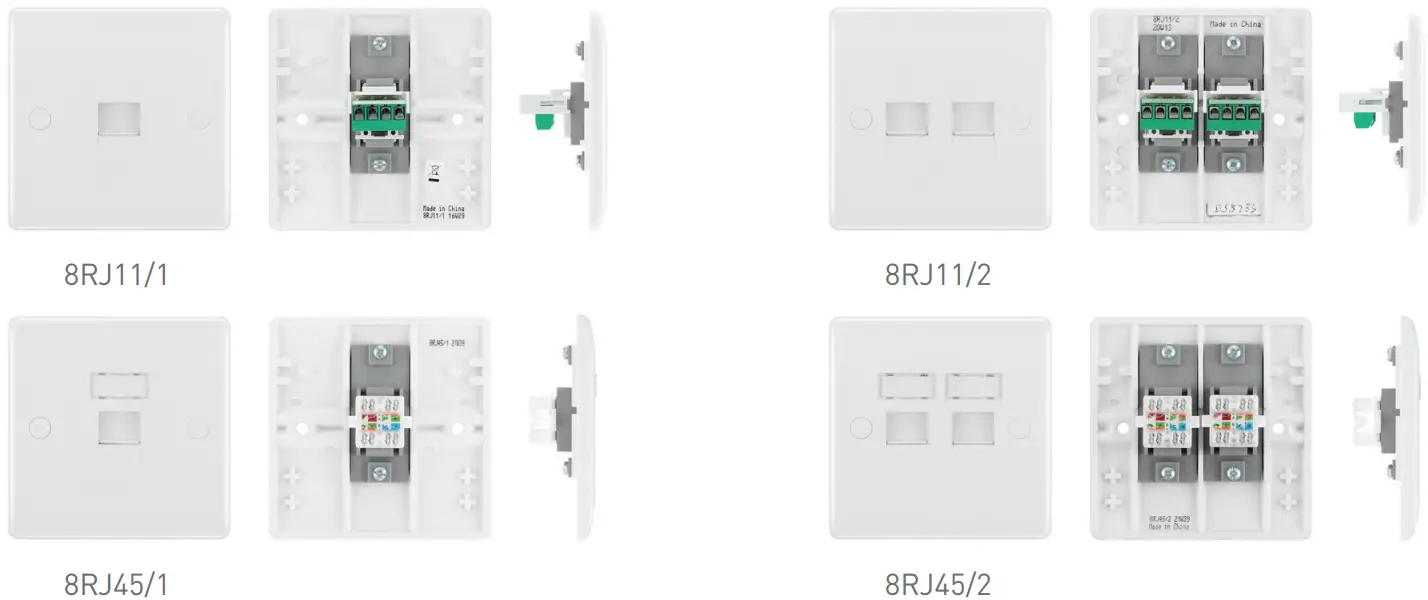

Product Images
Technical Specifications
| Standard(s) | BS 6312-2 |
| Terminal Type | Screwed (8RJ11/1, 8RJ11/2 products) |
| IDC (8RJ45/1, 8RJ45/2 products) | |
| RJ45 Type | Cat 6 |
| Data Transfer Speed | up to 10Gbps at 250MHz up to 164 feet |
| RoHS Directive | Yes |
| WEEE Directive | Yes |
| Mounting Box Depth (Min) | 35mm |
| Fixing Centres | 60.3mm |

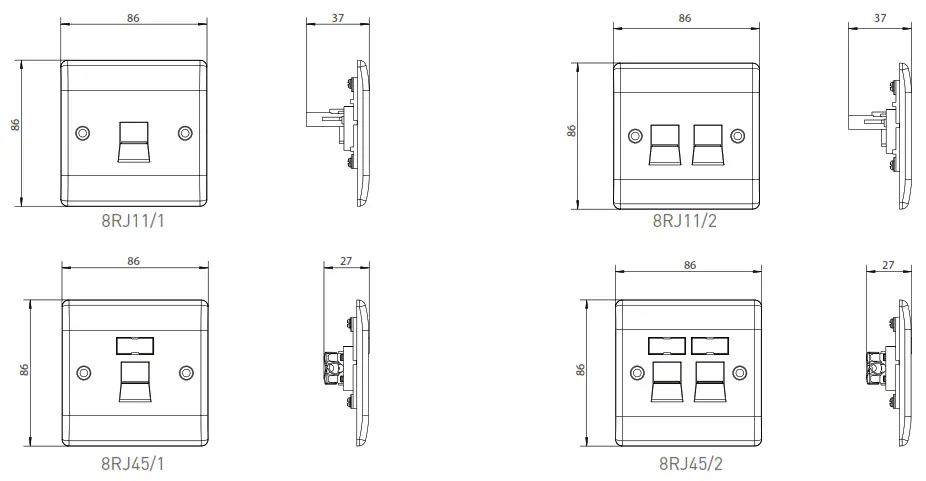

Line Diagrams
Packaging Information
| Cat No. | Description | Packaging Type | Pack Quantity | Barcode | ||||||
| Product | Inner Box | Outer Box | Each | Inner Box | Outer Box | Individual | Inner Box | Outer Box | ||
| 8RJ11/1 | 1G TEL SKT (SCREW) | Printed Bag | Printed Carton | Printed Carton | 1 | 10 | 100 | 5050765002479 | 5050765002486 | 5050765002493 |
| 8RJ11/2 | 2G TEL SKT (SCREW) | Printed Bag | Printed Carton | Printed Carton | 1 | 10 | 100 | 5050765002509 | 5050765002516 | 5050765002523 |
| 8RJ45/1 | 1G RJ45 SKT (IDC) | Printed Bag | Printed Carton | Printed Carton | 1 | 10 | 100 | 5050765002530 | 5050765002547 | 5050765002554 |
| 8RJ45/2 | 2G RJ45 SKT (IDC) | Printed Bag | Printed Carton | Printed Carton | 1 | 10 | 100 | 5050765002561 | 5050765002578 | 5050765002585 |
Weights & Dimensions
| Cat No. | Description | Dimensions (H x W x D) cm | Weight (kg) | CBM (m3) | ||||||
| Unpacked Product | Packed Product | Inner Box | Outer Box | Unpacked Product | Packed Product | Inner Box | Outer Box | Outer Box | ||
| 8RJ11/1 | 1G TEL SKT (SCREW) | 8.6 x 8.6 x 3.7 | 19.2 x 12.8 x 3.9 | 9.5 x 18.7 x 16.7 | 20.6 x 48.5 x 35.2 | 0.078 | 0.082 | 0.72 | 7.61 | 0.03517 |
| 8RJ11/2 | 2G TEL SKT (SCREW) | 8.6 x 8.6 x 3.7 | 19.2 x 12.8 x 3.9 | 9.5 x 18.7 x 16.7 | 20.6 x 48.5 x 35.2 | 0.078 | 0.082 | 0.87 | 9.11 | 0.03517 |
| 8RJ45/1 | 1G RJ45 SKT (IDC) | 8.6 x 8.6 x 2.7 | 17.0 x 12.0 x 2.9 | 9.5 x 14.7 x 18.2 | 20.1 x 30.3 x 49.8 | 0.057 | 0.059 | 0.65 | 6.90 | 0.03033 |
| 8RJ45/2 | 2G RJ45 SKT (IDC) | 8.6 x 8.6 x 2.7 | 17.0 x 12.0 x 2.9 | 9.5 x 14.7 x 18.2 | 20.1 x 30.3 x 49.8 | 0.057 | 0.059 | 0.81 | 8.54 | 0.03033 |
