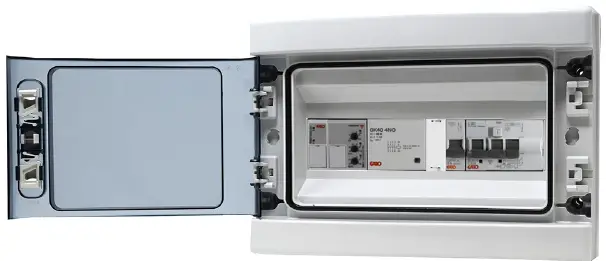

GARO GC12EV40PMEDLMB Domestic Consumer Units
Technical data
| Rated current | 40A |
| Rated voltage | 230 V AC |
| Frequency | 50/60 Hz |
| Rated Conditional Short Circuit (Icc) | Annex ZB: 16kA rms at 250V |
| Main Device | 40A RCBO Type B |
| Additional Devices | PME Fault detection & D L M |
| Operation | 207V – 253V (4 seconds) |
| Degree of protection | IP65 |
| Total number of ways | 12 |
| Total Number of free ways | 1 |

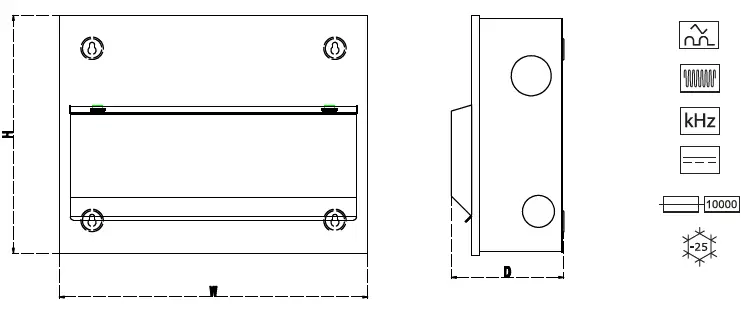

| Height..mm (H) | 246 |
| Width..mm (W) | 310 |
| Depth..mm (D) | 148 |
| Ambient temperature (C) | -25…..+55 |
| Storage temperature (C) | -35…..+55 |
| Terminals | 25mm |
| Material | ABS |
| Standard | EN 61439-3 |
| Compliance with BS 7671 | |
| Warranty (Mechanical Components) | 5 Years |
| Warranty (Electronic Components) | 2 Years |
| Load Management Current | 10 – 110 Amps |

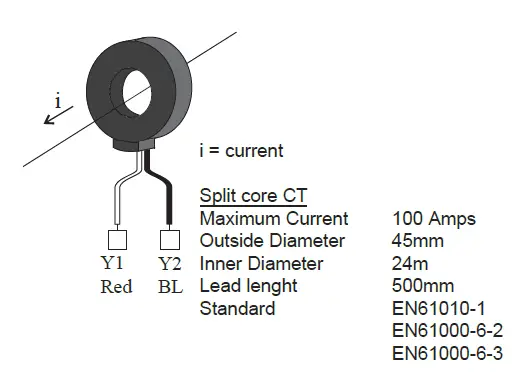

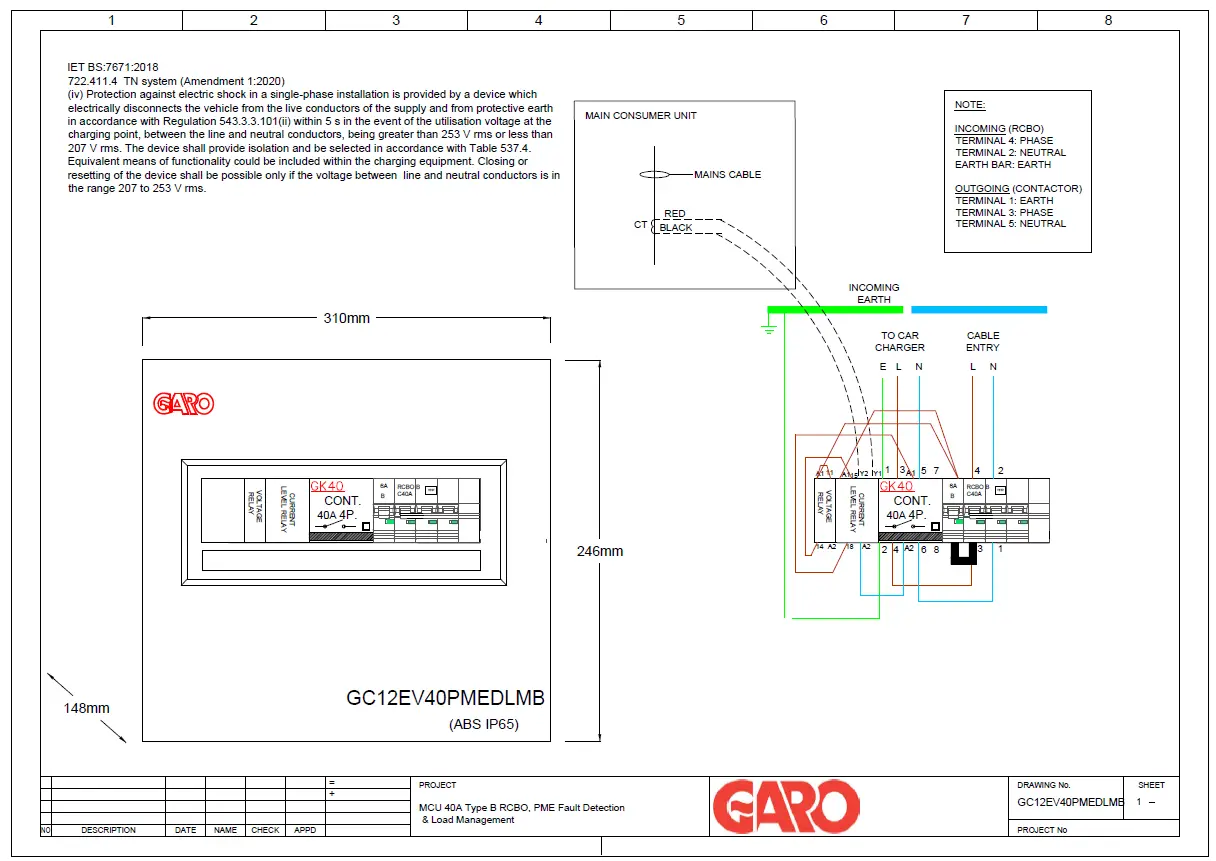

For EV chargers without DC leakage protection & PME fault detection
Relay settings
- Voltage relay: 1 OFF, 2 OFF, 3 ON, 4 OFF.
- Current Relay: 1 OFF, 2 ON, 3 OFF, 4 ON, 5 ON, 6 ON.
- HYS 0
- LEVEL Set to Max current Level 10 -100 Amps
- DELAY 30secs
Declaration of conformity
- Supplier established within EU
- Supplier of equipment
- Trade Mark
- Type Designation
We hereby declare that our product fulfils the requirements of following EC directives
- The Low Voltage Directive (LVD) 2014/35/EU
- Electromagnetic compatibility (EMC) 2004/108/EU
- RoHS Directive (RoHS) 2011/65/EU
No electromagnetic compatibility (EMC) immunity or emission tests are required on the assembly
The following harmonized standards (latest edition) or technical specifications which comply with good engineering practice in safety matters in force within the EU have been used in the design: The equipment conforms completely with the above stated harmonized standards or technical specifications. The equipment confirms only partially with the above-stated harmonized standards or technical specifications but complies with good practice in safety matters in force within the EU. We have product surveillance according to CENELEC’s harmonized requirements, and documents CCA-201.
Supplier/Tillverkare
GAROAB Box 203 S-335 25GNOSJO Sweden
- Telephone: +46 (0)370 33 28 00
- Telefax: +46 (0)370 33 28 50
