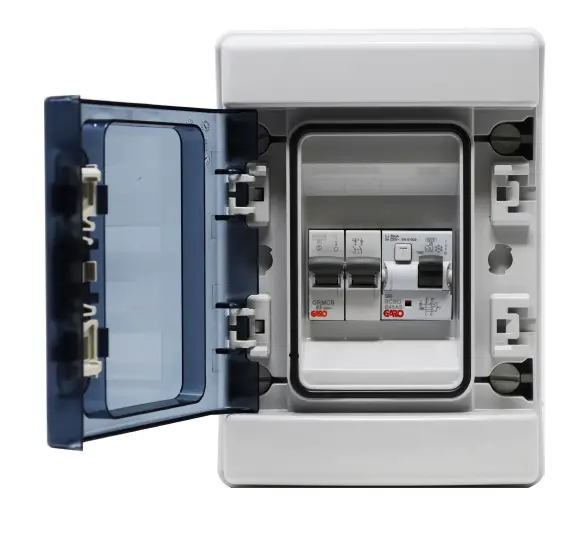

GARO GC4EV40 Domestic Consumer Units
OVERVIEW
Technical data GC4EV40
| Rated current | 63A |
| Rated voltage | 230 V AC |
| Frequency | 50/60 Hz |
| Rated Conditional Short Circuit (Icc) | 10KA |
| Main Device | 63A DP MCB 10KA |
| Additional Devices | 40A RCBO |
| Operation | N/A |
| Degree of protection | IP65 |
| Total number of ways | 4 |
| Total Number of free ways | 0 |

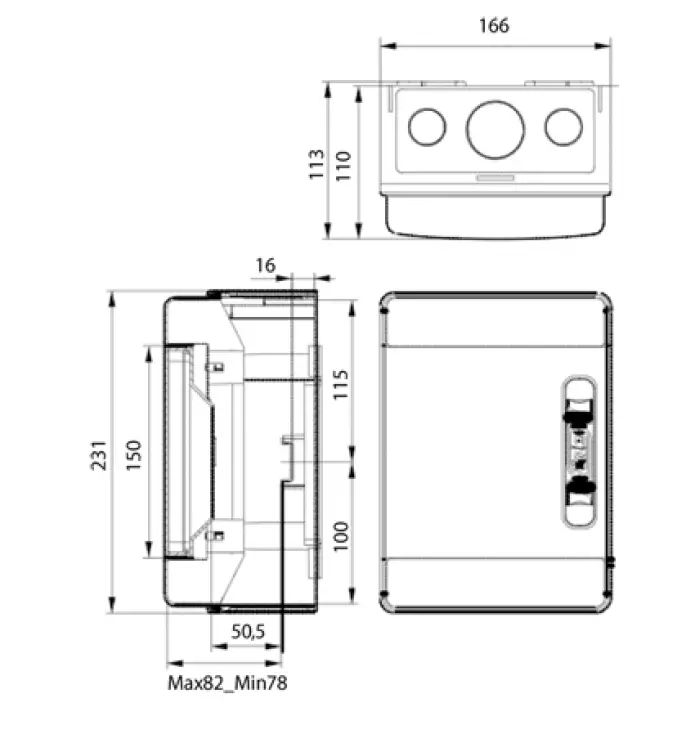

| Height..mm (H) | 231 |
| Width..mm (W) | 166 |
| Depth..mm (D) | 113 |
| Ambient temperature (C) | -25…..+55 |
| Storage temperature (C) | -35…..+55 |
| Terminals | 25mm |
| Material | ABS |
| Standard | EN 61439-3 |
| Warranty (Mechanical Components) | 5 Years |
| Warranty (Electronic Components) | 2 Years |
- Degree of Protection: IP65
- Resistance to Impact: IK08
- Auto-extinguishing degree: HB (UL94)
- Test of resistance to glow wire: 650° C
- Ball Pressure Test: 70° C
- Range of temperature
under normal conditions: -25°C – +40°C - Halogen-free materials
ABS and polycarbonate
| document Declaration of conformity | edition date
2018-06-14 | |
| department Quality | ||
| prepared Magnus Arvidsson | Version 3 | Sida/page 1 av/of 1 |
- Supplier
GARO AB Box 203 S-335 25 GNOSJO Sweden - Telephone:
+ 46 (0)370 33 28 00 - Telefax:
+ 46 (0)370 33 28 50
Supplier established within EU
Supplier of equipment
Trade Mark: GARO
Type Designation : G, GS, GC, 4, 6, 8, 10, 12, 14,16,18, 21, 28, 32, EV, S, R, C, PME.
We hereby declare that our product fulfills the requirements of following EC directives
The Low Voltage Directive (LVD) 2014/35/EU
Electromagnetic compatibility (EMC) 2004/108/EU
RoHS Directive (RoHS) 2011/65/EU
No electromagnetic compatibility (EMC) immunity or emission tests are required on the assembly
The following harmonized standards (latest edition) or technical specifications which comply with good engineering practice in safety matters in force within the EU have been used in the design
The equipment conforms completely with the above-stated harmonized standards or technical specifications.
Or
The equipment confirms only partially with the above stated harmonized standards or technical specifications but complies with good practice in safety matters in force within the EU
We have product surveillance according to CENELEC’s harmonized requirements, and documents CCA-201.
Garo AB Company
Date 2018-06-14
Sign
Environmental- and Quality Manager
Position
Magnus
Name
