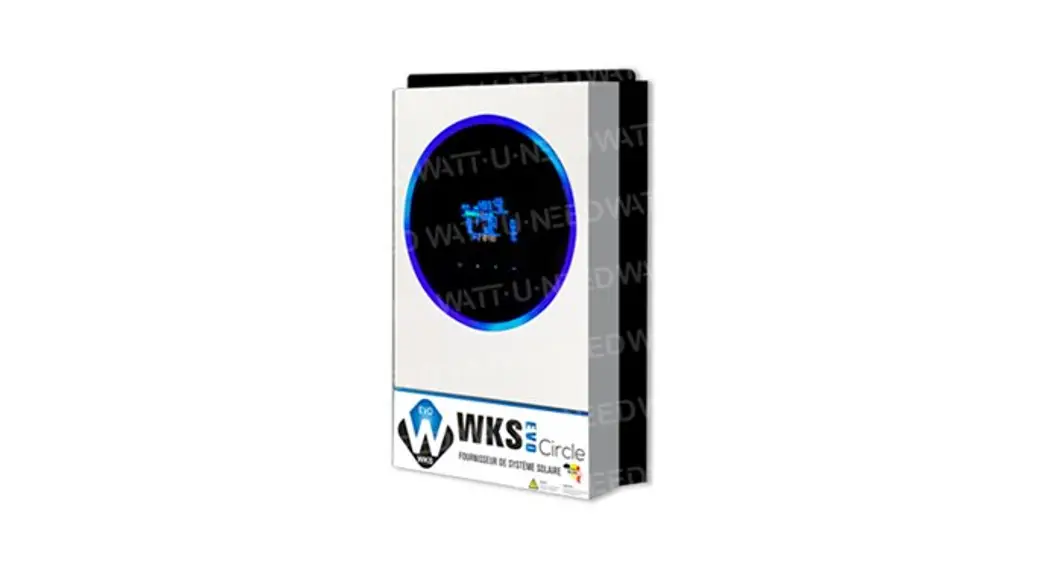

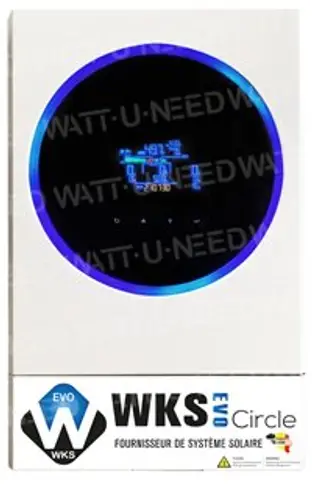

WKS-EVO-Circle-5 Self-consumption kit 8 5.6 kVa panels with storage
Installation Guide
WKS-EVO-Circle-5 Self-consumption kit 8 5.6 kVa panels with storage
- Pure sine wave MPPT solar invert
- Customizable status LED ring with RGB ligths
- Touchable button with 4.3″ colored LCD
- Wide DC input range
- Data log events stored in the inverter
- Built-in Wi-Fi for mobile monitoring (App is available)
- Reserved communication port for BMS
- Battery independent function
- Parallel operation with up to 9 units

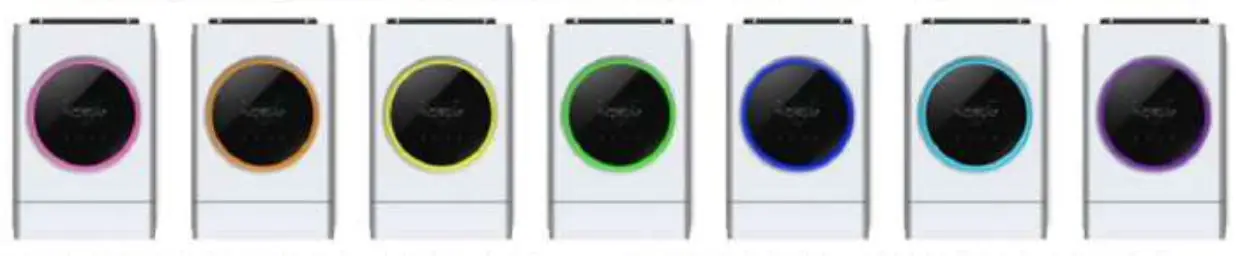

User-programmable RGB lighting for different operation mode
Three lighting effects
Cycling
Quickly scrolling with a color of your choice in a continuous circular motion
Wheel
Illuminaes with twinkling lights in a color of your choice
Chasing
Radiates your selected color upward from the bottom of the ring
| MODEL | |
| Power rating | 5600VA/5600W |
| INPUT | |
| AC input voltage | 170-280 VAC |
| Selectable voltage range | 90-280 VAC |
| Frequency range | 50Hz/60Hz |
| OUTPUT | |
| AC voltage regulation (Batt. mode) | 230 VAC +/- 5 |
| Overload capability | 5s@>/=150% de charge;10s@110%~150% de charge ; 100ms @ >/=200% |
| Efficiency (peak) | 93% |
| Transfer time | 10 ms ; 20 ms |
| Waveform | Onde |
| BATTERY | |
| Battery voltage | 48 VDC |
| Floating charge voltage | 54 VDC |
| Overcharge protection | 66 VDC |
| SOLAR CHARGER AND AC CHARGER | |
| Type of solar charger | MPPT |
| Maximum power of the PV generator | 6000W |
| MPPT range at operating voltage | 120~430VDC |
| Maximum PV open circuit voltage | 450VDC |
| Maximum solar charging current | 120A |
| Maximum AC charging cuRRENT | 120A |
| PHYSICS | |
| Dimension, D x W x H (mm) | 140x295x468 |
| Net weight (kgs) | 11.0 12.0 |
| Communication interface | USB/RS232/RS485/Wifi/Contact sec |
| OPERATING ENVIRONMENT | |
| Humidity | 5 % à 95 %a |
| Operating temperature | De -10°C à 50°C |
| Storage temperature | De -15°C à 60°C |
