USER GUIDE
ROCKMAN Solar 120W
OUTPUT:120W/18V
- Congratulations on purchasing your ticket to energy freedom.
- Tap into the sun’s radiance and power your devices anywhere.
- This product is designed to the highest technical specifications and standards.
- It will supply years of maintenance-free energy. Please read these instructions thoroughly prior to use, then store them in a state place for future reference.
Warranty
The product is covered by a limited warranty from Paxcess for the original materials for 24 months from the date of purchase ( damages from normal wear and tear. alteration, misuse. neglect. aCcident, service by anyone other than authorized service center, or act of God are not included).
During the warranty period and upon verification of defects. this product will be replaced when returned with proper proof of purchase.
FAQ & SolutionsFAQ & Solutions
Q: What kind of battery can be charged by these solar modules?
- Paxcess/Rockpals/Jackery/Goalzero power station series
Q: How to clean the solar surface?
Dust and dirt on the surface should first De removed using a soft brush. Use a damp cloth to wipe the surface of the solar module to remove any remaining dust or dirt. Any guano or other adhesive should be removed as soon as possible from the solar surface to avoid a reduction in performance.
Q: Are the foldable solar modules waterproof?
To Maximize the lifespan of the Modi._, Ie, it should not get wet.
Product Features
- Carefully selected solar cells for reliable performance.
- 23% High Conversion Efficiency enable Paxcess solar panel to produce electricity in a low-lux outdoor environment(>40000Lux).
- TIR-C Technolgy (Target Intelligent Recognition Chip)
- The pouch that holds the plates is made with quality polyester fabric hand-sewed together and comes with an extra compartment to store your cell phone.
- Prevent against reverse charging,
- IP Rating PX3
Technical Parameters
| Model | Rockman Solar 120PRO |
| Peak Power | 120W |
| Cell Efficiency | 23% |
| Power voltage | 18V |
| Power Current | 6.6A Max |
| QC3.0 | 24W Max |
| Type-C | 18W Max |
| Operating Temperature Range | -20 C (7)65 C |
Package Contents
l*Solar Panel
1* (4 In 1 Cable)
1* User Manual
1* Warranty Card
How to use

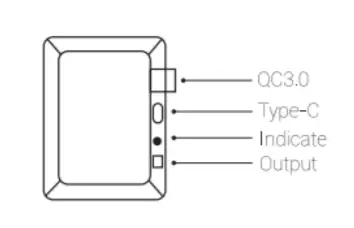

Dashboard

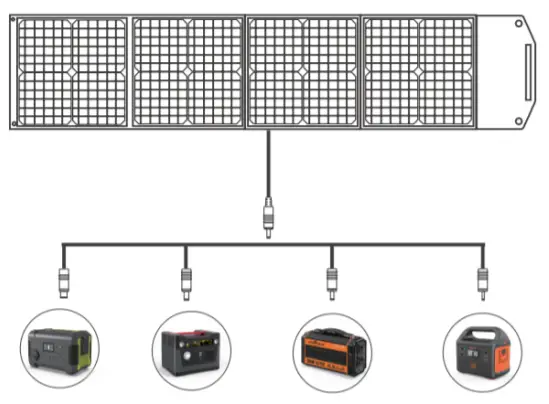

How to work

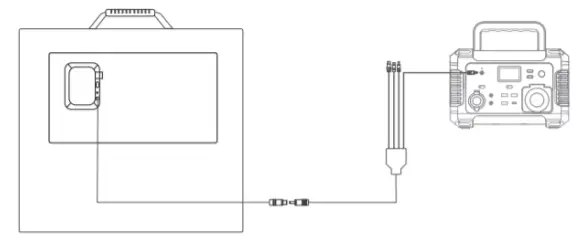

How to connect
Safety Tips
*Do not bend the solar panel(the angle is more than 30°) or the panel will be broken.
*Do not immerse the Solar Panel in water.
*Do not clean the solar panel with water, with the wet cloth gently scrub it.
*Do not use or store the Solar Panel near sources of heat such as a fire or heater.
*Do not put the Solar Panel into a fire or apply direct heat to it.
*Do not pierce the Solar Panel casing with a nail or other sharp object, break it open with a hammer, or step on it.
*Do not attempt to disassemble the Solar Panel in any way.
*This product cannot contact strong corrosive objects.
Contact US
 1-877-756-8666 |
|
@paxcess
Made China
