Portable Solar Panel
100W/18V
USER GUIDE
Technical Parameter
| Rated Power | 100W |
| Solar Cell | Monocrystalline |
| Maximum/Peak Voltage(Vmp) | 18V |
| Open Circuit Voltage(Voc) | 21.6V |
| Short circuit current(Isc) | 5.9A |
| Maximum current | 5.6A |
| Solar panel extension cable | 3 meters，5.5*2.1mm connector |
| Demension(Unfolded) | 94.5×62.5×3.0cm(37.2×24.6×1.2 inch) |
| Demension(Folded) | 46.5×62.5×5.7cm(18.3×24.6×2.2inch) |
Safety Tips
- Do not put the Solar Panel into fire or direct heat to it.
- Do not put the Solar Panel into water or used in the rain.
- Do not drop the Solar Panel from more than 1 meter,handle with care.
- Do not pierce the Solar Panel casing with a nail or other sharp object, break it open with a hammer, or step on it.
- This product cannot contact with strong corrosive objects.
What’s in box
Product Details

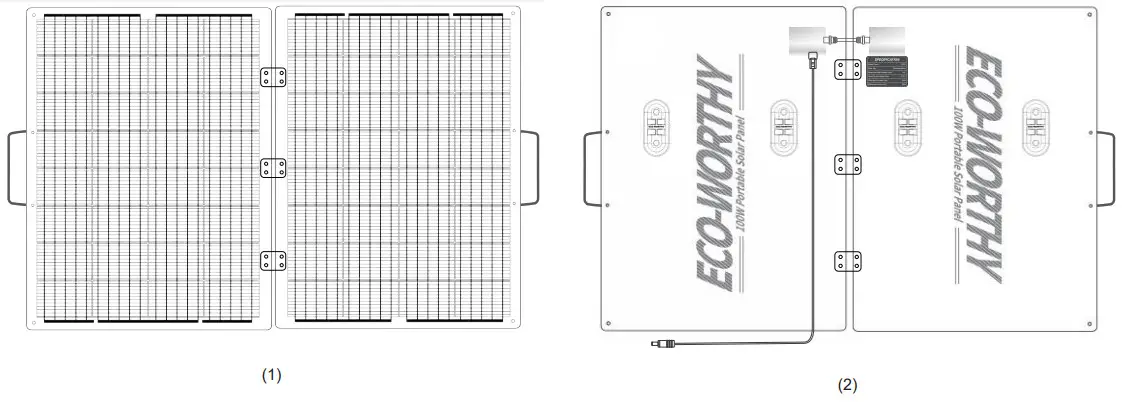

Solar panels

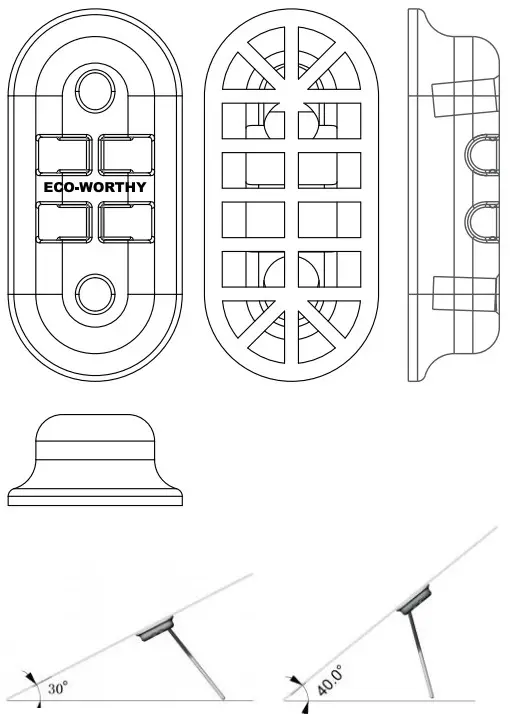

Built-in adjustable kickstand
BUILT-IN Adjustable Bracket, by changing the jack position on the back of the solar panel, the adjustment angle is 30 ° or 40 °, whether in the morning or afternoon, high latitude area, can provide you with the most suitable solar plate angle for solar charging.
When you don’t need kickstands, you can remove them and put it on the back of the panel.
Customer Service
1-year limited warranty
Lifetime technical support
[email protected]
1-866-939-8222
Frequently Asked Questions
– A:Goal Zero,Flashfish,Jackery,Marbero,Suaoki power station.
– A:Yes, you can connect them through built-in DC-MC4 Connector.
– A:3 meters with 55*21mm connector
– A：No,it didn’t.
– If your charge your smart device by solar panel directly,it may have negative effects on your device
