Installation Equipment and Accessories

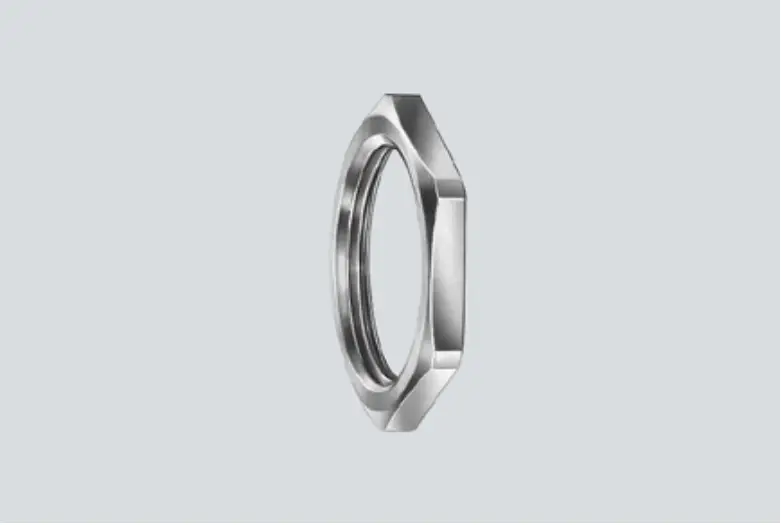

Locknut made of Metal
Art. No. 239462
WebCode ACC1B
Technical Data
Ambient Conditions
| Temperature range | -40 – 100 °C |
Mechanical Data
| Material incl. surface coating | Polyamide |
| Construction type | Hexagon nut |
| Design | Without chamfer |
| Width across flats | SW27 |
| Height | 5 mm |
| Outer diameter | 0 mm |
| Thread size | M20 |
| Thread pitch | 1,5 |
| Packaging unit | 0 |
| Lot size | 100 |
| Weight | 0.002 kg |
| Weight | 0 lb |

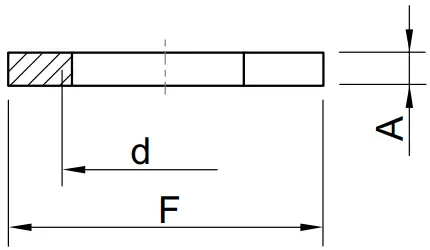

Dimensional Drawings (All Dimensions in mm [inches]) – Subject to Alterations
F = Width across flats
d = Thread size
A = Height
| Internal thread Height Width across corners | d = M20 x 1,5 A = 5 mm F = |
We reserve the right to make alterations to the technical data, dimensions, weights, designs and products available without notice. The illustrations cannot be considered binding.
