Lockwood 5600 Series Accessible Turn Handle Instruction Manual

LOCKWOOD 5600 Series Accessible Turn Handle

1. Identify mortice lock used in installation

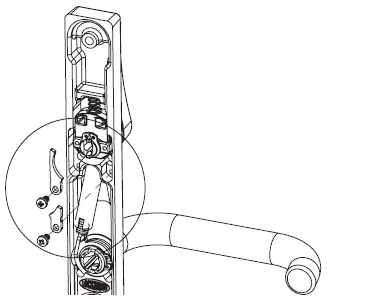

2. Adjust stop plates to suit lock and required handing.
3. Turn is supplied configured to suit Selector mortice lock RH setting.

IMPORTANT
Turn knob rotation must be limited by stop plates to match lock rotation. Failure to adjust to the correct setting can damage the lock or tailbar.

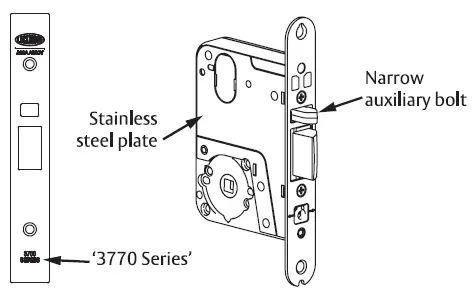

SELECTOR MOTOR LOCK

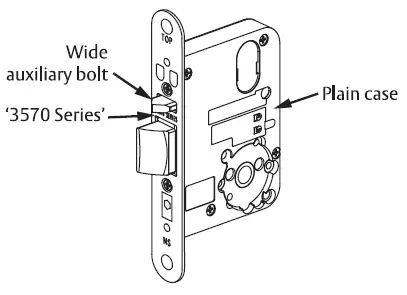

SYNERGY MOTRIC LOCK

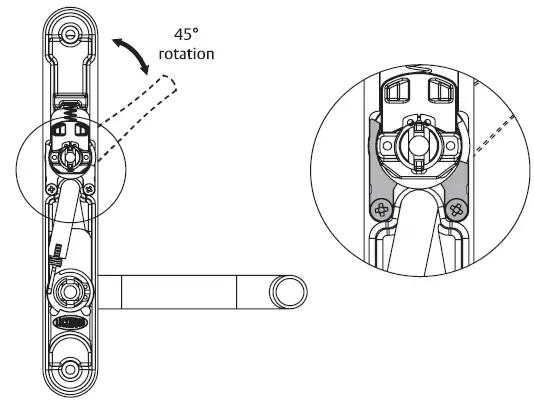

SELECTOR RH SETTING

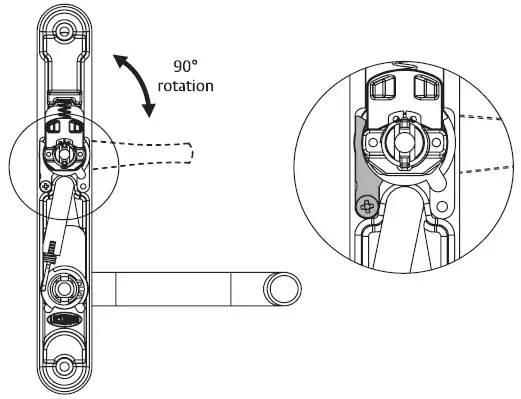

SYNERGY RH SETTING

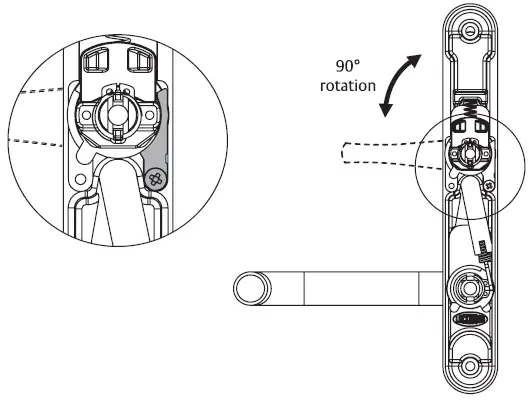

SELECTOR LH SETTING

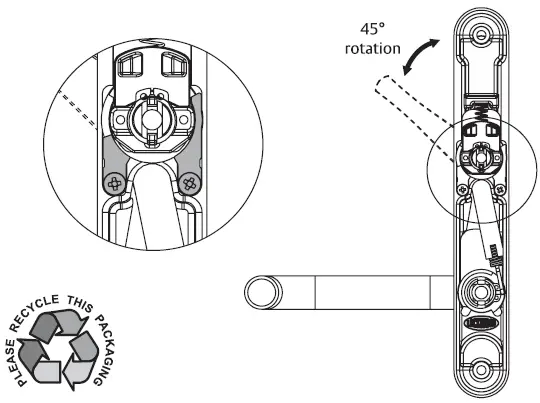

SYNERGY LH SETTING
