KMB529
PCB Mount Below 4000A 1KHz 50KHz Trigger Transformer
Owner’s Manual
KMB529 PCB Mount Below 4000A 1KHz 50KHz Trigger Transformer

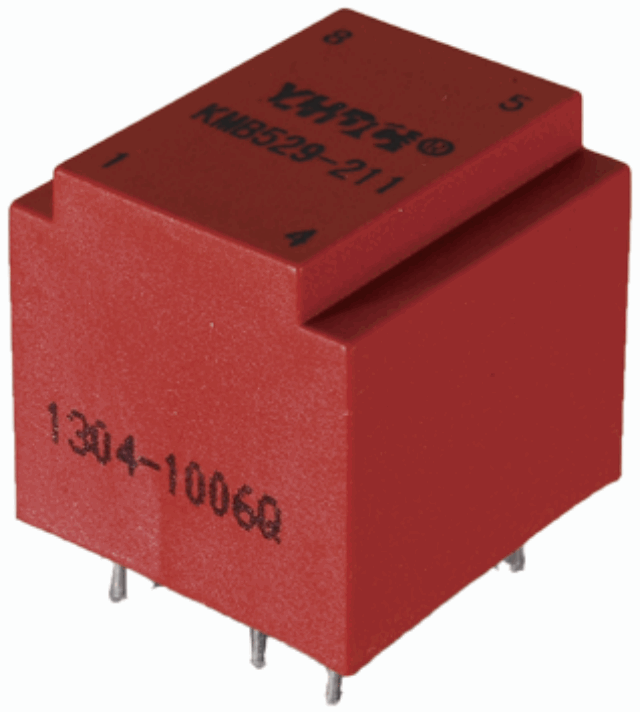

Product picture print for reference only, subject to the actual product
Characteristics:
Suitable for 4000A SCR pulse train trigger.
Technical Index:
Installation method：PCB
Flame resistance ：UL94-V0
Operation temperature：-20℃～+50℃
Storage temperature：-30℃～+85℃
Work frequency：1KHz～50KHz
Dielectric strength：Pri/Sec 5KV 50Hz 1min, Sec/Sec 500V 50Hz 1min
Electrical parameters: (The following parameters are typical values and actual values will be subject to product testing）
 | KMB529 -101 | KMB529 -201 | KMB529 -301 | KMB529 -111 | KMB529 -211 | KMB529 -311 | Unit |
| Vout microsecond integral | 1200 | 1500 | 2400 | 800 | 1500 | 2400 | μv s |
| Input pulse amplitude | 8 | 15 | 24 | 8 | 15 | 24 | V |
| Output pulse amplitude | ≥ 5. 5 | ≥ 6 | ≥ 7 | ≥ 4.5X2 | ≥ 6X2 | ≥ 6.5X2 | V |
| Turns radio | 1:01 | 2:01 | 3:01 | 1:01:01 | 2:01:01 | 3:01:01 | |
| Load resistance | 7 | 7 | 7 | 7 | 7 | 7 | Ω |
| duty ratio | 1:02 | 1:02 | 1:02 | 1:02 | 1:02 | 1:02 | |
| Pulse width | 150 | 100 | 100 | 100 | 100 | 100 | μs |
| Leading edge time | ≤ 4 | ≤ 4 | ≤ 1 | ≤ 4 | ≤ 4 | ≤ 4 | μs |
| Main circuit operating voltage | 660 | 660 | 660 | 660 | 660 | 660 | V |
| Weight | 30.3 | 30.3 | 30.3 | 30.3 | 30.3 | 30.3 | g |

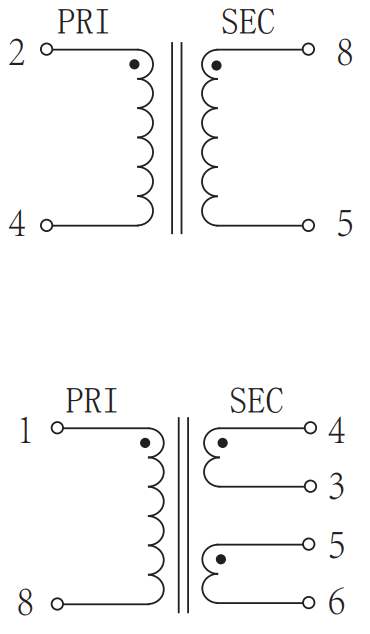

Schematic Diagram：

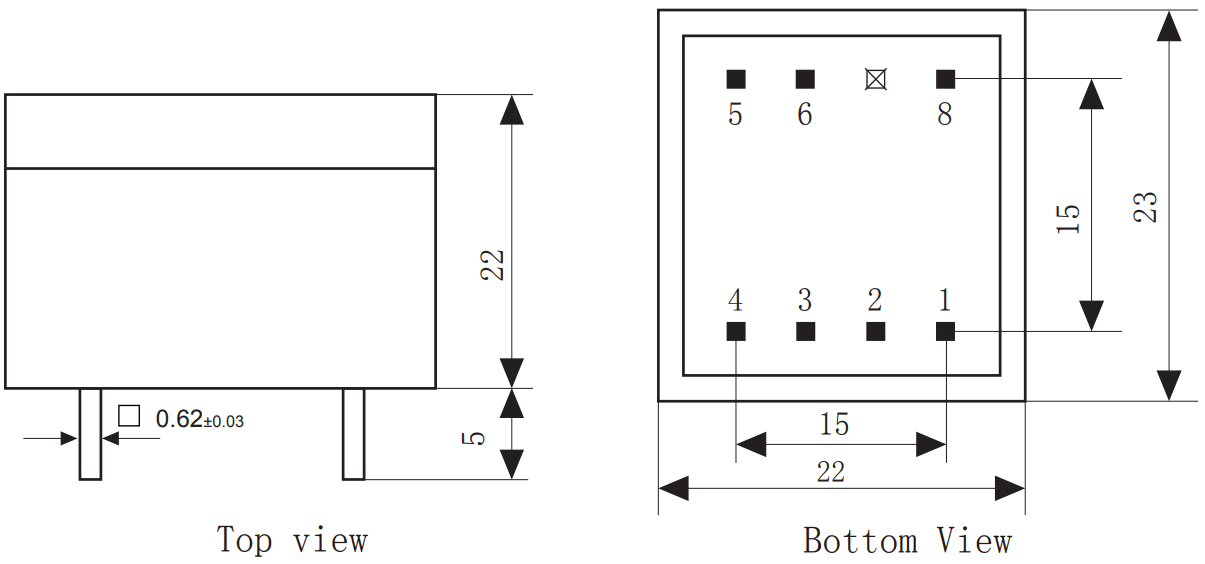

Dimensions (in mm±0.5):
