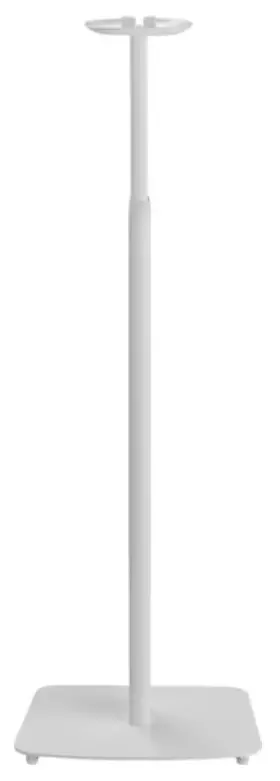

bluebuilt BBSSF22W Adjustable Stand

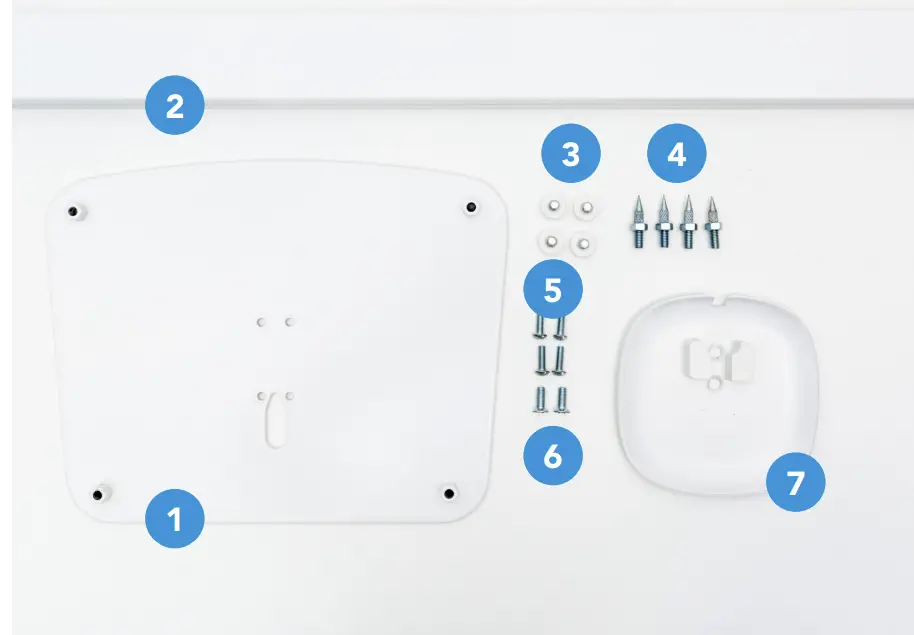

Materials
❶ Floor plate,
❷ Bar,
❸ Feet,
❹ Spikes,
❺ Bolts,
❻ Even more bolts
❼ Speaker holder.

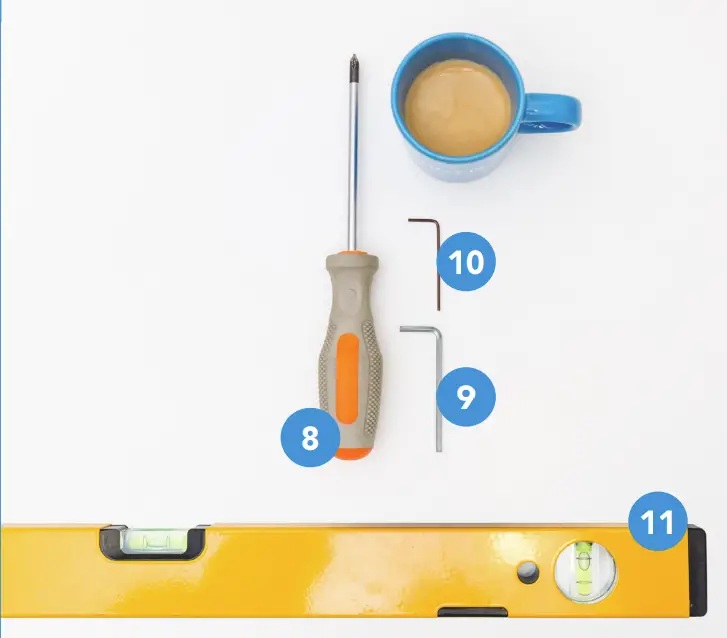

Tools
❽ Crosshead screwdriver,
❾ Large Allen key (included),
❿ Small Allen key (included),
⓫ Spirit level.
Assembly Instruction

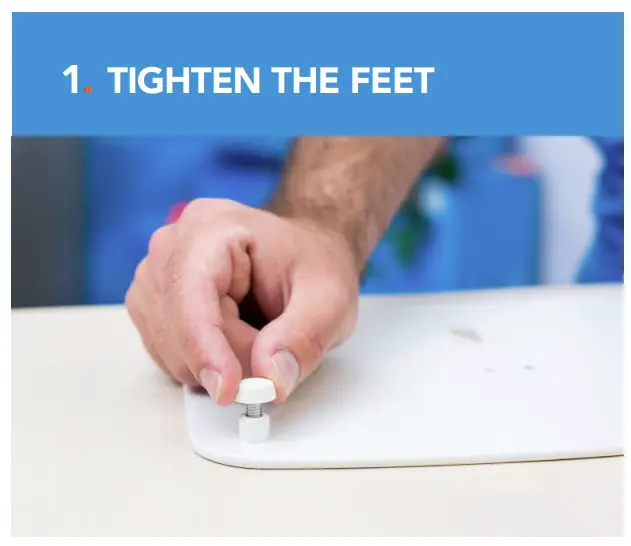

Put the floor plate ① upside down and tighten the feet ③ . Do you have a carpet? Then use the spikes ④ instead of the feet.

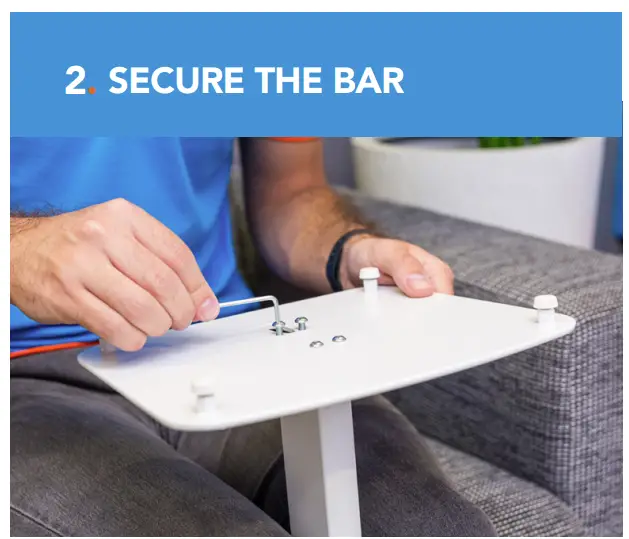

Secure the bar ② to the floor plate ① with the bolts ⑤ and the large Allen key supplied ⑨ . Make sure that the flat side of the bar ② faces forwards.

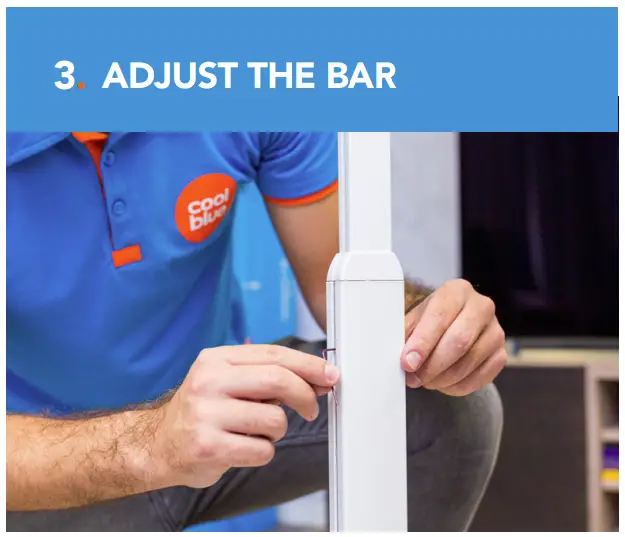

Loosen the top two small bolts that are already in the bar ② a little with the small Allen key ⑩ to adjust the bar in height. There is also a bolt at the bottom of the bar: you can throw it away after loosening it.

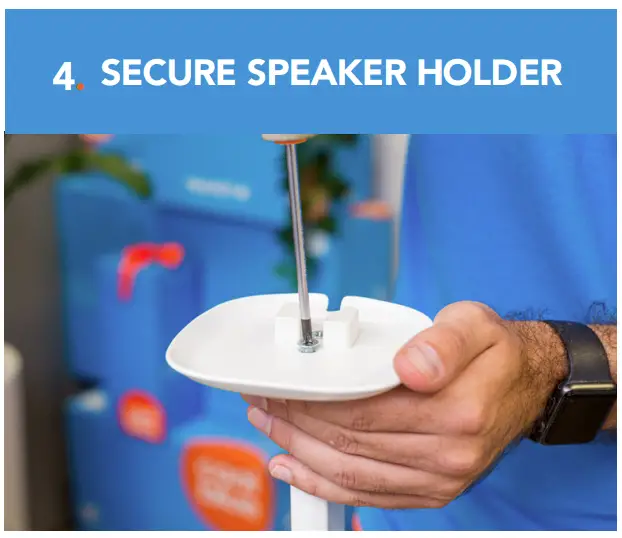

Tighten the speaker holder ⑦ with the bolts ⑥ and the screwdriver ⑧ . Make sure the notch is pointing backwards. This is where you pass your cord through.
Give the speaker stand a nice spot and place the speaker on the stand. Conceal the cable neatly through the groove in the bar ② .
CHECKLIST
You’re 50% there.
Levelling:
Make sure the speaker stand is levelled. This will improve the sound quality of the speaker.
Load capacity:
Use the stand only for speakers weighing a maximum of 3 kg.
Do you have a question?
Coolblue.nl/en/customer-service
