User Manual

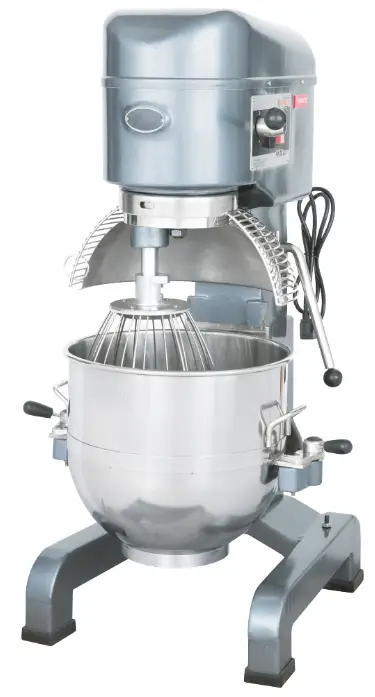

Gear Driven 40 Qt. Commercial Mixer
| Models: MX40 | Shifting gears while this unit is running will void the warranty. 02/2022 |
Please read and keep these instructions. Indoor use only.
www.AvantcoEquipment.com

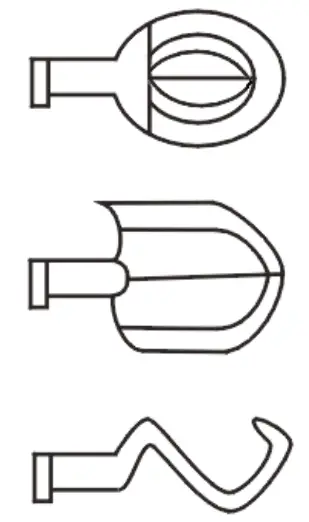

Standard Accessories
| Item | Description | Qty |
| 1 | Flat Beater | 1 |
| 2 | Dough Hook | 1 |
| 3 | Wire Whip | 1 |
| 4 | Bowl | 1 |
NOTES:
- Any agitator is easily installed by simply raising it onto the mixing axle, and rotating it clockwise on the shaft until it locks into place. To remove, raise the agitator on the shaft until it clears the lock and then rotate counterclockwise and lower.
- All of the accessories are precisely fitted to the bowl, have rounded corners, and are easily removed for cleaning.
Unpacking the Equipment and Initial Setup

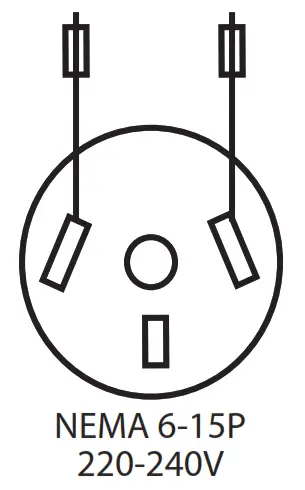

Carefully remove crating or packaging materials from the equipment. Models shipped on pallets are bolted to the pallet. Bolts must be removed to safely separate the equipment from the pallet. Place the equipment on a flat surface with sufficient space around the mixer to allow for safe cleaning and service. Plug only into grounded electrical outlets matching the nameplate rated voltage. Do not use an extension cord with this equipment. Do not plug this equipment into a power strip or multi-outlet power cord.
removable for cleaning.
INSTALLATION:
- Read this manual in its entirety prior to installation and operation. DO NOT install if you do not understand everything in this manual.
- Select a location for the mixer keeping in mind that:
• Surface must be level
• Location should be accessible for maintenance and service
• Location should offer adequate clearance for installing and removing agitators, bowls or attachments
• Location offers sufficient space for adding ingredients to the mixer
• Make sure that the rear ventilation outlet of the mixer is not blocked
Operation Instructions
Please ensure that your power supply matches your machineFor changing the speed‘ Please stop the machine first before changing speed in order to avoid damage to the gearbox. Also, make sure that the bowl is in fully lifted position and the guard is closed.
- Slow Speed is the middle, dough hook set. The knob will be facing forward.
- Medium Speed is the bottom, flat beater set. The knob will be straight down.
- High Speed is the top, whisk setting. The knob will be straight up.
Mixing: Always use the correct attachment for the job.
 | A. Wire Whip: Suitable for mixing liquids and soft ingredients, can work in all speeds. Do not run for more than 15 minutes. |
| B. Flat Beater: Suitable for mixing dry ingredients, can work in low & medium speeds only. Do not use in high speed. Do not run for more than 15 minutes. | |
| C. Dough Hook: Suitable for mixing dough, can work in low & medium speeds only. Do not use in high speed, do not run for more than 20 minutes. The absorption ratio must be more than 50%. Refer to mixer capacity chart. |
Mixer Capacity Chart
| Product | Agitator and Speed | Maximum Bowl Capacity |
| Bread and Roll Dough -60 % AR | Dough Hook – 1st only | 30 lb. |
| Heavy Bread Dough -55% AR | Dough Hook – 1st only | 25 lb. |
| Pizza Dough, Thin-40%AR | Dough Hook – 1st only | 15 lb. |
| Pizza Dough, Medium -50% AR | Dough Hook – 1st only | 20 lb. |
| Pizza Dough, Thick -60% AR | Dough Hook – 1st only | 30 lb. |
| Raised Don’t Dough-65%AR | Dough Hook- 1st and 2nd | 17.5 lb. |
| Mashed Potatoes | Flat Beater | 20 lb. |
| Waffle or Hot Cake Batter | Flat Beater | 15 qt. |
| Egg Whites | Wire Whisk | 1.75 qt. |
| Whipped Cream | Wire Whisk | 4 qt. |
| Cake Batter | Flat Beater | 25 lb. |
When mixing dough ( pizza, bread or bagels), check your “AR” absorption ratio – water weight divided by flour weight.
Above capacities are based on 12% flour moisture at 70°F water temperature. If high gluten flour is used, reduce the above dough batch size by 10%.
For changing the speed: Please stop the machine first before changing speed in order to avoid a damaged gear box.
Example: If recipe calls for 5 lb. of water and 10 lb. of flour, then 5 divided by 10 = 0.50 x 100 = 50 %AR.
- 2nd Speed should never be used on mixtures with less than 50% AR.
- Do not use attachments on hub while mixing.
When calculating the correct size mixer for your application, here are some helpful weights & measures: - 8.3 lb. = 1 gallon of water – 2.08 lb. = 1 Quart.

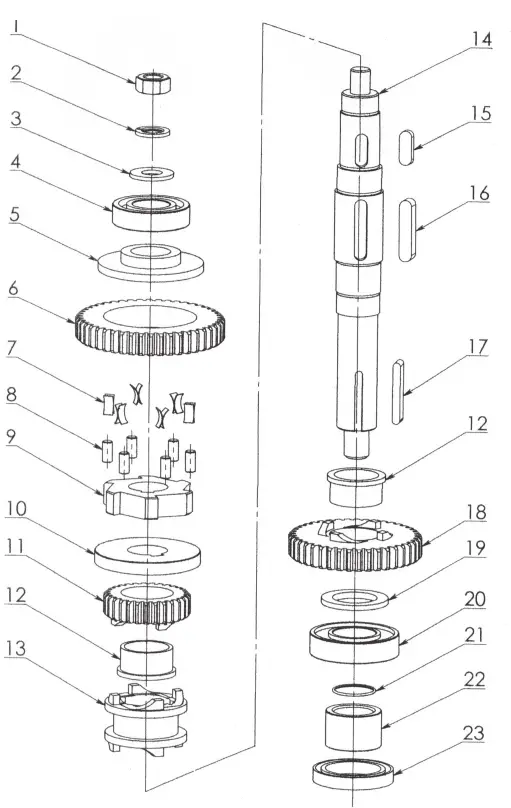

CENTER AXLE
Figure 1
| Description | Qty | |
| 1 | Nut M16 | 1 |
| 2 | Spring gasket 16 | 1 |
| 3 | Gasket 16 | 1 |
| 4 | Bearing 6206 | 1 |
| 5 | Cover | 1 |
| 6 | Gear ring | 1 |
| 7 | Spring | 12 |
| 8 | Roller | 6 |
| 9 | Engager | 1 |
| 10 | Divide ring | 1 |
| 11 | Joint gear | 1 |
| 12 | Bearring ring | 1 |
| 13 | Joint | 1 |
| 14 | Center axle | 1 |
| 15 | Key 10*8*28 | 1 |
| 16 | Key 10*8*50 | 1 |
| 17 | Key 6*50 | 1 |
| 18 | Sig joint gear | 1 |
| 19 | Gasket ring | 1 |
| 20 | Bearing 6207 | 1 |
| 21 | 0 ring 31.5*1.8 | 1 |
| 22 | Sleeve | 1 |
| 23 | Oil seal 45*65*10 | 1 |
GEAR AXLE
Figure 2
| Description | Qty | |
| 1 | Nut M14 | 1 |
| 2 | Spring gasket 14 | 1 |
| 3 | Gasket 14 | 1 |
| 4 | Bearing 6204 | 1 |
| 5 | Gear axle | 1 |
| 6 | Key 8*7*18 | 1 |
| 7 | Key 8*7*20 | 1 |
| 8 | High-speed gear | 1 |
| 9 | Stop ring 28 | 1 |
| 10 | Low-speed gear | 1 |
| 11 | Stop ring 25 | 1 |
| 12 | Gasket | 1 |

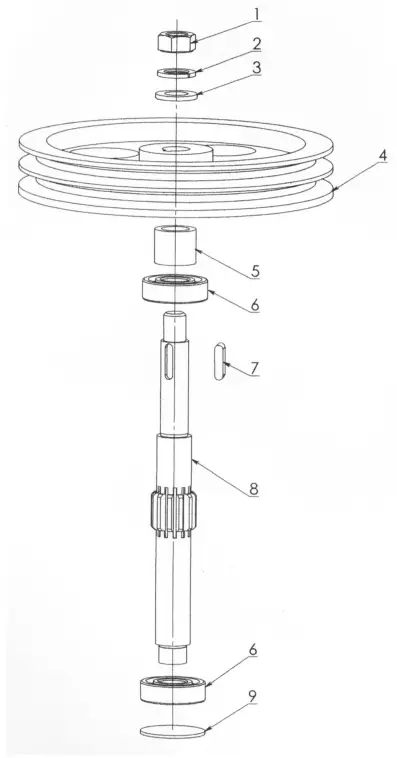

INITIATIVE AXLE
Figure 3
| Description | Qty | |
| 1 | NutM16 | 1 |
| 2 | Spring gasket 16 | 1 |
| 3 | Gasket 16 | 1 |
| 4 | Big belt wheel | 1 |
| 5 | Sleeve | 1 |
| 6 | Bearing 6204 | 1 |
| 7 | Key 6*24 | 1 |
| 8 | Initiative axle | 1 |
| 9 | Gasket | 1 |
MOTOR
Figure 4
| Description | Qty | |
| 1 | Screw M6*16 | 1 |
| 2 | Spring gasket 16 | 9 |
| 3 | Gasket 28*7*2 | 1 |
| 4 | Small belt wheel | 1 |
| 5 | Screw M6*30 | 8 |
| 6 | Motor above cover | 1 |
| 7 | Motor | 1 |
| 8 | Motor crust | 1 |
| 9 | Screw M6*10 | 1 |
| Description | Qty | |
| 10 | Bearing 6206 | 1 |
| 11 | Fan | 1 |
| 12 | Key 5*34 | 1 |
| 13 | Rotor | 1 |
| 14 | Switch | 1 |
| 15 | Screw M4*10 | 2 |
| 16 | Gasket 7 | 2 |
| 17 | Plastic | 1 |
| 18 | Bearing 6204 | 1 |
| 19 | Motor below cover | 1 |

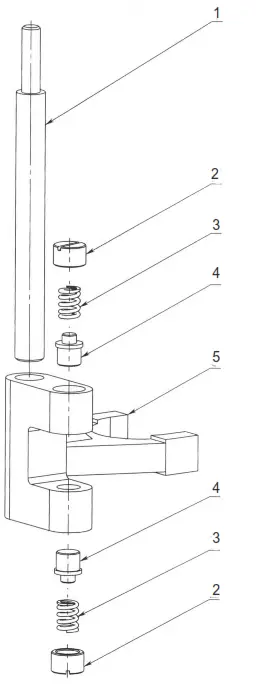

FORK
Figure 5
| Description | Qty | |
| 1 | Fork axle | 1 |
| 2 | Fork nut | 2 |
| 3 | Fork spring | 2 |
| 4 | Fork small axle | 2 |
| 5 | Fork | 1 |

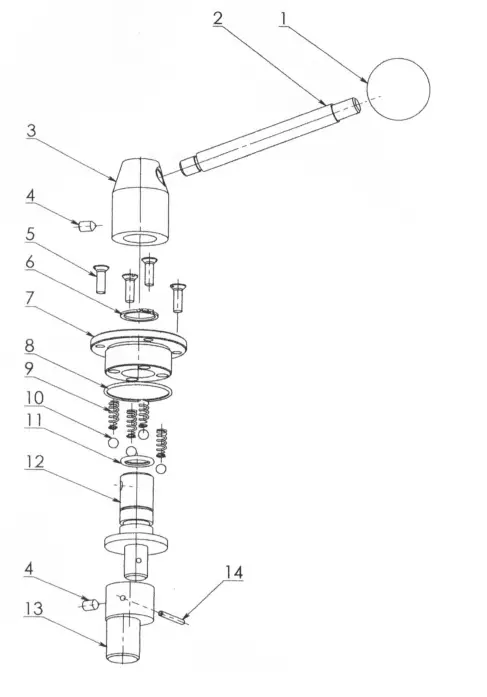

SPEED SHAFT
Figure 6
| Description | Qty | |
| 1 | Handle ball | 1 |
| 2 | Handle axle | 1 |
| 3 | Handle knot | 1 |
| 4 | Screw M6*10 | 2 |
| 5 | Screw M5*16 | 4 |
| 6 | Stop ring 20 | 1 |
| 7 | Speed block | 1 |
| 8 | 0 ring 37.5*1.8 | 1 |
| 9 | Spring | 4 |
| 10 | Steel ball 6 | 4 |
| 11 | 0 ring 15*2.65 | 1 |
| 12 | Eccentricity knot | 1 |
| 13 | Pin 3*25 | 1 |

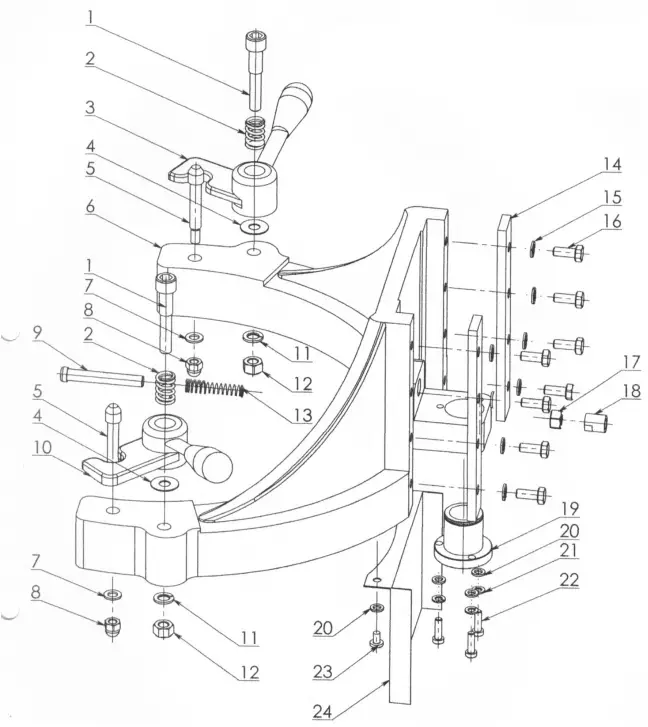

BOWL LIFTER UNIT
Figure 7
| Description | Qty | Description | Qty | Description | Qty | |||
| 1 | Screw | 2 | 9 | Switch mandril | 1 | 17 | Nut M10 | 8 |
| 2 | Spring | 2 | 10 | Handle(right) | 1 | 18 | Mandril nut | 1 |
| 3 | Handle(left) | 1 | 11 | Spring gasket 10 | 8 | 19 | Copper nut | 1 |
| 4 | Gasket 25•10*1 | 2 | 12 | Nut M10 | 2 | 20 | Gasket 6 | 4 |
| 5 | Screw | 2 | 13 | Mandril spring | 1 | 21 | Spring gasket 6 | 3 |
| 6 | Arm | 4 | 14 | Press bar | 2 | 22 | Screw M6*20 | 3 |
| 7 | Gasket 8 | 1 | 15 | Spring gasket 8 | 8 | 23 | Screw M6*10 | 2 |
| 8 | Nut M8 | 2 | 16 | Screw M8*20 | 8 | 24 | Stand board | 1 |

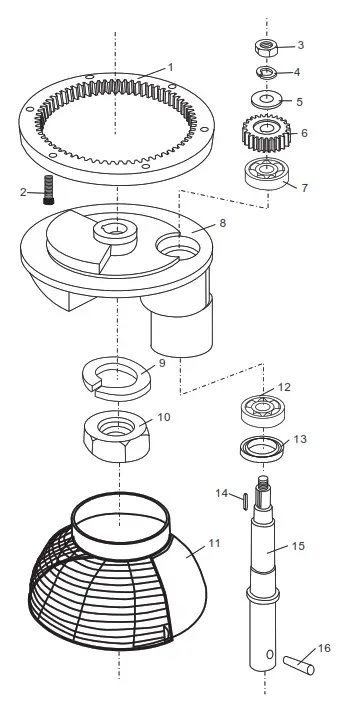

TURNING PLATE AND MIXING AXLE
Figure 8
| Description | Qty | |
| 1 | Inner gear | 1 |
| 2 | Screw | 6 |
| 3 | Nut M14 | 1 |
| 4 | Spring gasket 14 | 1 |
| 5 | Gasket 14 | 1 |
| 6 | Planetary gear | 1 |
| 7 | Bearing 6204 | 1 |
| 8 | Turning plate | 1 |
| 9 | Spring gasket | 1 |
| 10 | Nut | 1 |
| 11 | Safe net | 1 |
| 12 | Bearing 6206 | 1 |
| 13 | Oil seal 35*56*12 | 1 |
| 14 | Key 6*16 | 1 |
| 15 | Mixing axle | 1 |
| 16 | Pin 10•37 | 1 |

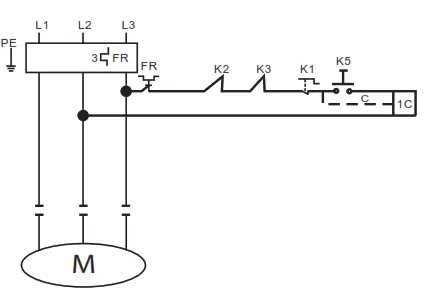

THREE-PHASE MOTOR DIAGRAM
Figure 9
- FR relay
- 1C AC contact device
- K1 urgency stop switch
- K2 bowl lift switch
- K3 safety protect switch
- K5 start switch
- M motor
177MX40
SPECIFICATIONS
| Type | MX40 |
| Capacity | 40 QT. |
| Power Supply | 240V |
| Phase | 1 |
| Input Power | 1300W |
| Hertz | 60 Hz |
| Horsepower | 2 HP |
| Max. Flour Capacity | 25 LB. |
Cleaning
WARNING: DISCONNECT THE MACHINE FROM THE POWER SOURCE BEFORE CLEANING
All new mixer bowls and accessories including whips, beaters, and dough hooks should be properly washed before use. Wash with hot water and a mild soap solution and then rinse off with either a mild vinegar or soda solution and then rinse again with clean water. It is highly recommended this cleaning procedure is followed for bowls and accessories prior to whipping egg whites or whole eggs. The mixer should be cleaned daily with a clean damp cloth. If the unit has not been used for some time, it is recommended that the procedure above is followed before mixer use. It is important that the rear bowl lift guides are greased every three months to prevent corrosion.
Troubleshooting
| Trouble | Possible Causes | Solution |
| The axles can’t work when operating the machine | Poor contact with the electrical equipment | Check the Plug |
| The mixing bowl is out of position | Moving direction is not correct | Change |
| Leaks oil | The sealing washer is damaged | Change |
| Difficult to move the bowl up and down | Slideway is rusted | Clean the slideway and lubricate |
| The motor is overheated and speed is down | The voltage is not enough, or the incorrect speed | Check the voltage or use lower speed |
| Noise and overheating | Poor lubrication | Add or change lubrication |
| Mixer touches bowl | The mixing device or bowl deformed | Repair or change the bowl or mixing device |
Avantco Equipment
