Avantco Mx30 Gear Driven 30 Quart Commercial Mixer User Manual

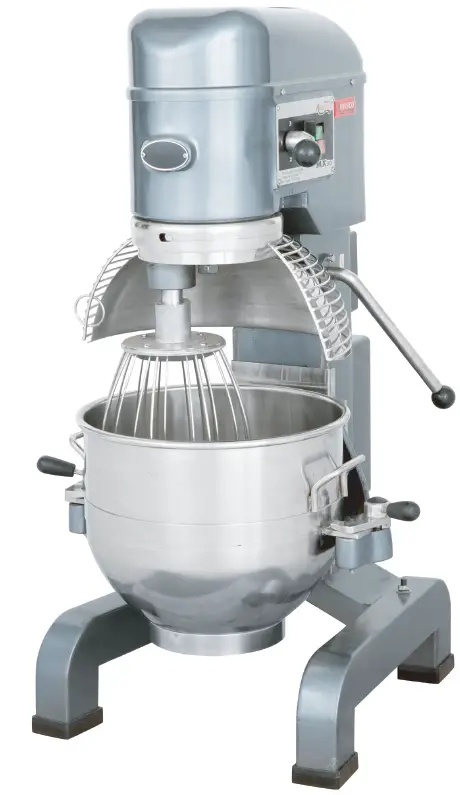

AVANTCO MX30 Gear Driven 30 Quart Commercial Mixer

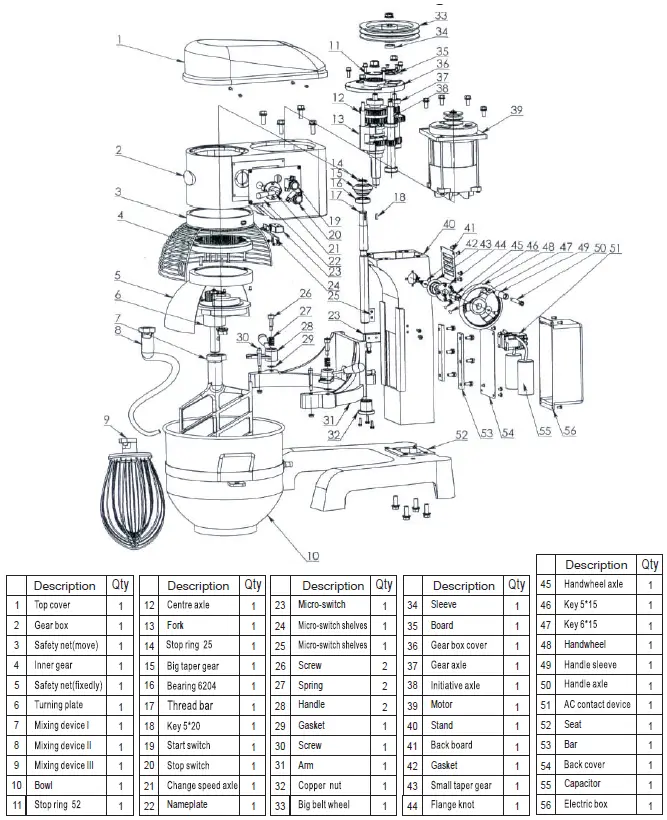

Parts Overview

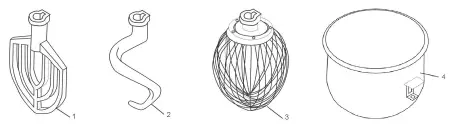

Standard Accessories

NOTES:

• Any agitator is easily installed by simply raising it onto the mixing axle, and the rotating it clockwise on the shaft until it locks into place. To remove, raise the agitator on the shaft until it clears the lock and then rotate counter-clockwise and lower.
• All of the accessories are precisely fitted to the bowl, have rounded corners, and are easily removed for cleaning.

Unpacking the Equipment and Initial Setup

Carefully remove crating or packaging materials from the equipment. Models shipped on pallets are bolted to the pallet. Bolts must be removed to safely separate the equipment from the pallet. Place the equipment on a flat surface with sufficient space around the mixer to allow for safe cleaning and service. Plug only int grounded electrical outlets matching the nameplate rated voltage. Do not use an extension cord with this equipment. Do not plug this equipment into a power strip or multi-outlet power cord.

INSTALLATION:

•  Read this manual in its entirety prior to installation and operation. DO NOT install if you do not understand everything in this manual.
•  Select a location for the mixer keeping in mind that:
  •  Surface must be level
  •  Location should be accessible for maintenance and service
  •  Location should offer adequate clearance for installing and removing agitators, bowls or attachments
  •  Location offers sufficient space for adding ingredients to the mixer
  •  Make sure that the rear ventilation outlet of the mixer is not blocked

Operation Instructions

Mixing: Always use the correct attachment for the job.

• A. Wire Whip: Suitable for mixing liquids and soft ingredients, can work in all speeds. Do not run for more than 15 minutes.
• B. Flat Beater: Suitable for mixing dry ingredients, can work in low & medium speeds only. Do not use in high speed. Do not run for more than 15 minutes.
• C. Dough Hook: Suitable for mixing dough, can work in low & medium speed only. Do not use in high speed, do not run for more than 20 minutes. Absorption ratio must be more than 50%. Refer to mixer capacity chart.

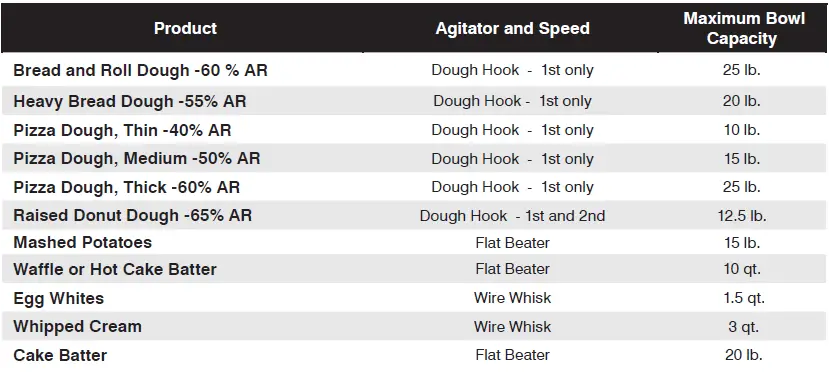

Mixer Capacity Chart

When mixing dough ( pizza, bread or bagels), check your “AR” absorption ratio – water weight divide by flour weight. Above capacities based on 12% flour moisture at 70°F water temperature. If high gluten flour is user above dough batch size by 10%.
Example: If recipe calls for 5 lb. of water and 10 lb. of flour, then 5 divided by 10 = 0.50 x 100 = 5 AR.

•  2nd Speed should never be used on mixtures with less than 50% AR.
•  Do not use attachments on hub while mixing.

When calculating the correct size mixer for your application, here are some helpful weights & meases
8.3 lb. = 1 gallon of water – 2.08 lb. = 1 Quart.

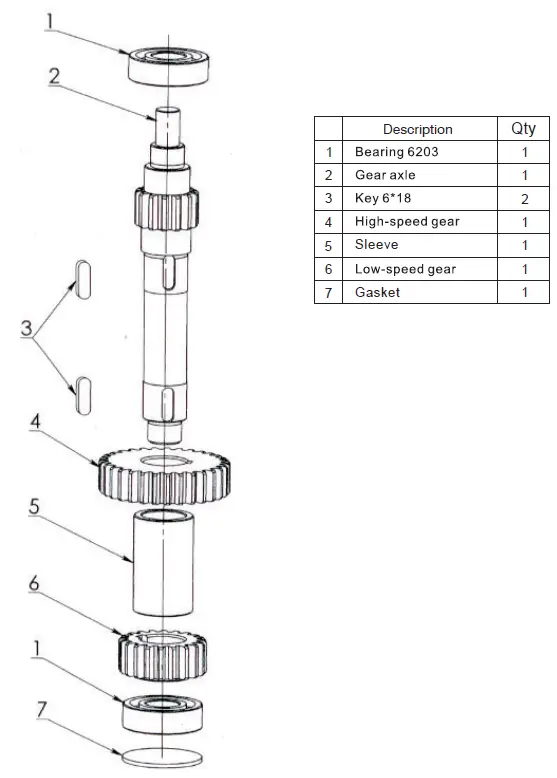

GEAR AXLE

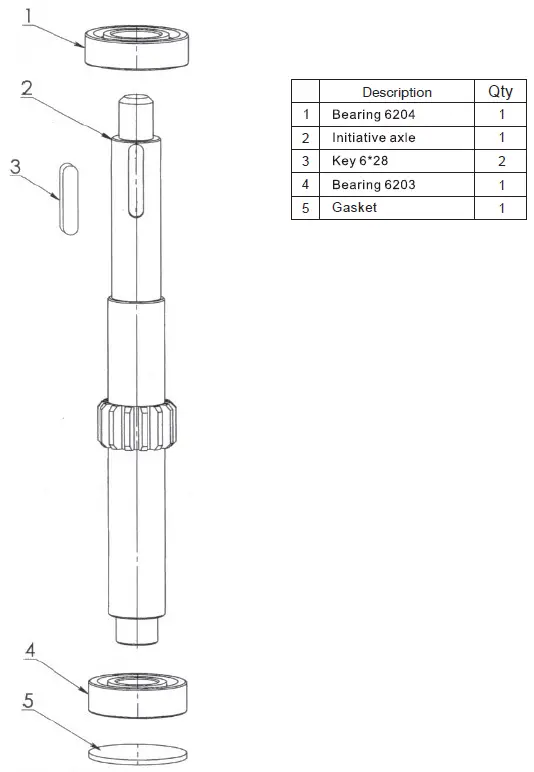

INITIATIVE AXLE

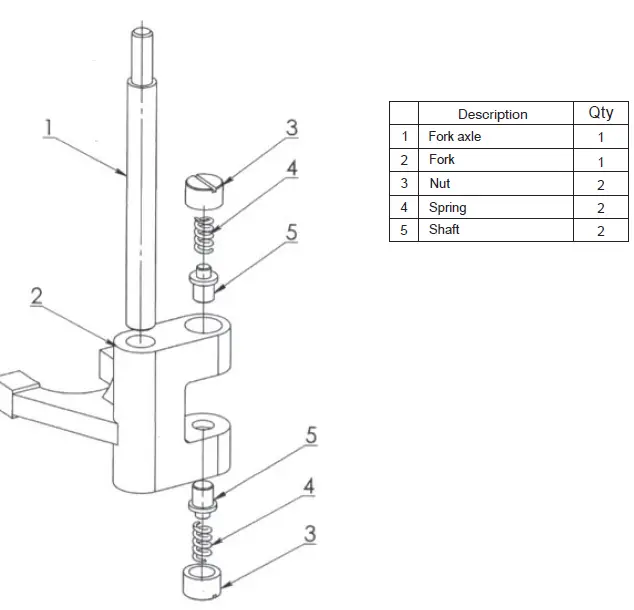

FORK

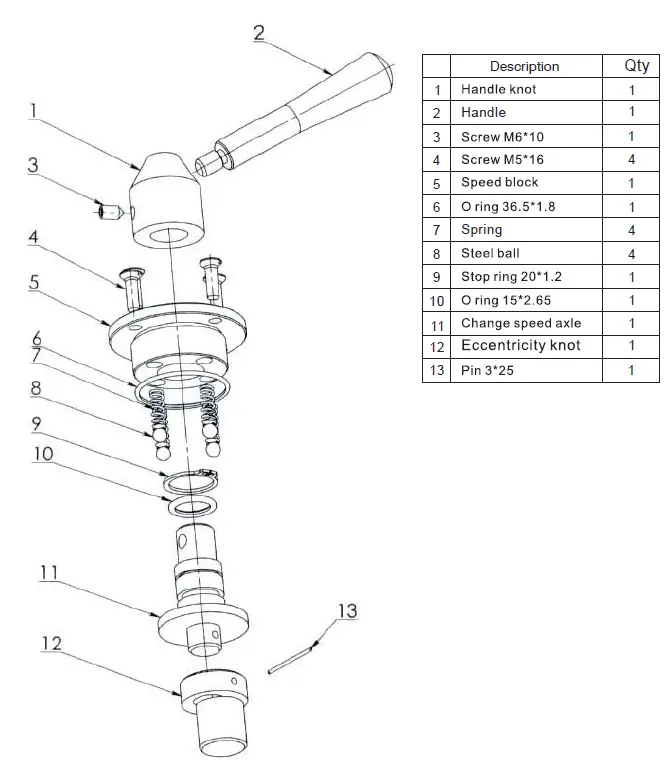

CHANGE SPEED AXLE

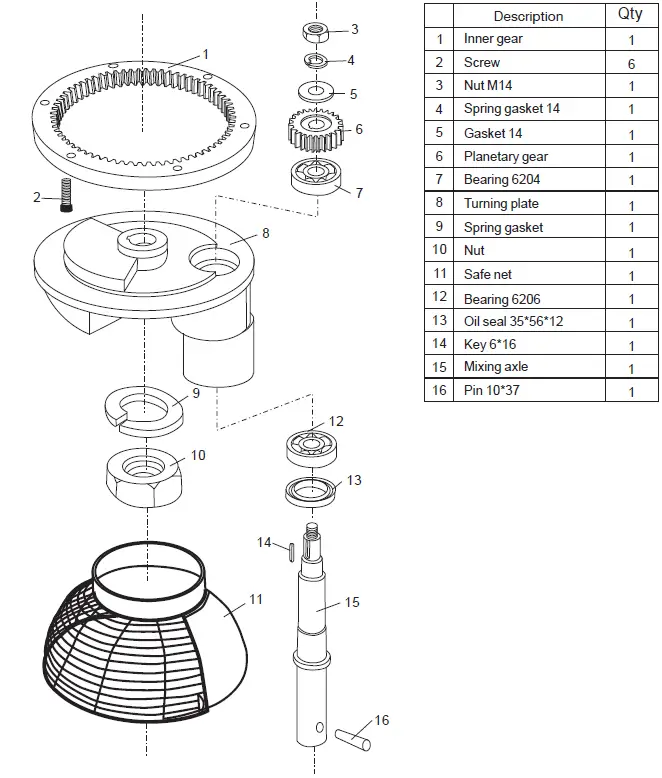

TURNING PLATE AND MIXING AXLE

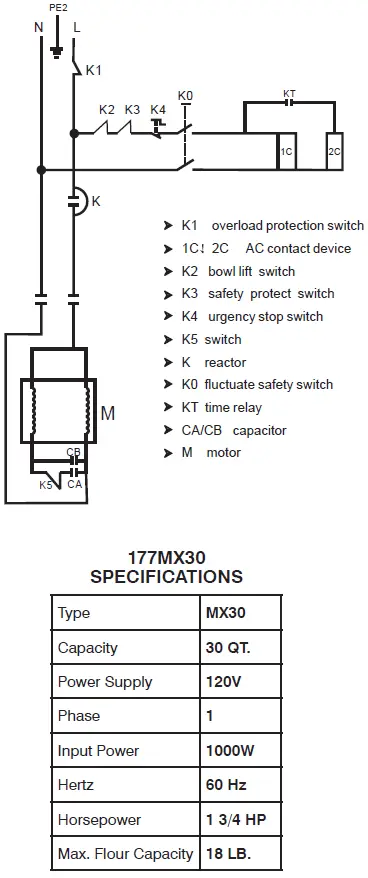

SINGLE PHASE MOTOR DIAGRAM

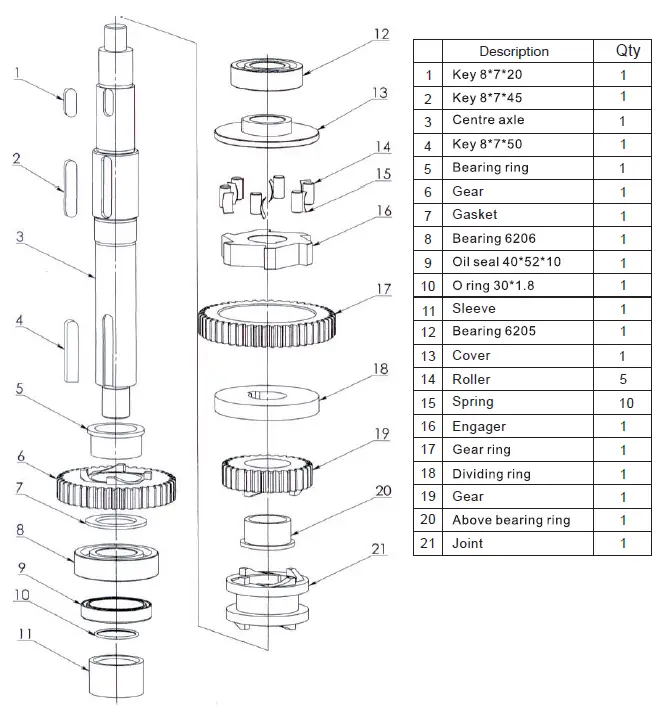

CENTER AXLE

Cleaning

All new mixer bowls and accessories including whips, beaters, and dough hooks should be properly washed before use. Wash with hot water and a mild soap solution and then rinse off with either a mild vinegar or soda solution and then rinse again with clean water. It is highly recommended this cleaning procedure is followed for bowls and accessories prior to whipping egg whites or whole eggs. The mixer should be cleaned daily with a clean damp cloth. If the unit has not been used for some time, it is recommended that the procedure above is followed before mixer use. It is important that the rear bowl lift guides are greased every three months to prevent corrosion.

Troubleshooting
