RAYCHEM
E-100-LBTV2
High-Profile End Seal Installation Instructions
APPROVALS
Hazardous Locations
 | Class I, Div. 2, Groups A, B, C, D Class II, Groups F, G Class III CLI, ZN1, AEx e II T6 (1) |
 (1)FM only
| CL I ZN 1 AEx eb IIC T6 Gb Ex eb IIC T6 Gb |
KIT CONTENTS

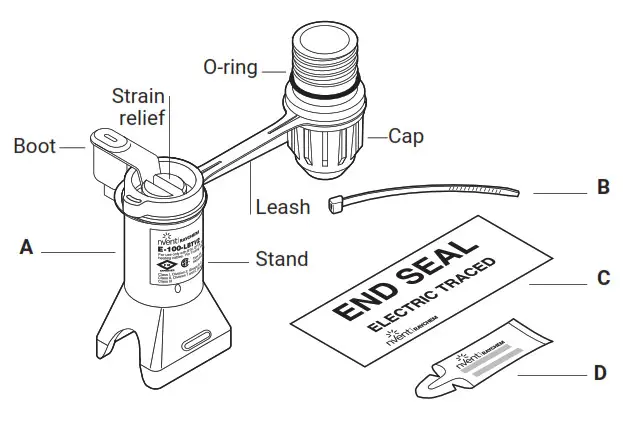

| Item | Qty | Description |
| A | 1 | End seal assembly |
| B | 1 | Cable tie |
| C | 1 | End seal label |
| D | 1 | Cable lubricant |
DESCRIPTION

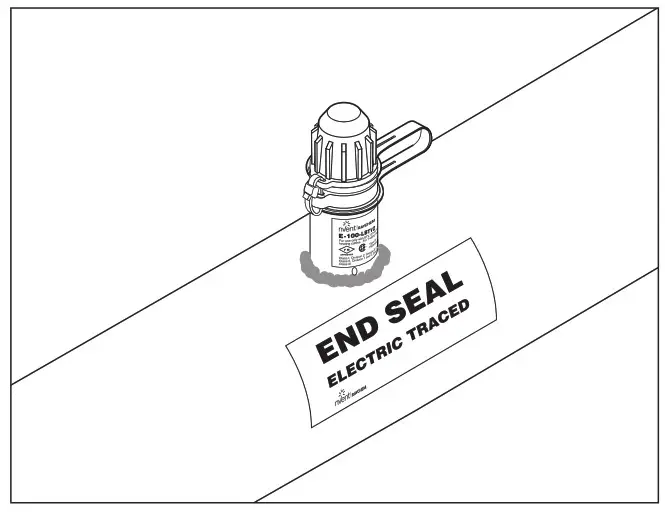

The nVent RAYCHEM E-100-LBTV2 is a NEMA 4X-rated end seal kit for use with nVent RAYCHEM LBTV2-CT heating cables. Once installed, the end seal is easily re-entered for maintenance; the heating cable can be accessed without removing the end seal. This kit may be installed at temperatures as low as –40°F (–40°C).
For easier installation store above freezing until just before installation.
For technical support call nVent at (800) 545-6258.
TOOLS REQUIRED
- Wire cutters
- Slotted screwdriver or nut driver
- Utility knife
- Adjustable pliers (two required)
MATERIALS REQUIRED
- Pipe strap
- GT–66 or GS–54 glass cloth tape
OPTIONAL MATERIALS
- For boot replacement order E–100–LBTV2–BOOT–5/PACK P/N 335089–000
WARNING: This component is an electrical device that must be installed correctly to ensure proper operation and to prevent shock or fire. Read these important warnings and carefully follow all of the installation instructions.
- To minimize the danger of fire from sustained electrical arcing if the heating cable is damaged or improperly installed, and to comply with the requirements of nVent, agency certifications, and national electrical codes, ground-fault equipment protection must be used. Arcing may not be stopped by conventional circuit breakers.
- Component approvals and performance are based on the use of nVent-specified parts only. Do not substitute parts or vinyl electrical tape.
- The black heating cable core is conductive and can short. It must be properly insulated and kept dry.
- Keep components and heating cable ends dry before and during installation.
- Bus wires will short if they contact each other. Keep bus wires separated.
- Use only fire-resistant insulation materials such as fiberglass wrap.
- Leave these installation instructions with the user for future reference.
CAUTION: Health Hazard: Prolonged or repeated contact with the sealant in the end seal boot maycause skin irritation. Wash hands thoroughly. Overheating or burning the sealant will produce fumes that may cause polymer fume fever. Avoid contamination of cigarettes or tobacco. Consult MSDS VEN 0058 for further information. CHEMTREC 24-hour emergency telephone: (800) 424-9300 Non-emergency health and safety information: (800) 545-6258.

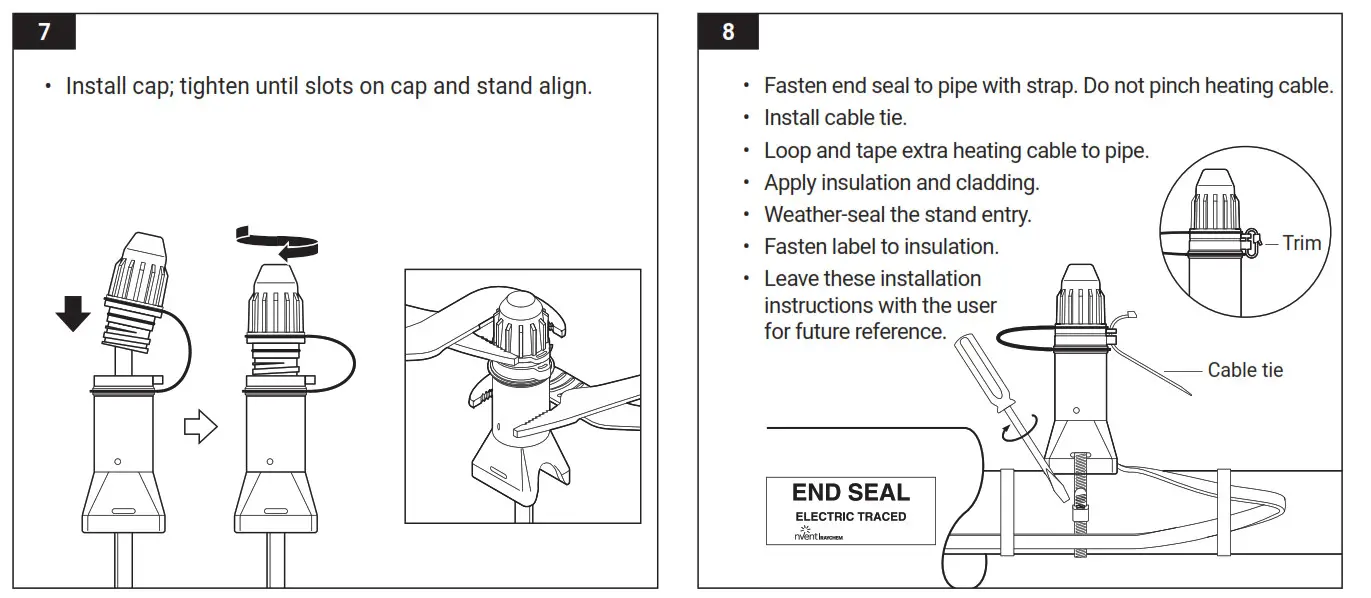

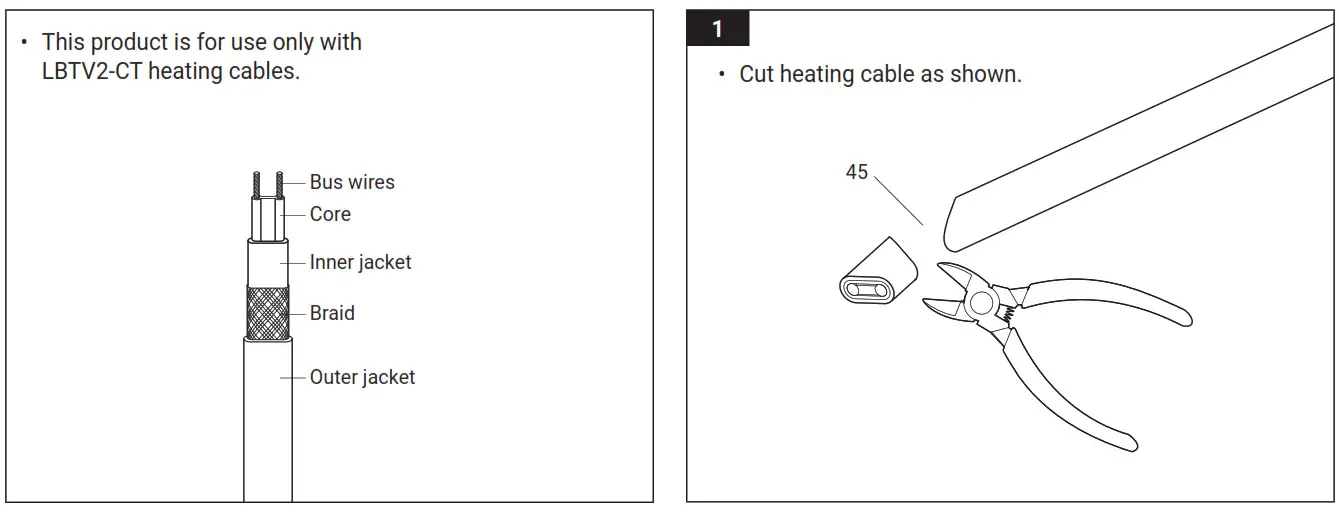

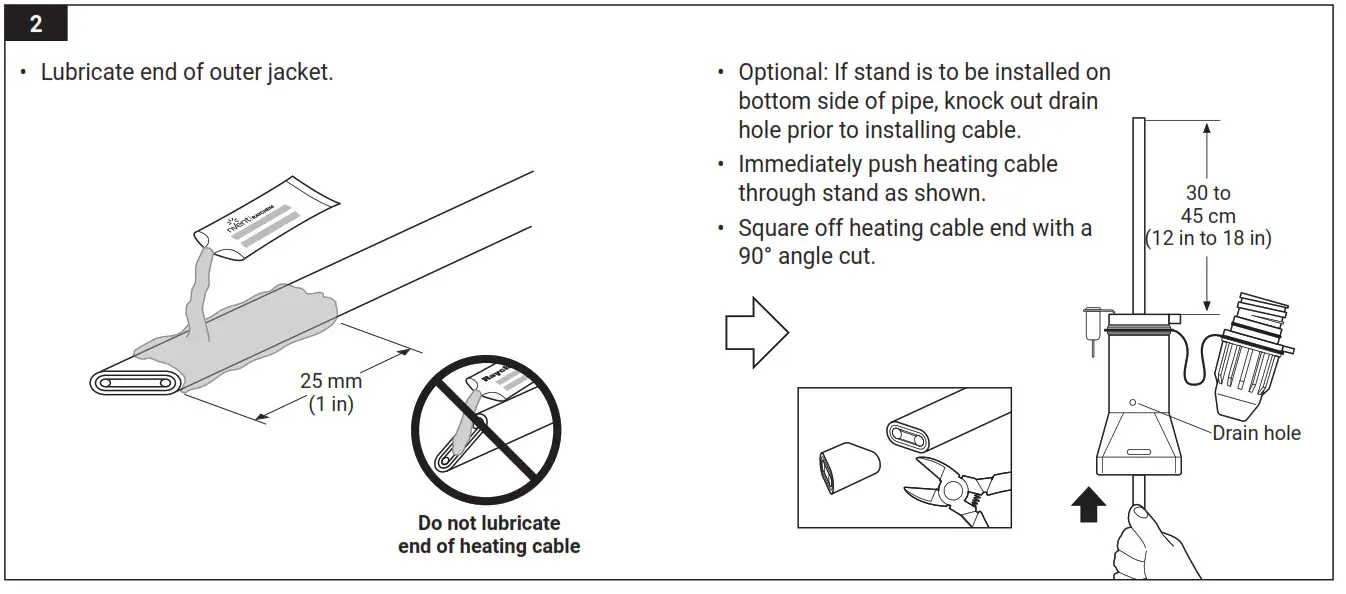

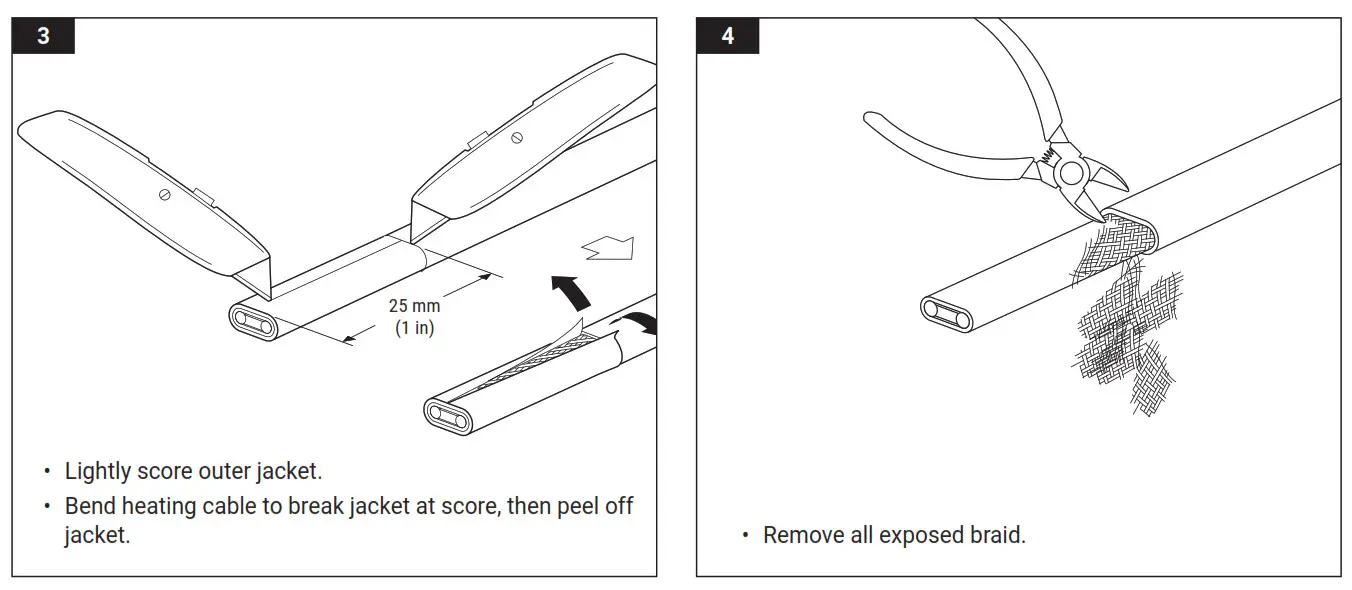

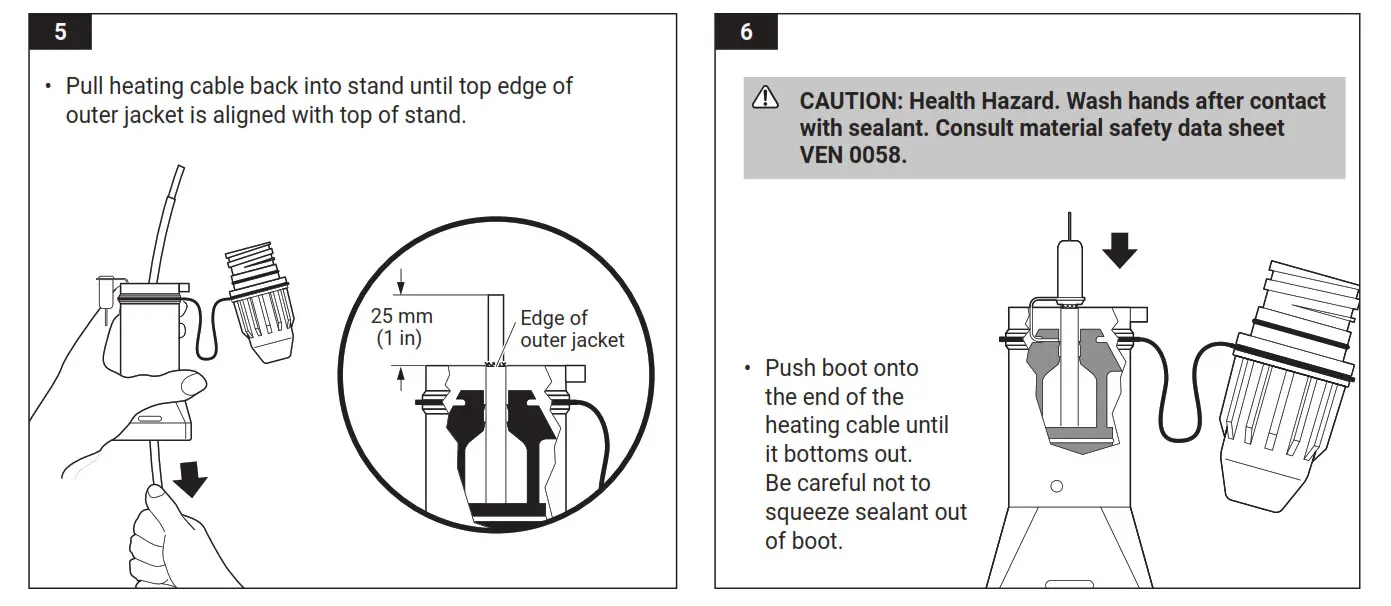

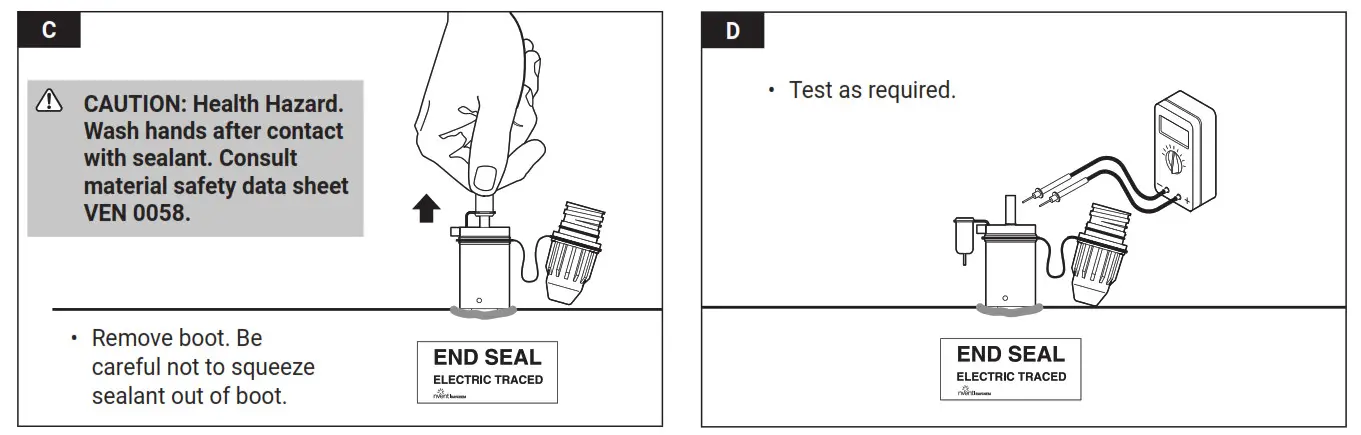

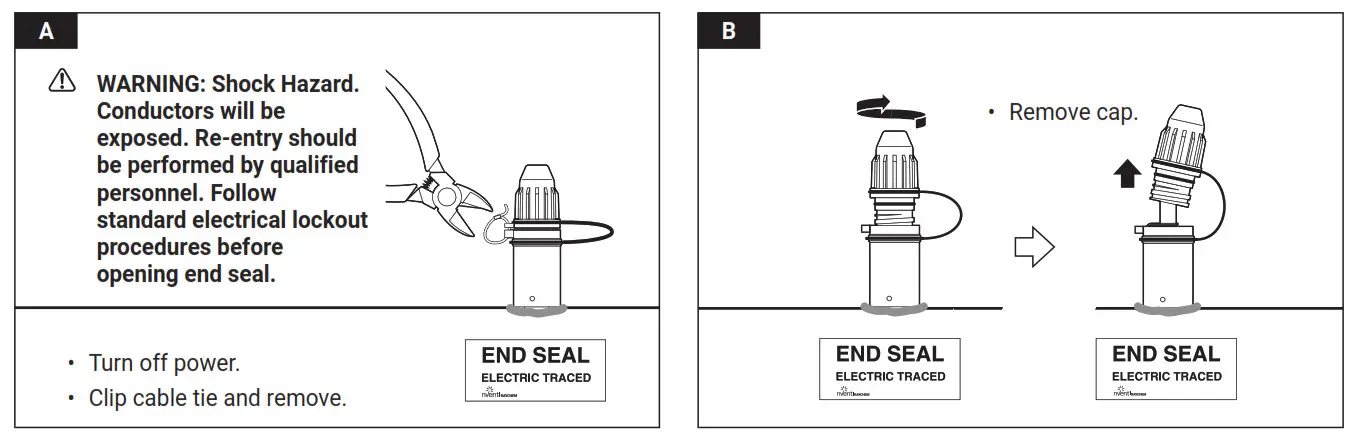

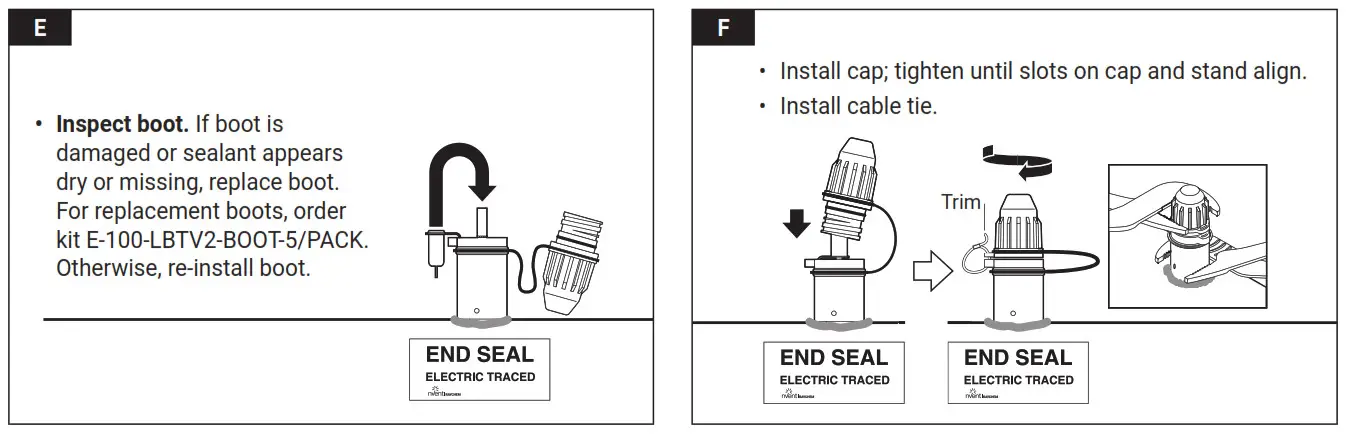

E-100-LBTV2 RE-ENTRY’
©2021 nVent. All nVent marks and logos are owned or licensed by nVent Services GmbH or its affiliates. All other trademarks are the property orespective owners. nVent reserves the right to change specifications without notice.
RAYCHEM-IM-H56528-E100LBTV2-EN-2111
