RayClic Connection System

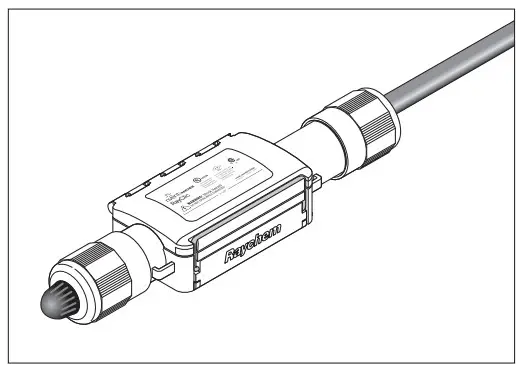

RayClic-LE Lighted End Seal Kit Installation Instructions
APPROVALS
 | 718K Pipe Heating Cable |
 | 877Z De-Icing and Snow Melting |
 | Not UL Listed with XL-Trace Edge heating cable for buried piping |
 | For HWAT and IceStop only Hazardous Locations: For IceStop (GM-XT) only Class I, Div. 2, Groups A, B, C, D |

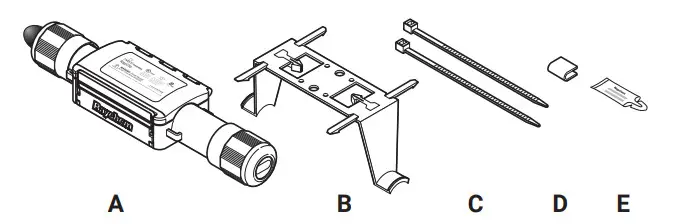

KIT CONTENTS
| Item | Qty | Description |
| A | 1 | Lighted end seal |
| B | 1 | Pipe mounting bracket |
| C | 2 | Plastic cable ties |
| D | 1 | Clip |
| E | 1 | Cable lubricant |
WARNING:
This component is an electrical device that must be installed correctly to ensure proper operation and to prevent shock or fire. Read these important warnings and carefully follow all the installation instructions.
- To minimize the danger of fire from sustained electrical arcing if the heating cable is damaged or improperly installed, and to comply with the requirements of nVent, agency certifications, and national electrical codes, ground fault equipment protection must be used. Arcing may not be stopped by conventional circuit breakers.
- Bus wires will short if they contact each other. Keep bus wires separated.
- Keep components and heating cable ends dry before and during installation.
- The black heating cable core is conductive and can short. It must be properly insulated and kept dry.
- Component approvals and performance are based on the use of nVent-specified parts only. Do not use substitute parts or vinyl electrical tape.
- Leave these instructions with end user for reference and future use.
If you experience difficulty during installation, refer to the “Troubleshooting Guide” on page 5.

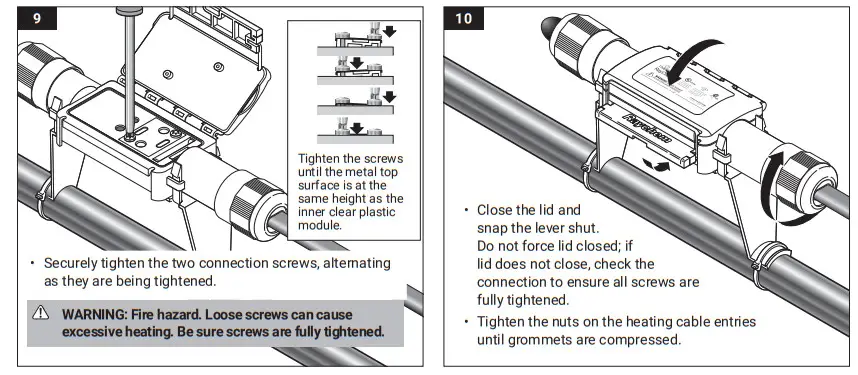

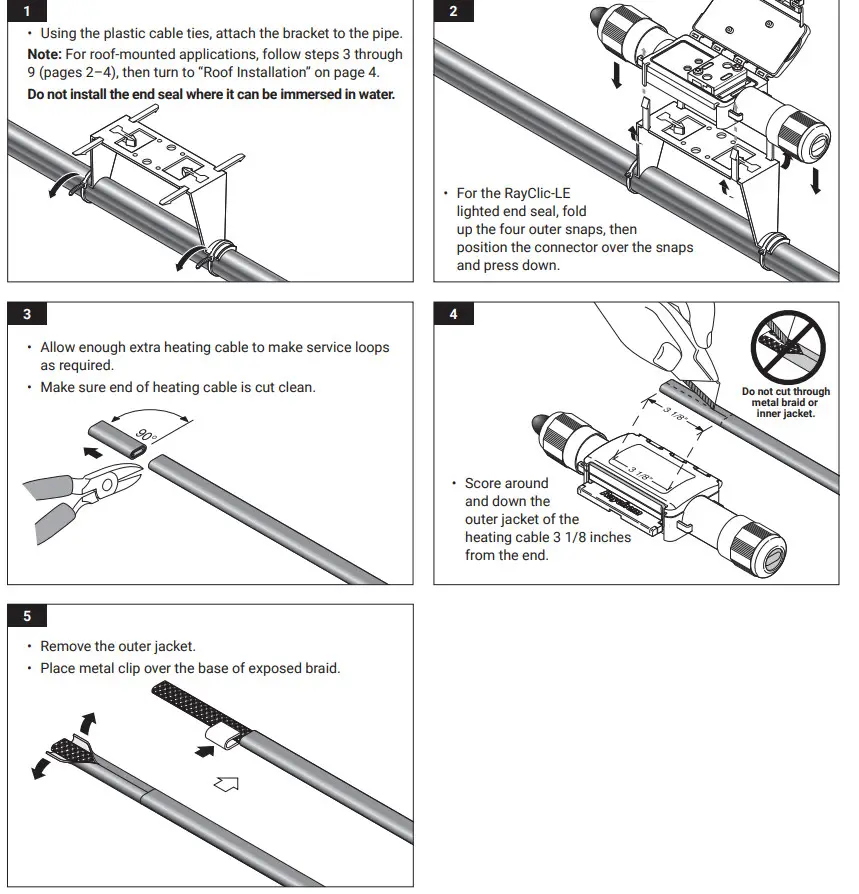

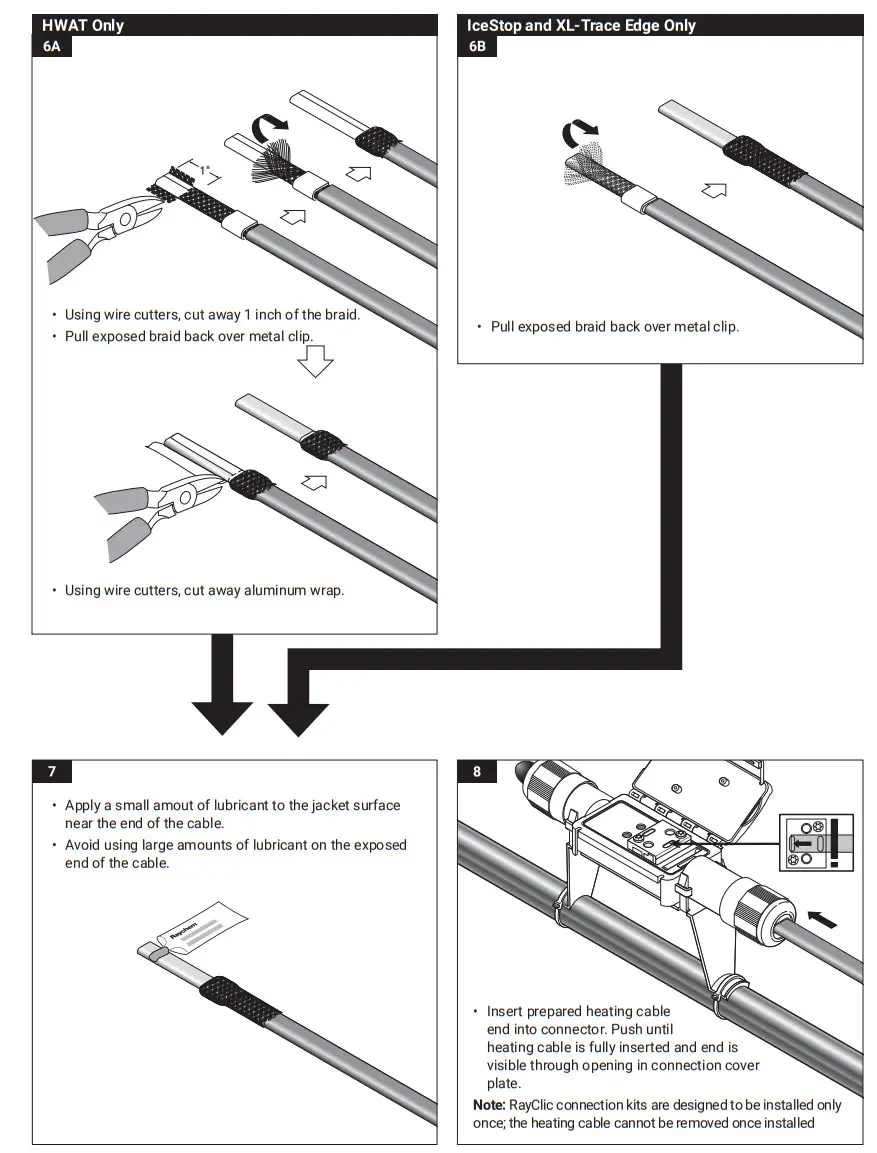

Lighted End Seal Installation

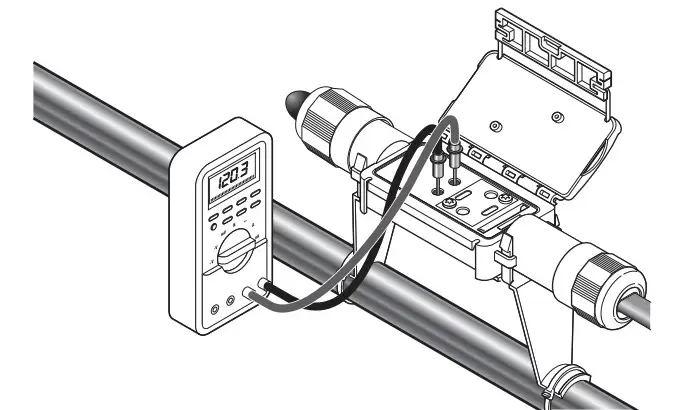

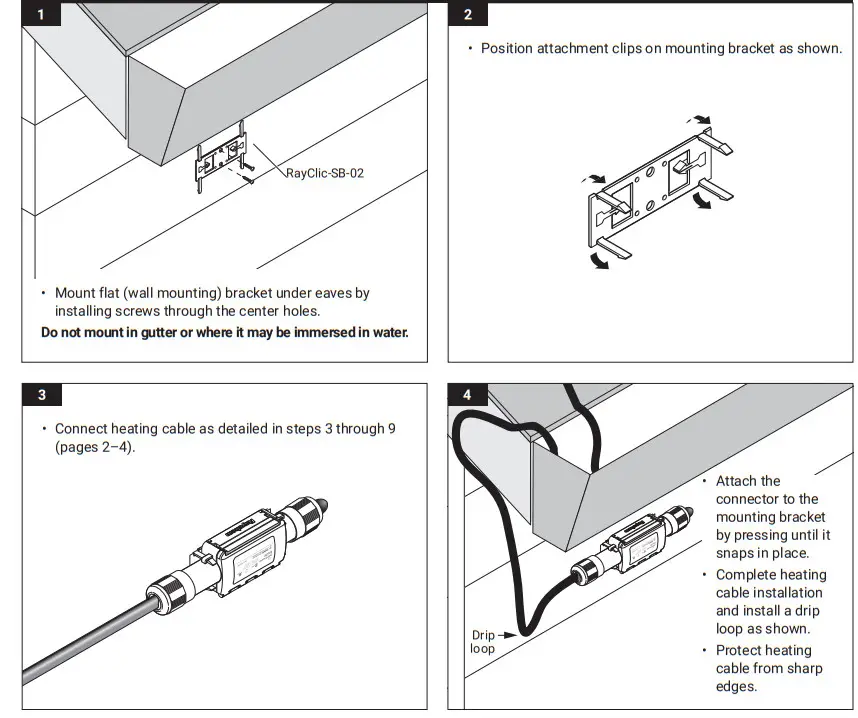

Roof Installation
Troubleshooting Guide
| PROBLEM | SOLUTION |
| Braid clips are missing. | The braid clips are attached to the cardboard packing insert under the lid. The braid clips must be used to ensure a ground connection. If clips are missing or lost, call nVent at (800) 545‑6258. |
| Mounting bracket is missing. | A pipe mounting bracket is supplied with the Power Connection, Powered Splice, Powered Tee and Lighted End Seal kits. A wall mounting bracket or additional pipe mounting bracket may be ordered using one of the catalog numbers listed under “Optional Accessories” on the front page of these instructions when you place your order. |
| Connector does not snap onto bracket. | The bracket has two sets of attachment clips. Fold up the four outer clips for the Power Connection and Lighted End Seal kit. Fold up only the center clips for the Powered Splice and Powered Tee kits. |
| Heating cable type not mentioned. | nVent RAYCHEM RayClic connection kits are approved for use only with HWAT, XL-Trace Edge, and IceStop heating cables. Do not use with other heating cables. |
| Braid clip does not fit. | Be sure the clip is installed on the metal braid, not on the outer jacket. |
| Heating cable does not have aluminum wrap. | Only HWAT heating cables have the aluminum wrap under the braid. Skip the aluminum wrap removal step for XL-Trace Edge and IceStop heating cables. |
| Heating cable cannot be inserted into connector. | Check for the following: • Apply lubricant to heating cable primary (white) jacket. • Outer jacket strip length is 3 1/8 inches. • Braid clip is installed on top of the metal braid, not on the outer jacket. • Braid is pulled back over braid clip. • For HWAT, 1 inch of braid is removed. • Sealing nut is loose (but not removed). • Connection screws are loose. |
| Lid does not close. | Be sure all screws are fully tightened before closing the lid. |
| Heating cable cannot be removed. | The power connection and end seal are designed to be installed only once; the heating cable cannot be removed once installed. Additional nVent RAYCHEM RayClic-E and RayClic-LE end seals can be ordered from nVent. |
| Light does not come on. | • Verify there is voltage present. • Verify the cable guide is screwed down completely. • If the light still does not function, the RayClic-LE cannot be repaired and must be replaced. |
| North America Tel +1.800.545.6258 Fax +1.800.527.5703 [email protected] | Europe, Middle East, Africa Tel +32.16.213.511 Fax +32.16.213.604 [email protected] |
| Asia Pacific Tel +86.21.2412.1688 Fax +86.21.5426.3167 [email protected] | Latin America Tel +1.713.868.4800 Fax +1.713.868.2333 [email protected] |
©2021 nVent. All nVent marks and logos are owned or licensed by nVent Services GmbH or its affiliates. All other trademarks are the property of their respective owners.
nVent reserves the right to change specifications without notice.
RAYCHEM-IM-H53514-FTCP-EN-2111
