RayClic-E RayClic End Seal Kit
Instruction Manual

RayClic-E
RayClic End Seal Kit Installation Instructions

DESCRIPTION

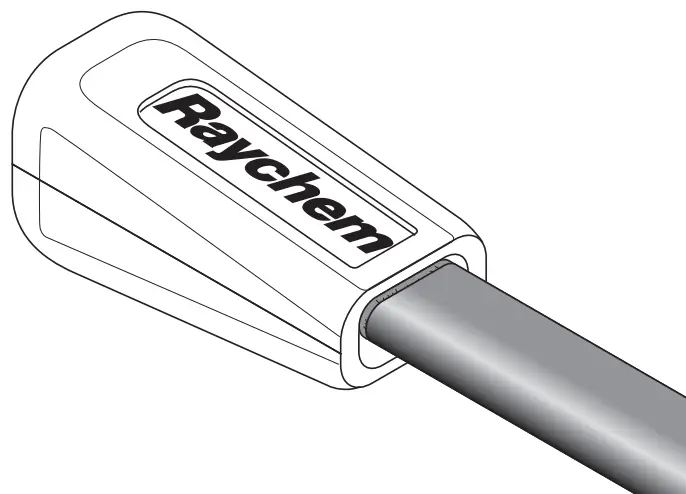

The nVent RAYCHEM RayClic-E end seal is for use with nVent RAYCHEM IceStop, XL-Trace Edge, HWAT and RaySol heating cables. Materials for one end seal  termination are included in this kit. The appropriate nVent RAYCHEM power connection kit must also be used. These installation instructions should be used in conjunction with the IceStop, XL-Trace Edge, HWAT and RaySol System Installation and Operation Manuals.
For technical support contact your nVent representative or call nVent (800) 545-6258.
Note: The end seal can be installed only once; it cannot be removed from the heating cable. Do not use until ready for final installation.

APPROVALS

718K Pipe Heating Cable
877Z De-Icing and Snow Melting
Not UL Listed with XL-Trace Edge heating cable for buried piping With HWAT and IceStop heating cables
Class I, Div. 2, Groups A, B, C, D Hazardous Locations: For IceStop (GM-XT) only

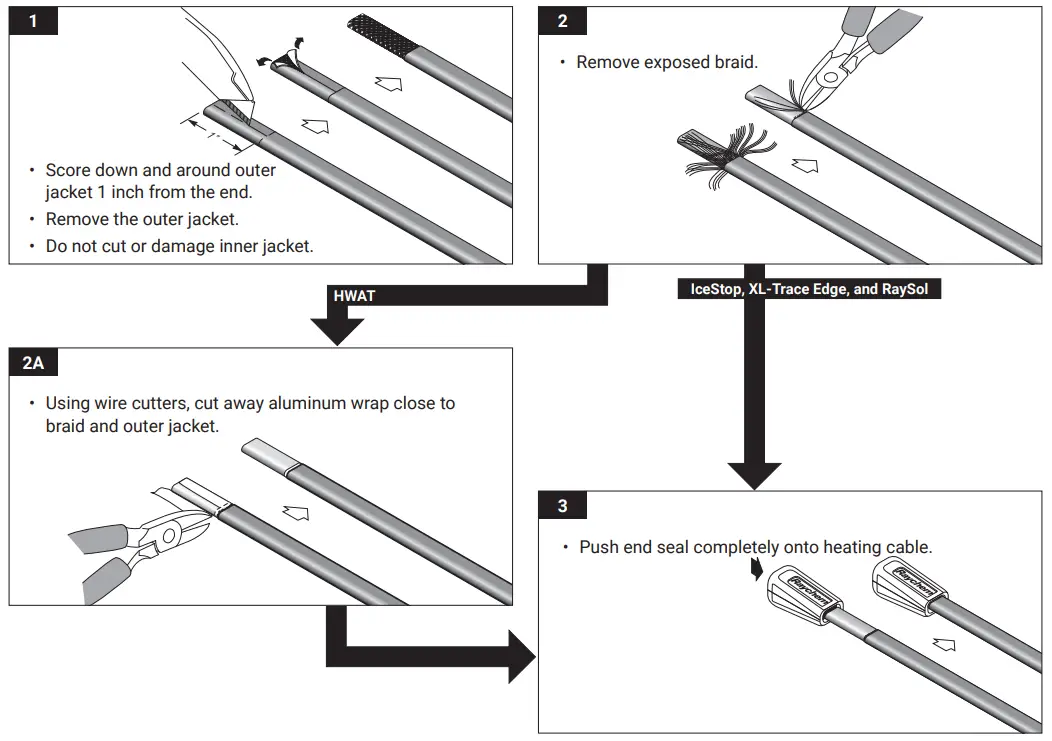

TOOLS REQUIRED

• Utility knife
• Diagonal cutters

KIT CONTENTS

Qty …………………….Description

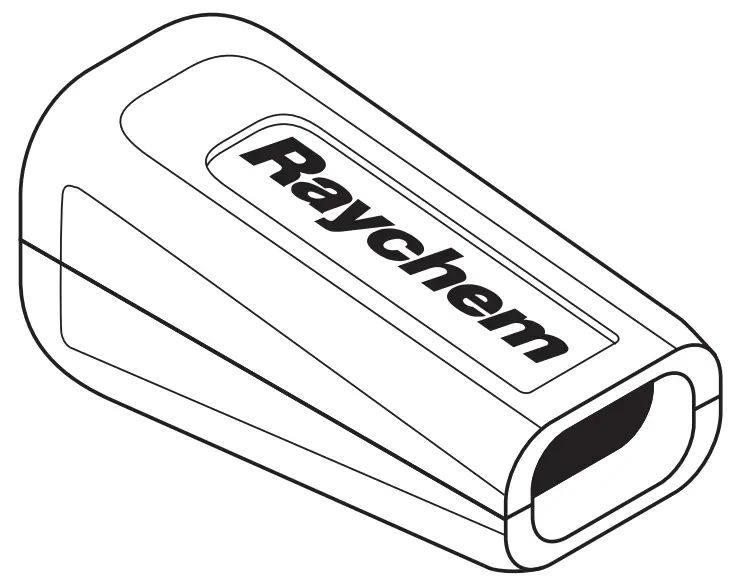

1………………………………….Gel-filled end sealWARNING:
This component is an electrical device that must be installed correctly to ensure proper operation and to prevent shock or fire. Read these important warnings and carefully follow all the installation instructions.

• To minimize the danger of fire from sustained electrical arcing if the heating cable is damaged or improperly installed, and to comply with the requirements of nVent, agency certifications, and national electrical codes, ground fault equipment protection must be used. Arcing may not be stopped by conventional circuit breakers.
• Bus wires will short if they contact each other. Keep bus wires separated.
• The black heating cable core is conductive and can short. It must be properly insulated and kept dry.
• Component approvals and performance are based on the use of nVent-specified parts only. Do not use substitute parts or vinyl electrical tape.
• Use only fire-resistant insulation materials such as fiberglass wrap.
• Leave these instructions with end user for reference and future use.

Note: The end seal can be installed only once; it cannot be removed from the heating cable. Do not use until ready for final installation.

©2021 nVent. All nVent marks and logos are owned or licensed by nVent Services
GmbH or its affiliates. All other trademarks are the property of their respective owners.
nVent reserves the right to change specifications without notice.
RAYCHEM-IM-H55428-RayClicE-EN-2111
