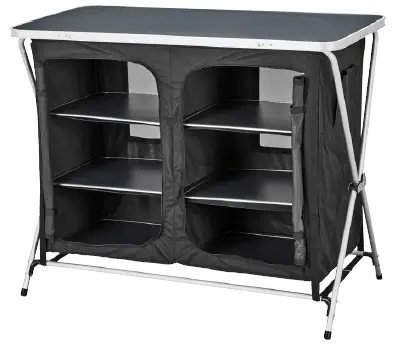

KAYOBA 009393 Camping Cabinet
SAFETY INSTRUCTIONS
- For household use only.
- Recycle discarded product at designated station.
- The product is not a toy. Do not allow small children to unfold or fold up the product (risk of pinch injuries).
- Maximum load 30 kg.
SYMBOLS
Read the operating instructions.
TECHNICAL SPECIFICATIONS
- Dimensions, unfolded H 88 x L 770 x W 53 cm
- Dimensions, folded up H 73 x L 772 x W 58 cm
- Max. load 30 kg
- Weight 9.5 kg
ASSEMBLY
- Remove the cabinet from the storage bag and unfold it.

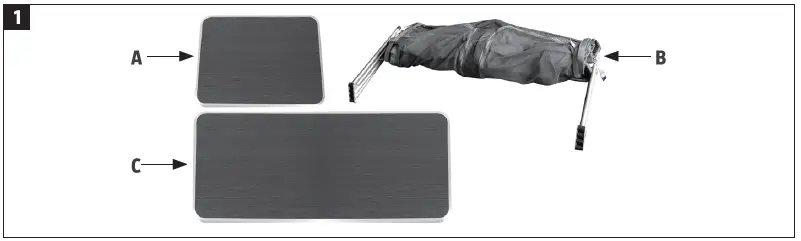

FIG. 1 - Raise the frame (B) by pulling the two upper sidepieces up and towards each other.
FIG. 2 - Fold down the lower legs until the cabinet is upright at its full height. Lock the frame with the Velcro straps.

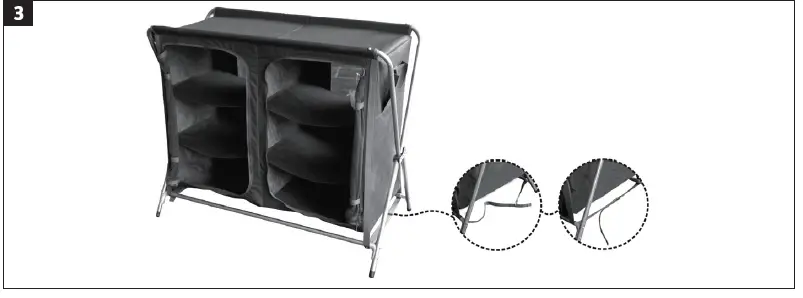

FIG. 3 - Push the shelves (Ax6) into the cabinet, so that they are resting on the horizontal textile panels. Place the table top (C) on the top the cabinet.
FIG. 4
MAINTENANCE CLEANING
Clean the product with a damp cloth and mild detergent. Strong detergents/solvents must not be used on this product.
STORAGE
Store the product indoors when not in use.
