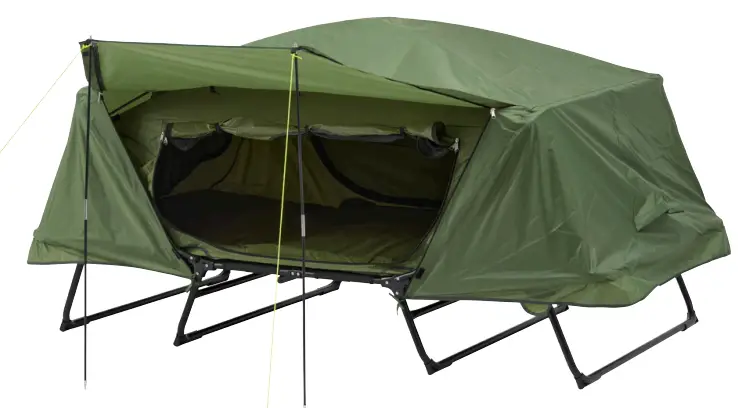

KAYOBA 018236 Camping Bed with Tent
SAFETY INSTRUCTIONS
- Do not use candles, matches or any other naked flames inside or in the vicinity of the tent.
- Do not cook food in the tent.
- If lighting a fire, light it several metres from the tent in the direction of the wind. Check that the fire is completely extinguished before going into the tent or leaving the camp site.
- Be very careful when using lamps or heaters filled with fuel in the tent.
- If possible only use lamps that run on batteries.
- Do not fill up lamps, heaters or stoves in the tent.
- Turn off, or extinguish, all lamps before going to sleep.
- Do not smoke in the tent.
- Do not store flammable liquids in the tent.
- The product is only intended for household use.
- Clean the product with a soft cloth, moistened with a mild detergent. Do not use strong detergent or solvents.
- Store the product indoors when not in use.
- Recycle the product at the end of its useful life in accordance with local regulations.
- Be careful when unfolding and folding – risk of pinch injury
SYMBOLS
- Read the instructions.
TECHNICAL DATA
- Size 215x125x110 cm
- Weight 18.5 kg
- Max load 160 kg
DESCRIPTION
| Parts | |
| Description | Number |
| Camping bed with inner tent | 1 |
| Outer tent | 1 |
| Long fibreglass guy | 2 |
| Short fibreglass guy | 2 |
| Tent pegs | 2 |
| Tent strings | 2 |
ASSEMBLY
SETTING UP

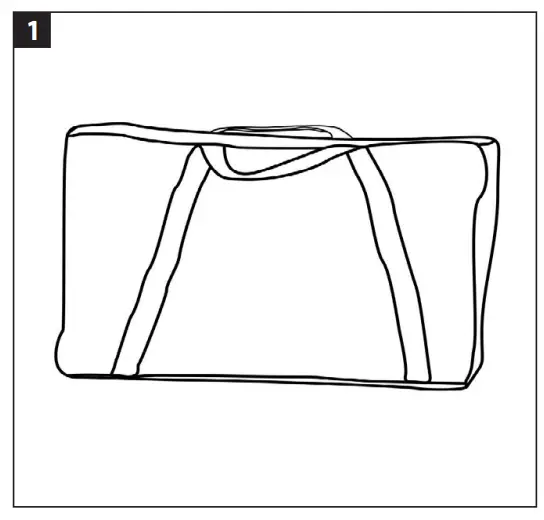

- Unpack all the parts from the bag.
FIG. 1
FIG. 2 - Unfold the bed and lock the legs.

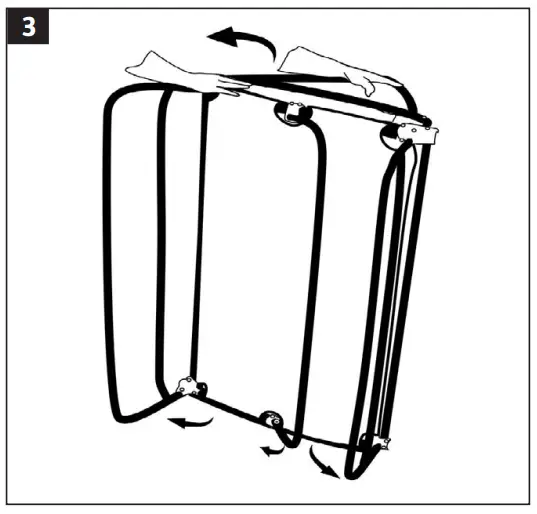

FIG. 3

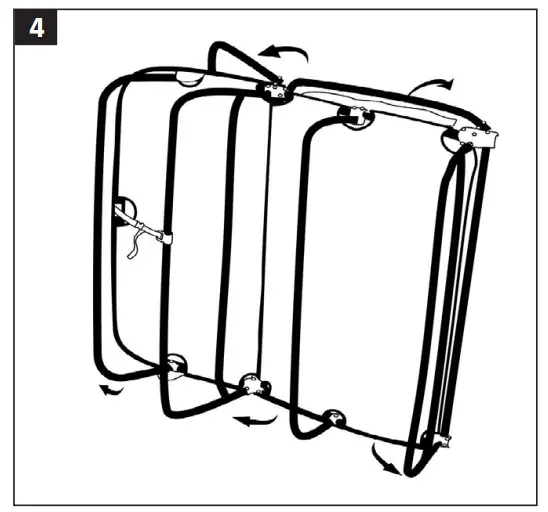

FIG. 4

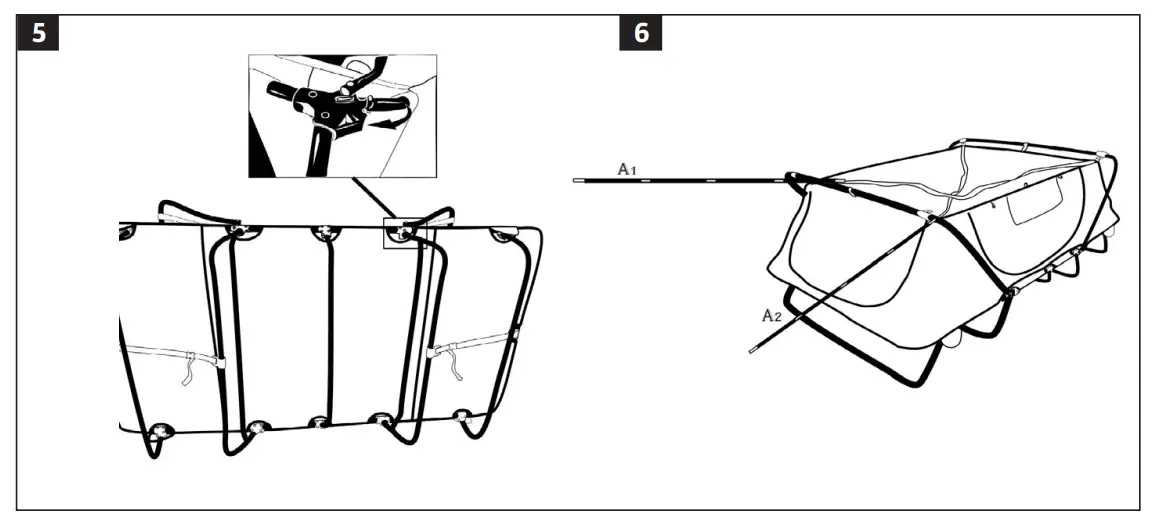

FIG. 5 - Put the 2 long guys in the channels in the inner tent and secure the ends at the loops.

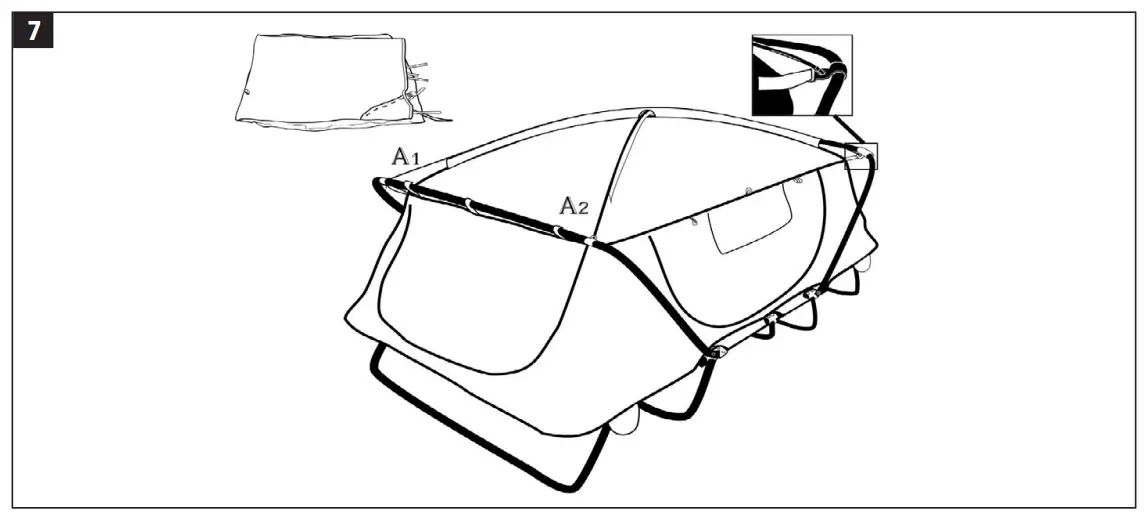

FIG. 6 - Place the outer tent over the inner tent and fasten to the bed.
FIG. 7

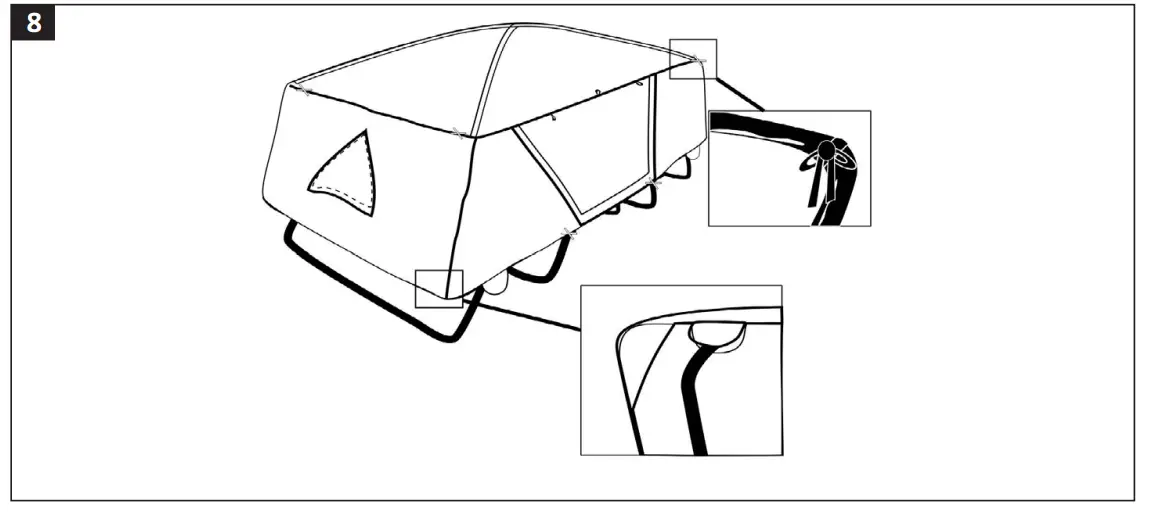

FIG. 8 - Unfold the tent flap as a sunshade, supported by the 2 short guys. Secure with guy lines and tent pegs.

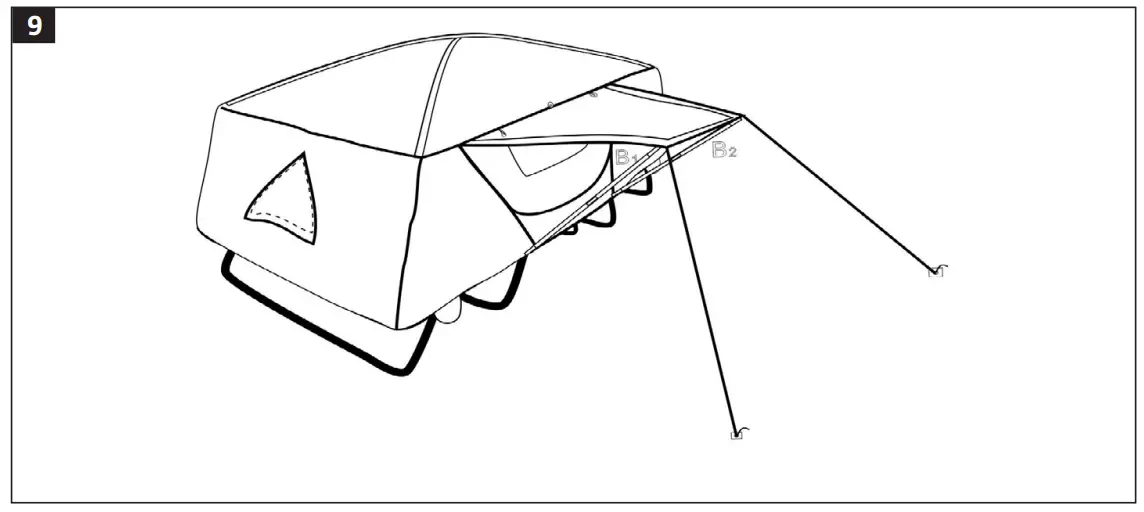

FIG. 9
FIG. 1
FIG. 2
FIG. 3
FIG. 4
FIG. 5
FIG. 7
FIG. 8
FIG. 9TAKING DOWN
Take down in the reverse order.
