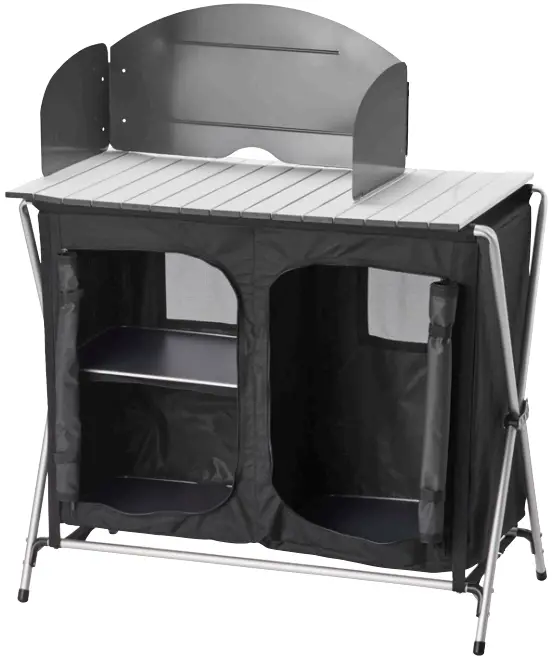

KAYOBA 009392 Camping Stove Instruction Manual
OPERATING INSTRUCTIONS
Important! Read the user instructions carefully before use. Save them for future reference. (Translation of the original instructions).
SAFETY INSTRUCTIONS
- For household use only.
- Recycle discarded product at designated station.
- The product is not a toy. Do not allow small children to unfold or fold up the product (risk of pinch injuries).
- Maximum load 30 kg.
SYMBOLS
Read the operating instructions.
TECHNICAL SPECIFICATIONS
- Dimensions, unfolded: L 87 x W 50 x H 80 cm
- Dimensions, folded up: L 94 x W 50 x H 12 cm
- Max. load 30 kg
- Weight 7.5 kg
ASSEMBLY

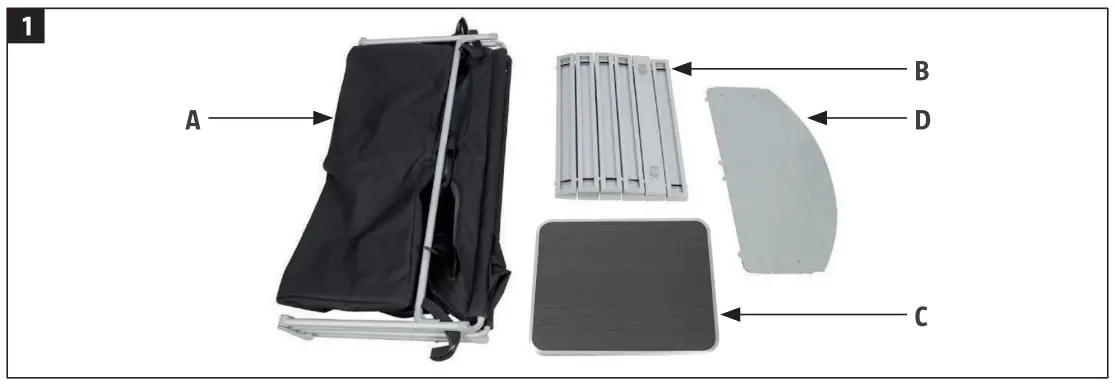

- Unpack the camping stove from the storage bag and lay out the parts.
FIG. 1

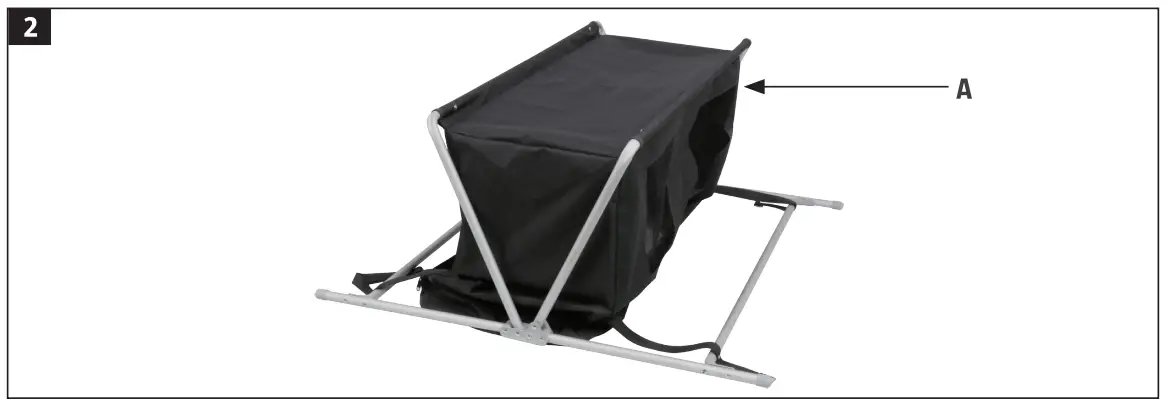

- Raise the frame (A) by pulling the two upper stays up and towards each other.
FIG. 2
- Fold down the lower legs so that the camping stove is fully raised. Secure the frame by stretching and securing the Velcro strap.
FIG. 3

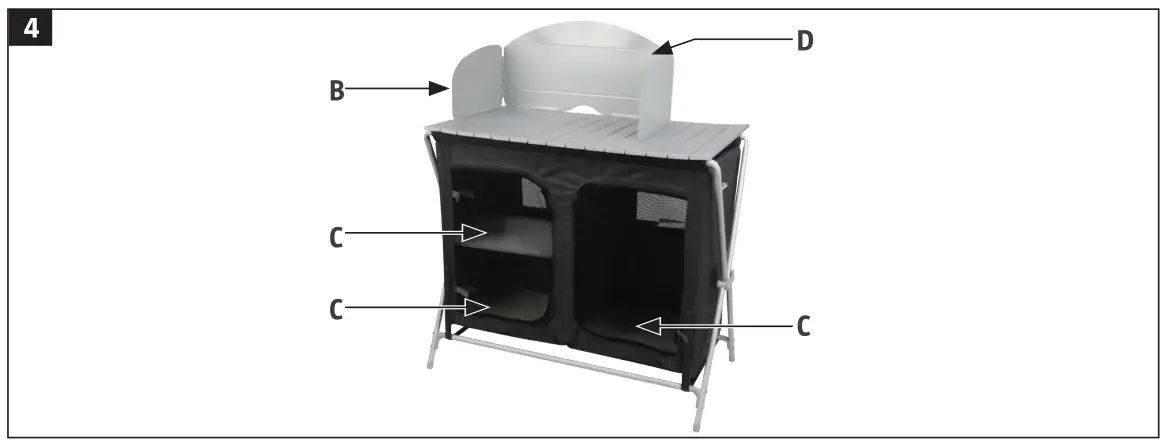

- Roll out the upper panel (B) and secure it to the fabric-covered tubes at the top using the four clamps, which are located under the panel.
- Place the three shelves (C) on the fabric panels in the camping stove. 6. Place the wind shield (D) on the upper panel (B).
FIG. 4
MAINTENANCE
CLEANING
Clean the camping stove with a damp cloth and mild detergent. Strong detergents/solvents must not be used on this camping stove.
STORAGE
Store the camping stove indoors in the storage bag when not in use.
