INSTRUCTIONS

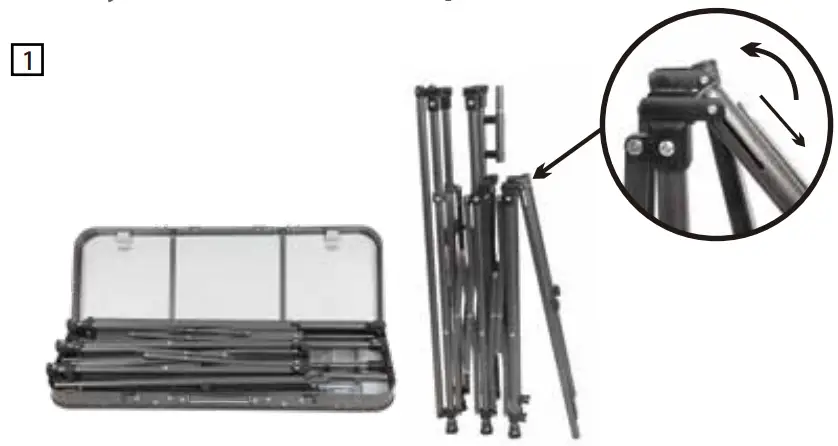

1. Open the locks and take the main frame out of the case.

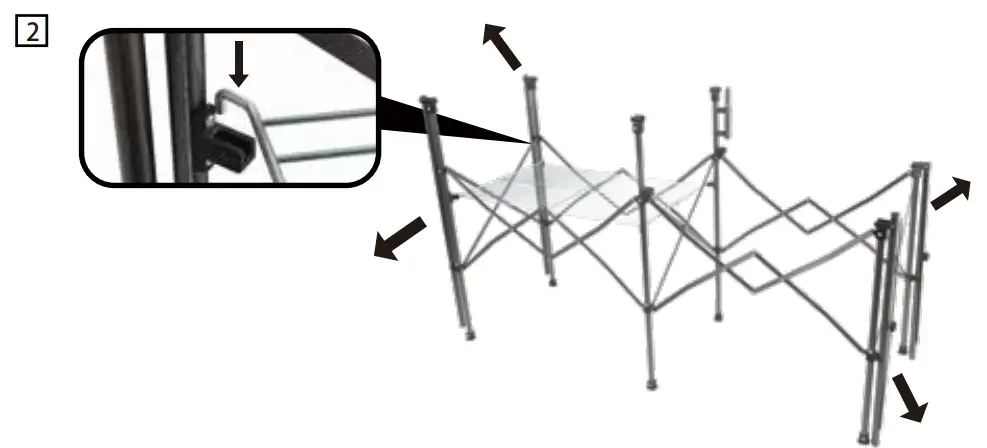

2. Unfold the frame and put the wire shelf on.

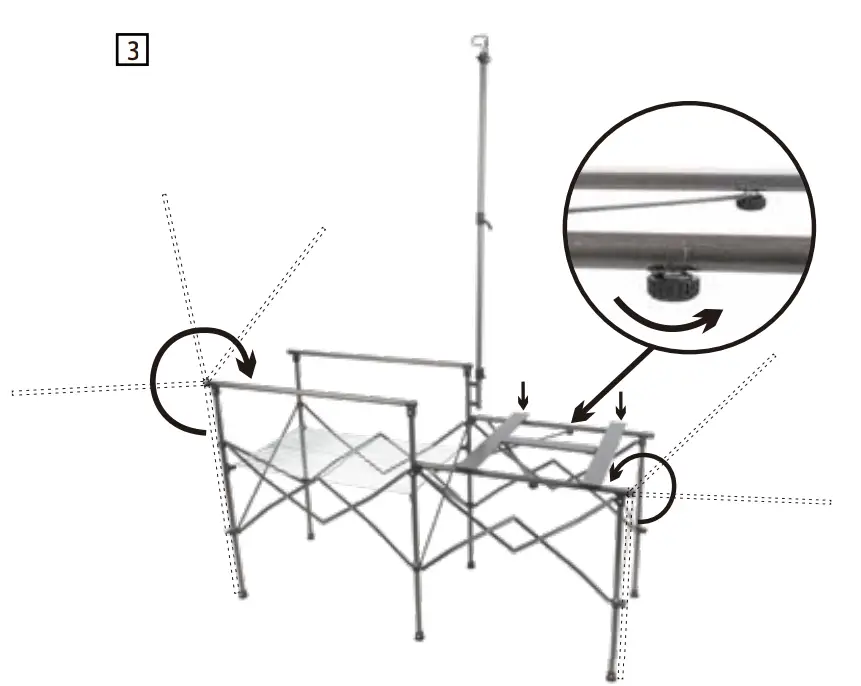

3.  Align and secure the crossbars on the top of the main frame in order to stabilise it. Install the other parts of the table, as shown.

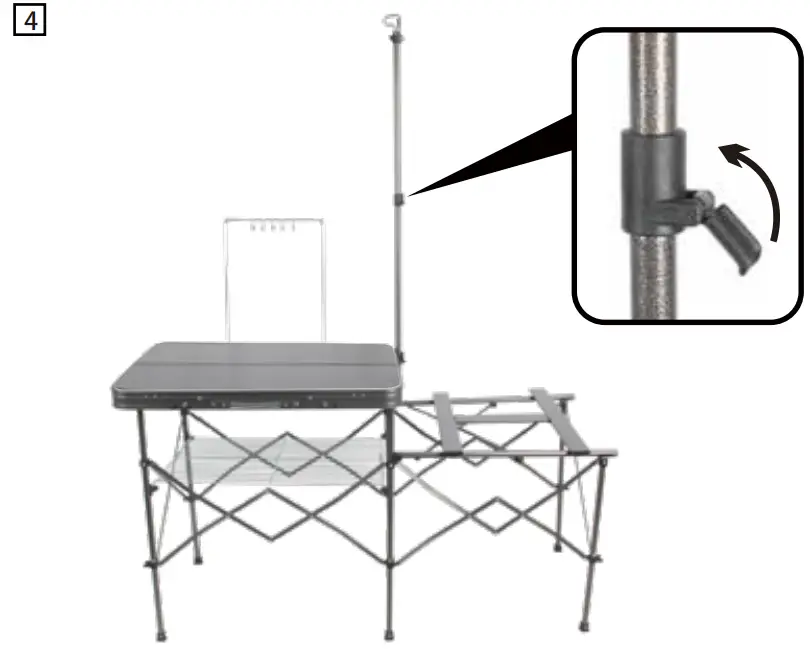

4. The camp kitchen is ready for use.


CAUTION
To be assembled by an adult only

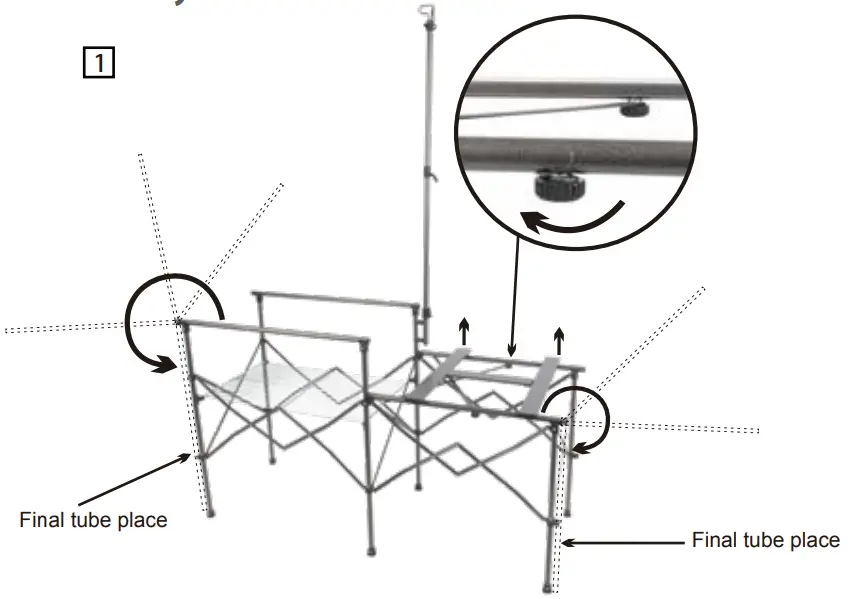

1. a: Remove the table top and all parts of the kitchen.
   b: Lift tubing and pivot so tubes align with mainframe.

2. Remove the wire shelf and fold the frame slowly.

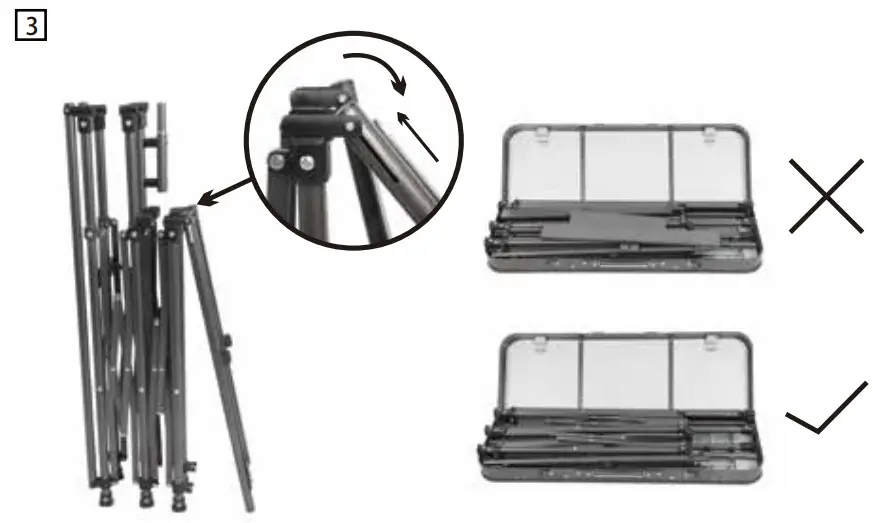

3. Put all accessories into the main frame, back in the carry case.

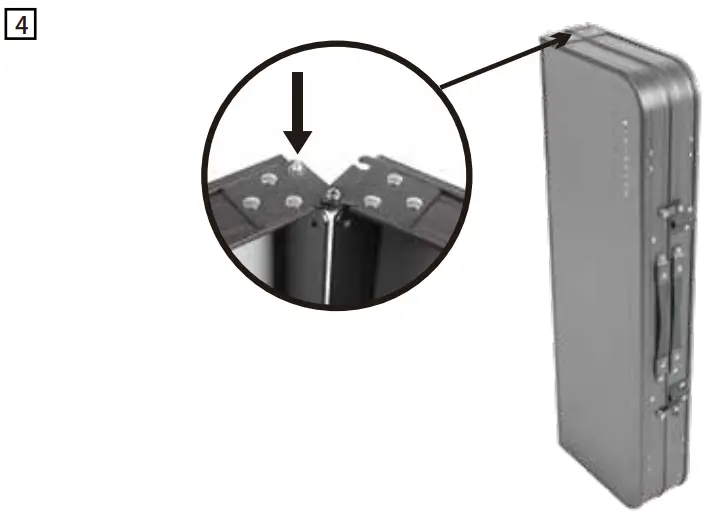

4. Push the button on the table top, close and lock it.


CAUTION
To be assembled by an adult only.
