| Designation | Bet box |
| Email number | E14 383 87 |
| Nature. Number | V-65L2072-001Y |
| Assembly | Surface mounted |
| Material | PC/ABS |
| insulation class | IP20 |
| Dimensions LxWxD | 170x125x38,5mm |
| Cable entry | 16mm knock-outs, as well as several cut-out possibilities |
| Working temperature | -20 + 50°C |
| Weight | 178g |
| Flame protection | V0 |
| Approvals | CE |
Vadsbox is a junction box intended for product assembly of, for example, a dimmer, control module, or relay. Vadsbox is IP20 and intended for placement in false ceiling or surface mounting indoors.
Vadsbox is equipped with a 5-pin spring terminal, which, if necessary, can be removed from the mount. Vadsbox bottom plate is prepared with jumpers which, with the help of supplied cable ties, allow universal fixed mounting of products as well as simple internal cable management and strain relief.
Warning!
High voltage. Risk of electric shock. Installation should only be carried out by a qualified electrician. Ensure that the power supply is turned off before switching takes place.

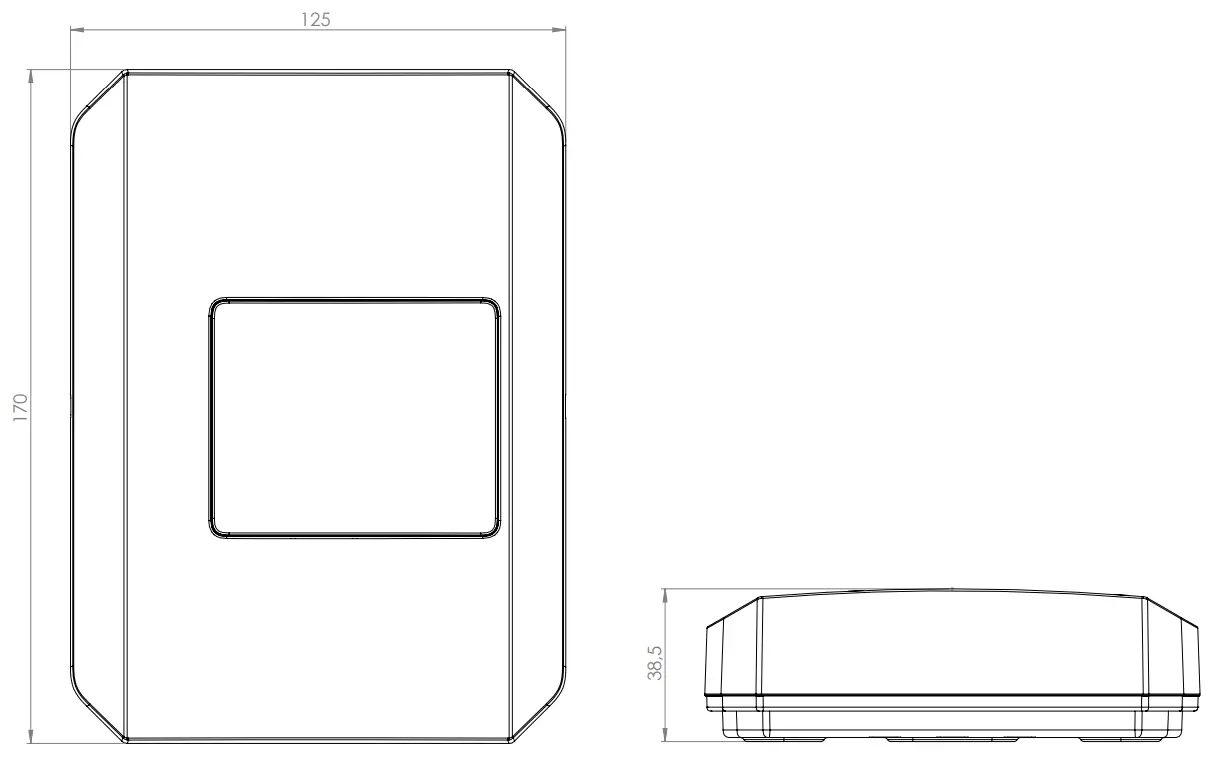

Dimensions (mm)
Lock mechanism

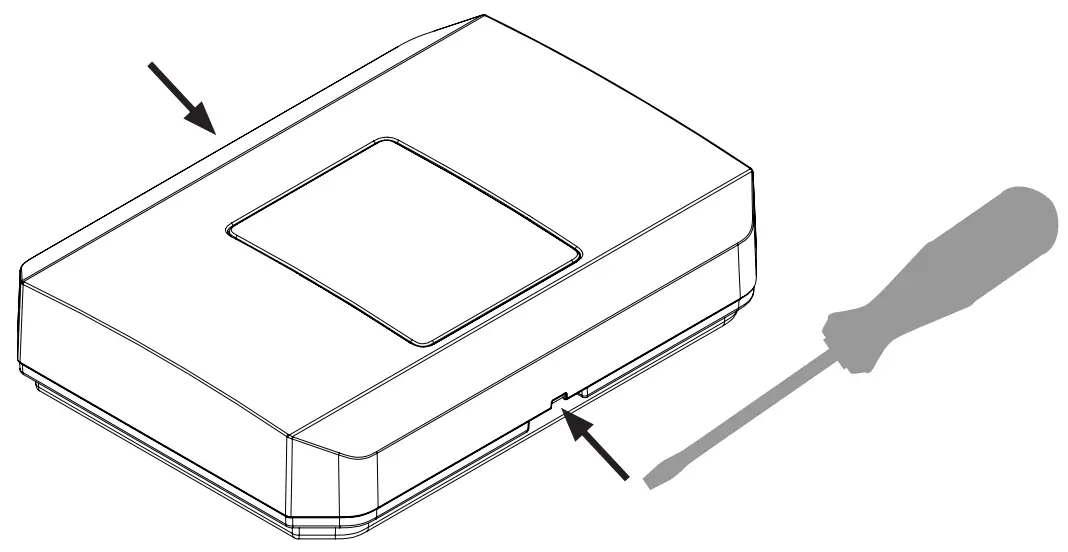

Q.A To open Vadsbox, a chisel is used to press the locking mechanism on the respective long side ACC. picture guide below.

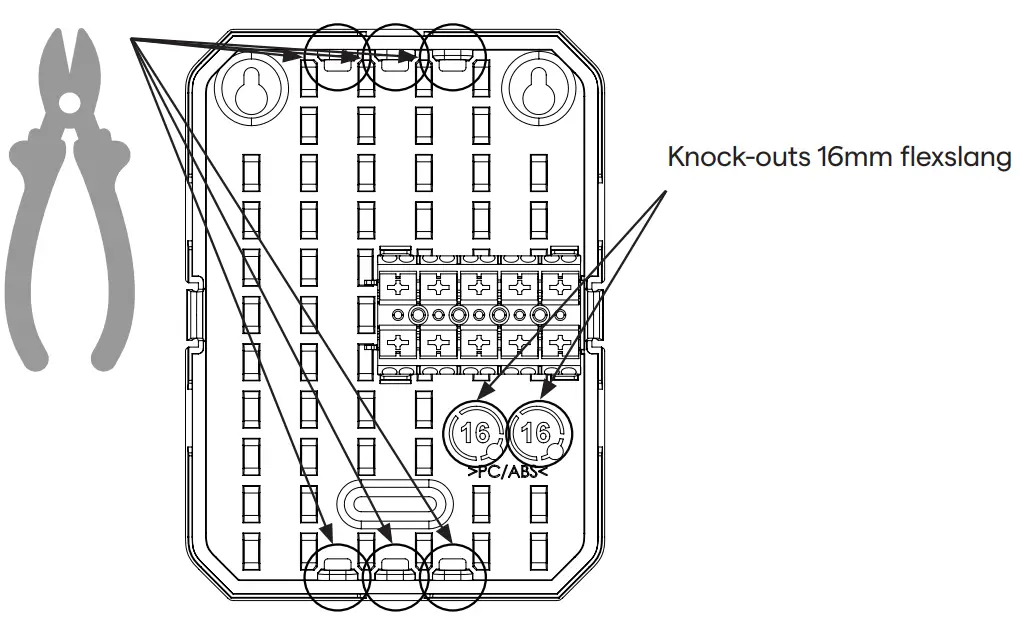

Option for cable entry
Selectable cutouts according to cable size in several places.

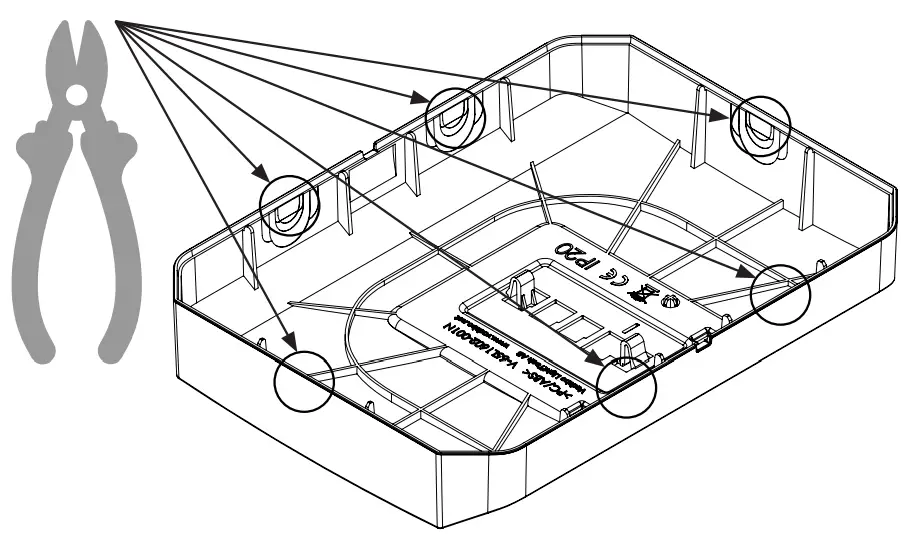

Option for cable entry
Cutouts for 2 conductor cable.
Installation on the wall
Included:

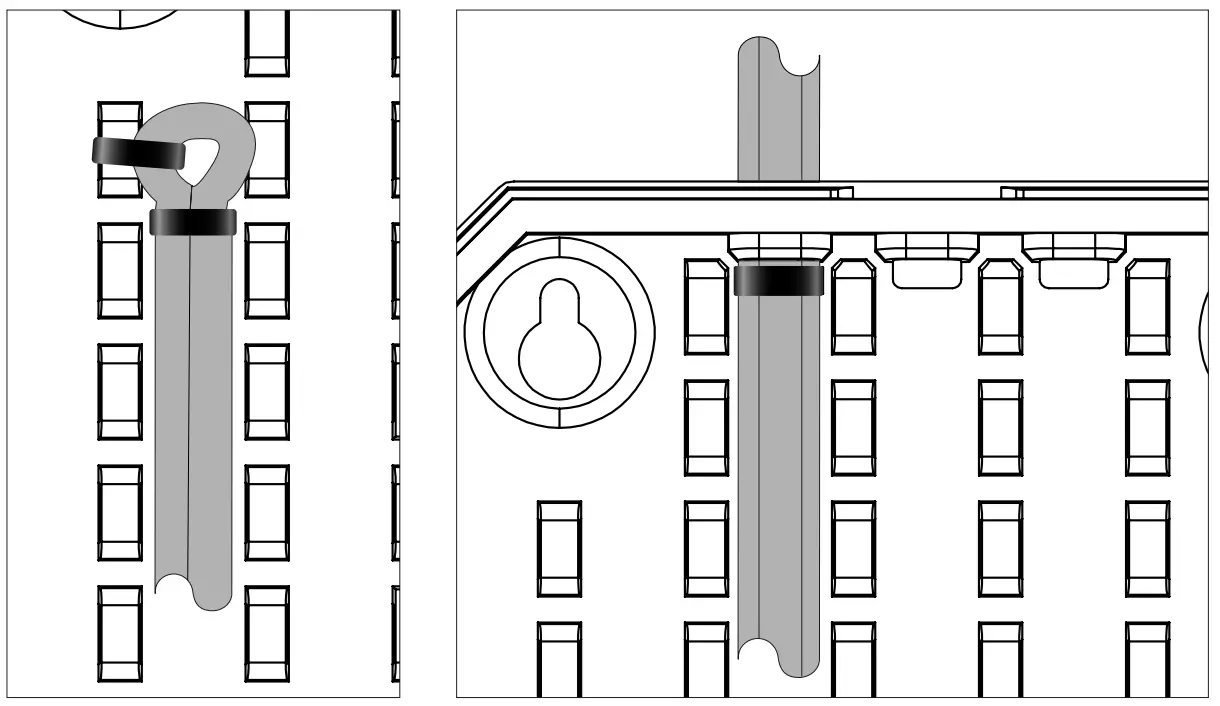

Drag relief Example
