Manual Vadsbox
Datablad SC TI CAS
E number: E13 607 98
Art. number: V-42B0006-004Y
Instruction Manual
Vadsbox Booking
E13 607 98 Vadsbox Booking
Booking integration with e.g. Matchi or Playtomic for Padel halls etc. Can take up to 8 potential-free outputs per box to control lighting from booking systems. Control the system with app, time or astro. Combine with Mpress and get a ready, fast and wireless on/off, dimmer function or fixed scenes. Increased energy savings and the right amount of light when you need it. Increases the life of your luminaires while enhancing the customer experience.
Possibility to increase the number of inputs on request. The exact functions are set with the help of the Casambi app. Vadsbox Boka is installed close to the alarm centre.
Warning!
High voltage. Risk of electric shock.
Installation should only be performed by a qualified electrician. Make sure that the power supply is switched off before connecting.

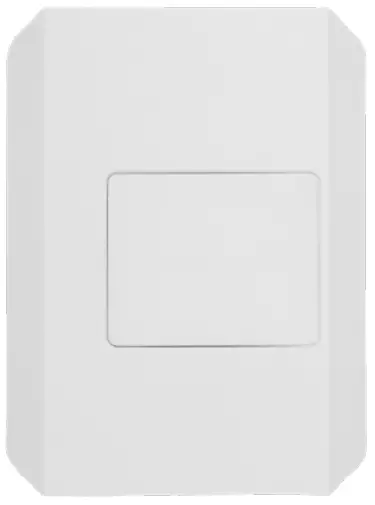

Vadsbox is a junction box intended for the fitting of products such as dimmers, control modules and relays.

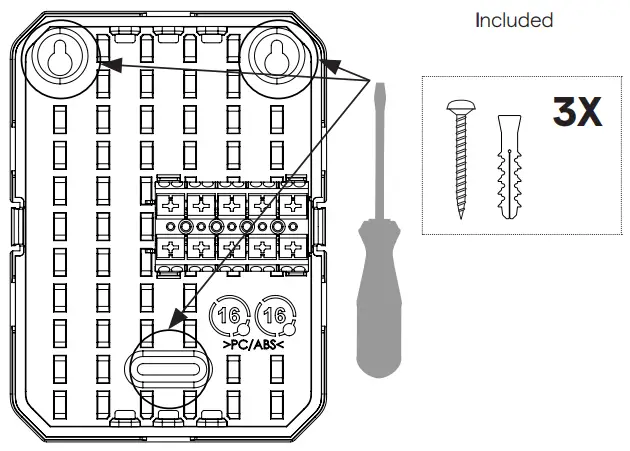

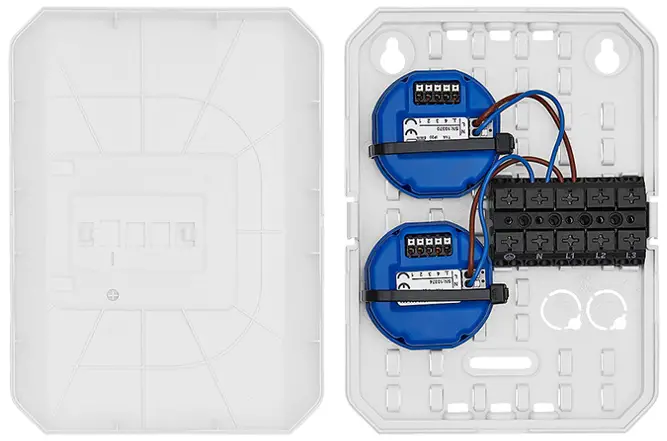

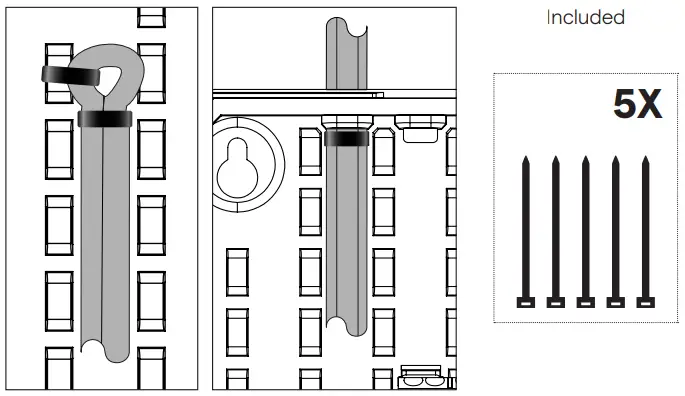

Vadsbox is IP20 compliant and intended for placement in suspended ceilings or for surface mounting indoors. Vadsbox is equipped with a 5-pole spring connector, whichcan be removed from the fitting if necessary. Vadsbox’s base plate includes brackets which, with the help of the included cable ties, allow for a universal fitting of products, as well as simple internal cable management and strain relief.
Open locking clips
To open the Vadsbox press a screwdriver against the locking clips on each long side, as per the picture below.

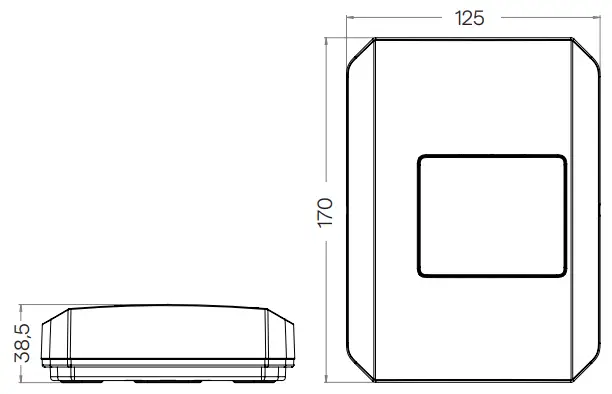

Dimensions
Technical data
| Product name | Vadsbox |
| Product number | V-65L1602-001Y |
| E-number | E14 383 97 |
| Fitting | Surface mounted |
| Material | PC/ABS |
| Insulation class | IP20 |
| Dimensions LxWxDj | 170x125x38,5mm |
| Cable entry | 16mm knock-outs, and multiple cut-out options |
| Working temperature | -20 + 50°C |
| Weight | 178g |
| Flame retardance | V0 |
| Approvals | CE |

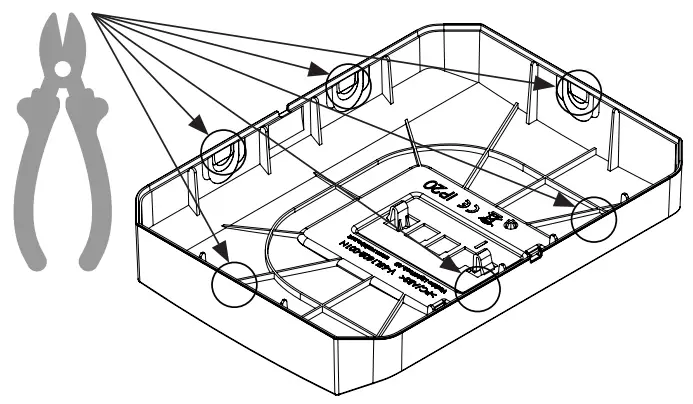

Cable entry options

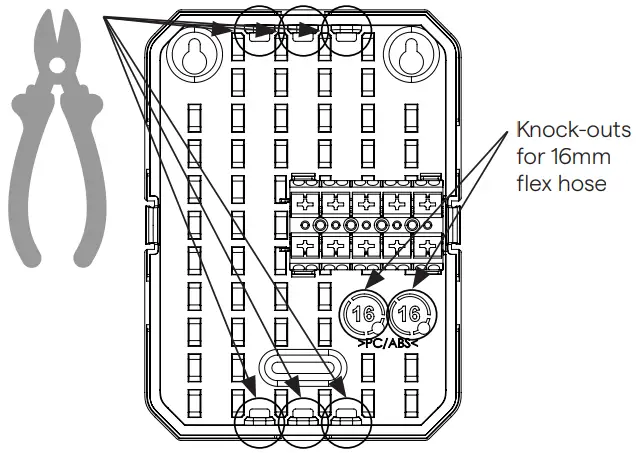

| Optional knock-outs based on cable size in several places | Entradas recortables para 2 cables conductores |
 |  |
| Wall mounting | Examples of strain relief |
 |  |

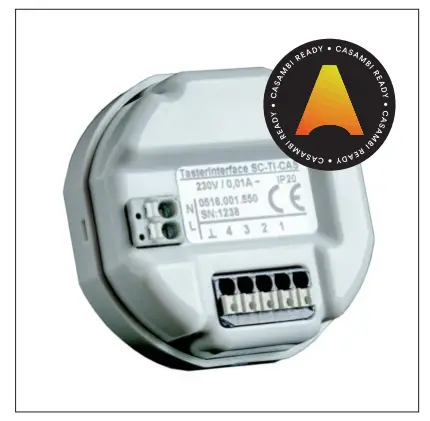

Potential-free switch module Sc-Ti-Cas
| Designation | Sc-Ti-Cas |
| Email number | 17 116 41 |
| Species. number | V-42B0107-001N |
| Voltage | 230VAC |
| Max current | 10mA |
| Frequency | 50Hz |
| Operating temperature | 0-55°C |

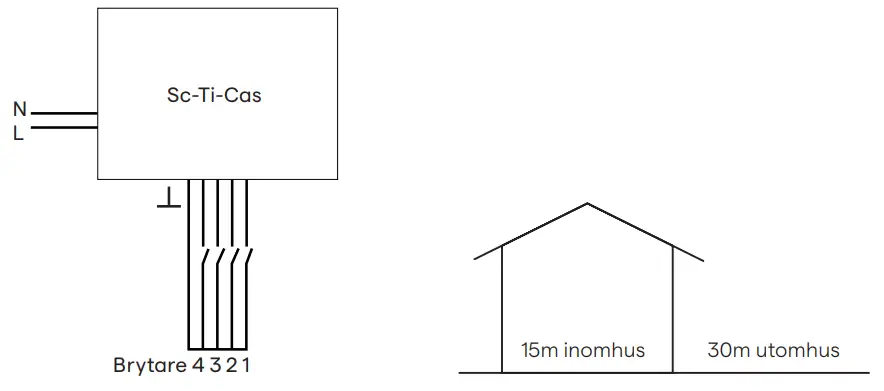

| Maximum cable area | 0,2mm² – 1,5mm² |
| Maximum cable length | 30cm |
| Cable stripping | 8mm |
| Standards | DIN EN60669-2-1 ECI EN301 489-1 c. 1.ia.2 ECI EN301 489-17 c. 2.2.1 ECI EN300 328 c. 1.8.1 |
| Dimensions | Ø 53mm x 21mm |
Installation should only be done by one authorized electrician according to local regulations.
