Vadsbox Sensor Smal
Warning!
High voltage. Risk of electric shock. Installation should only be performed by a qualified electrician. Make sure that the power supply is switched off before connecting.
Vadsbox is a junction box intended for the fitting of products such as dimmers, control modules and relays. Vadsbox is IP20 compliant and intended for placement in suspended ceilings or for surface mounting indoors.
Vadsbox is equipped with a 5-pole spring connector, which can be removed from the fitting if necessary. Vadsbox’s base plate includes brackets which, with the help of the included cable ties, allow for a universal fitting of products, as well as simple internal cable management and strain relief.
Open locking clips

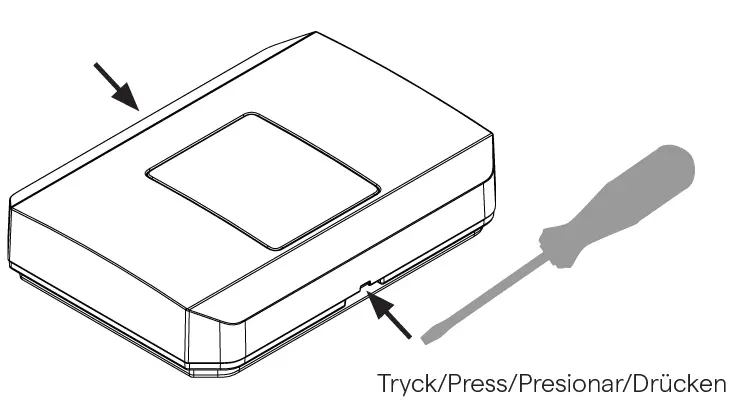

To open the Vadsbox press a screwdriver against the locking clips on each long side, as per the picture below.
Dimensioner
Vadsbox installations manual 2022-01-13 version 2
Technical data
| Product name | Vadsbox |
| Product number | V-65L1602-001Y |
| E-number | E14 383 97 |
| Fitting/Montage | Surface mounted |
| Material | PC/ABS |
| Insulation class | IP20 |
| Dimensiones LxAxP | 170x125x38,5mm |
| Cable entry | 16mm knock-outs, and multiple cut-out options |
| Working temperature | -20 + 50°C |
| Vikt/Weight | 178g |
| Flame retardance | V0 |
| Approvals | CE |
Cable entry options

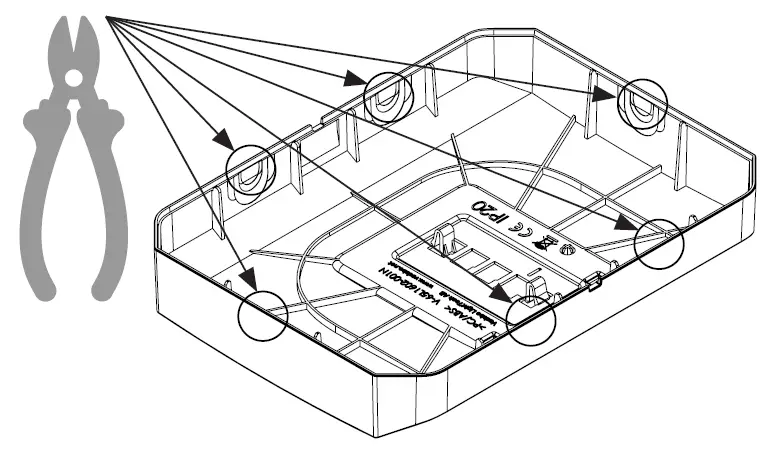

Optional knock-outs based on cable size in several places

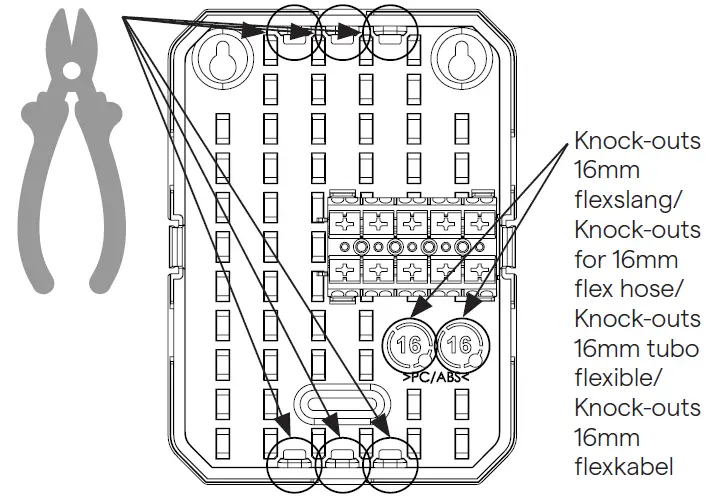

Knock-outs for 2 wiring cables

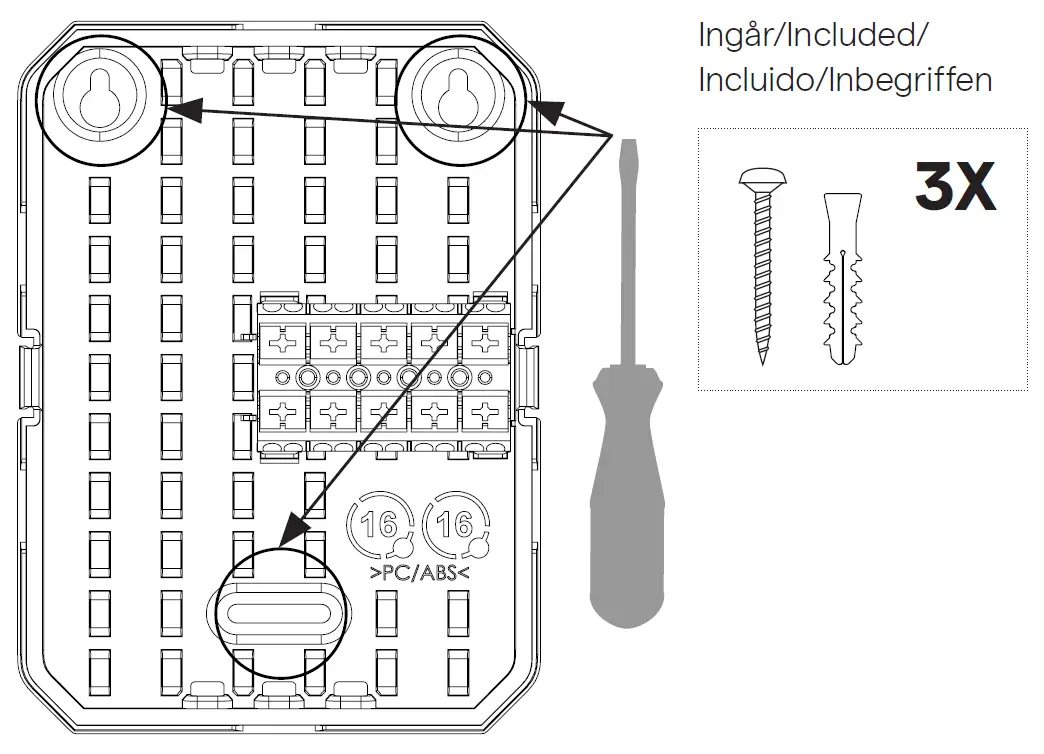

Wall mounting

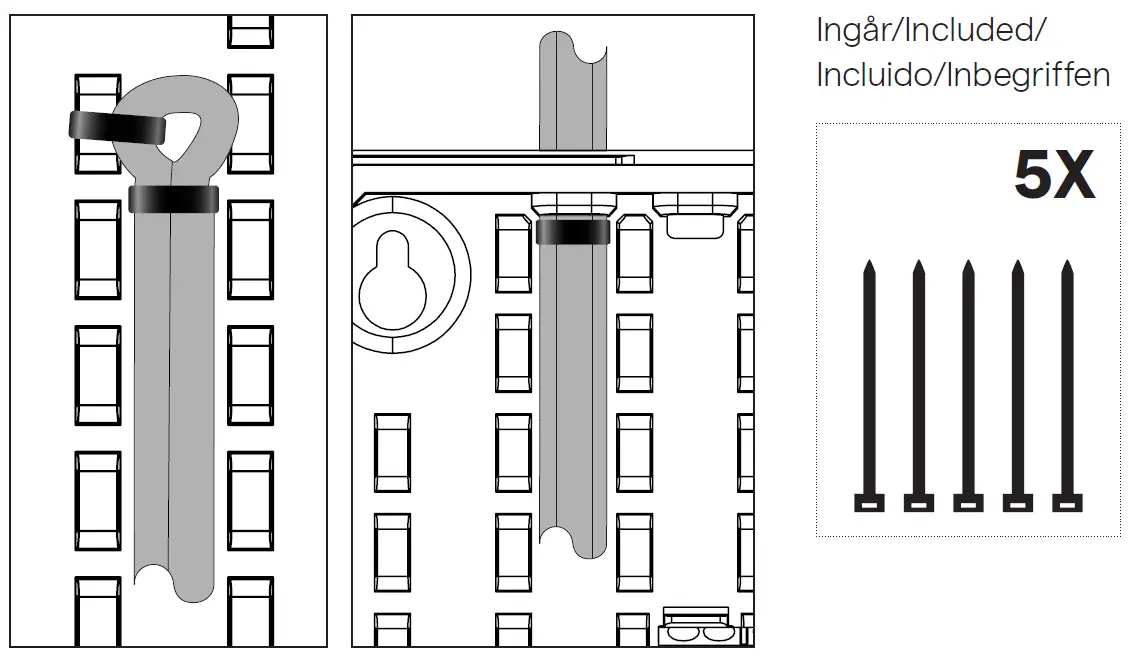

Examples of strain relief

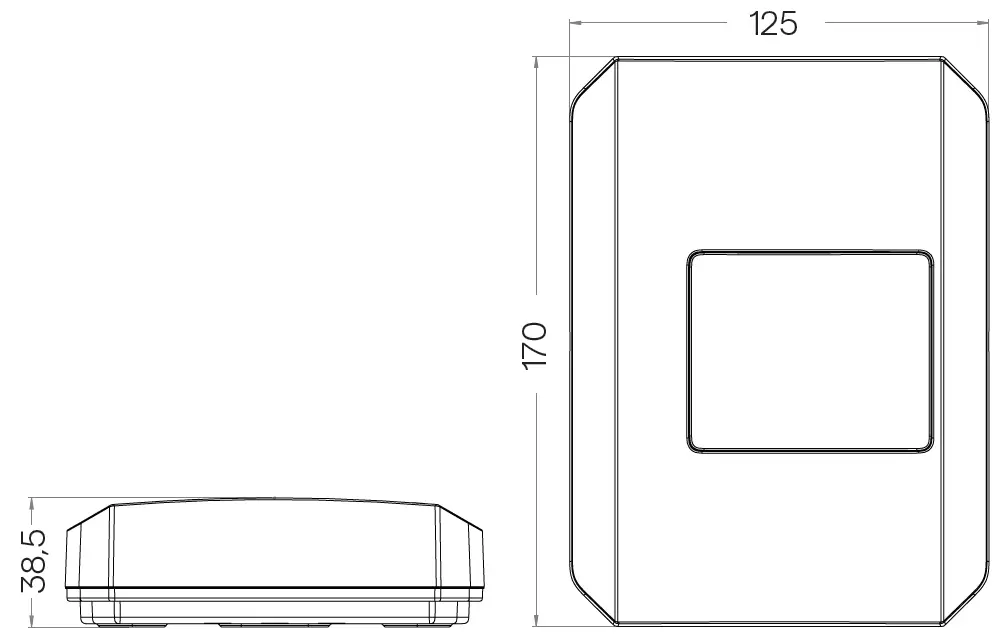

Dimensioner (mm)

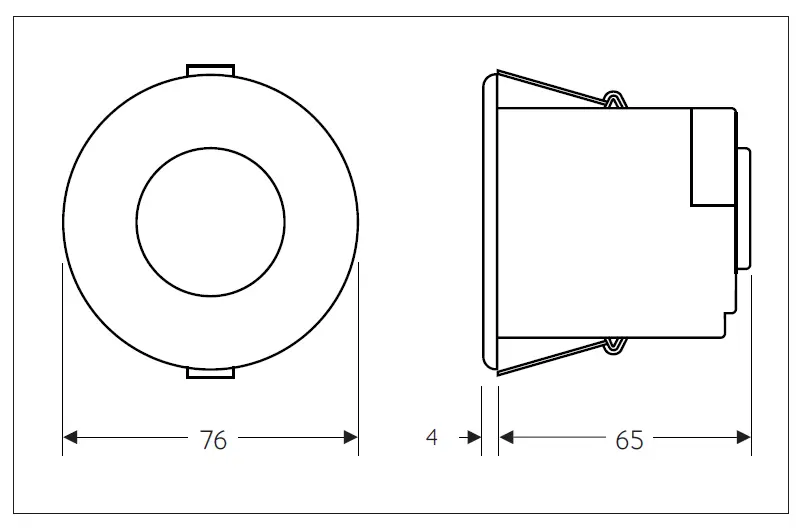

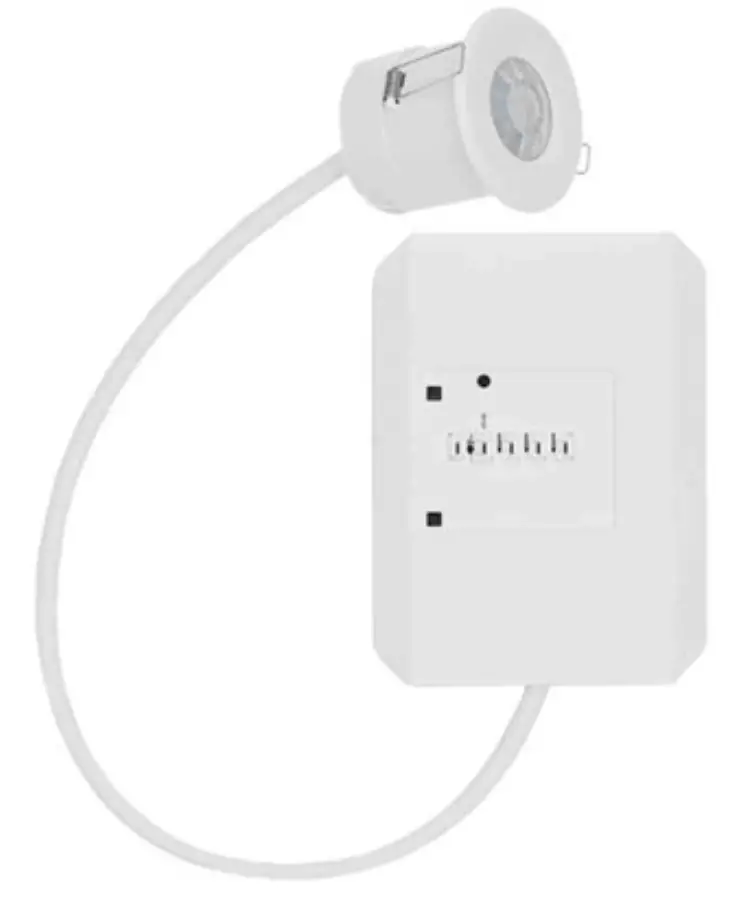

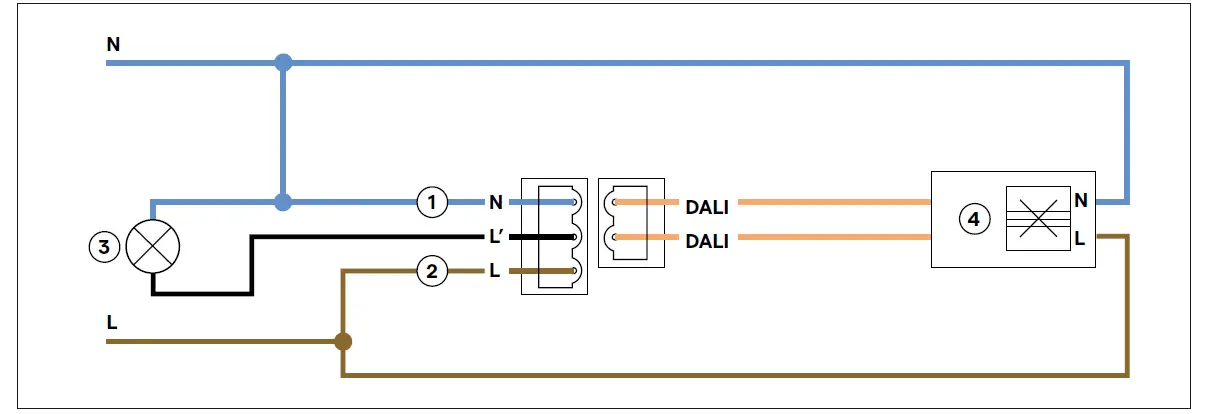

Sensor CBU-PIRDALI-N
