TNS3
Art. Nr. 9630903
INSTRUCTION MANUAL

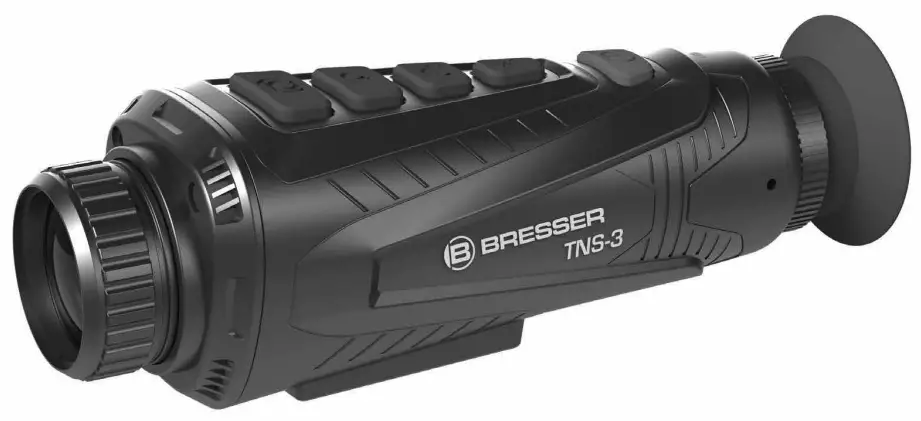

TNS3 Wi-Fi Thermal Imaging Camera
APP HERUNTERLADEN / APP DOWNLOAD:
HANDBUCH & APP DOWNLOAD:
www.bresser.de/download/9630903
Google Play und das Google Play-Logo sind Marken der Google Inc.
Apple und das Apple-Logo sind Marken von Apple Inc. und in den USA und anderen Ländern eingetragen. App Store ist eine Dienstleistungsmarke von Apple Inc. und in den USA und anderen Ländern eingetragen.
ABOUT THIS INSTRUCTION MANUAL
These operating instructions are to be considered a component of the device.
Please read the safety instructions and the operating instructions carefully before use.
Keep these instructions for renewed use at a later date. When the device is sold or given to someone else, the instruction manual must be provided to the new owner/user of the product.
GENERAL WARNINGS
RISK OF CHOKING!
Keep packaging material, like plastic bags and rubber bands, out of the reach of children, as these materials pose a choking hazard. RISK OF ELECTRIC SHOCK!
This device contains electronic components that operate via a power source (power supply). Children should only use the device under adult supervision.
Only use the device as described in the manual; otherwise, you run the risk of an electric shock.
Disconnect the device from the power supply by pulling the power plug when it is not used. In case of longer interruption of operation and before starting any work on maintenance and cleaning.
Always pull on the plug to separate the device from the power supply. Never pull on the cable. RISK OF FIRE/EXPLOSION!
Do not expose the device to high temperatures.
Use only the supplied power supply. Do not short-circuit the device. Excessive heat or improper handling could trigger a short circuit, a fire, or an explosion.
NOTE!
Do not disassemble the device. In the event of a defect, please contact the Service Centre in your country.
Do not immerse the unit in water.
Do not subject the unit to excessive force, shock, dust, extreme temperature or high humidity, which may result in malfunction, shorter electronic life span, damaged batteries and distorted parts.
When the product works, slight click will be given out every several seconds. This is the normal phenomenon that the lens captures the image.
INTRODUCTION
This Thermal Night Vision device adopts advance non-cooled focal plane infrared detector and quality optical lenses as the core. With the characteristics of convenient and quick operating system, small appearance design, expansion parts with perfect function, long duration of use, it is sturdy and durable and applicable to all types of environ- ments and provides an ideal temperature measurement tool featuring “clear imaging, precise measurement, simple operation and easy to carry”. This is the best selection for onsite detection, preventive maintenance and other application sites.
The product may be used for outdoor animal observation, earch and rescue, law enforcement detection for policemen, night patrol, outdoor activities and personal security, etc. The product is provided with the photographing function. The photos may be browsed by connecting with a computer through USB to make it convenient for observation of many persons at the same time, which creates possibility for application in more occasions.
SCOPE OF DELIVERY
- Thermal Night Vision device
- USB cable
- Power supply adapter (for use with USB cable)
- Case
- Instruction Manual
BATTERY CHARGING INSTRUCTIONS
Use USB data line to charge:
This product has a built-in rechargeable battery.
When the battery is low, please charge it in time via the Type-C USB port. After fully charged, unplug the USB cable.
Note: When the battery is completely empty, there will be an abnormality. It is recommended to use the battery when it is sufficient.

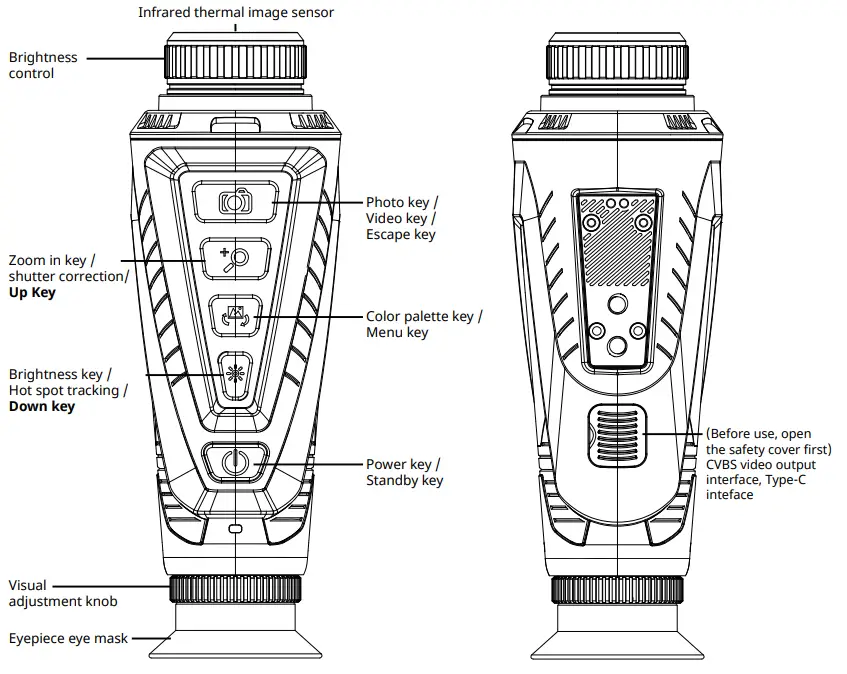

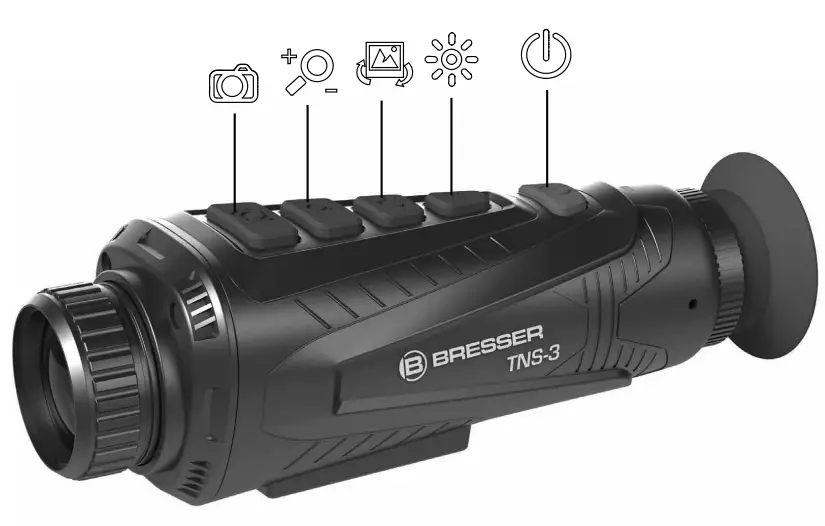

PARTS OVERVIEW
CHARGING
The product is provided with built-in battery.
When the battery power is not sufficient, please charge it through Type-C USB interface in time.
POWER ON/OFF
Hold down [
] key to power on /off.
IMAGE/VIDEO CAPTURE
Shortly press the [
] key for photographing func- tion, the photographing icon flashes once (photographing status). If the magnification is X2, then press X2 for picture storage. If the magnification is X4, press X4 for picture storage.
Long press the [ ] key for 2 seconds for video recording (the video icon flashes) and long press the shooting key for 2 seconds for video recording to end and exit.
MENU OPERATION:
MAIN MENU
Long press the [
] key for 2 seconds to enter the main menu.
Press the Up key or Down key to navigate through the different settings.
Press the [ ] key for confirmation.
Press the [ ] key to go back / escape.
PICTURE LIST
Press [ ] key to enter the picture list.
You may long press the [ ] key for 2 seconds to delete the corresponding picture.
IMAGE EXPORT
Capture and save images can be viewed and ex-ported via a Micro USB connection to a computer.
MODE SWITCHING
Press the [ ] key to switch between the imaging modes of white heat, black heat, rainbow, hot metal, yellow saturation and game/wildlife watching mode.
ZOOM IN/OUT
Shortly press the [
] key, and each time you press it, the target of “1X, 2X, 4X” will be gradually enlarged and displayed. In the manual or semi-automatic state, long press the zoom in button for 2 seconds to manually correct the shutter once.
BRIGHTNESS ADJUSTMENT OF THE DISPLAY SCREEN
Under the power-on state, press and the [
] key to adjust the brightness. Long press the [ ] key for 2 seconds to turn on or off the hotspot tracking function.
DIOPTER ADJUSTMENT
Rotate the diopter adjustment key left and right to adjust the diopter for yourself.
FOCUSABLE LENS
Rotate the focus lens key left and right to focus.
Rotate clockwise for near focus and counterclockwise for far focus.
INDICATOR LIGHT
| Status | Not charged being | In charging | Fully charged |
| Power on | Blue | Red blue (purple) | Blue |
| Power off | None | Red | None |

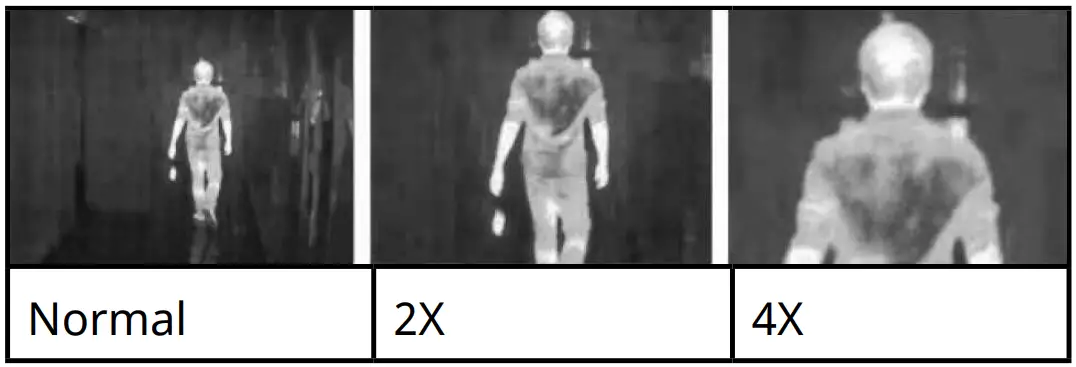

APPLICATION OF AMPLIFICATION
The magnification function may be utilized when remote objective is photographed so as to observe the objective clearly. The effect picture is as follows:

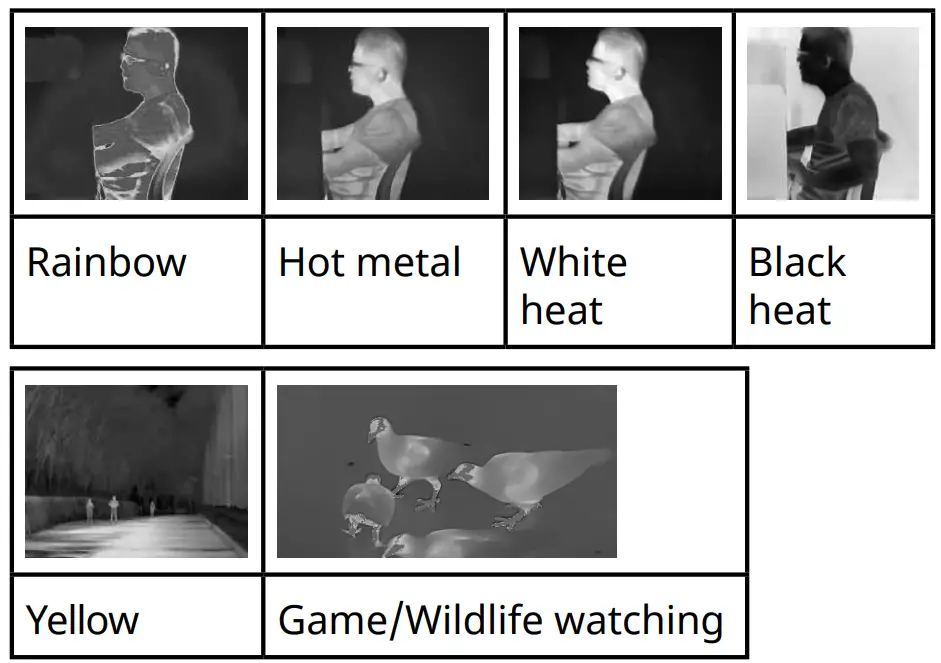

APPLICATION OF COLOR PALETTE
The palette menu can change the pseudo color of infrared thermal image, and provide 6 color palettes: rainbow, hot metal, white heat, black heat, yellow saturation and game/wildlife watch- ing mode. The selection of suitable color palette can display details of the target. For rainbow and hot metal color palette focuses on the display of colors, so it is very suitable to high heat contrast used to improve the color contrast between high temperature and low temperature. Then the color palette of white heat provides uniform linear colors.
The image effect photographed with six types of color palette.
WIFI FUNCTION & APP DOWNLOAD
Install the app “BRESSER TNS-3” on your smartphone.
Download (AppStore or Google Play): http://www.bresser.de/download/9630903
Now press and hold the [ ] key for 3 seconds to start the WIFI function in the WIFI-Setting. Search for “PFV01_WIFI” under open Wifi networks on your smartphone and connect to it. Enter the password: “12345678”.
Now open the app. After pressing Start, the connection to the camera is established.
| 1. Start screen 2. Take photos 3. Record videos | 4. Playback 5. Picture rotation 6. Screen view |
Press and hold the [ ] key for 3 seconds to stop the
Wifi function and to disconnect the camera.
VIDEO OUTPUT
Connect an external screen via the SMA socket of the video output and switch on the unit. To start the video output function (CVBS), press and hold the [ ] key for 3 seconds. The screen now switches to the display of the external screen.
Press and hold the key again for 3 seconds to exit the mode.
| Function | Description |
| Colour | Colour palettes: white hot, black hot, rainbow, red hot, yellow, game/wildlife watching. The default value is white hot. |
| Brightness | 10 brightness levels (0-9). The default value is 4. |
| Contrast | 10 contrast levels (0-9). The default value is 6. |
| HOT | Hotspot tracking: automatic tracking of multiple hotspot destinations (on or off). The default value is off. |
| PI | Perfect image: (PI+, PI-) (0-4). The default value is “PI- 3”. |
| Language | Language selection: English (EN), German (DE), Spanish (ES), Dutch (NL), French (FR), Portugese (PT) |
| WIFI | WIFI: On or off. The default value is off. |
TECHNICAL DATA
| Probe type | Uncooled focal plane |
| Resolution ratio | 384×288 infrared focal plane |
| LCoS resolution | 1280×960 |
| Focus length | 25mm; 35mm |
| Eyepiece | Single eyepiece display (the dioptric compensation is adjustable) |
| Field angle | 14.9°x11.2°; 10.7°x 8° |
| Digital zoom | 2X; 4X |
| Discovery distance | Boar: up to 1000 m Car: up to 2,000 m (in winter) |
| Detection distance | Boar: up to 514 m Car: up to 876 m |
| Wavelength coverage | 17pm |
| Frame rate of thermal images | 50Hz |
| Color palette | Rainbow / hot metal / white heat / black heat / yellow saturation / game/wildlife watching mode |
| Focusing mode | Adjustable |
| Image storage | JPG 16 GB integrated memory |
| Battery | 18650 lithium battery at 3500mAh |
| USB | Type-C |
| Working time | 6 hours |
| Work temperature | 0 °C to 45 °C |
| Storage temperature | -20 °C to 60 °C |
| Product size | 189x67x67 mm |
| Product weight | 503q |
DISPOSAL
Dispose of the packaging materials properly, according to their type, such as paper or cardboard. Contact your local waste-disposal service or environmental authority for information on the proper disposal.
Do not dispose of electronic devices in the household garbage! As per Directive 2012/19/ EC of the European Parliament on waste electrical and electronic equipment and its adaptation into German law, used electronic devices must be collected separately and recycled in an environmentally friendly manner.
EC DECLARATION OF CONFORMITY
Hereby, Bresser GmbH declares that the equipment type with part number: 9630903 is in compliance with Directive: 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: www.bresser.de/download/9630903/CE/9630903_CE.pdf
UKCA DECLARATION OF CONFORMITY
Bresser GmbH has issued a „Declaration of Conformity“ in accordance with applicable guidelines and corresponding standards. The full text of the declaration of conformity is available at the following internet address: www.bresser.de/download/9630903/UKCA/9630903_UKCA.pdf
Bresser UK Ltd. • Suite 3G, Eden House, Enterprise Way, Edenbridge, Kent TN8 6HF, Great Britain
WARRANTY
The regular warranty period is 5 years and begins on the day of purchase.
You can consult the full warranty terms as well as information on extending the warranty period and details of our services at: www.bresser.de/warranty_terms.
Service
Please contact the service centre fi rst for any questions regarding the product or claims, preferably by e-mail.
E-Mail: [email protected]
Telephone*: +44 1342 837 098
BRESSER UK Ltd.
Suite 3G, Eden House
Enterprise Way
Edenbridge, Kent TN8 6HF
Great Britain
*Number charged at local rates in the UK (the amount you will be charged per phone call will depend on the tariff of your phone provider); calls from abroad will involve higher costs.
Bresser GmbH
Gutenbergstraße 2
46414 Rhede · Germany
www.bresser.de
Bresser UK Ltd.
Suite 3G, Eden House
Enterprise Way, Edenbridge,
Kent TN8 6HF, Great Britain
