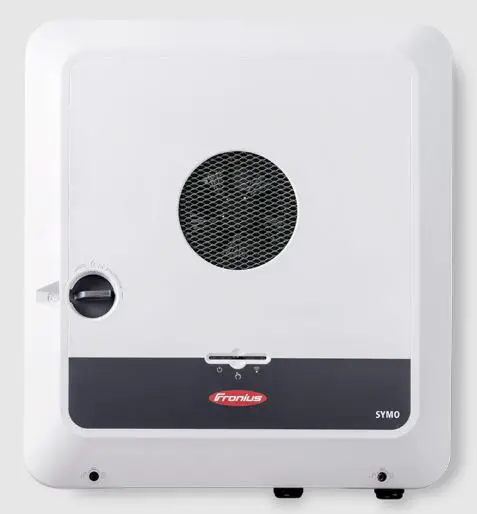

Fronius Symo GEN24 Three Phase Hybrid Inverters
OVERVIEW

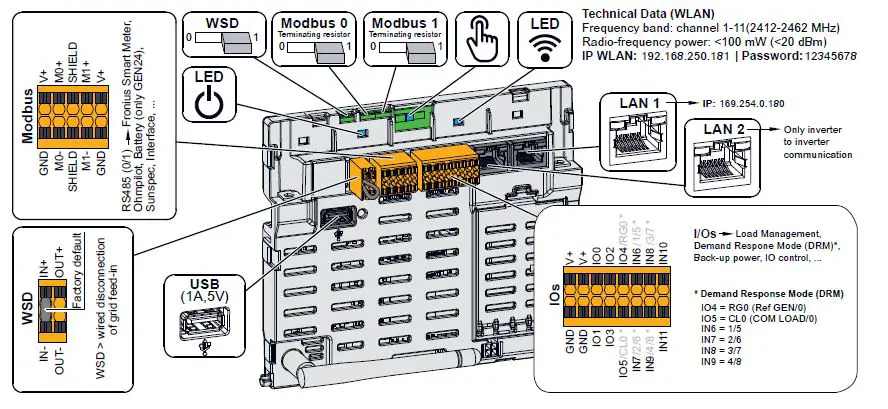

Technical Data (WLAN)
- Frequency band: channel 1-11(2412-2462 MHz)
- Radio-frequency power: <100 mW (<20 dBm)

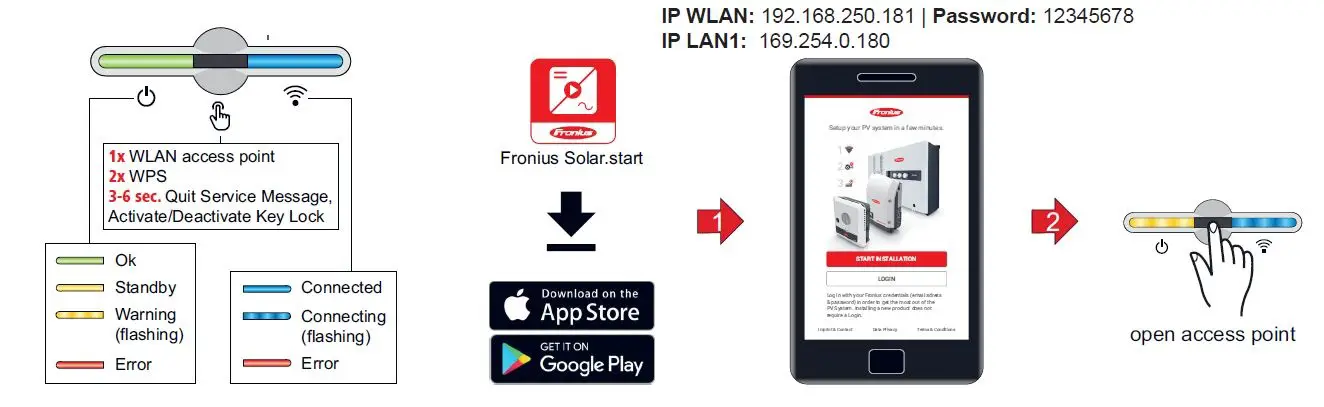

IP WLAN
192.168.250.181
Password
12345678
Only suitable battery configurations for Fronius GEN24 inverters permitted. To connect a battery to the Fronius Symo GEN24 inverter see
QUICK START GUIDE
(Components) Fronius Symo GEN24 Plus Fronius Smart Meter 63A-3 / TS 65A-3 BYD Battery-Box Premium HVS / HVM
Detailed, country-specific warranty terms are available on: www.fronius.com/solar/warranty
Hereby, Fronius International GmbH declares that the radio equipment type Fronius Symo GEN24 is in compliance with Directive 2014/53/EU. The full text of the EU decla-ration of conformity is available at the following internet address: www.fronius.com
WARNING
Operating the equipment incorrectly or poor workmanship can cause serious injury or damage. The inverter may only be installed and commissioned by trained personnel acting in accordance with the technical regulations. Before working with the device, ensure that you have read and understood all the documents provided (both hard copies enclosed with the product and documents pro-vided online). When solar modules are exposed to light, they supply voltage to the inverter. This document does not describe all of the possible system configurations.

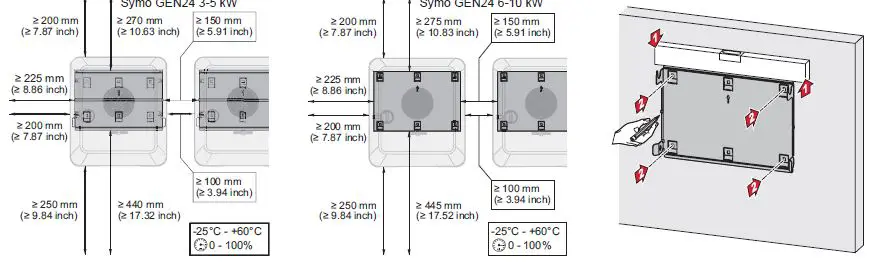

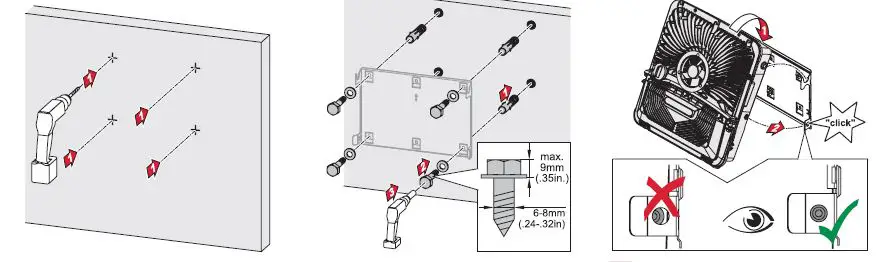

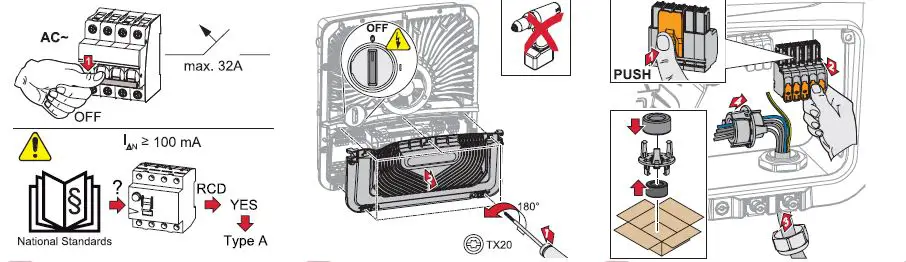

MOUNTING

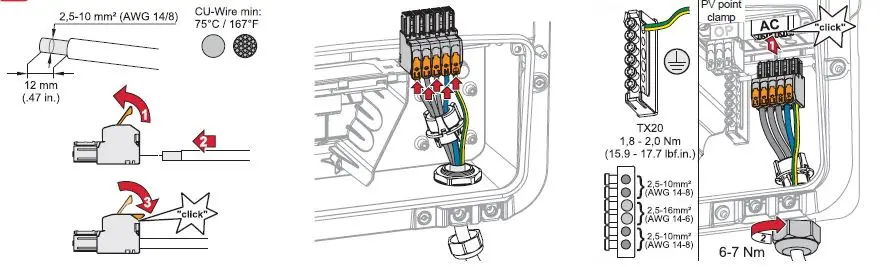

AC~

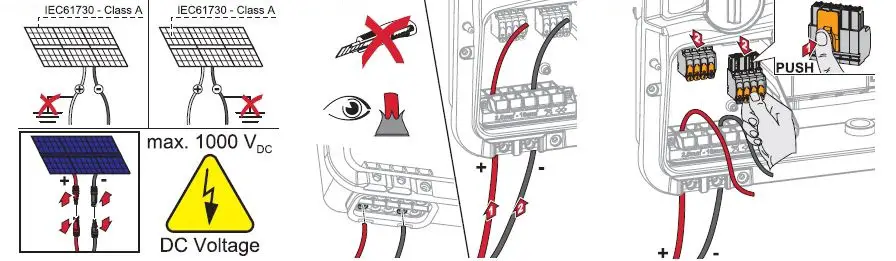

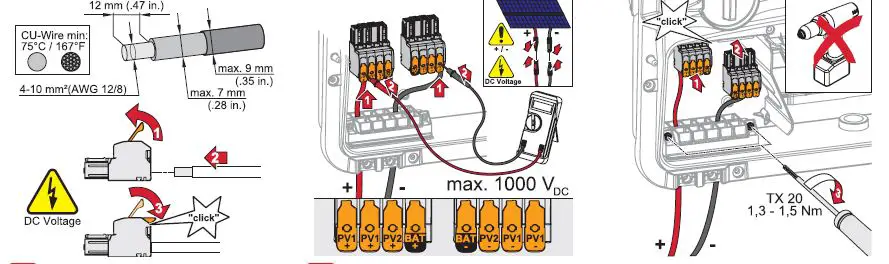

DC=

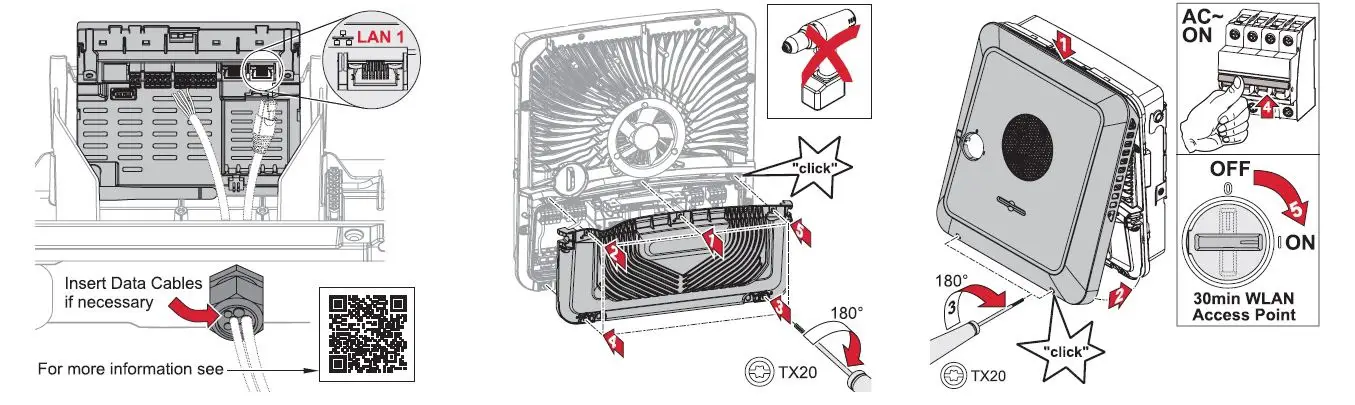

CLOSE & COMMISSION
FIND MORE INFORMATION
www.fronius.com/en/photovoltaics/infocentre/tech-support
