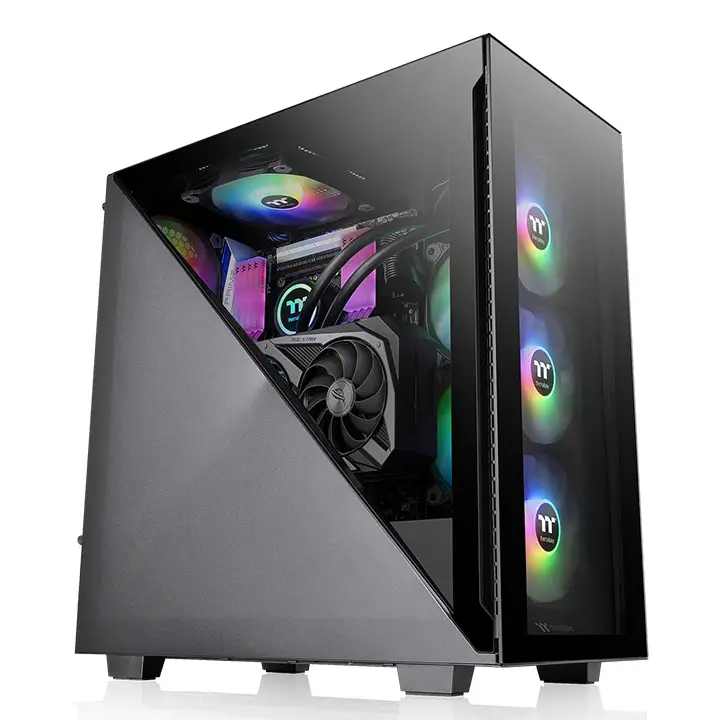

TT Divider 300 TG / Divider 300 TG ARGB
Specifications
Model | Divider 300 TG | Divider 300 TG ARGB |
| Case Type | Mid Tower | |
| Dimension (H*W*D) | 475 x 220 x 461 mm (18.7 x 8.7 x 18.1 inch) | |
| Side Panel | Tempered Glass x 2 | |
| Material | SPCC | |
| Cooling System | Rear (exhaust): | Front (intake): 120 x 120 x 25 mm ARGB fan (1000rpm, 27.2 dBA) x 3Rear (exhaust): 120 x 120 x 25 mm Turbo fan (1000rpm, 16 dBA) x 1 |
| Drive Bays | 2 x 3.5”, 5 x 2.5” | |
| Expansion Slots | 7 (Rotatable Patented Design) | |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) | |
| I/O Port | USB 3.2 (Gen 2) Type C x 1, USB 3.0 x 2, HD Audio x 1 | |
| PSU | Standard PS2 PSU (optional) | |

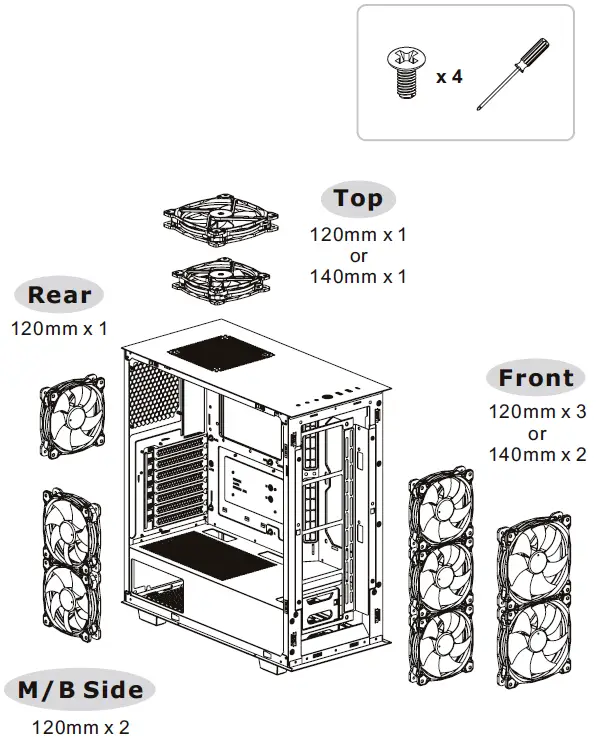

| Fan Support | Front: 3 x 120 mm, 2 x 120 mm, 1 x 120 mm Top: 1 x 120 mm, 1 x 140 mm Rear: 1 x 120 mm | |
| Radiator Support | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Right (M/B Side): 1 x 240mm, 1 x 120 mmRear: 1 x 120mm | |
| Clearance | CPU cooler height limitation: 145mm VGA length limitation: 360mm (With radiator) 390mm (Without radiator) PSU length limitation: 180mm (With HDD Cage) 220mm (Without HDD Cage) | |

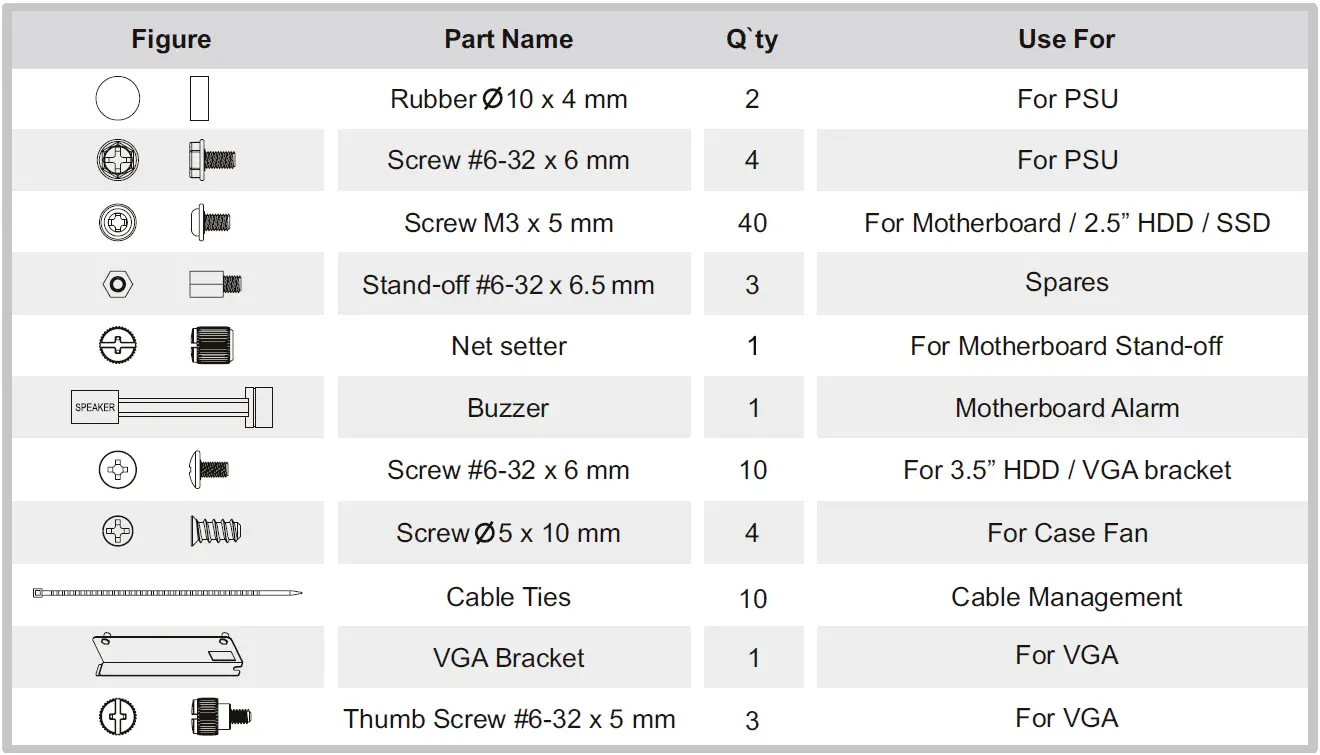

Accessory
For ARGB Version Only
Warning and Notice
Chassis Dimension
Motherboard Compatibility
ITX / mATX / ATX (Up to 244mm wide)

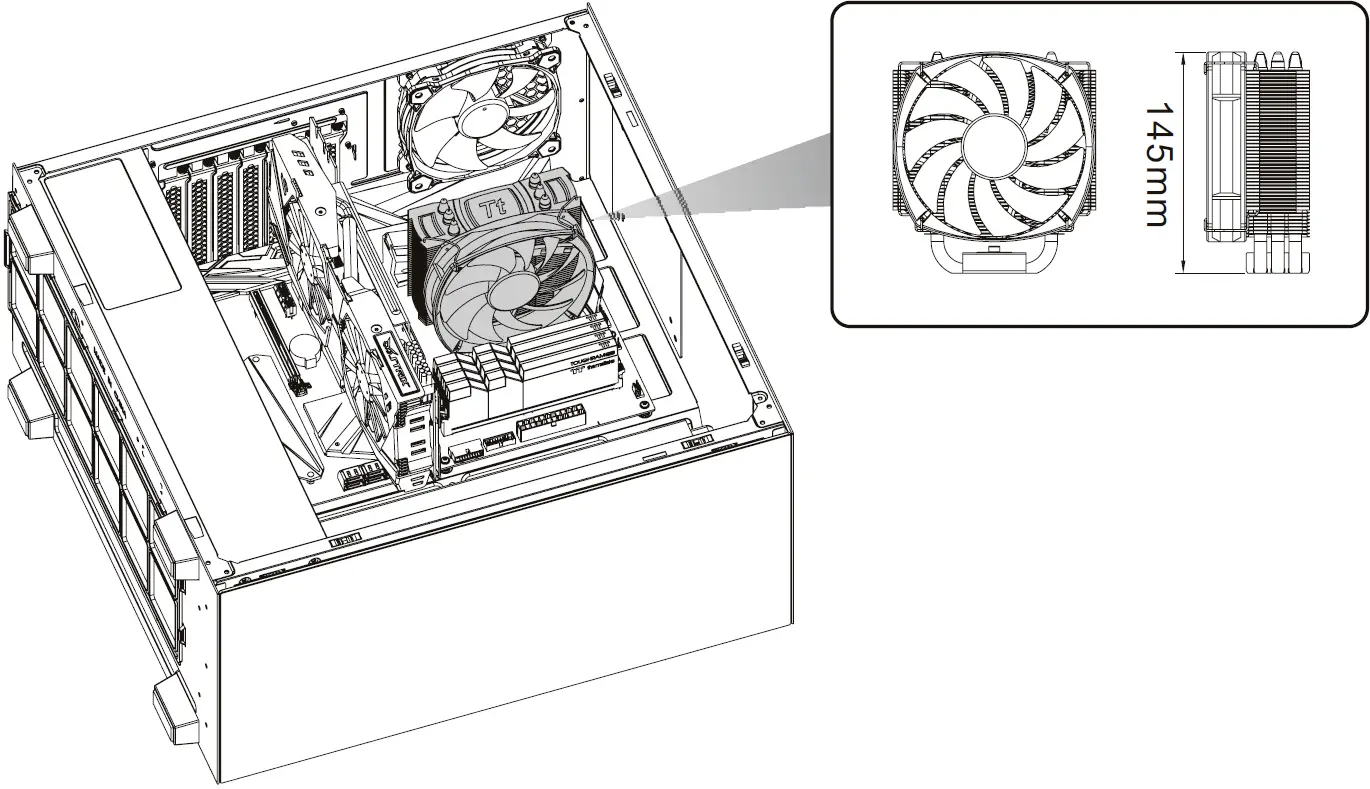

CPU Cooler Max Height
145mm

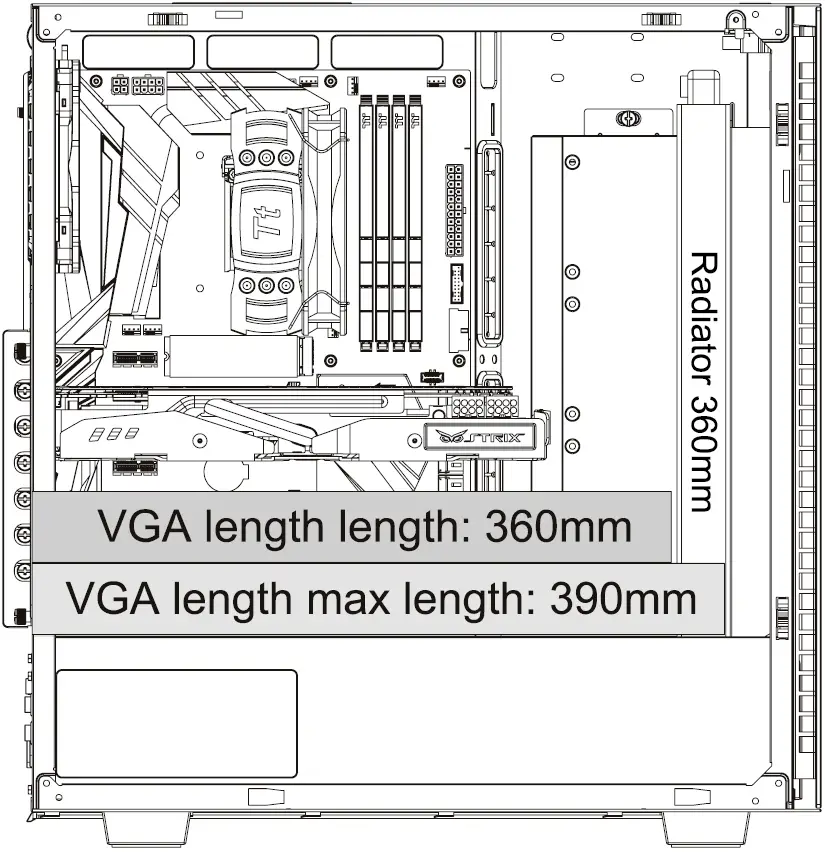

VGA Length Max Length
390mm

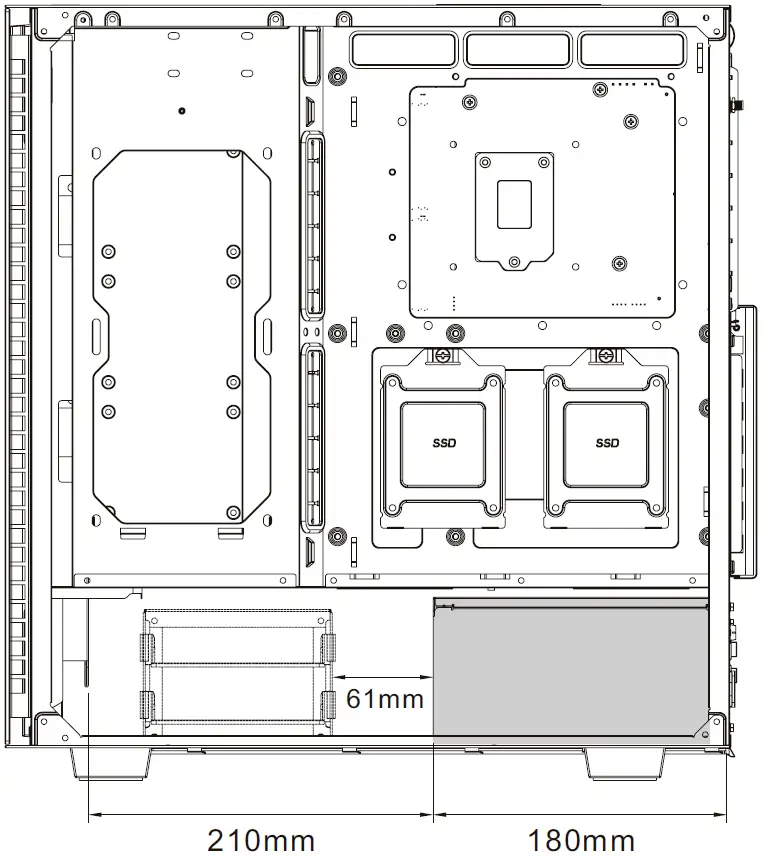

PSU Max Length
180mm

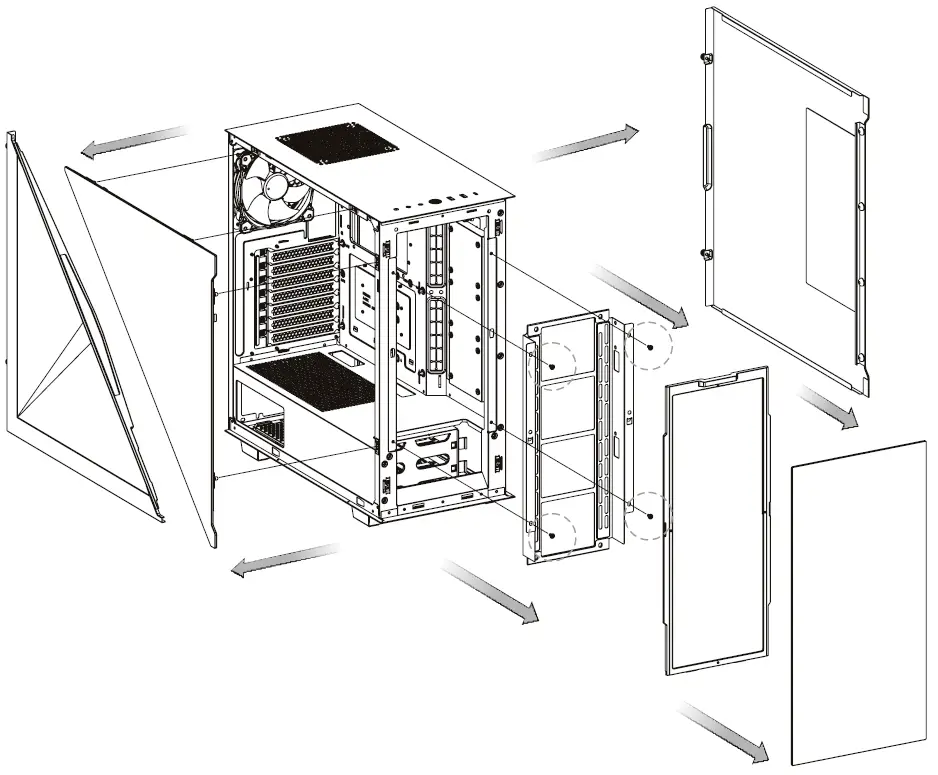

Remove Components

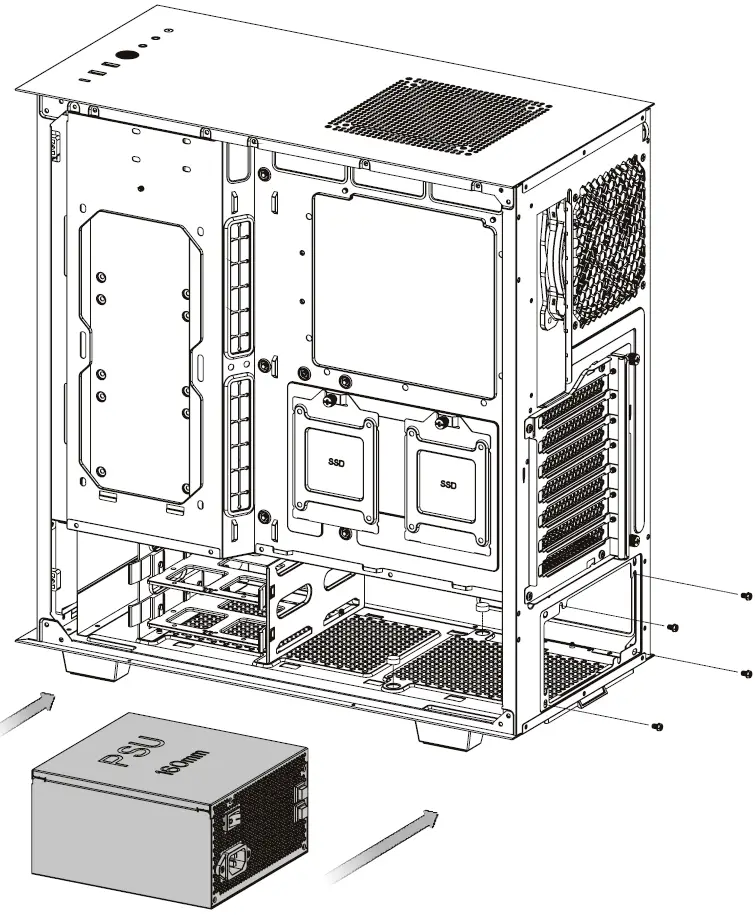

Power Supply Unit Installation

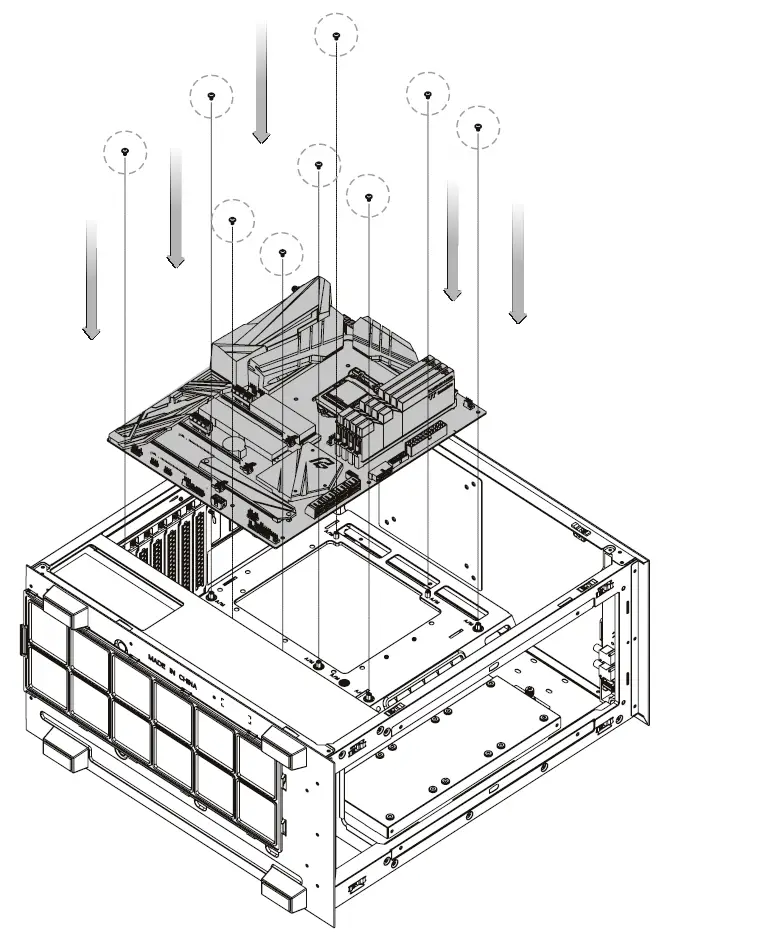

Motherboard Installation

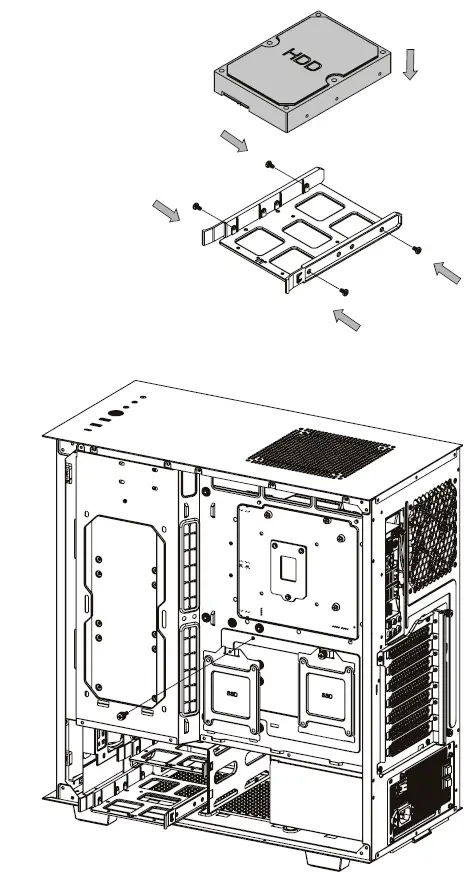

3.5″ HDD Installation

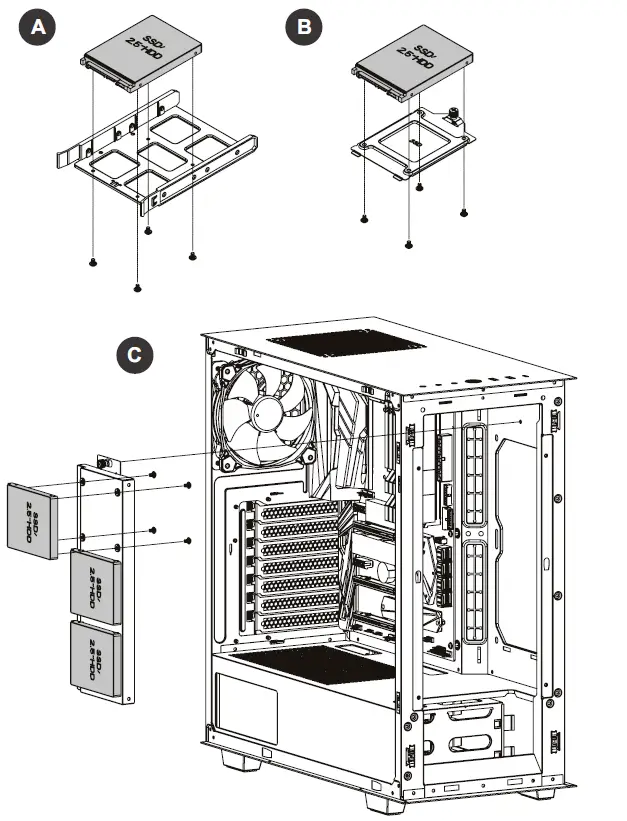

2.5″ HDD Installation

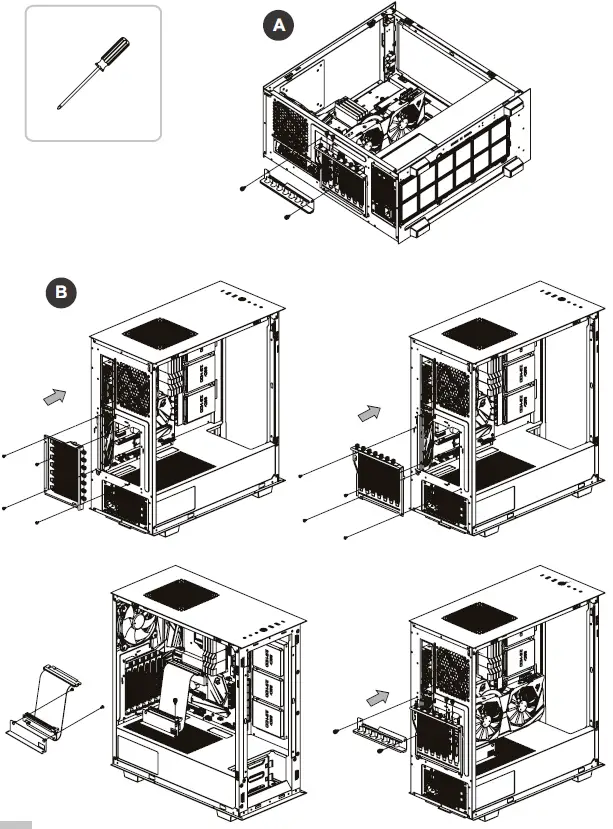

PCI Card Installation
Air Cooling Installation

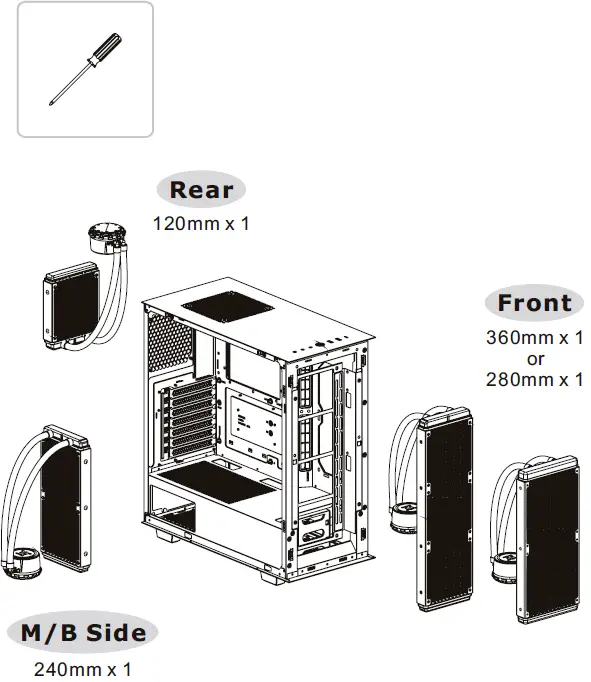

AIO Liquid Cooling Installation

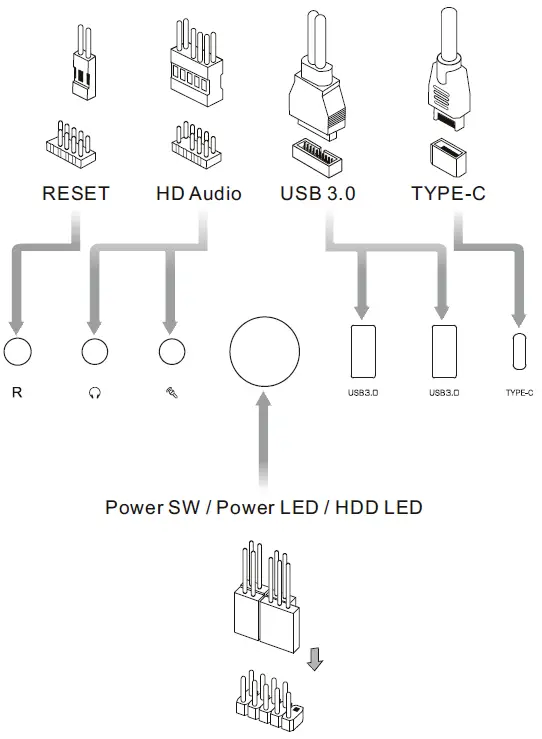

I/O Connection
Remove Filter
ARGB Control Instruction

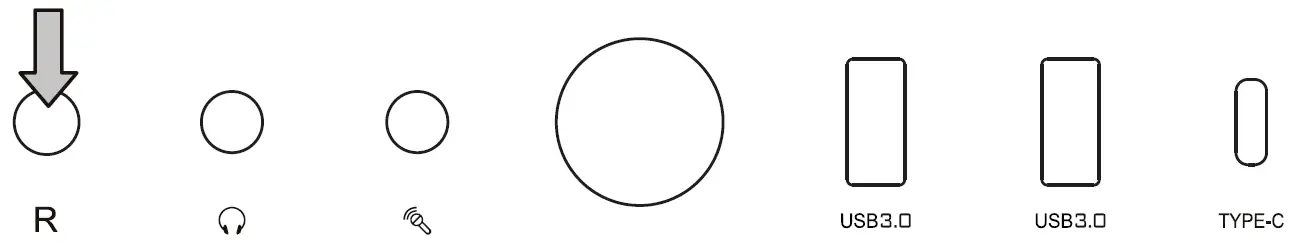

I/O Port
- Wave Mode
- Mode 1
- Flow Mode
- Mode 2
- RGB Lighting
- Mode 3 (Single Color)
- Radar Mode
- Mode 4~10
(Red, Yellow, Green, Cyan, Blue, White, Purple)
- Mode 4~10
- Breath Mode
- Mode 11~18
(RGB, Red, Yellow, Green, Cyan, Blue, White, Purple)
- Mode 11~18
- Full Lighted Mode
- Mode 19
- Single Color
- Mode 20~26
(Red, Yellow, Green, Cyan, Blue, White, Purple)
- Mode 20~26
- Light Off
- Mode 27

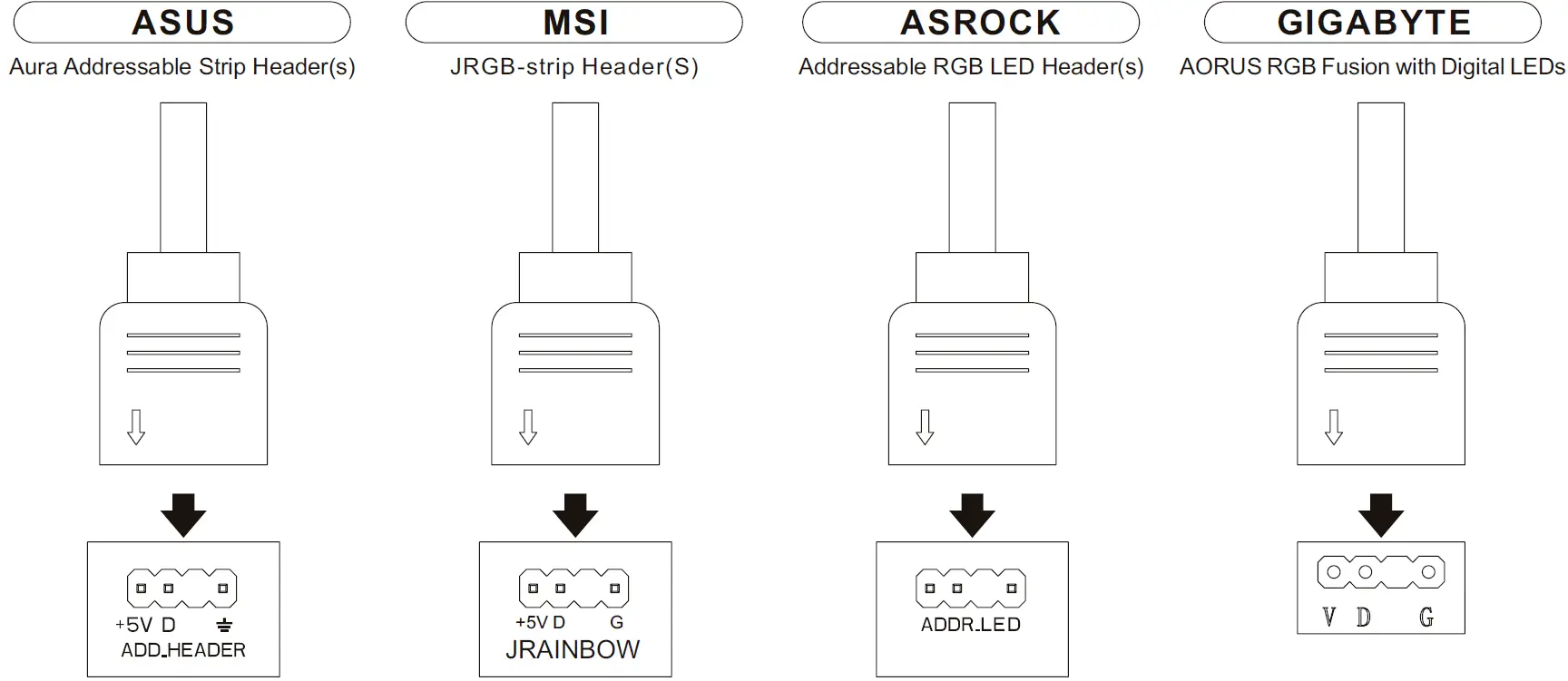

How to Connect MB
