1 FABDR Fully-Automatic Bun Divider Rounder

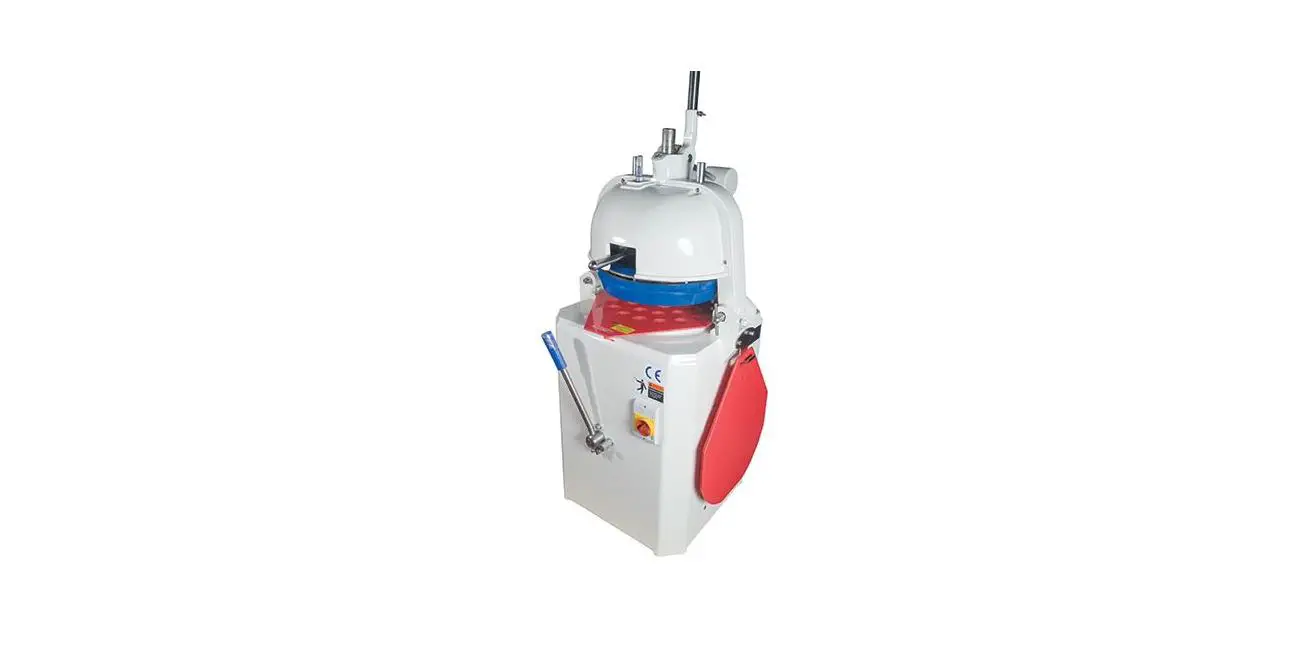

FABDR Fully-Automatic Bun Divider Rounder

Product Information:
Product Name: Manual Fully-Automatic Bun Divider Rounder
Model: FA/BDR
Manufacturer: International Bakery Equipment Pty Ltd (I.B.E.)
Website: www.allaboutbakery.com.au

Contact: – Address: 20 Brewer Street, CLONTARF QLD 4019 Australia –
Phone: 1300 099 011 or +61 7 3889 5700 – Email:
[email protected] Product Usage
Instructions:
1. General Information: – Read the instruction manual carefully
before installing, operating, or performing maintenance on the
machine. – Keep the manual in good condition and store it where it
can be easily accessed when needed. – The manual contains copyright
information and should not be reproduced or photocopied without
prior written permission from I.B.E. – I.B.E. will not be held
responsible for any damage or injury resulting from the misuse of
the documentation or the machine. 2. Transport and Installation: –
Follow the instructions for transporting and installing the
machine. – Perform testing and ensure all safeguards are in place.
3. Machine Operation: – Familiarize yourself with the intended
operation of the machine. – Understand the control components and
their functions. – Learn how to perform the dividing operation. 4.
Cleaning & Maintenance: – Follow the provided instructions for
cleaning the machine. – Perform regular maintenance as specified in
the manual. – Refer to the spare parts list and exploded parts
drawings when necessary. Please note that this is just a partial
extract from the user manual. For complete information on warranty
terms and conditions, please refer to the original manual provided
by International Bakery Equipment Pty Ltd.

View Fullscreen

Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR
INSTRUCTION MANUAL

www.allaboutbakery.com.au

Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR
FULLY-AUTOMATIC BUN DIVIDER ROUNDER

MODEL: FABDR

Contents

1. General Information:
1- Documentation supplied 2- Contact details 3- Use of this manual 4- Intellectual property rights 5- Warranty terms and conditions 6- Machine specifications 7- Machine identification details 8- Main components of the machine 9- Safeguards 10- Intended operation
2. Transport and Installation:
1- Transport 2- Installation 3- Testing & Safeguards

3. Machine Operation:
1- Intended operation 2- Control components 3- Dividing operation

4. Cleaning & Maintenance:

1- Cleaning 2- Maintenance 3- Spare parts list 4- Exploded parts drawings

www.allaboutbakery.com.au

Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR
5- Electrical diagram 6-Hydraulic control diagram

1. General Information:
1.1 Documentation supplied
· Instruction manual · Spare parts list · Wiring diagrams

1.2 Contact Details
International Bakery Equipment Pty Ltd (I.B.E.)
Address:
20 Brewer Street, CLONTARF QLD 4019 Australia
Phone:
1300 099 011 or +61 7 3889 5700
E-Mail:
[email protected]
Web:
www.allaboutbakery.com.au

www.allaboutbakery.com.au

Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR
1.3 Use of this Manual
Please read carefully the information supplied in this manual before installing, operating or carrying out maintenance on this machine. This manual must be kept in good condition and stored where it can be easily found when required.
1.4 Intellectual Property Rights
This manual contains copyright information. All rights are reserved. No part of this manual can be reproduced or photocopied without prior written permission of International Bakery Equipment Pty Ltd. Permission to use this documentation has only been given to the customer who this manual has been supplied as part of the machine’s equipment and only for the purpose of installation, operation and maintenance of the machine to which the manual refers.
International Bakery Equipment Pty Ltd declares that the information contained herein is in accordance with the technical and safety specifications of the machine to which the manual refers. International Bakery Equipment Pty Ltd will not be held responsible for direct or indirect damage or injury to people or objects resulting from the misuse of this documentation or the machine for which it has been intended.
The manufacturer reserves the right to introduce technical modifications or improvements both to the documentation and to the machines without prior notice. The information contained herein refers in particular to the machine specified in section 1.7 “Machine identification details “.

www.allaboutbakery.com.au

Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR

1.5 Warranty Terms and Conditions

· Warranty becomes effective from date of delivery.
· Warranty claims may be made by telephone, letter, email or fax. However all verbal claims must be confirmed in writing. I.B.E. Pty Ltd Reserves the right to require return of all claimed defective parts.
· I.B.E. Pty Ltd will ship the part(s) in an expeditious manner as requested.
· Mechanical and Electrical parts are warranted for a period of 12 months from date of delivery.
· During the first 12 months, I.B.E. Pty Ltd will reimburse the Authorized Agent or Purchaser for the cost of reasonable labour during normal working hours, 8.00a.m. 5.00p.m., to remove the failed part(s) and install the replacement(s). After 12 months all charges will be the Purchasers responsibility.
· After the initial 12 months warranty, any replacement parts are warranted for 3 months excluding labour.
· This Warranty may not be changed or modified and is not subject to any other Warranty expressed or implied by any other Agent, Dealer or Distributor unless approved in writing by I.B.E. Pty Ltd in advance of any claim being filed. This Warranty gives you specific legal rights which vary from State to State.

Note:
I.B.E. Pty Ltd reserves the right to make the final decision on all Warranty coverage questions. The decision of the Company is final.

What is covered under this Warranty:
· Parts that fail due to defects in material workmanship. · Parts that fail due to faulty assembly by I.B.E. Pty Ltd · Parts that fail due to improper set-up by I.B.E. Pty Ltd

What is not covered under this Warranty:
· Parts that fail due to improper usage or overloading of the machine. · Parts that fail due to lack of maintenance. · Parts that fail due to abuse, misuse or modification. · Mixer attachments – Bowl, whisk, beater and/or hook.

www.allaboutbakery.com.au

Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR
· Normal wear parts, such as, Conveyor belts, `v’ belts, `o’ rings and scraper and slicer blades. The Warranty on these parts is, they will be in satisfactory operating condition at time of delivery and initial start-up. Claims in such parts must be made immediately.
· Loss of time, potential revenue and/or profits.
· Personal injury or property damage resulting from the operation of the machine.

1.6 Specifications

Crate Dimensions:
Length (cm) 92

Width (cm) 83

Machine Specifications

Height (cm) 185

Weight (Kg) 520

Model

Dough Capacity

Dough Dividing Weight

Min – Max

Motor H.P.

Dimensions L WH cm cm cm

Weight Kg (Net)

FA/BDR 900g 3.6Kg 30g – 120g

70 71 164 460

Power Supply Details:
3 Phase, 10amp 4-pin plug top (supplied)

Note:
The Manufacturer will not be Liable for electrical defects, breakdowns or malfunctioning of the machine for the non compliance with the power supply stated.

www.allaboutbakery.com.au

Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR
1.7 Machine Identification Details
Type: Semi-Automatic Bun Divider Rounder Model:FA BDR
Position of Serial Number Identification Plate(plate not shown) (Fig 1.1)

Fig 1.1

www.allaboutbakery.com.au

Serial number Identification
plate
7

Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR
Note:
When requesting spare parts please state the serial number found on the serial number identification plate.
1.8 Main Machine Components

www.allaboutbakery.com.au

Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR
Pressure setting

Rounding plate
Control Panel
Emergency stop switch
Main Power Switch
Fig1.2 Main Machine Components
1.9 Safeguards
www.allaboutbakery.com.au

Plate storage hook
Dividing Plates
9

Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR
This machine has been fitted with safeguards to ensure safe operation of this machine, in accordance please ensure the following;
· Do not place foreign objects in under the head of the machine. · Ensure training in the safe operation of this machine is carried out with all operators. · Do not wear loose clothing, ties, chains, or watches that could get caught into the
moving parts of the machine. · Ensure safeguards are in operable order before using the machine on a daily basis. · Tampering with the safety devices creates hazards for the machine operator, for which
International Bakery Equipment Pty Ltd or its agents will not be liable.
Note:
In the event that one or more of the safe guards do not operate or fail contact your supplier immediately. DO NOT OPERATE THE MACHINE.
Tampering with or modifying the machine will void warranty.
Emergency Stop Button. The machine is equipped with a red emergency stop button located centre of the control panel and allows the operator to stop the machine in case of emergency see Fig 1.2

2. Transport and Installation:

www.allaboutbakery.com.au

Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR
2.1 Transport
The instructions given in this section must be carefully followed when transporting the machine. This operation may include but is not limited to the following: · Storage of the machine · Installation of the machine · The machine comes supplied in a secure packing crate which needs to be handled with
care to protect the machine. · When being transported the machine crate should be secure to the transporting veichcle
using approved tie down straps to avoid the machine tipping over. · The machine should not be placed on top of other items during transport. · When lifting the machine ensure all persons are at a safe distance. · The forklift operator is to hold the appropriate qualifications. · Do not climb on or place body under machine crate when it is being lifted from the
ground or transport veichcle. · When lifting the machine crate ensure forks are spread to the maximum width of the
crate and the crate is against the cradle of the forklift (Fig2.1).

Fig 2.1
2.2 Installation

www.allaboutbakery.com.au

Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR
· Ensure transport crate and all protective packaging is removed. · Carefully clean the machine using a damp clean cloth, removing dust on all surfaces. · When the machine has been unpacked, check the condition of the machine. Any visible
damage indicates that the machine has been dropped or hit by something during transport. This could lead to malfunctioning. If damage has occurred during transport it should be attributed to the carrier and International Bakery Equipment Pty Ltd or its agent should be informed immediately of the situation.
· Locate the divider in a level convenient position where the operation of the machine is safe and accessible and blot to the floor using the provided bolts.
· Before making the electrical connections check the specifications found in section 1.6 of this manual and ensure they match those of your electrical service.
· Make certain the electrical supply is correct and the correct breaker is in place to ensure protection from a short circuit.
· Ensure the three phase connection of the bun divider is correct and running in the right direction the direction of the arrow.
· A qualified person should correct electrical connection if required.
· Train all operators in the safe operation of this machine.

www.allaboutbakery.com.au

Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR
3. Machine Operation:
3.1 Intended Operation
This machine has been designed and manufactured for the safe dividing and rounding of dough’s automatically with the use of a hydraulic system. With a dough range of 900g to 3600g divided into bread rolls then utilising an even balanced pressure plate and the dividing blades to ensure an even pressure and accurate dividing of the dough into 30 pieces of equal weight.
This machine has been designed and built to operate indoors.

www.allaboutbakery.com.au

Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR
3.2 Control Components
a.
b. (see diagram)
i

Fig 3.1 FABDR Control Components www.allaboutbakery.com.au

c.
14

Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR

Location Description

Operation Performed

Weight adjustment Weight adjustment for the size of the dough piece

screw

Control panel Control components of the machine

On buttons

Start the dividing /rounding process by pressing these two buttons at the same time.

d Pressing time switch Sets the desired pressing time

Power light Will be lit when machine is turned on

Emergency stop When pressed it stops the machine completely. button

Running light Will be lit when machine is operating

Rounding time Sets the desired rounding time.

switch

On / Off

Turns the power on and off to the machine.

Switch

www.allaboutbakery.com.au

Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR
3.3 Dividing Rounding Operation
These operating procedures are to be used as a guide, as every bakeries dough consistency is different. These steps should be used to set up the FABDR to your specific product and by keeping records of the settings it will assist in the day to day operation of this machine, be aware though you may still need to fine tune the settings that you record as your dough can change i.e. longer than normal bench rest, or a slacker dough.
· Turn the power on using the on/off switch (i).
· Use the weight adjustment screw (a) to set pressure plate according to dough weight.
· Press dough piece out onto the dividing plate evenly to ½ of the outside circles and place into machine ensuring plate is flat and against back stops and pin is in the hole in the front of the plate.
· Set the desired pressing time using the pressing time switch (d).
· Set the desired rounding time using the rounding time switch (h).
· Push the two on buttons at the same time (c), if only one is pressed the machine will not operate.
· If the dough pieces come out and are torn less rounding time is needed, if they are not formed into the bread rolls properly longer rounding time is needed.
.

www.allaboutbakery.com.au

Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR
4. Cleaning &Maintanance:
4.1 Cleaning
· Always turn power off at the wall and unplug machine prior to any cleaning or maintenance procedures to be carried out.
· Keeping the machine cleaned helps to maintain the efficient hassle free operation of the machine.
· This machine should be cleaned at the end of every day, to prevent a build up of dough crumb and flour dust.
· Remove excess flour dust with a soft brush. · Using a plastic scraper remove any dough remnants from dividing plate. · Wipe over the entire machine with a damp cloth with a neutral detergent, (Harsh
chemicals will damage the machine).
Note:
Do not use water jets or hoses to clean this machine as excess water can damage the machine, and the safe operation of the electrical components.
Note:
ONLY paraffin or white oil can be used to lubricate the dividing blades. The blades only need a very fine film of oil coating them and this can be done at the end of the cleaning process at the end of production daily.

www.allaboutbakery.com.au

Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR
4.2 Maintenance
It is recommended that this machine should be serviced once every 12 months by a qualified technician to maintain hassle free operation.
If in the event the machine does not operate correctly it is recommended that you contact your supplier to ensure a qualified technician services the machine for you.
It is not advisable to attempt any repairs without prior knowledge of the mechanical or electrical systems used in the manufacture of this machine, use only qualified technicians.
Note:
Any attempt to modify this machine in any way will result in the warranty being voided.
Tampering with the mechanical or electrical systems in this machine will void warranty.

www.allaboutbakery.com.au

Instruction Manual for Manual Fully-Automatic Bun Divider Rounder FA/BDR
4.3 Spare Parts List

No.

Description

101 Support plate 102 Support spring block 104 Support stand 105 Arch fixed stand

106 Extension spring

107 Flour frame

108 Back hood

109 Front hood

110 Stop knife

111 Extension spring

114 Down
