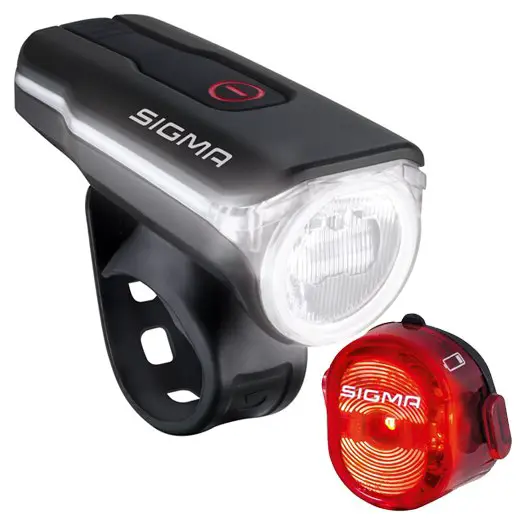

SIGMA AURA 60 USB Nugget II Light Set
ACCESSORIES

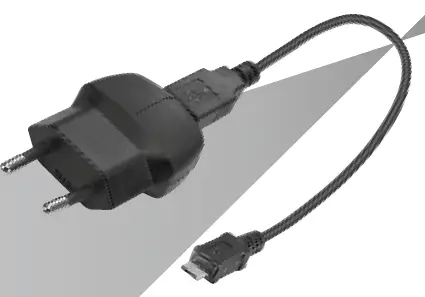

Micro USB Kabel Charger + Charging cable Micro-USB

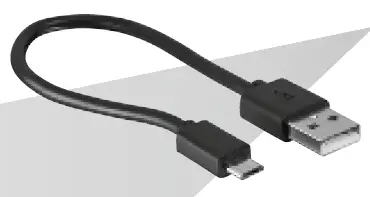

Micro USB Kabel Charging cable Micro-USB
Silicone Bracket
INFORMATION
SIGMA-ELEKTRO GmbH hereby declares that the AURA 60 USB comply with the fundamental requirements and other relevant regulations of Directive 2014/30/EU and RoHS Directive 2011/65/EU. You can find the CE declaration at: ce.sigmasport.com/aura60usb
MOUNTING

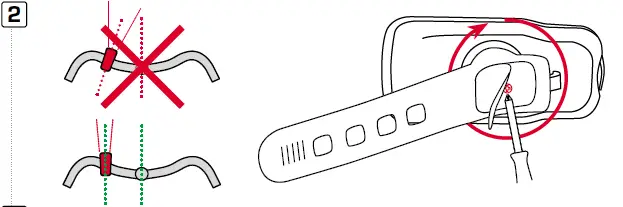

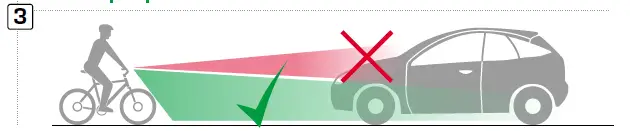

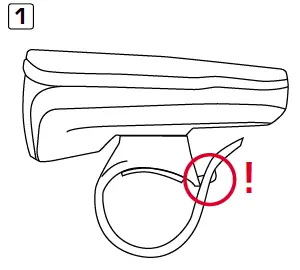

Mounting height for front light: min. 400 mm and max. 1200 mm above the roadway. Adjust the front light so that other road users are not dazzled. The headlight must be securely attached to the bike and it must be ensured that the distribution of light is not obstructed. When mounting, make sure that the silicone strap fitting is tightened and mounted during installation so that the headlight can not self-adjust or be easily adjusted (i.e., the torque required for adjustment must be greater than 5 Nm after mounting
When mounting, make sure that the screw is tightened so tightly that the headlamp can not self-adjust or be easily adjusted (ie the torque required for adjustment must be greater than 5 Nm after assembly). Please note: The headlight can not be turned horizontally after mounting the holder; Excessive load to verify assembly may cause mechanical damage to the fixture

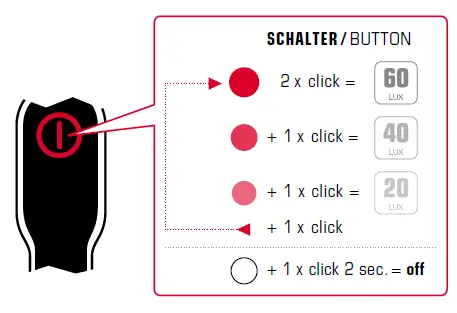

3 MODES
CHARGING
Please always keep the silicone plug closed after charging
Energy extraction through the Micro USB port is not possible. These lamp needs to be replaced in case of defective light source

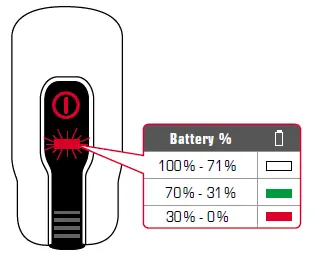

BATTERY CONTROL
If the charge level falls below a certain residual capacity, the green LED goes out and the red indicator LED lights up. The battery needs to be charged immediately
SIGMA-ELEKTRO GmbH
Dr. – Julius -Leber-Straße 15
D-67433 Neustadt / Weinstraße
Tel. +49 6321-9120-118
[email protected]
ce.sigmasport.com/aura60usb
