Sigma Buster 2000 Led Helmet Light Instruction Manual

MORE INFORMATION
www.sigma-qr.com
177012/1
rt.-Nr. 17000
Art.-Nr. 17001 BUSTER 2000

PRO TIP:
Your eye adapts perfectly to ambient light and is able to see sharply and brightly even in dark conditions. We personally use this ability on our rides to save battery life and see perfectly on downhill sections in HIGH-Mode. Simply said, we switch to LOW-Mode when going uphill and only switch to HIGH-Mode on technical descents. Just give it a try.  www.sigmasport.com

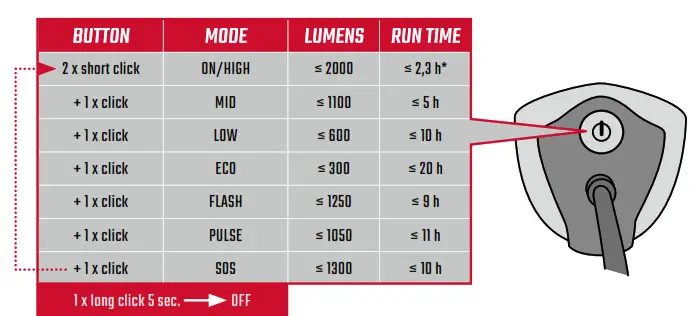

BURN TIME

* under optimal conditions

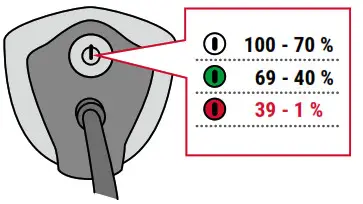

BATTERY INDICATOR

The red indicator activates the power Safe function once.
* depending on the selected mode

FLUORESCENT BUTTON

NOTE:
The Power Safe Function automatically switches the light head to LOW-Mode when the red indicator on the light head lights up.
This can extend your remaining runtime and inform you that your battery is already partially discharged. Once it takes effect. this automatic safety function can be reversed on your own responsibility so that any light mode can be switched on again manually.
Due to small voltage differences, there may be minimal time delays before any mode can be manually activated again. As soon as the Power Safe Function has been activated automatically, we would like to remind you to watch your battery consumption so that you can get home safely.

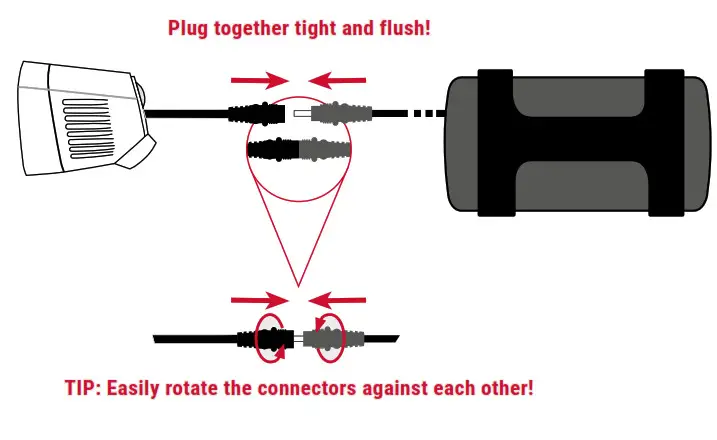

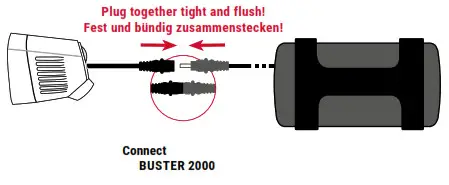

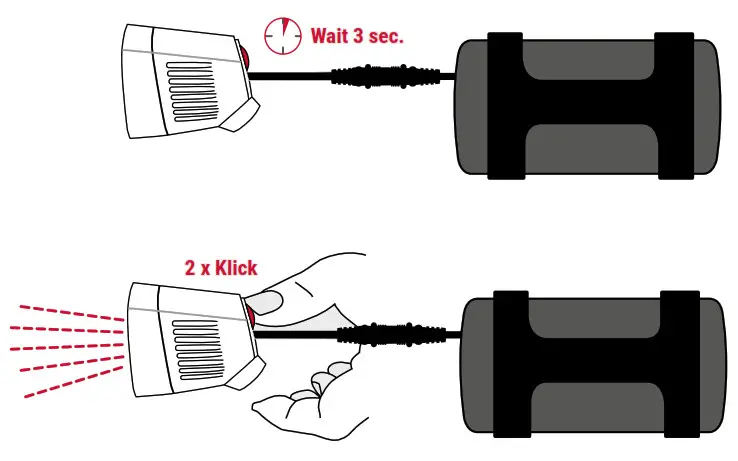

START-UP

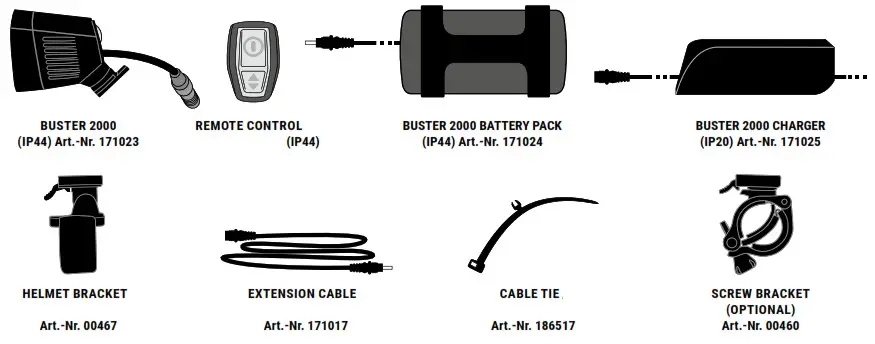

CONTENTS

HELMET BRACKET

OPTIONAL

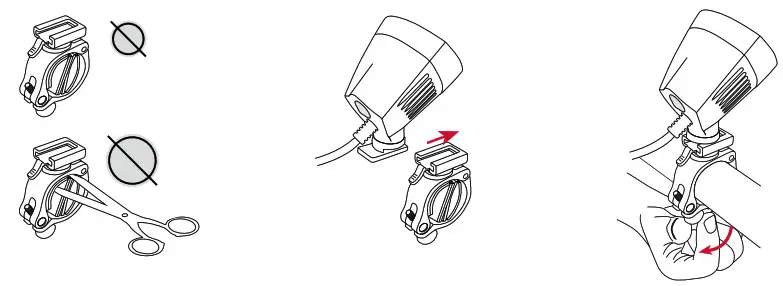

SCREW-BRACKET MOUNT

According to StVZO, not approved in Germany as a bicycle light on handlebars.

BATTERY PACK

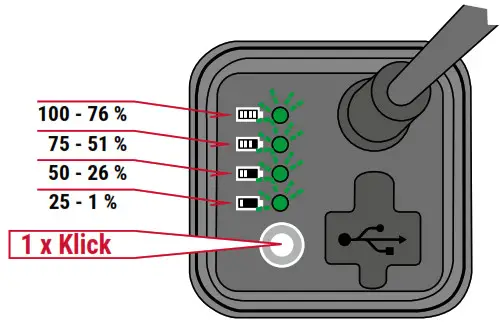

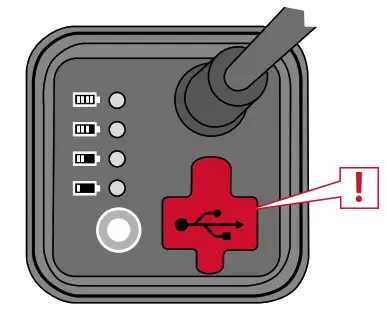

BATTERY INDICATOR

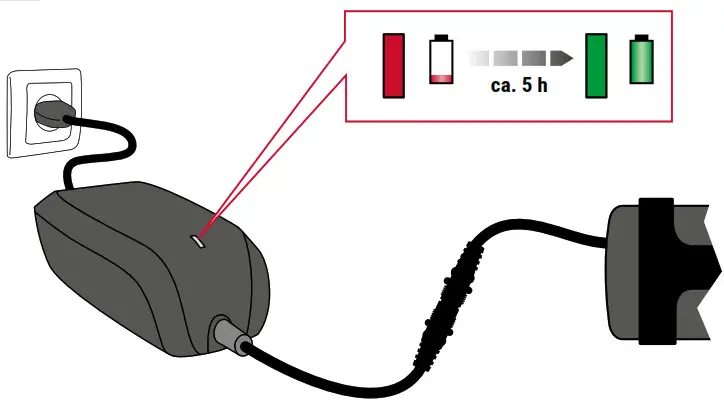

CHARGING

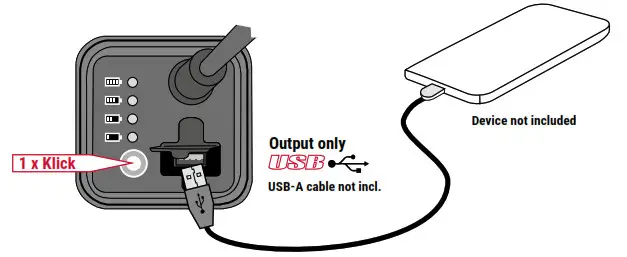

USB CHARGING

1. Plug in the cable.
2. Activate the charging process. You have to push the button, once, before charging can start. The charging starts, but without pushing no charging.


USB SILICONE PLUG

IP44
Close waterproof
Please always keep the silicone plug closed after charging.

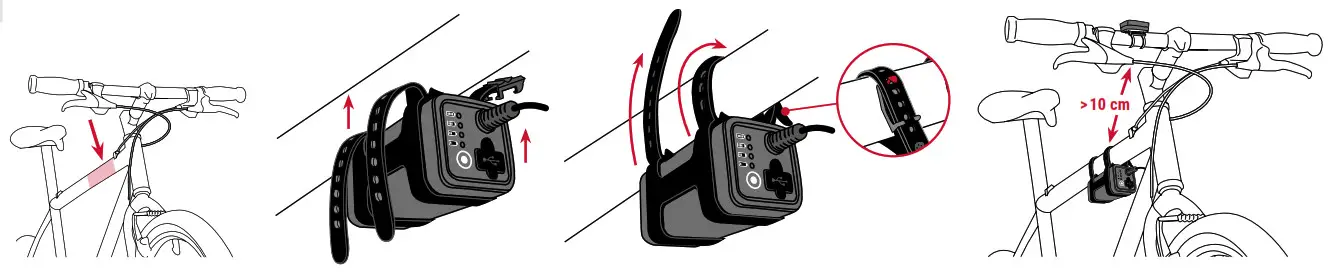

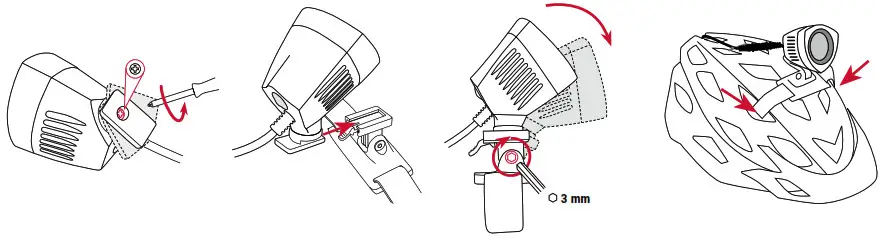

INSTALLATION

SIGMA BIKE COMPUTER ATS/ STS

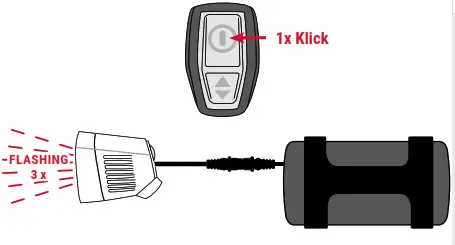

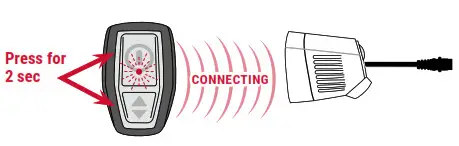

REMOTE CONTROL

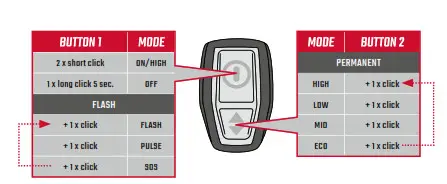

MODI	INSTALLATION	REMOTE BATTERY INDICATOR
BATTERY CHANGE	SLEEP MODEThe remote control goes into sleep mode after 1h of inactivity. The system is woken up again by switching on the light head.	FLUORESCENT BUTTON

ACCESSORIES

Art.-Nr. 00467 HELMET BRACKET	Art.-Nr. 17002 REMOTE CONTROL	Art.-Nr. 17004 BUSTER 2000 BATTERY PACK
Art.-Nr. 17005 BUSTER 2000 CHARGER	Art.-Nr. 00461 ADAPTER FOR ACTION CAM MOUNT	Art.-Nr. 00145 SILICONE BRACKET

EU-Declaration of Conformity
We, SIGMA-ELEKTRO GmbH, declare that the BUSTER 2000 Charger and BUSTER 2000 Battery pack have been tested in our facility and found compliance with the requirement limits of applicable standards, in accordance with the EMC Directive 2014/30/EU and the ROHS Directive 2011/65/EU and additional according to Directive  EU) 2015/883 to ament Annex II of the above mention Directive with 4 additional substances. For further information see: ce.sigmasport.com/buster2000
We, SIGMA-ELEKTRO GmbH, declare that the BUSTER 2000 and Remote Control have been tested in our facility and found compliance with the requirement limits of applicable standards, in accordance with the RED Directive 2014/53/EU and the ROHS Directive 2011/65/EU and additional according to Directive (EU) 2015/883 to ament Annex II of the above mention Directive with 4 additional substances. For further information see: ce.sigmasport.com/buster2000

ATTENTION

OVERHEATING
Operating Temperature:
-10°C – 55°C

Do not cover during operation!
In case of overheating, electronic protection is added to cool down the light head by gradual brightness reduction. The light head is cooled while driving sufficiently by airflow.

TECHNICAL DATA

Warranty:
SIGMA SPORT provides a 2-year warranty for your lighting system from the date of purchase. The warranty covers material and workmanship defects on the lighting system itself and the bracket. The warranty does not cover the cable, the batteries, or any assembly materials. The warranty is only valid if the affected parts have not been opened, no force has been used and there is no intentional damage. Please store your receipt of purchase in a safe place as it must be presented in the event of a complaint. If your complaint is justified, we will provide you with you a comparable replacement device. There is no entitlement to a replacement device in the identical model if the model subject to the complaint has gone out of production due to a model change. In case of complaints or warranty claims, please contact the specialist retailer from whom you purchased the device. Alternatively, send your complaint directly to:
SIGMA-ELEKTRO GmbH
Dr.-Julius-Leber-Strasse 15
D-67433 Neustadt
Tel.: +49-(0) 63 21-91 20-1 18
Fax.: +49-(0) 63 21-91 20-34
E-mail: [email protected]
In the event of justified warranty claims, you will receive a replacement device. You will only be entitled to the model available at the time of replacement. The manufacturer retains the right to make technical modifications.
SIGMA-ELEKTRO GmbH hereby declares that the lighting system complies with the essential requirements and other relevant provisions established in Directive 2014/53/EU. You can find the CE declaration at: ce.sigmasport.com/buster2000

Batteries may not be disposed of in household waste (European Battery Law). Please dispose of it properly per local ordinance.

BUSTER 2000 CHARGER

1. The battery charge can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved, model no.: MJCT-08402500-B05.
2. Children shall not play with the battery charger.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. The battery charger can`t be recharged for non-rechargeable batteries.
5. The appliance is only used for charging a Li-ion battery (maximum capacity of 6.4 Ah).

BUSTER 2000 BATTERY PACK

1. Use only the power supply listed in the user instructions”; List the power supply information in the user manual: “Power supply adaptor: Manufacturer: SIGMA- LEKTRO  mbH, model no.: MJCT-08402500-B05”.
2. Battery/product shall not be exposed to excessive heat such as sunshine, fire, or the like.
3. Do not open. No user-replaceable parts inside, refer servicing to qualified service personnel.
4. Only use attachments/accessories specified by the manufacturer.
5. All electrical and electronic products including batteries should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

BUSTER 2000 HL

1. The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced. Do not stare at the operating light source
2. Please use provided rechargeable battery and battery charger only.

SIGMA-ELEKTRO GmbH
Dr.-Julius-Leber 15
D-67433 Neustadt
