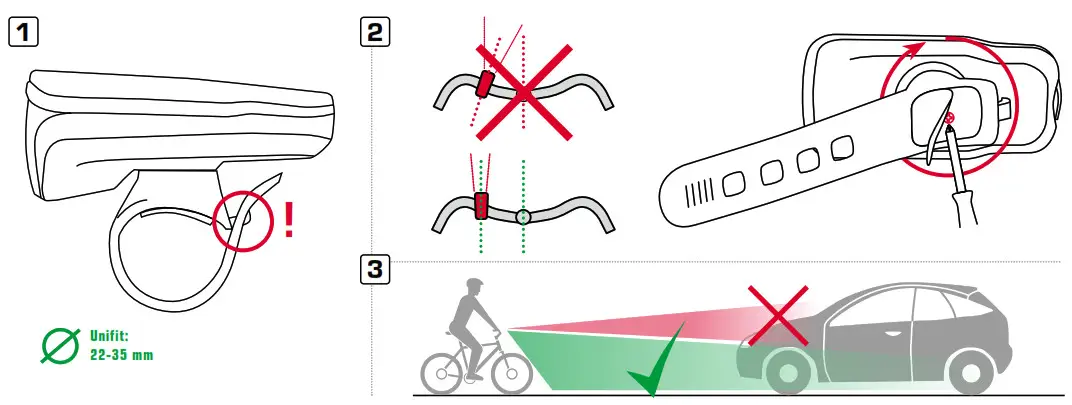

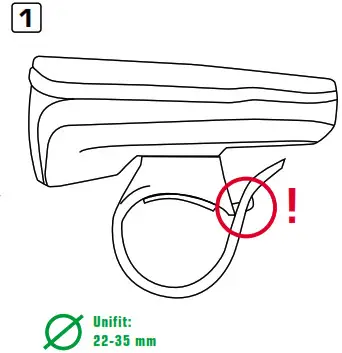

MOUNTING
Mounting height for front light: min. 400 mm and max. 1200 mm above the roadway. Adjust the front light so that other road users are not dazzled. The headlight must be securely attached to the bike and it must be ensured that the distribution of light is not obstructed. When mounting, make sure that the silicone strap fitting is tightened and mounted during installation so that the headlight can not self-adjust or be easily adjusted (i.e., the torque required for adjustment must be greater than 5 Nm after
When mounting, make sure that the screw is tightened so tightly that the headlamp can not self-adjust or be easily adjusted (ie the torque required for adjustment must be greater than 5 Nm after assembly). Please note: The headlight can not be turned horizontally after mounting the holder; Excessive load to verify assembly may cause mechanical damage to the fixture.

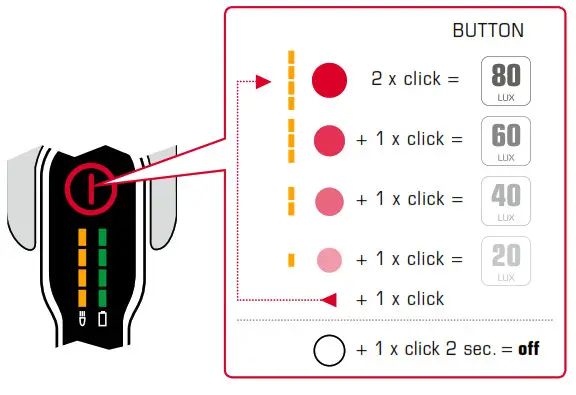

4 MODES

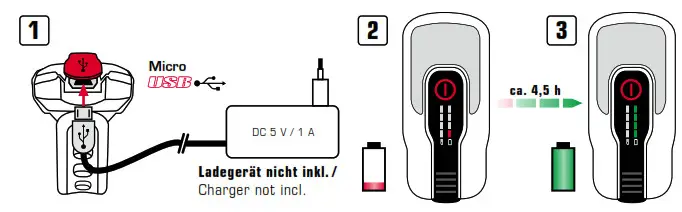

CHARGING
Please always keep the silicone plug closed after charging.
Energy extraction through the Micro USB port is not possible. This lamp needs to be replaced in case of a defective light source.

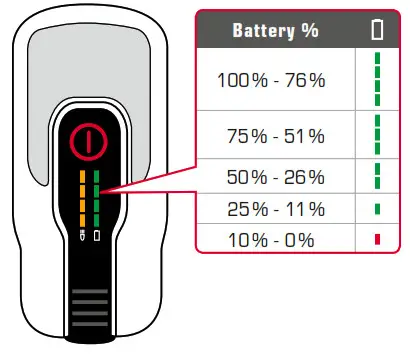

BATTERY CONTROL
If the charge level falls below a certain residual capacity the headlight automatically changes to low-power mode 20 LUX. The green LED goes out and the red indicator LED lights up. The battery needs now to be charged immediately. Note: After approximately 45 min., the red LED flashes and the headlight switches off shortly after.
ACCESSORIES

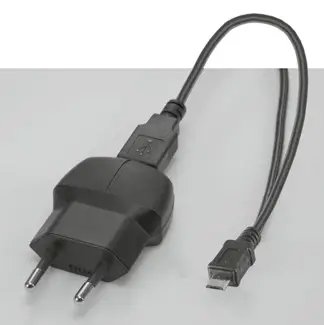

Art.-Nr. 18552
Charger + Charging cable Micro-USB
Art.-Nr. 18553
Charging cable Micro-USB
Art.-Nr. 00146
Silicone Bracket
CE INFORMATION
SIGMA-ELEKTRO GmbH hereby declares that the AURA 80 USB comply with the fundamental requirements and other relevant regulations of Directive 2014/30/EU and RoHS Directive 2011/65/EU. You can find the CE declaration at:
ce.sigmasport.com/aura80usb
