Instruction Manual
AURA 30
Lux

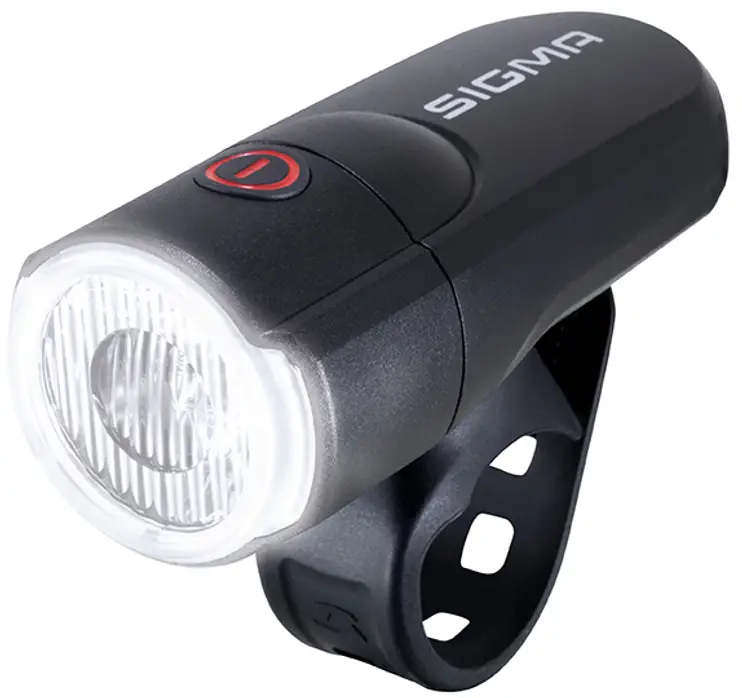

Aura 30 Front Light
ACCESSORIES
Art.-Nr. 00146

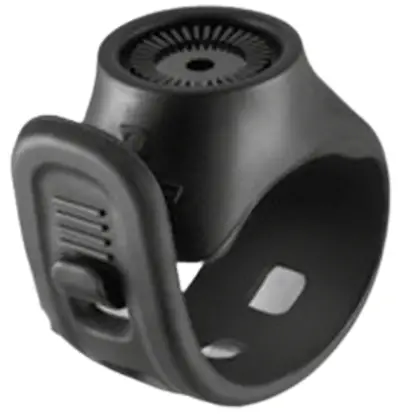

Silikon-Ersatzhalterung
Silicone Bracket
ACCESSORIES

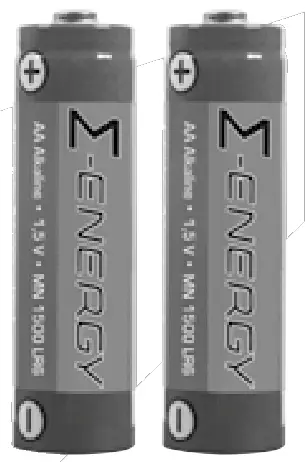

2x AA Alkaline
2x AA Alkaline
INFORMATION
SIGMA-ELEKTRO GmbH hereby declares that the AURA 30 complies with the fundamental requirements and other relevant regulations of Directive 2014/30/EU and RoHS Directive 2011/65/EU. You can find the CE declaration at: ce.sigmasport.com/aura30
Batteries must not be disposed of with household waste (Battery Law). Please give the batteries to a designated delivery station for disposal.

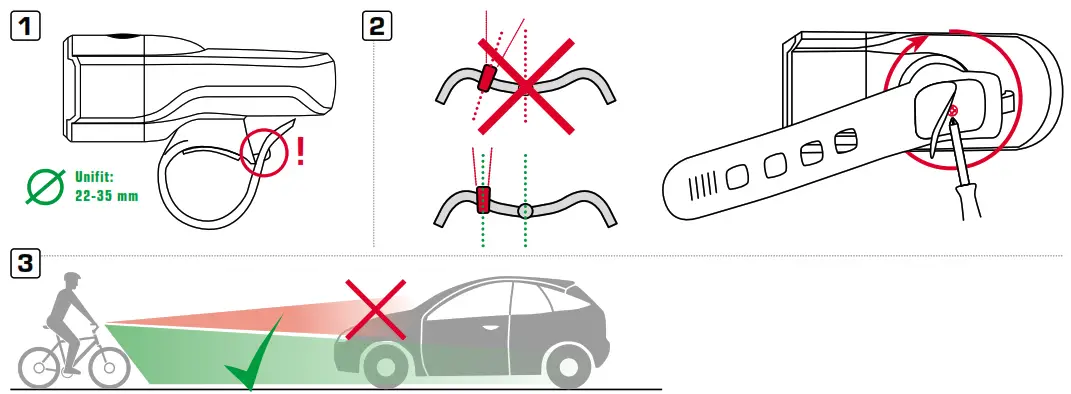

MOUNTING
Mounting height for front light: min. 400 mm and max. 1200 mm above the roadway. Adjust the front light so that other road users are not dazzled. The headlight must be securely attached to the bike and it must be ensured that the distribution of light is not obstructed. When mounting, make sure that the silicone strap fitting is tightened and mounted during installation so that the headlight can not self-adjust or be easily adjusted (i.e., the torque required for adjustment must be greater than 2 Nm after mounting).
When mounting, make sure that the screw is tightened so tightly that the headlamp can not self-adjust or be easily adjusted.
Please note: The headlight can not be turned horizontally after mounting the holder; Excessive load to verify assembly may cause mechanical damage to the fixture.

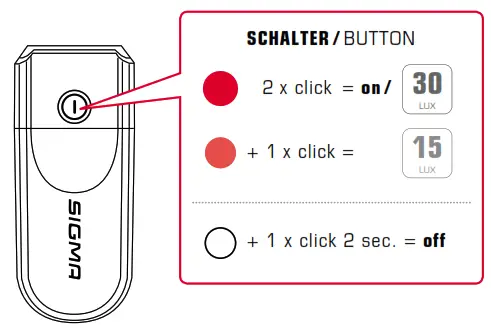

2 MODES

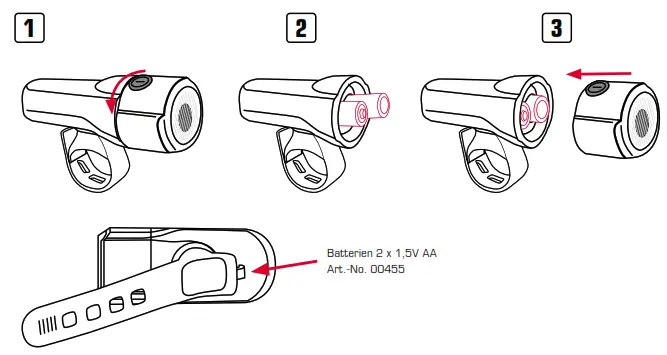

BATTERY CHANGE

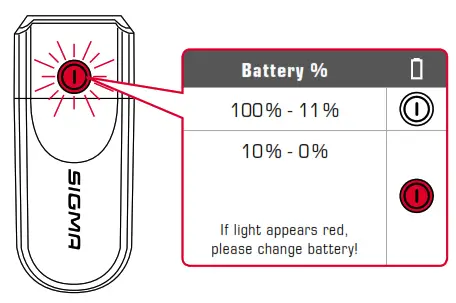

BATTERY CONTROL
SIGMA-ELEKTRO GmbH
Dr.-Julius-Leber-Straße 15
D-67433 Neustadt / Weinstraße
Tel. +49 6321-9120-118
[email protected]
ce.sigmasport.com/aura30
