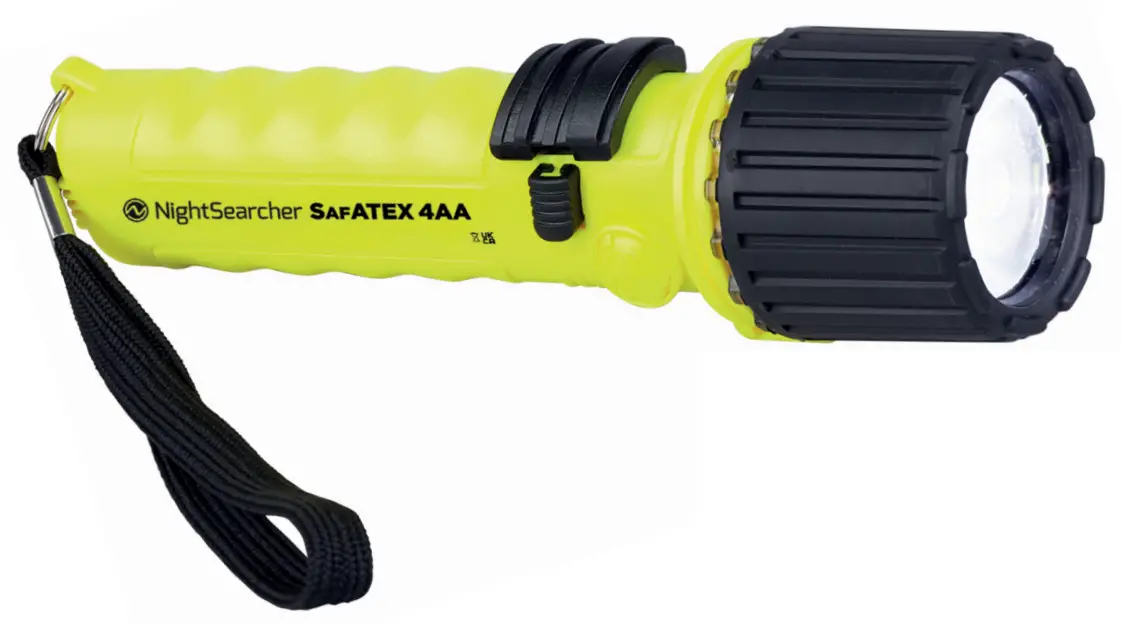

NightSearcher SIGMA ATEX 4AA Flashlight
Specifications
| Light Source | CREE XP-G2 LED |
| Light Output | 185 (lumens) 70 |
| Running Time | 8h 30h |
| Battery Product | 4 x AA Alkaline |
| Dimensions | L 172 x D 47 mm |
| Product Weight | 140g |
| NS Part No | SA-SIGMA-4AA |
| Supplied with | Flashlight, 4 x AA alkaline |
CERTIFICATION
| UL | CLASS I DIV I&2 GRP ABCD CLASS II DIV I&2 GRP EFG CLASS III TEMP CODE: T4 FILE NUMBER: E324236 |
| ATEX | II 1G Ex ia IIC T4 IP67 DEMKO 13 ATEX 1205039X |
| IECEx | Ex ia IIC T4 Ga IECEx UL 13.0060X |
| REACH | Approved |
| RoHS | Approved |
| CE | Approved |
Operation
– The flashlight has three modes of operation: High power, Low power, Flashing. – Slide the switch forward to activate the high power mode, slide forward again to move to low power, slide forward again to move to flashing mode.
Slide a fourth time forward to turn off the light.
– From any mode, move the locking switch upward to lock and secure the lighting mode. This will prevent accidental setting change.

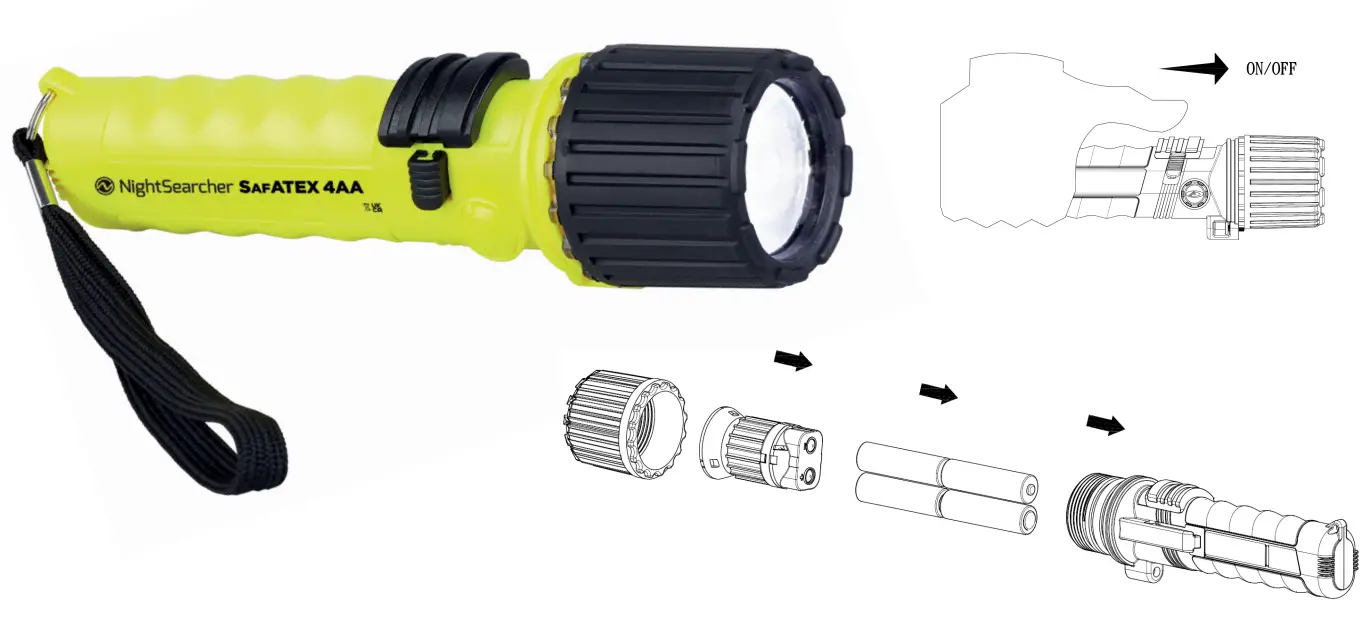

Battery Installation
– Warning – Replace batteries only in non hazardous areas.
- Unscrew the bezel retaining screw and take off the black cap.
- Remove the cap, remove the LED assembly,
- Insert x4 AA type batteries identical, with the (+) positive and (-) negative marks inside the flashlight, replace LED assembly,
- Then replace the bezel and lock into position by tightening the screw. If the flashlight is not used or stored for a long time, batteries should be removed to avoid battery leaking which may damage the flashlight.
- Always replace all the batteries at the same time.
- Do not mix used batteries with new batteries
- Do not mix batteries from different manufacturers
General Warning
- Do not expose the battery to excessive heat, to do so may cause an explosion.
- Do not use metal objects to short circuit the positive and negative end of the battery.
- Do not dispose of the battery in the domestic waste, please use the correct method of disposal.
- Do not solder directly on to the battery.
- Do not let the battery become wet or immerse the battery in water.
- Keep the battery away from children.
- The operating temperature range of the flashlight’s battery: Charging: 0°C to 45°C / Discharging:
- 20°C to 60°C
- Do not shine the flashlight directly into people’s eyes, as it may damage their eyesight.
- Do not try to repair the unit. In case of any problems or questions please contact NightSearcher Limited or an authorised distributor.
Safe disposal of waste electrical products, batteries
If at any time, you need to dispose of this product or parts of this product: please note that waste electrical products and batteries should not be disposed of with ordinary household waste. Recycle where facilities exist. Check with your local authority for recycling advice. Alternatively, NightSearcher is happy to take receipt of this product at end-of-life and will recycle it on your behalf.
GUARANTEE TERMS
All NightSearcher products have a 3-year standard warranty on all manufacturing defects and 1-year warranty on all rechargeable batteries from the date of purchase. Extended Warranty: Customers have the option to extend the warranty of the product to 5 years for manufacturing defects.
Registration of the product must be made within one month of purchase by sending us an email [email protected]. In the message please state in your own words that you would like to register your NightSearcher product for the extended warranty. To view NightSearcher’s warranty policy, please visit: https://nightsearcher.co.uk/en/extended-warranty.html or scan the QR code.
NightSearcher Limited – Unit 4 Applied House – Fitzherbert Spur – Farlington – PORTSMOUTH – Hampshire – PO6 1TT – UK
