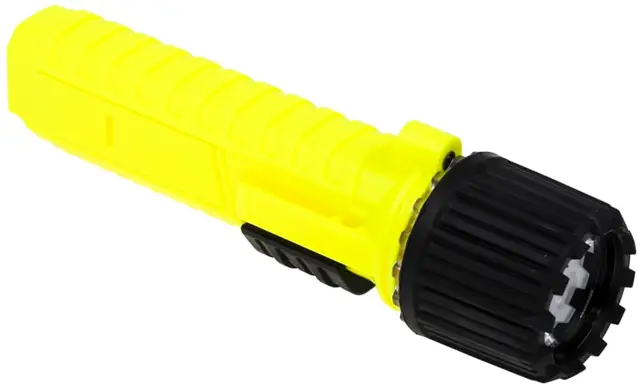

NightSearcher logoSIGMA ATEX Zoom Flashlight
Adjustable spot to flood zoom beam
Rotate bezel from spot
to flood beam

NightSearcher SIGMA ATEX 325 Lumen Right Angled Atex FlashlightZONE 0
NightSearcher SIGMA ATEX 325 Lumen Right Angled Atex Flashlight - icon
MINING APPROVED
NightSearcher SIGMA ATEX 325 Lumen Right Angled Atex Flashlight - icon1

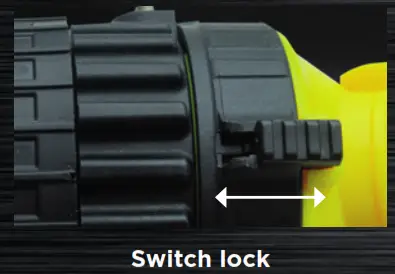

NightSearcher SIGMA ATEX 325 Lumen Right Angled Atex Flashlight - Switch lock

Features:

  • ATEX certificated Gas Zone 0
  • Adjustable beam – Twist head for Spot to Flood beam making it ideal for both distance and close up work
  • Rotate sliding switch between light modes
  • Tough polycarbonate housing
  • Rubberized head and grip for durability
  • IP67 Rated
  • Beam Lock
  • Suitable for heavy industrial use
  • Easy operation with a gloved hand
  • Safety release valve to remove hydrogen gases

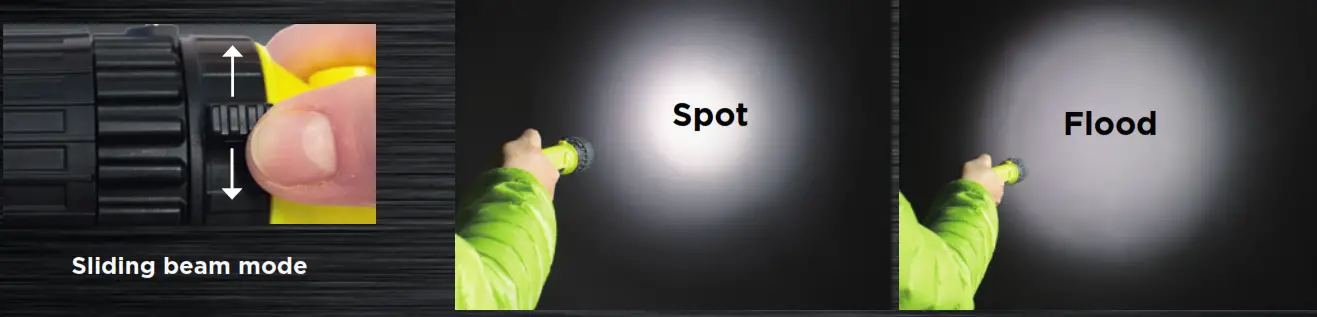

NightSearcher SIGMA ATEX 325 Lumen Right Angled Atex Flashlight - Sliding beam mode

Specification

NightSearcher New Magnum 3000 Rechargeable Flashlight - icon7Spot: 83-235 | Flood: 83-235 | Flashing
NightSearcher New Magnum 3000 Rechargeable Flashlight - icon672-116 Metres | 16-26 Metres
NightSearcher New Magnum 3000 Rechargeable Flashlight - icon511-36 Hours runtime
MODESpot: High/Low | High/Low | Flashing
NightSearcher SIGMA ATEX 325 Lumen Right Angled Atex Flashlight - icon64 x AA batteries (not included)
NightSearcher New Magnum 3000 Rechargeable Flashlight - icon2IP67
NightSearcher New Magnum 3000 Rechargeable Flashlight - icon1184x52mm Ø
NightSearcher New Magnum 3000 Rechargeable Flashlight - icon250g
CODESA-SIGMA-ZOOM

Previously: NSSAFA-FLA-ZOOM
Supplied with: Wrist strap

CERTIFICATION

NightSearcher SIGMA ATEX 325 Lumen Right Angled Atex Flashlight - icon2

NightSearcher SIGMA ATEX 325 Lumen Right Angled Atex Flashlight - icon3NightSearcher SIGMA ATEX 325 Lumen Right Angled Atex Flashlight - icon4NightSearcher SIGMA ATEX 325 Lumen Right Angled Atex Flashlight - qr codehttps://nightsearcher.co.uk/en/category/atex-hazardous-lights/product/NSSAFA-FLA-ZOOM.html
Scan for multi-language information

CLASS I DIV 1&2 GRP ABCD
CLASS II DIV 1&2 GRP EFG
CLASS III / TEMP CODE: T4 IP67
FILE NUMBER: E324236
ATEX Zone 0
Gas:NightSearcher SIGMA ATEX 325 Lumen Right Angled Atex Flashlight - icon5  II 1G Ex ia IIC T4 Ga
Mine:NightSearcher SIGMA ATEX 325 Lumen Right Angled Atex Flashlight - icon5  I M1 Ex ia I Ma
DEMKO 15 ATEX 1476X
Gas: Ex ia IIC T4 Ga
Mine: Ex ia I Ma
IECEx UL 15.0046X
