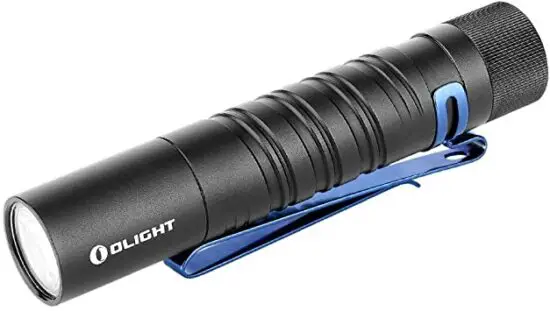

OLIGHT i5T Plus Lumens EDC Flashlight User Manual
Thank you for purchasing this Olight Product. Please read this manual carefully before use and keep it for future reference!

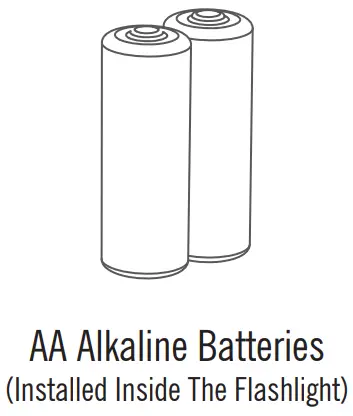

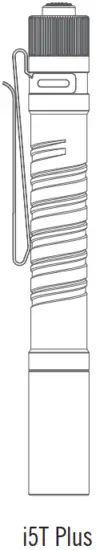

IN THE BOX

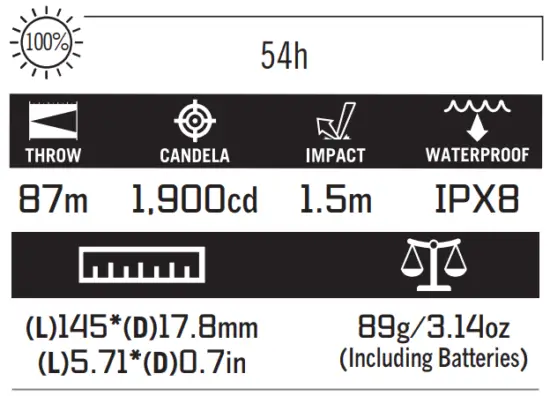

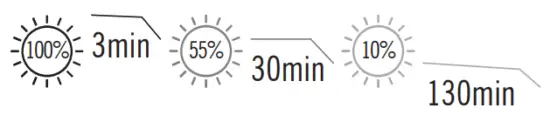

SPECIFICATIONS
HIGH 550lumens
LOW 15lumens
All above specifications are test results based on ANSI/NEMA FL1-2009 Standard. The tests are performed using the batteries included in the flashlight.

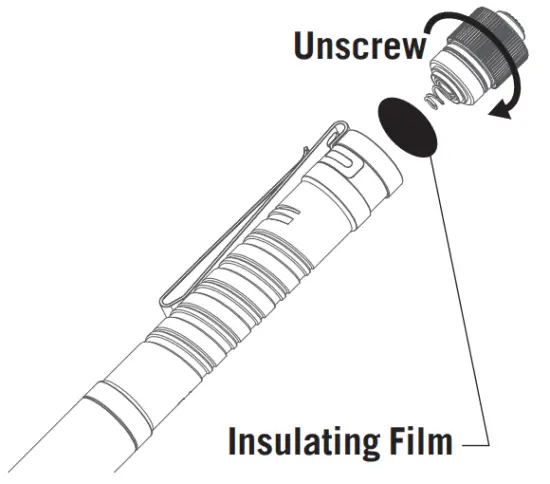

INSULATING FILM
Before first use, unscrew the tailcap and remove the insulating film.

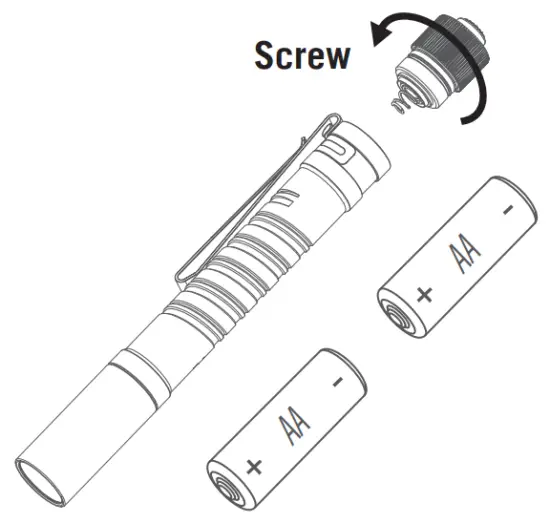

BATTERY INSTALLATION
If the batteries need to be replaced, make sure that the positive end of the new batteries face the flashlight head when you put them in.
AVAILABLE BATTERIES
- 2 x 1.5V AA Alkaline battery (included)
- 2 x AA NiMH battery (compatible)
- 2 x AA Lithium-iron battery (compatible)
DANGER
- DO NOT shine the light directly into human eyes. This may cause temporary blindness or permanent damage to the eyes.
- DO NOT cover the light head when the flashlight is on, or place the flashlight head on the ground. The radiation energy of the flashlight may cause damage to the flashlight itself, or even result in burning to other materials.
- Please DO NOT use batteries other than the ones mentioned in the “available batteries”, especially rechargeable lithium batteries, otherwise it could lead to the damage of the flashlight, or unexpected danger.
WARNING
- Keep out of reach of children.
- If the light is about to be put aside for a long time or be transported, please unscrew the tailcap and remove the battery to cut off the circuit.
- Please DO NOT use rechargeable 14500 lithium batteries. This may cause the LED or electronic components to burn out or even result in irrecoverable damage when screwing the tailcap.
- DO NOT throw the flashlight into the fire. This may cause the battery to explode or incur unexpected hazards.
- DO NOT use rechargeable batteries with a nominal voltage higher than 3.6V. This may cause damage to the product.
- DO NOT clean the lens with alcohol or any other chemicals.
NOTICE
- Ensure battery is inserted with the positive (+) end pointing to the head of the flashlight ( LED side ).
- It is normal for the flashlight not being able to reach 550 lumens when the battery voltage is too low.
EXCLUSION CLAUSE
Olight is not liable for damages or injuries sustained resulting from the usage of the product inconsistent with the warnings in the manual.
When the light is first turned on, it will go to low as the default mode. Soft press without fully clicking for momentary on. Cycle through momentary low and high mode by quickly soft pressing, letting go, and soft pressing again.
Deep press for constant on (you will hear a click). Continue to click on and off within 2 seconds after it was turned off to shift between low and high brightness levels. If it is turned on over 2 seconds after it was switched off, it w
WARRANTY
Within 30 days of purchase: Contact the original seller for repair or replacement.
Within 5 years of purchase: Contact Olight for repair or replacement.
This warranty does not cover normal wear and tear, modifications, misuse, disintegrations, negligence, accidents, improper maintenance, or repair by anyone other than an authorized retailer or Olight itself.
USA Customer Support
[email protected]
Global Customer Support
[email protected]
Visit www.olightworld.com to see our complete product line of portable illumination tools.
EU_DECLARATION OF CONFORMITY
EU-Declaration of Conformity can be found here:
https://olightworld.com/ec-declaration
