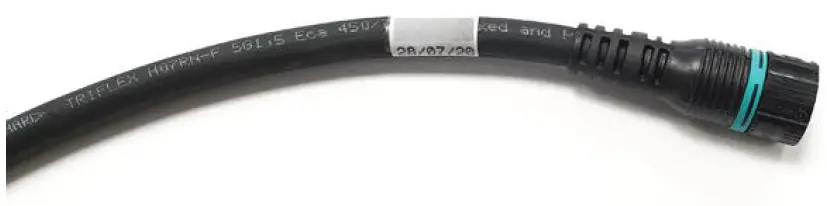

techno THC.387.A2A.L05 Mini-Connector Plug Overmolded
GENERAL DESCRIPTION
| Type of installation | Plug and Socket connector | ||||
| Type of product (Family) | TEEPLUG® – IP68 Plug&Socket circular connectors | ||||
| Product name (Series) | TH387 – mini-Connettore Spina sovrastampato IP68 | ||||
| Product configuration | Connettore Spina | ||||
| Colour | Black (Plastic components) – Techno green (Rubber components) | ||||
| Outer dimension | Ø23 / cavo L 0.5MT (cable H07RN-F) | ||||
ELECTRICAL CHARACTERISTICS
| Number of poles | 2 | |
| Contact marking | 1-2 | |
| Operating current | 17.5A | |
| Operating voltage | 500V AC | |
| Impulse withstand voltage | 4KV | |
MECHANICAL CHARACTERISTICS
| Protection against solid/water (IP) | IP68 (30m/3h) | |
| Corrosion resistance | Salt mist test : EN60068-2-11:2000 | |
CABLE CHARACTERISTICS
| Wire cross-section min. – max. (Stranded cable) | 1.5 mm2 | |
| Cable diameter min. – max. | max 11 mm | |
MATERIAL CHARACTERISTICS
| Connector housing | PA66 GF UL94 V0 | |||||
| Sealing | TPE | |||||
| Grommets | TPE | |||||
| Contacts | Ottone | |||||
| Impulse withstand category | II | |||||
| Pollution degree | 2 | |||||
| Material properties | Halogen Free – Silicone Free | |||||
| Operating temperature range | -40°C / +60°C | |||||
| Proof Tracking Index (PTI) | PTI 175 | |||||
PACKAGING INFORMATION
| Packaging method | componenti non assemblati | ||
| Quantity (product/box) | 200 pz | ||
| Box dimension | 400x400x230 mm | ||
No responsibility is taken for the correctness of this information. All technical data or other eventual product modifications and improvements can be carried out without notice. The images are purely for information.
