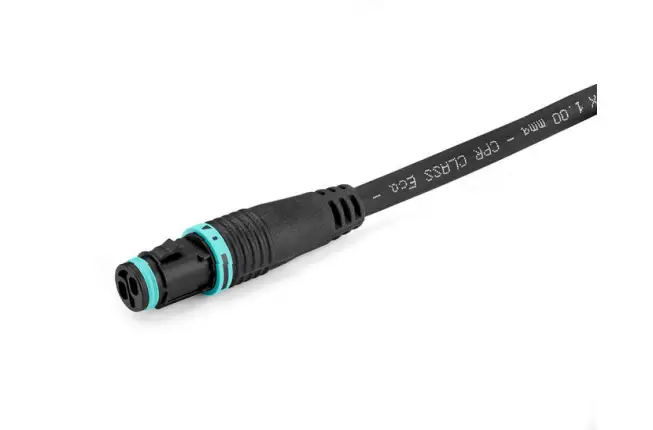

techno THC.381.B2A.L1 Micro-Connector Socket Overmolded
GENERAL DESCRIPTION
| Type of installation | Plug and Socket connector | ||||
| Type of product (Family) | TEEPLUG® – IP68 Plug&Socket circular connectors | ||||
| Product name (Series) | TH381 – micro-Connettore Spina sovrastampato | ||||
| Product configuration | Connettore Presa | ||||
| Colour | Black (Plastic components) – Techno green (Rubber components) | ||||
| Outer dimension | Ø14 / cavo L 1MT (cable H05RN-F) | ||||
ELECTRICAL CHARACTERISTICS
| Number of poles | 2 | |
| Contact marking | 1 – 2 | |
| Operating current | 10A AC/DC | |
| Operating voltage | 400V AC (12V-60V DC ) | |
| Impulse withstand voltage | 2.5kV | |
MECHANICAL CHARACTERISTICS
| Protection against solid/water (IP) | IP68 (30m/1h) | ||
| Corrosion resistance | Salt mist test : EN60068-2-11:2000 | ||
| Connection and disconnection cycles | 100 cycles | ||
CABLE CHARACTERISTICS
| Wire cross-section min. – max. (Stranded cable) | 0.75 mm2 | |
| Cable diameter min. – max. | max 7.0 mm | |
MATERIAL CHARACTERISTICS
| Connector housing | PA66 GF UL94 V0 | |||||
| Sealing | TPE | |||||
| Grommets | TPE | |||||
| Contacts | Ottone (silver plated) | |||||
| Impulse withstand category | II | |||||
| Pollution degree | 2 | |||||
| Material properties | Halogen Free – Silicone Free | |||||
| Operating temperature range | -40°C / +60°C | |||||
| Proof Tracking Index (PTI) | PTI 175 | |||||
PACKAGING INFORMATION
| Packaging method | componenti non assemblati | ||
| Quantity (product/box) | 200 pz | ||
| Box dimension | 400x400x230 mm | ||
INSTALLATION INSTRUCTIONS
606002032 TH381 PDF • 649 KB
No responsibility is taken for the correctness of this information. All technical data or other eventual product modifications and improvements can be carried out without notice. The images are purely for information.
