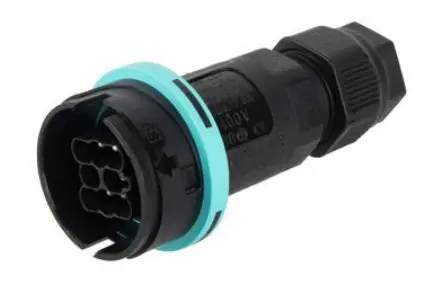

techno THB.405.A8A Plug and Socket Connector
GENERAL DESCRIPTION
| Type of installation | Plug and Socket connector |
| Type of product (Family) | TEEPLUG – IP68 Plug & Socket circular connectors |
| Product name (Series) | TH405 – Plug & Socket connector IP68 |
| Product configuration | Connettore Spina |
| Colour | Black (Plastic components) – Techno green (Rubber components) |
ELECTRICAL CHARACTERISTICS
| Number of poles | 8 |
| Contact marking | 1-2-3-4-5-6-7-E |
| Type of connection | screw (M2 – max. 0.2 Nm) |
| Operating current | 10A AC/DC |
| Operating voltage | 400V AC ( 60V DC ) |
| Impulse withstand voltage | 2.5kV |
MECHANICAL CHARACTERISTICS
| Protection against solid/water (IP) | IP68 (10m/1h) |
| Protection against impact (IK) | IK08 |
| Corrosion resistance | Salt mist test : EN60068-2-11:2000 |
CABLE CHARACTERISTICS
| Wire cross-section min. – max. (Stranded cable) | 0.25 mm – 1.0 mm |
| Cable diameter min. – max. | 7.0 mm – 13.5 mm |
MATERIAL CHARACTERISTICS
| Body | PA66 UL94 V2 GWT 850°C |
| Connector housing | PA66 GF UL94 V0 GWT 960°C |
| Cable gland | PA66 UL94 V2 GWT 850°C |
| Sealing | TPE |
| Grommets | TPE |
| Contacts | Ottone (nickel plated) |
| Screws | Steel |
| Impulse withstand category | II |
| Pollution degree | 2 |
| Material properties | Halogen Free – Silicone Free |
| Operating temperature range | -40°C / +125°C |
| Proof Tracking Index (PTI) | PTI 175 |
INDUSTRY STANDARDS
| Packaging method | not assembled components |
| Quantity (product/box) | 200 pz |
| Box dimension | 400x400x230 mm |
INSTALLATION INSTRUCTIONS
Techno
