Robern R³ Series Installation Guide

robern R³ Series

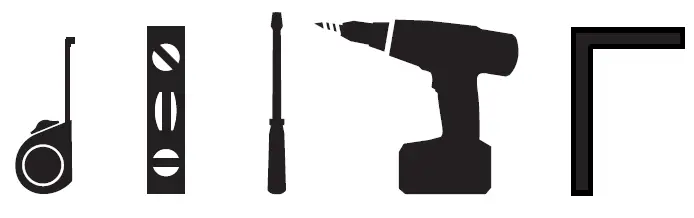

TOOLS REQUIRED

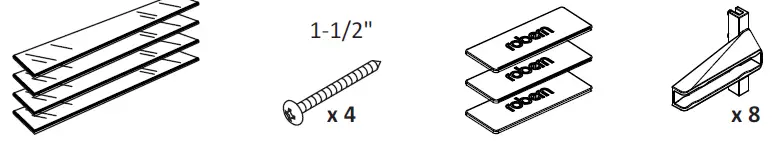

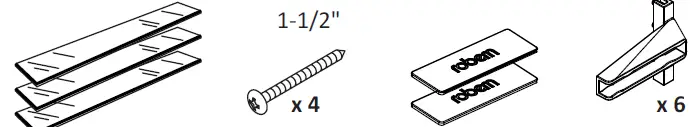

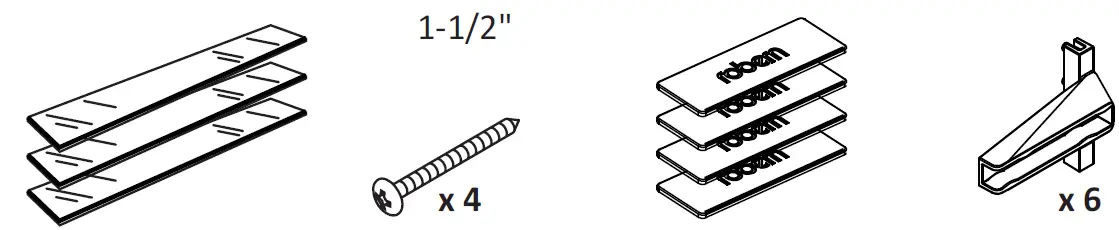

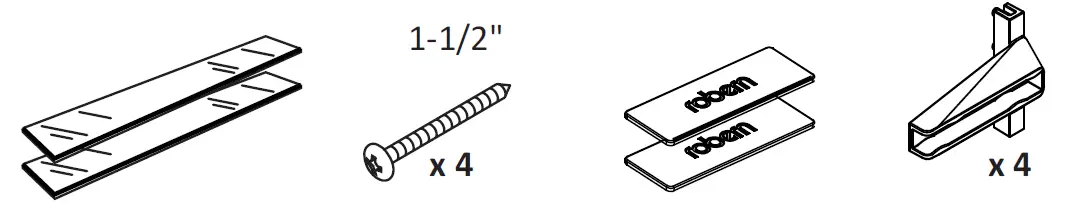

Parts Supplied

Model CB-RC2026D4FP1, CB-RC2026D4FB1, CB-RC2426D4FP1, CB-RC2426D4FB1

Model CB-RC2426D4FP2, CB-RC2426D4FB2

Model CB-RC2036D4FP1, CB-RC2036D4FB1, CB-RC2436D4FP1 CB-RC2436D4FB1

DANGER: Risk of electric shock. Electrical materials may need to be relocated.

Recess- Mount Installation

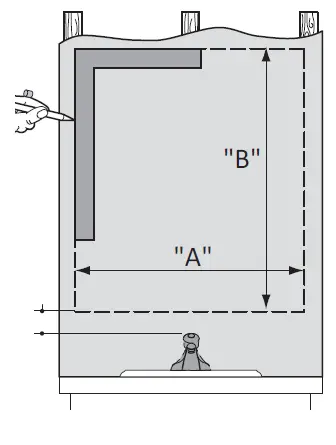

1. Draw the perimeter of the cabinet.

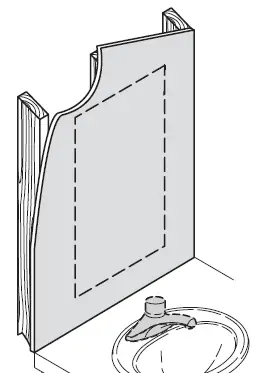

2. Cut at the marked lines with the appropriate tool.

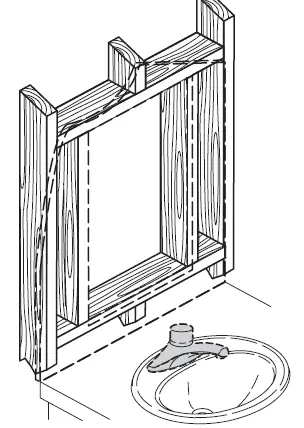

3. Frame the cutout opening.

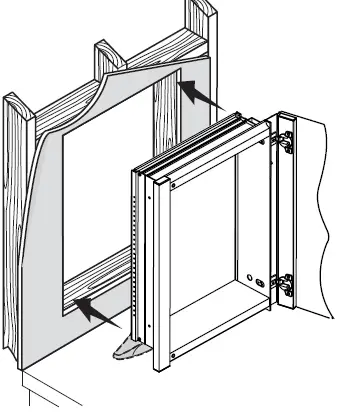

4. Place and hold the cabinet in the cutout.
5. Level, then secure the cabinet with 1-1/2″ the framing studs.
6. Optional door adjustment
7. Cover screws with the caps, and the “hinge adjust holes” with the nameplate.
8. The height of the shelves can be adjusted in ½” (13 mm) increments.

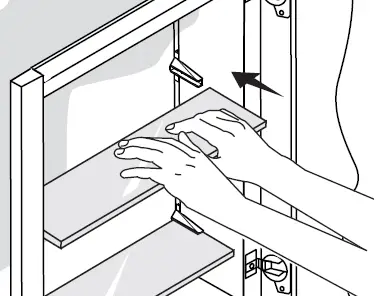

9. Install the shelves.

Surface Mount Installation

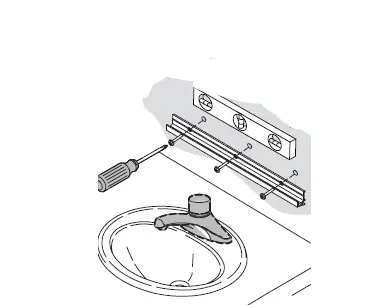

1. Drill hole in bar.

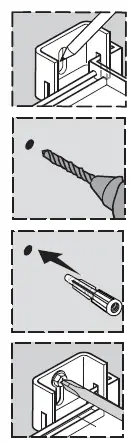

2. Level and mark. Drill with a 3/16” bit for anchor. Insert anchors.

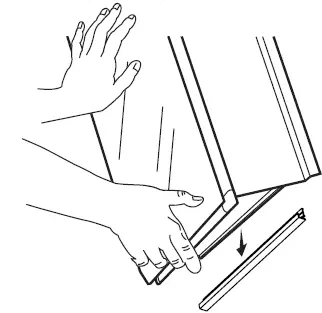

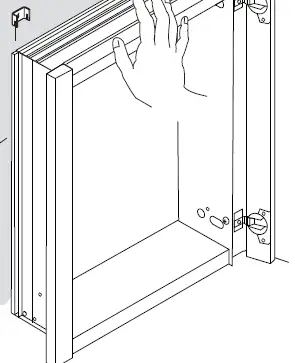

3. With assistance, rest the cabinet on the mounting bar and hold in place.

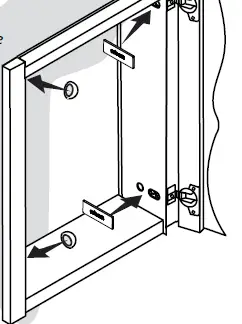

4. Install the mounting clips.
   Mark, then set the cabinet aside. Drill with a 3/16” bit for anchor. Insert anchors. Secure with screws provided with the anchors.

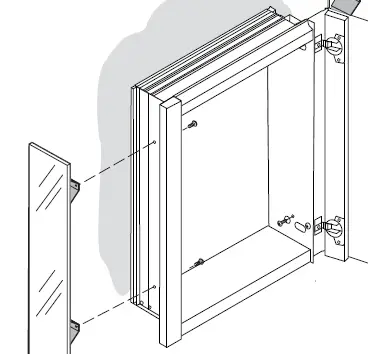

5. Install the mirrors-4 #8 x 3/8”.
