Blossom V8016 Series Valencia Series Vanities Installation Guide

V8016 Series VALENCIA Series Vanities
Installation Guide

Features

• Modern design with high glossy paint or silver grey melamine finishes.
• Soft-closing doors and drawers.
• Compatible ceramic basins or artificial stone basins.
• Compatible matching mirror, medicine cabinet or LED mirror, medicine cabinet.
• Full extension drawers.
• Easy installation

Colors/Finishes
Glossy White – 01
Sliver Grey – 16

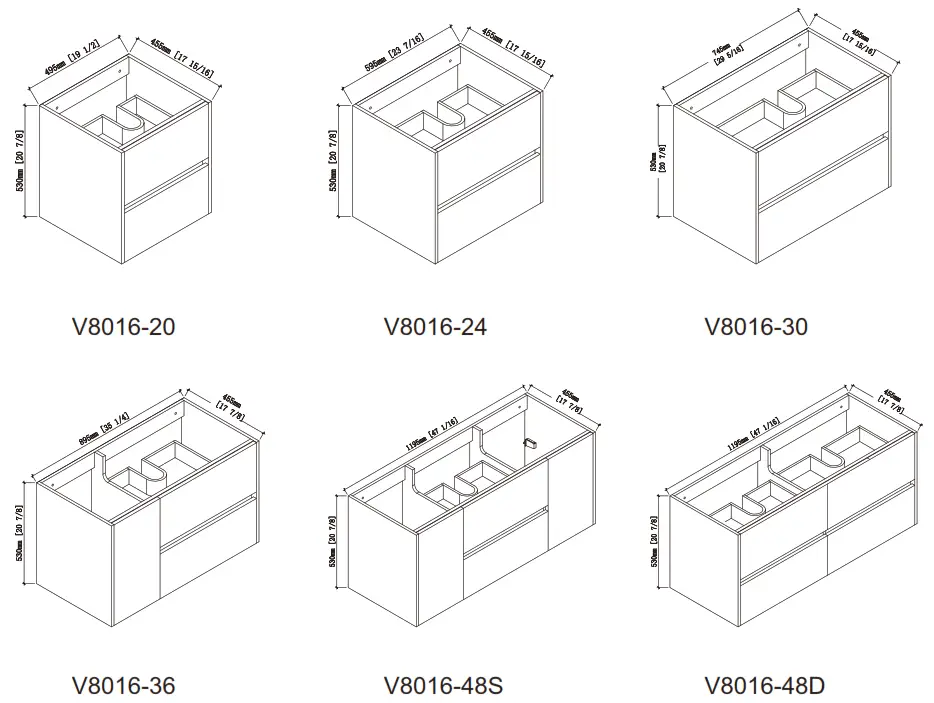

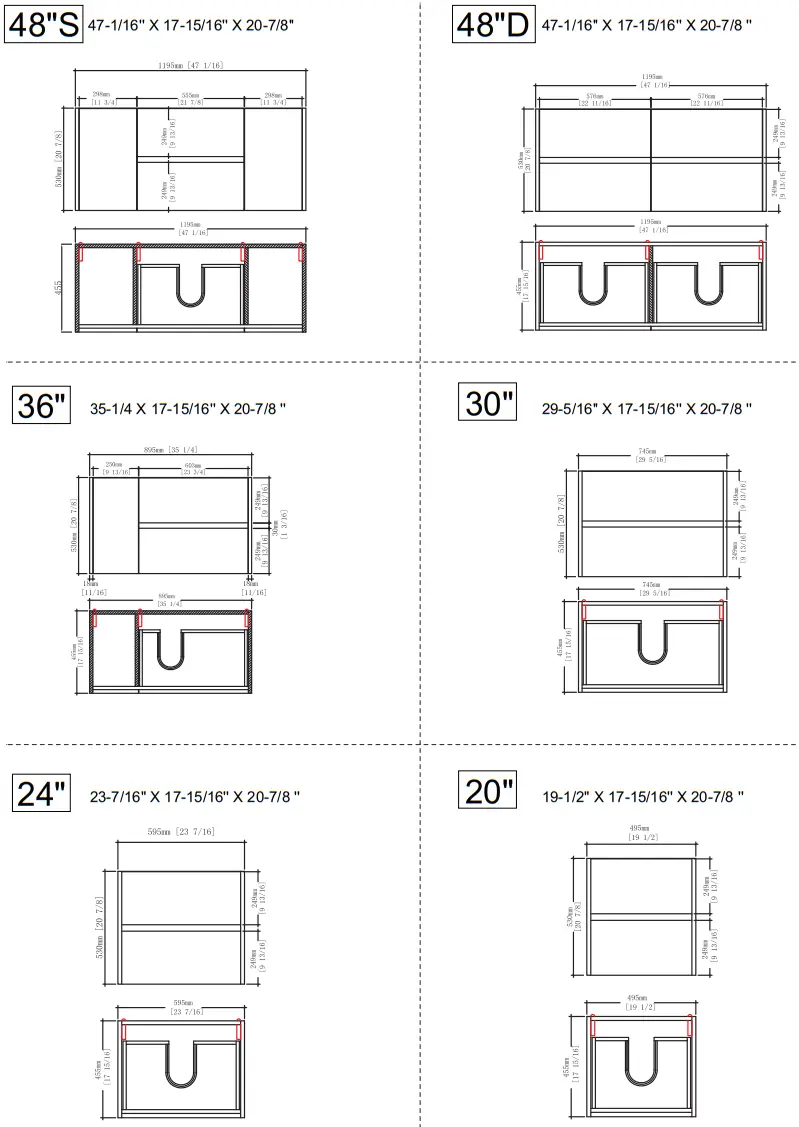

Package Dimension

20″: 22 7/16″ x 20 55/64″ x 23 13/16″
24″: 26 3/8″ x 20 55/64″x 23 13/16″
30″: 32 9/32″ x 20 55/64″ x 23 13/16″
36″: 38 3/16″ x 20 55/64″ x 23 13/16″
48″S: 50″ x 20 55/64″ x 23 13/16″
48″D: 50″ x 20 55/64″ x 23 13/16″

Gross Weight
20″: 54 LBS
24″: 62 LBS
30″: 71 LBS
36″: 84 LBS
48″S: 95 LBS
48″D: 95 LBS

Sink Top Options

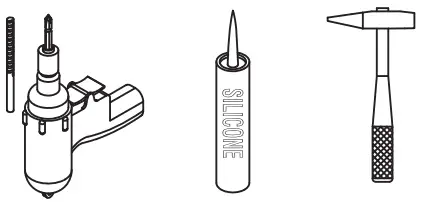

Hardware				Tools (not includes )
No.		Draw	Qty
A	White rubber plug (∅6mm)		2pcs
B	Screws (∅4 x 68mm)		2pcs
C	Leveling bracket		2pcs
D	Green rubber plug		6pcs
E	Screw		6pcs
F	Stainless steel cover		2pcs

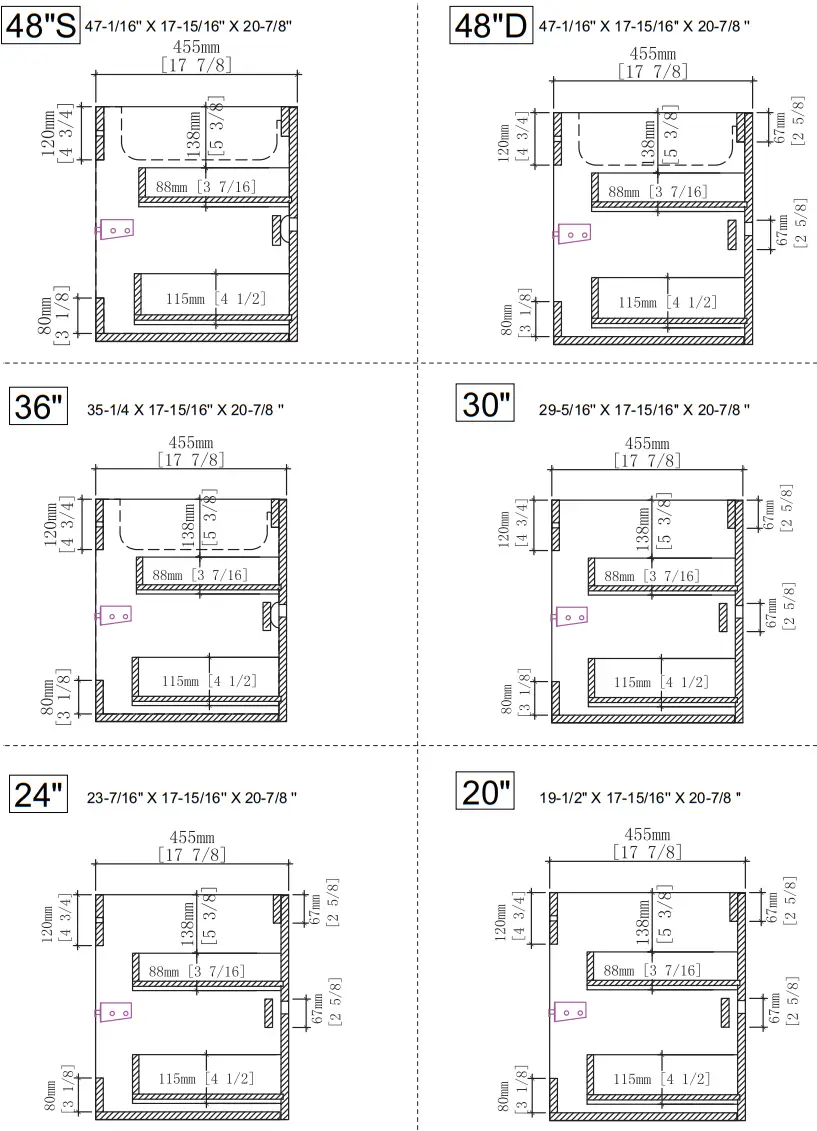

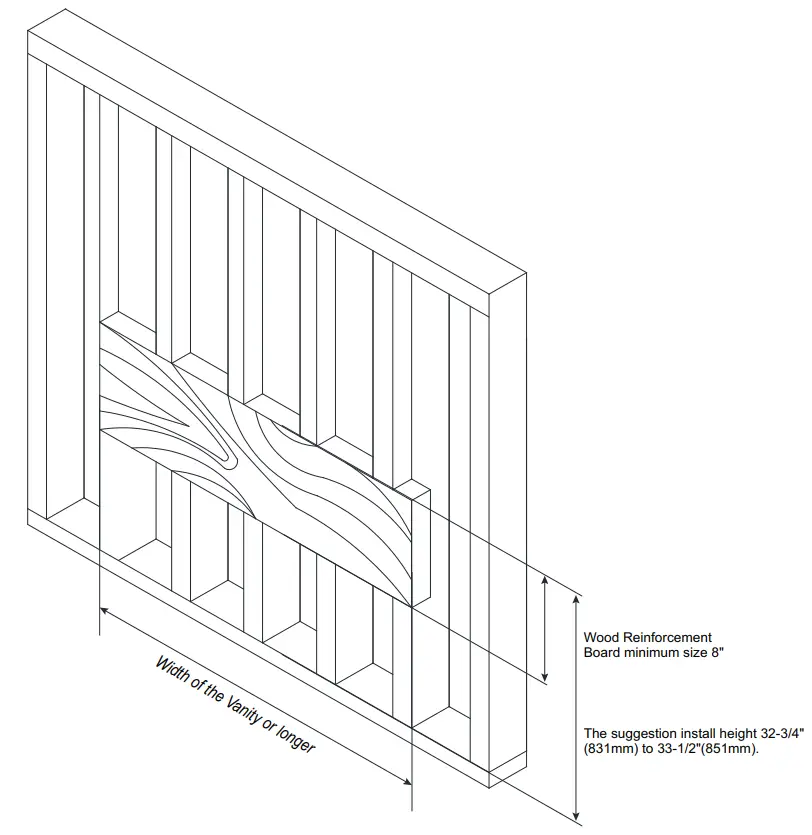

Wall Preparation

• The typical dimensions shown will result in vanity cabinet height of 32-3/4″(831mm).Depending on the sinks selected,the total height will vary from 33-1/2″(850mm)35-1/4(895mm).If an alternate height is desired,adjust the rough-in and backing material heights using the dimensions provided.

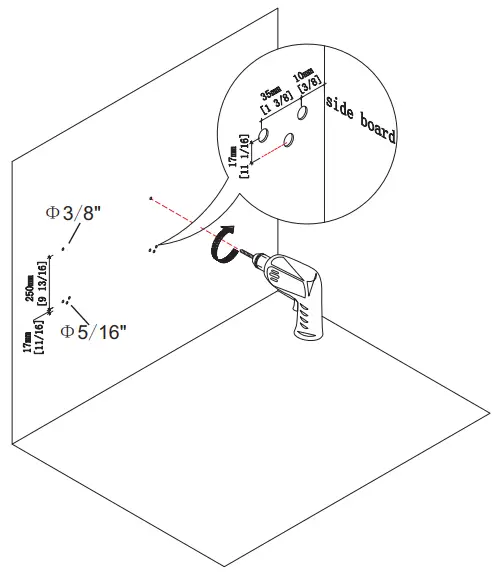

STEP 1

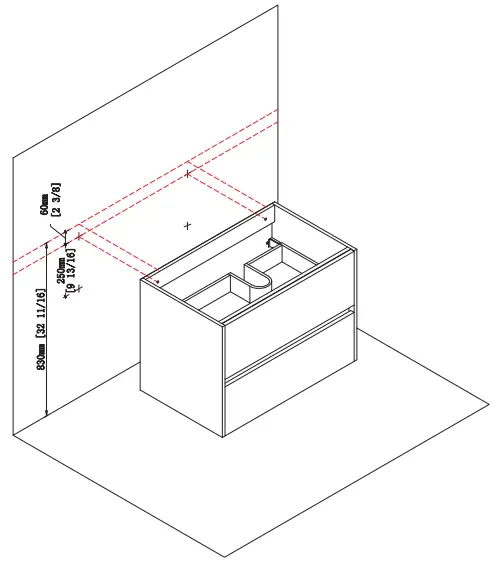

Draw a punched position on the wall with a pencil.
Tip:

1. The suggestion height of the cabinet is 3211/16″(830mm)-not including the basin.
2. The suggestion height of the upper hole is 30-5/16″(770mm).
3. The suggestion distance between the upper hole to the lower hole is 9-13/16″(250mm).

STEP 2
Drill the holes with suitable drill-bits base on different condition of the wall.

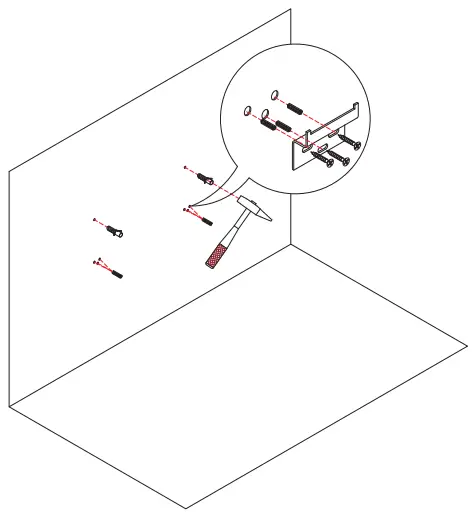

STEP 3
Use a hammer to knock the white expansion rubber plug into the upper hole,and knock the green rubber plug into the three lower hole ,align the hole in the wall and lock the leveling bracket to the wall with screws.

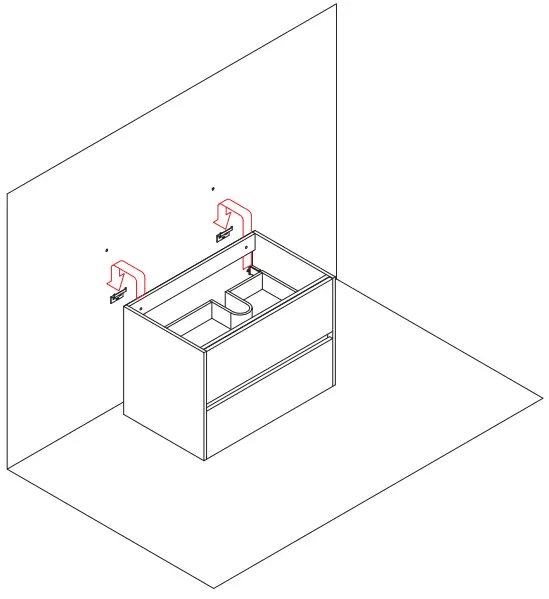

STEP 4
Hang the accessories behind the cabinet on the leveling bracket.(As the picture shows).

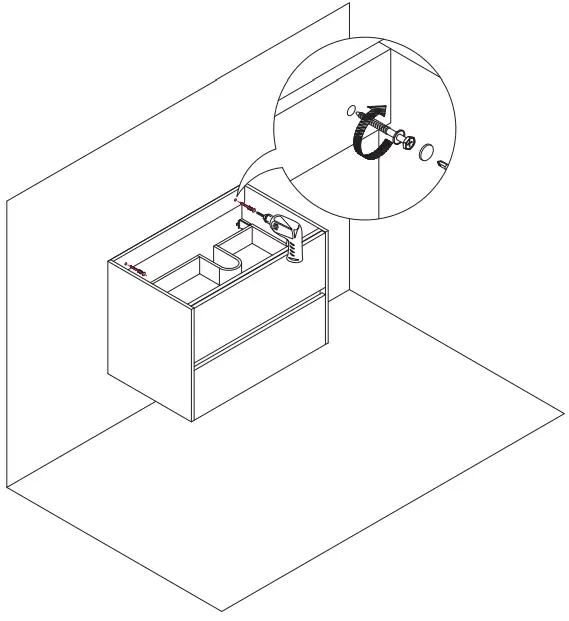

STEP 5
Secure the vanity onto the wall with screws.

STEP 6

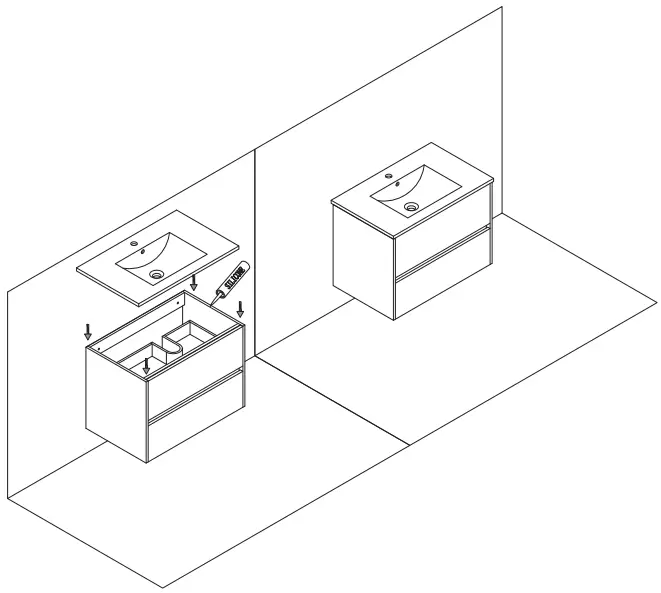

Install sink top with silicone and finish.

For clarification, please contact us at (718)-366-0088 or [email protected]
All dimensions are approximate and subject to standard tolerance. Specifications subject to change without prior notice.

Blossom Kitchen & Bath Supply Corporation
(718)-366-0088
[email protected]
