V8005-24, V8005-30 Barcelona Series Vanities
Installation Guide
V8005-24, V8005-30 Barcelona Series Vanities
Features
- Modern design with high glossy paint or dark oak melamine finishes.
- Soft-closing drawers with full extension.
- Top three drawers with U cut-out to make it easier for plumbing works.
- Compatible matching mirror, medicine cabinet or LED mirror, medicine cabinet.
- Easy installation
Package Dimension
24″ 26 3/8″ x 21 21/32″ x 33 5/64″
30″ 32 9/32″ x 21 21/32″ x 33 5/64″
Colors / Finishes
Glossy White – 01
Dark Oak – 07
Gross Weight
24″ 102 LBS
30″ 125 LBS
Sink Top Options
| Vanities | Ceramic basin | Artificial stone basin | |
| 24″ | V8014-24 | A10 2419 04 | |
| 30″ | V8014-30 | A10 3019 04 |

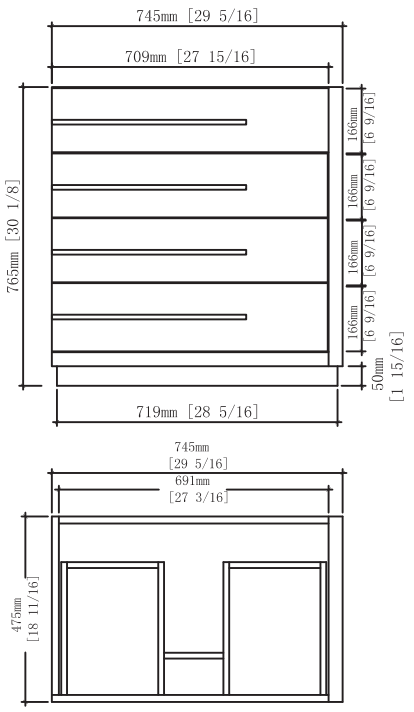

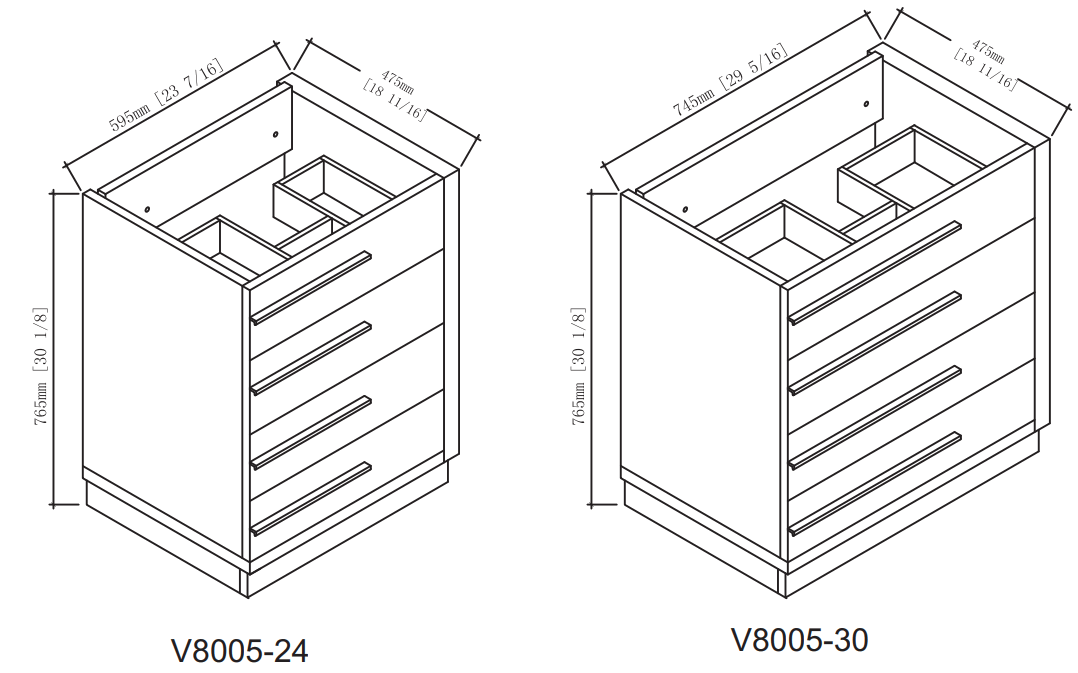

30″ 29-5/16” X 18-11/16” X 30-1/8”

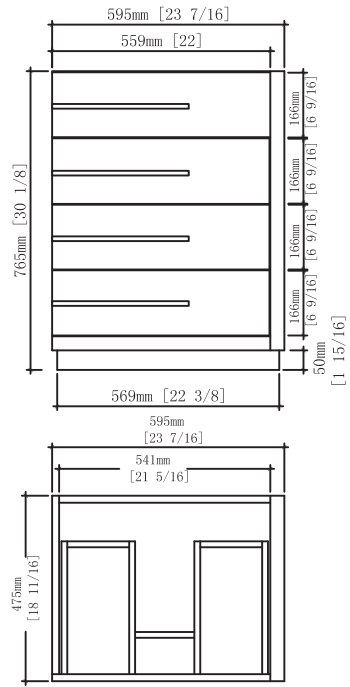

24″23-7/16” X 18-11/16” X 30-1/8 ”

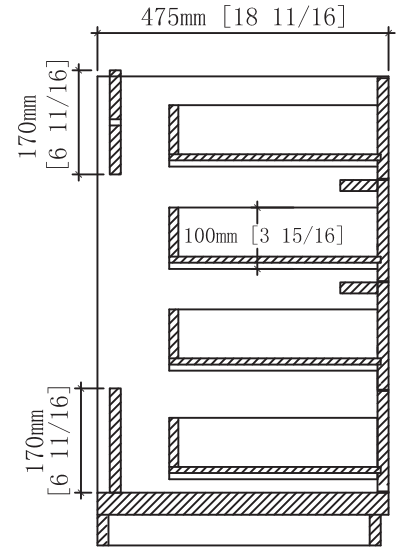

Side View

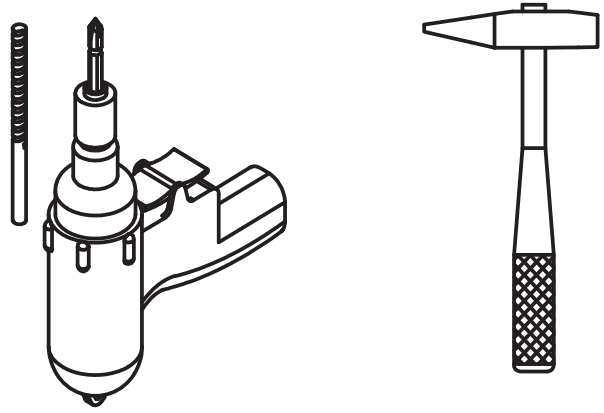

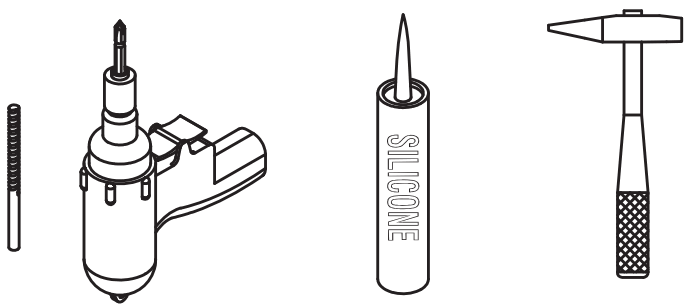

| Hardware | Tools (not includes ) | |||
| No. | Draw | Qty |  | |
| A | White rubber plug (06mm) |  | 2pcs | |
| B | Screws (04 x 68mm) |  | 2pcs | |
| C | Stainless steel cover |  | 2pcs | |
STEP 1

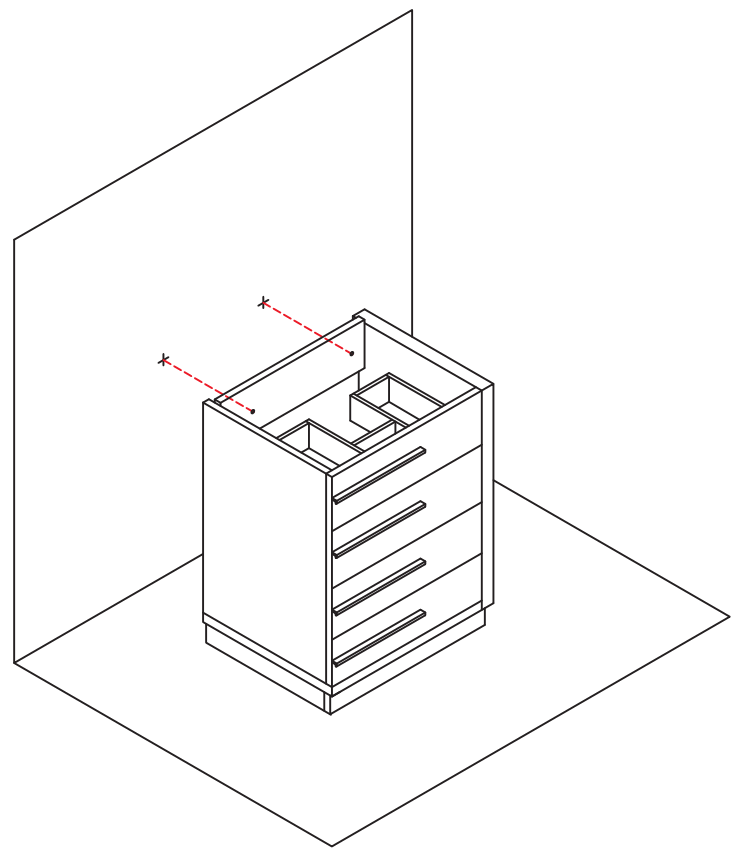

Mark the pre-drilled holes with a pencil or marker after positioning the vanity.
STEP 2

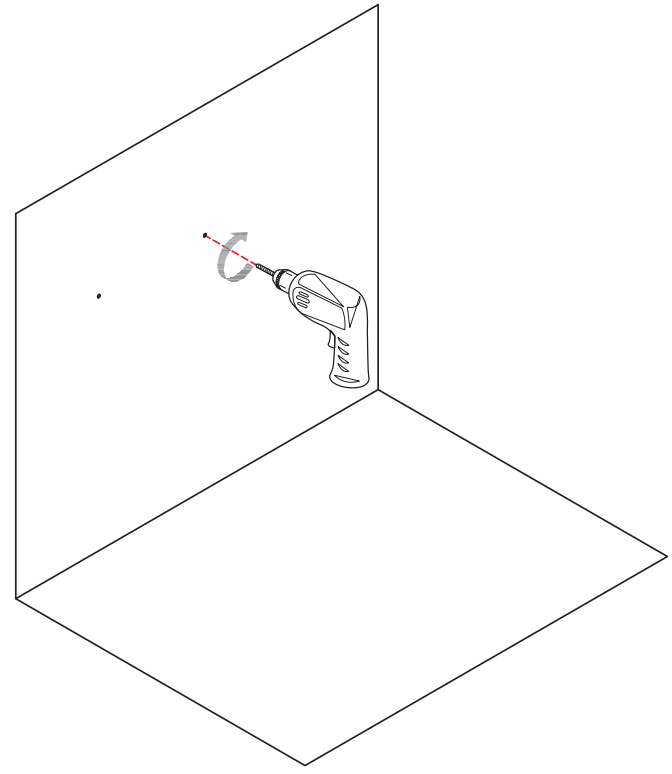

Drill the holes with suitable drill-bits base on different condition of the wall.

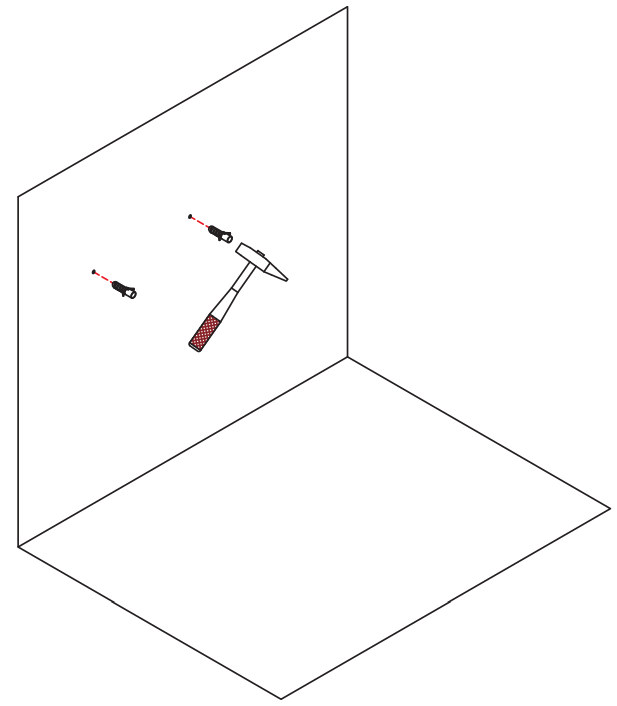

STEP 3

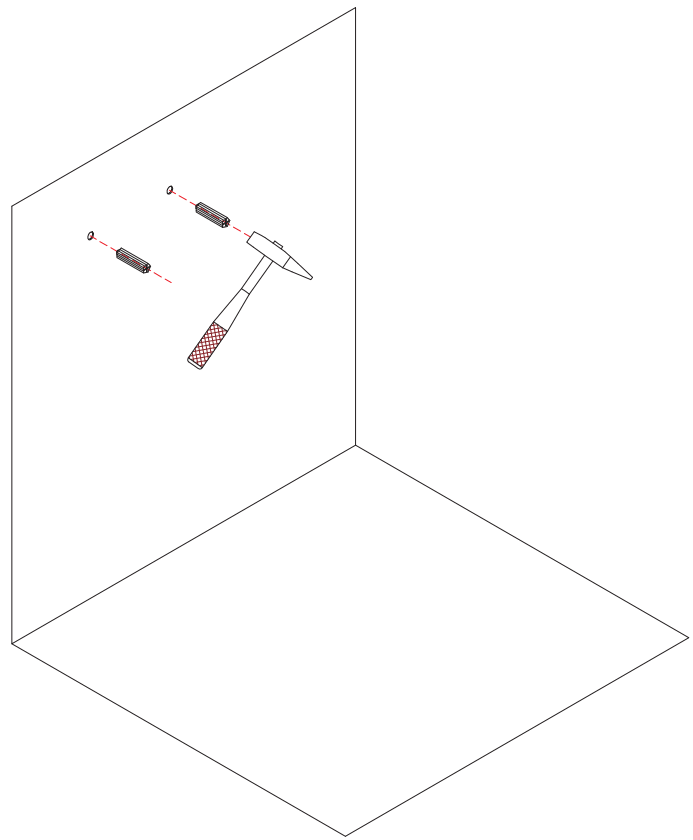

Hammer in the expansion plug.
STEP 4

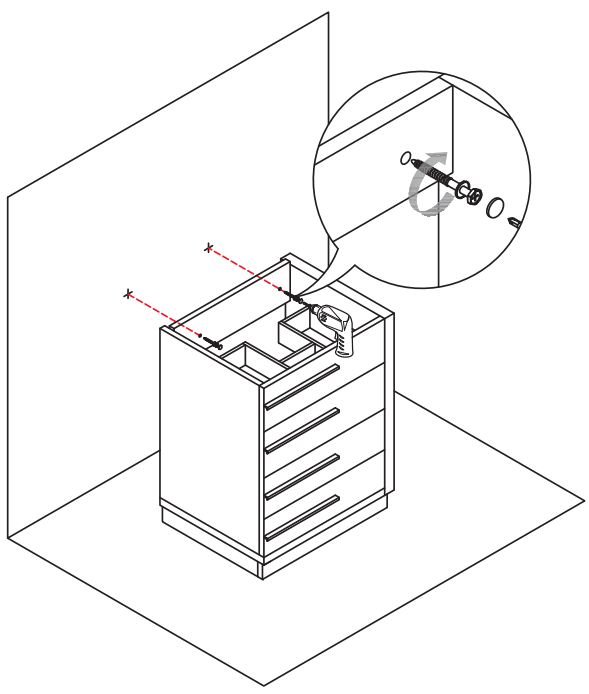

Secure the vanity onto the wall with screws.

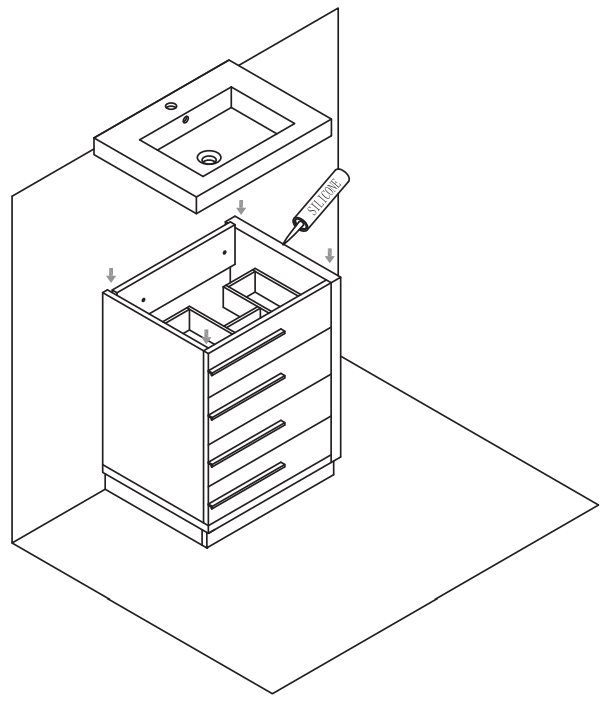

STEP 5
Install the basin with silicone.
STEP 6

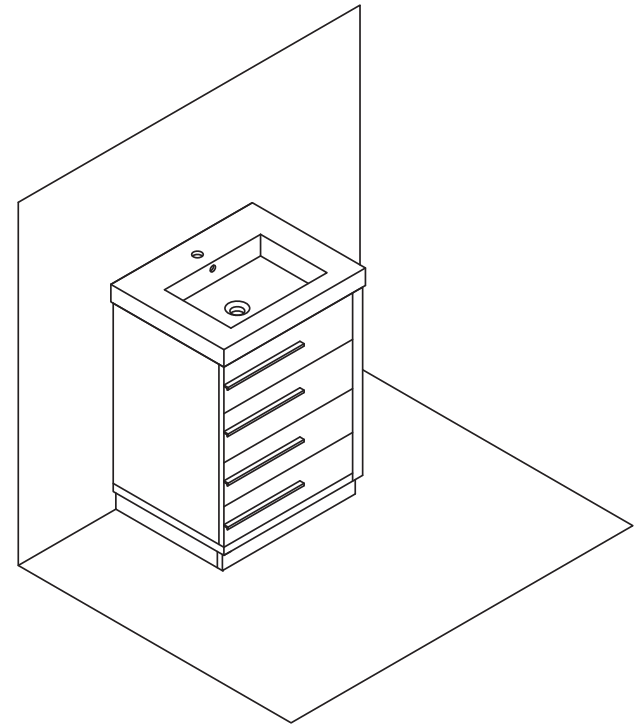

Installation complete.
Blossom Kitchen & Bath Supply Corporation
(718)-366-0088 | [email protected] | www.BlossomUS.com
For clarification, please contact us at (718)-366-0088 or [email protected]
All dimensions are approximate and subject to standard tolerance. Specifications subject to change without prior notice.
| Features | Package Dimension |
| – Slidable Modern Design – Top-grade mirror – Easy installation. | 24″ 24-39/64″ x 4-9/64″ x 34-29/64″ 30″ 28-37/64″ x 4-9/64″ x 34-29/64″ |
| Colors / Finishes | Gross Weight |
| Glossy White – 01 Dark Oak – 07 | 24″ 20 LBS 30″ 23 LBS |

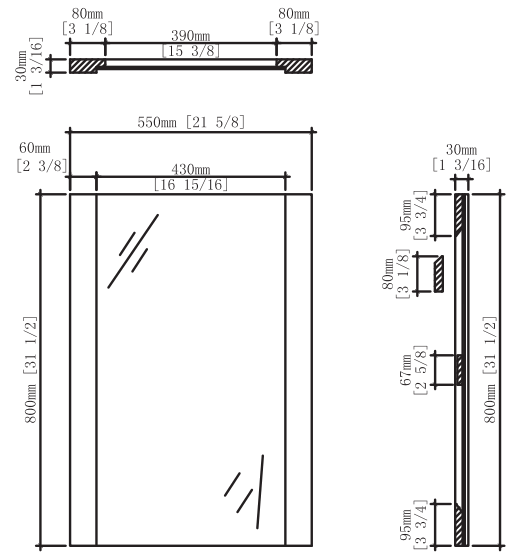

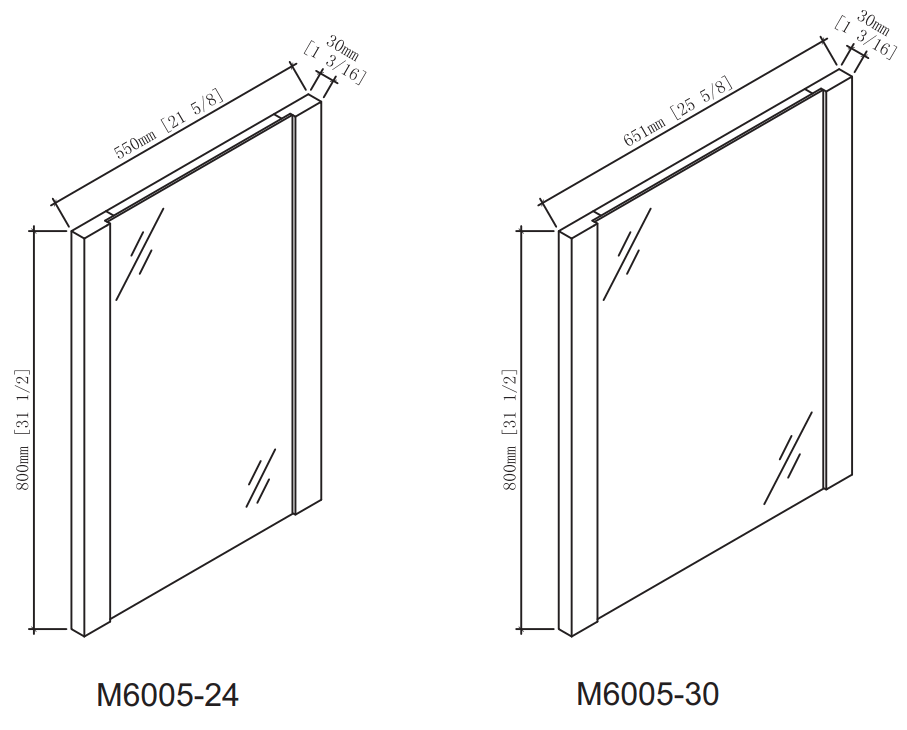

24″ 21-5/8″ X 1-3/16” X 31-1/2 ”

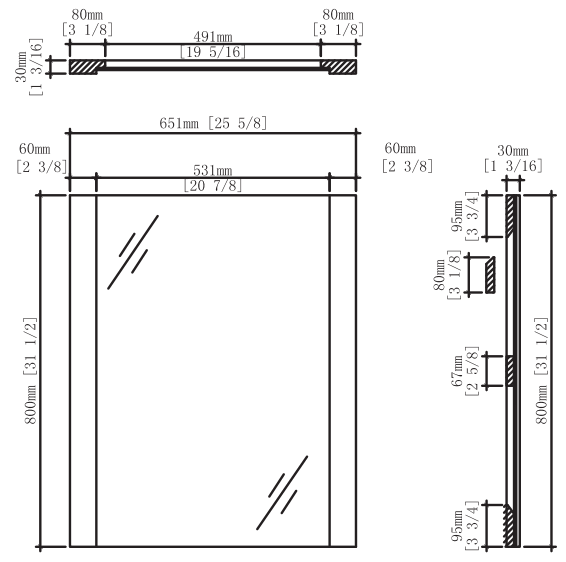

30″ 25-5/8″ X 1-3/16” X 31-1/2 ”
| Hardware | Tools (not includes) | |||
| No. | Draw | Qty |  | |
| A | Green rubber plug |  | 4 pcs | |
| B | Screws |  | 4 pcs | |
STEP 1
- Measure the wall-hung board and mark down the holes on the wall.
- Drill the holes with suitable drill-bits base on different condition of the wall.
- Use a hammer to knock the green expansion rubber plug into the hole.
STEP 2

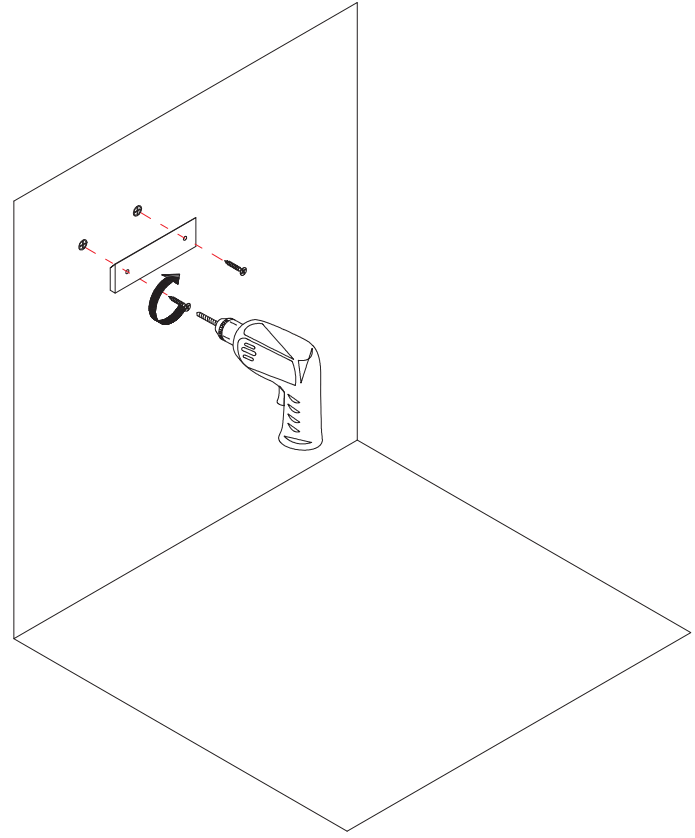

Screw the 45 degree wall-hung panel onto the wall.
STEP 3

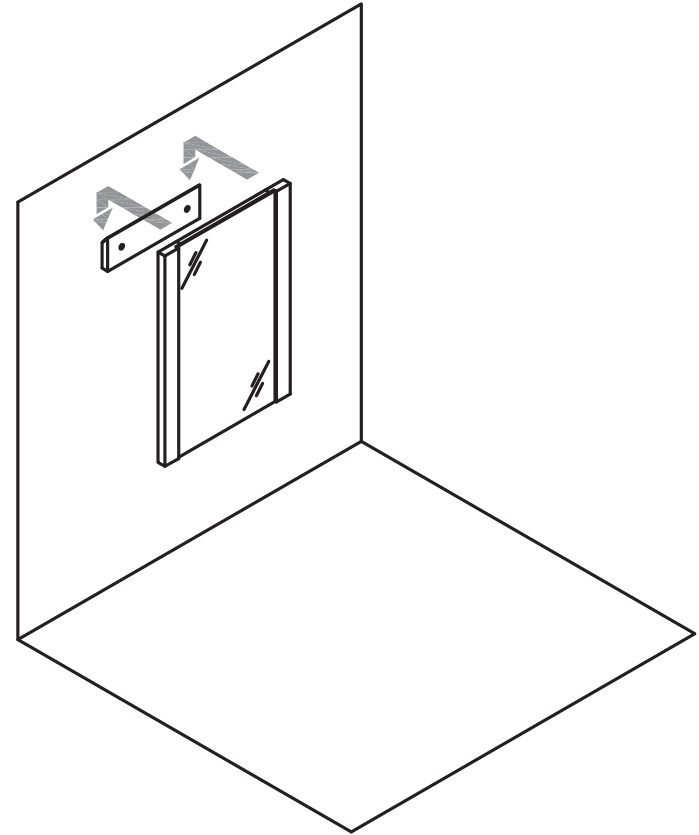

Put up the back top panel of mirror on the 45 degree wall-hung panel . Finished.
Blossom Kitchen & Bath Supply Corporation
(718)-366-0088 | [email protected] | www.BlossomUS.com
For clarification, please contact us at (718)-366-0088 or [email protected]
All dimensions are approximate and subject to standard tolerance. Specifications subject to change without prior notice.
