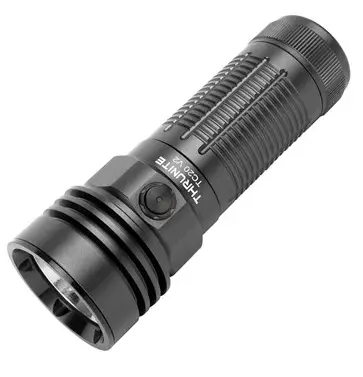

THRUNITE TC20 V2 Flashlight
Specifications
| Technical Parameters | |||||||||||||
| LED | Lens | Reflector | Working Voltage | Material | Surface Finish | Dimension | Weight | ||||||
| CREE XHP70.2*1 | Anti-reflective coated ultra-clear toughened glass lens | Orange Peel | 2.75V-4.2V | AL T6061-T6 | Premium type III hard-anodized | 119mm*42mm *33.5mm | 143g (battery excluded) | ||||||
| Accessories | Holster*1, Spare O-rings *2, Lanyard *1, THRUNITE 26650 Battery *1, USB-C Charging Cord *1, Spare USB Rubber Cover *1, Spare Side Switch Cap *1 | ||||||||||||
| ANSI/NEMA FL1 Parameters | |||||||||||||
| General Mode | |||||||||||||
| Turbo | High | Medium | Low | Firefly | Strobe | ||||||||
 Output | 4068 lumens 1722 lumens | 1853 lumens | 320 lumens | 35 lumens | 0.3 lumens | 1475 lumens | |||||||
 Run time | 220 secs + 90 mins | 122 mins | 9 hours | 77 hours | 71 days | 211 mins | |||||||
 Distance | 299 meters (max.) | ||||||||||||
 Intensity | 22400 cd (max.) | ||||||||||||
 Impact Resistance | 1.5 meter | ||||||||||||
 Waterproof | IPX-8 (2M) | ||||||||||||
Notes: The above parameters tested by one THRUNITE 5000mAh 26650 battery are approximate and may vary between lights, batteries and environment.
Indicator
| Power Capacity | 0% | 1 – 10% | 11 – 20% | 21 – 100% |
| Indicator | Off | Flashing red | Red | Blue |
| Voltage | 0-2.8V | 2.8-3V | 3-3.2V | 3.3-4.2V |
Note: The indicator will be OFF in firefly mode.
Operation
CAUTION: Please screw down the light head and tail cap tightly before use.
Turn ON/OFF
Press the side switch to turn the light on/off.
Change Modes
- When the light is on, long press the side switch to cycle through low, medium and high.
- Shortcut to firefly: When the light is off, long press the side switch to get firefly mode.
- Double-click to turn to turbo from any mode. Another double click to get strobe.
Memory Function
The light will turn on in the last mode accessed, except firefly, turbo and strobe.
Rechargeable Function
Max 2A USB-C charging. During charging, the indicator is RED. After being fully charged, the indicator will be BLUE. When indicator flashes purple, it means abnormal charging. Only firefly, low and medium modes are available while charging.
Warranty
- 2-year free replacement: We will offer free replacement within 2 years of purchase if problems develop with normal use.
- 30-day refund by Amazon: You may return most new, unopened items sold and fulfilled by Amazon within 30 days of delivery for a full refund.
- Lifetime limited maintenance: As to those exceed 2 years of the purchase date, we will still provide with maintenance service, but the cost of parts will be charged and freight should be paid by customers.
Warnings
- THRUNITE flashlights are high-intensity lighting devices capable of causing eye damage or other harms, so please avoid shining our light directly into anyone’s eyes.
- Please keep flashlights away from children.
- To protect the battery, driver circuit and LED, we Do NOT recommend you run the light at max mode more than ten minutes.
