Perun 2 Mini Flashlight
User Manual
Perun 2 Mini Flashlight
A compact, high-brightness rechargeable right-angle flashlight that combines both white and red light.

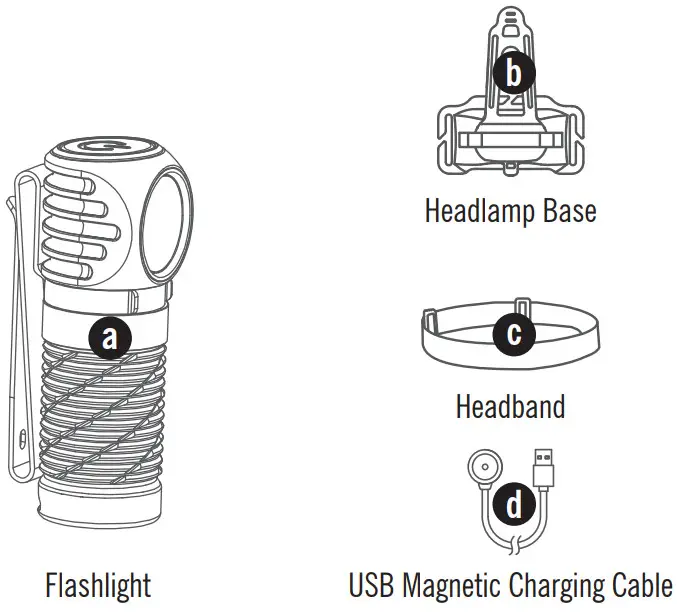

IN THE BOX
Multi-language dictionary
| Moonlight | Low | Medium | High | Turbo | Redlight | Press | Double press | Press and hold | Blink once | Blink twice |

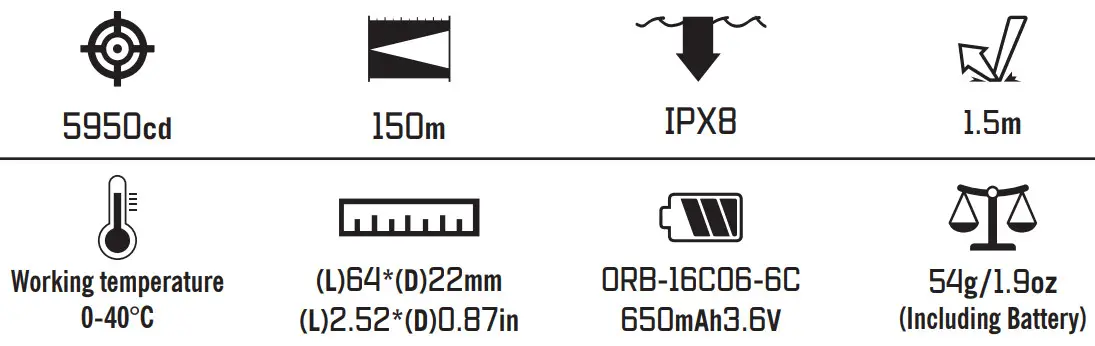

Product specification
Table 1: Flashlight
COOL WHITE CCT· 5700~6700K CRI:70
NEUTRAL WHITE CCT· 4000~5000K CRI:70
| TURBO | 1,100 lumens |  |
| HIGH | 250 lumens |  |
| MEDIUM | 60 lumens |  |
| LOW | 15 lumens |  |
| MOONLIGHT | 2 lumens |  |
| REDLIGHT | 40 lumens |  |
* Above data are tested per ANSI/NEMA FL 1-2009 standard in Olight’s labs for reference. The tests are performed indoors under a room temperature of 25 degrees celsius with windless conditions. The runtime may vary depending on the external temperature and ventilation conditions, and these biases may affect the results of testing.
Table 2:
USB Magnetic Charging Cable
| Cable length | 0.5m |
| Input | USB-A 5V 1A |
| Output | CC&CV 4.2V±0.05V 1.0A |
| Time to fully charge | About 70 mins |
Operating instructions
2.1 Remove the insulating film

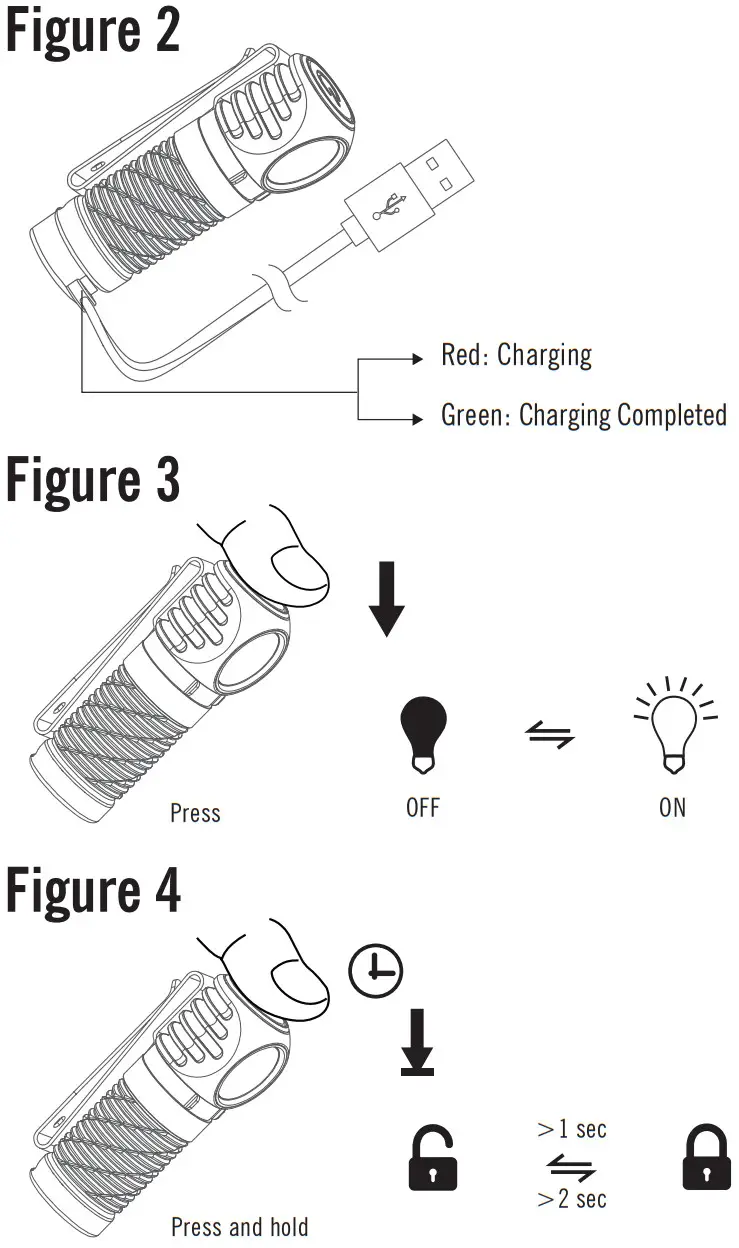

2.2 Charging, see Figure 2;
2.3 ON/OFF, see Figure 3;
2.4 Lockout / Unlock, see Figure 4;

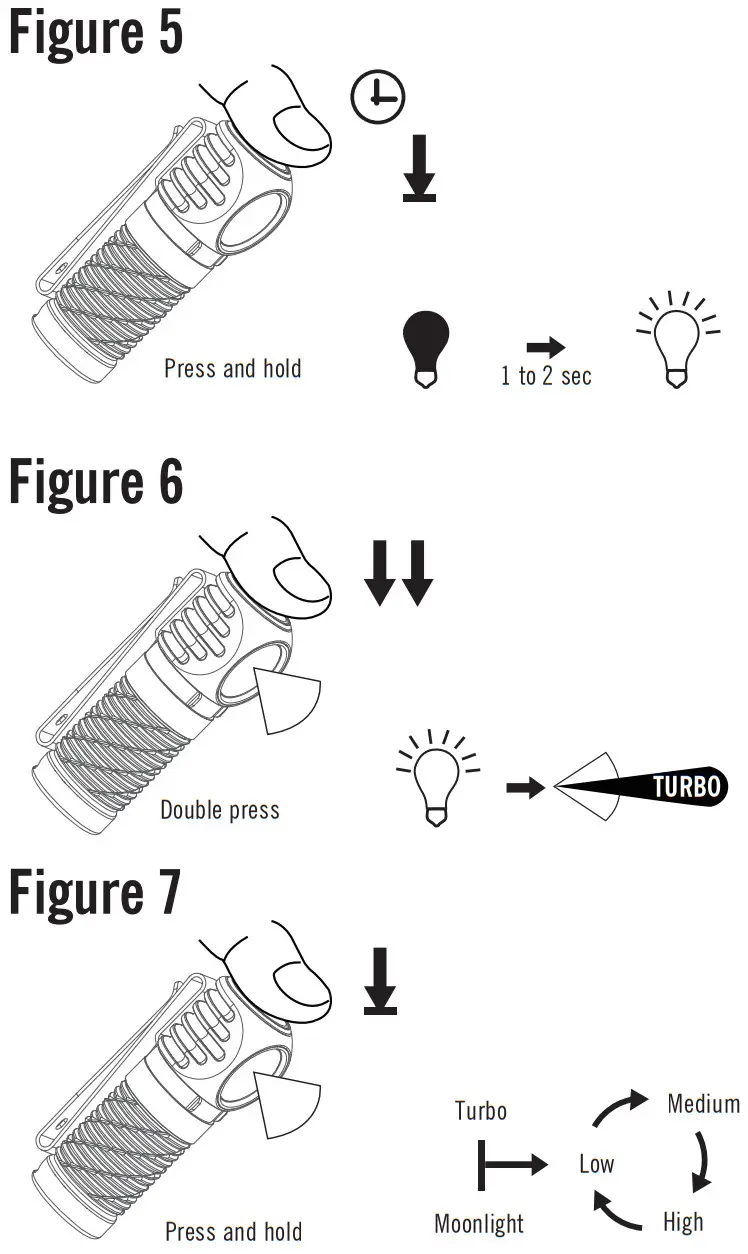

2.5 Moonlight, see Figure 5;
2.6 TURBO, see Figure 6;
2.7 Change brightness level, see Figure 7;
2.8 Redlight, see Figure 8-1; SOS mode, see Figure 8-2;
2.9 Set timer, see Figure 9;

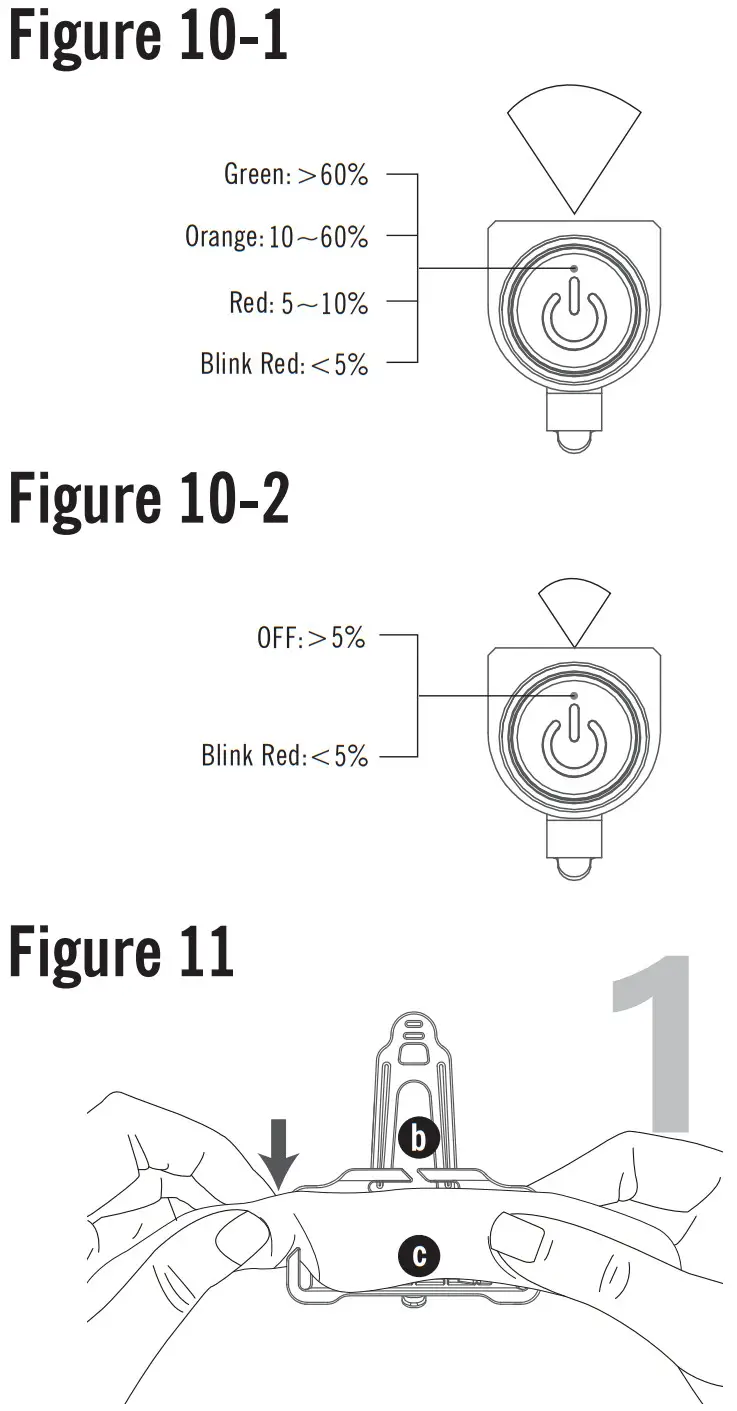

2.10 Battery Indicator: Normal mode, see Figure 10-1;
Moonlight mode, see Figure 10-2;

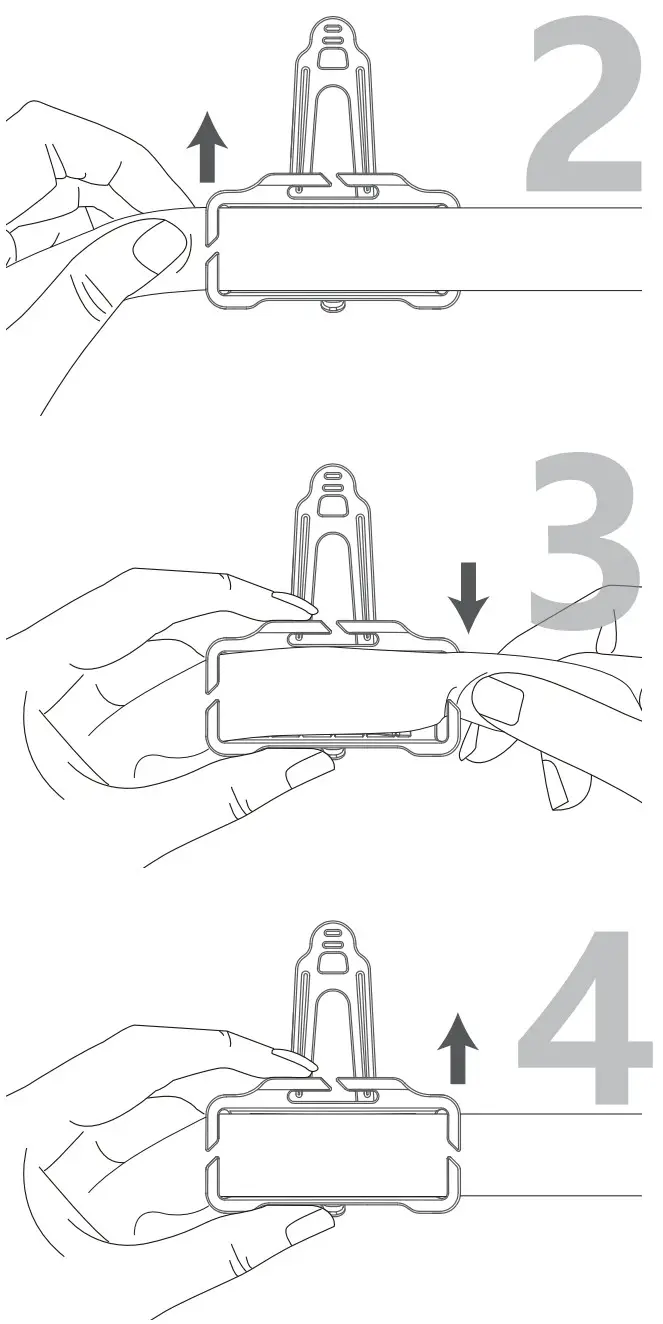

2.11 The installation of the headband, see Figure 11;
 |  |
2.12 The usage of the headlamp base, see Figure 12.
WARRANTY
Within 30 days of purchase: Contact the original seller for repair or replacement.
Within 5 years of purchase: Contact Olight for repair or replacement.
Battery warranty: Olight offers a one-year warranty for all rechargeable batteries.
MCC magnetic USB charging cable: One year.
For any of the fragile or low-value fittings not covered above, like landyards and clips, you can contact the post-sale within 30 days of the purchase, if it has any quality drawback or damage under normal use conditions. If such drawback or damage occurs after 30 days of the purchase or under abnormal use conditions, we will only offer conditional quality assurance as appropriate.
USA Customer Support
[email protected]
Global Customer Support
[email protected]
Visit www.olightworld.com to see our complete product line of portable illumination tools.
Dongguan Olight E-Commerce Technology Co., Ltd
4th Floor, Building 4, Kegu Industrial Park, No 6 Zhongnan Road, Changan Town,
Dongguan City, Guangdong, China.
Made in China
3.4000.0529
B. 12, 06, 2022
