Thrunite T2 Led Rechargeable Flashlight User Manual

Thrunite T2 Led Rechargeable Flashlight User Manual

THRUNITE-T2-LED-Rechargeable-Flashlight-logo

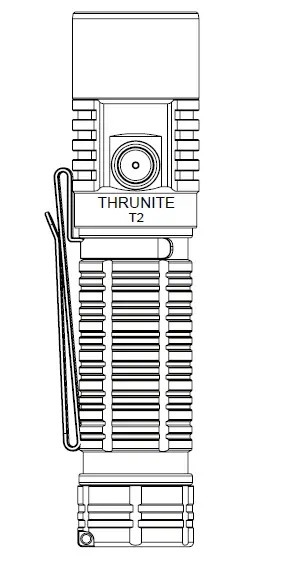

THRUNITE T2 LED Rechargeable FlashlightTHRUNITE-T2-LED-Rechargeable-Flashlight-product

T2 rechargeable LED flashlight adopts the CREE XHP70 LED to make output up to 3757 lumens and a max beam distance of 158 meters.

Specifications

Technical Parameters
LEDLensReflectorWorking VoltageMaterialSurface FinishDimensionWeight
XHP70Anti-reflective coated ultra-clear

toughened glass lens

Orange Peel2.7V-8.4VAL T6061-T6Premium type III

hard-anodized

112mm*30.5mm

*26mm

87g

(battery excluded)

AccessoriesHolster *1, Spare O-rings *2, Lanyard *1, THRUNITE 21700 battery *1, USB type-C Charging Cable *1, Spare USB Rubber Cover *1,Dual-direction Clip *1
ANSI/NEMA FL1 Parameters
 General Mode
TurboHighMediumLowFireflyStrobe
  Output3757 lumens

725 lumens

1712 lumens

732 lumens

366 lumens30 lumens0.3 lumens1450 lumens
  Run time2 mins + 216 mins3 mins + 223 mins7.5 hrs77 hrs69 days5 hrs
Distance158 meters (max.)
Intensity6300 cd (max.)
Impact Resistance1.5 meter
 WaterproofIPX-8 (2M)

Notes:
The above parameters tested by one THRUNITE 5000mAh 21700 battery are approximate and may vary between lights, batteries and environment.

Indicator

Power Capacity1 – 10%11 – 20%21 – 100%
IndicatorFlashing redRedBlue
Voltage2.7V – 2.9V2.9V – 3.1V3.1V – 4.2V

Operation

Lock/Unlock
Under the lockout mode, press and hold the side switch to unlock the flashlight. When the flashlight is off, press and hold the side switch to enter firefly mode. Under firefly mode, press and hold the side switch to access the lockout mode.

Turn-ON/OFF
After the light is unlocked, press the side switch to turn the light on/off. The light will turn on in the last mode used, except for firefly, turbo, and strobe.

Change Modes
Single-click the side switch to the last mode used, then press and hold the side switch to cycle through low, medium and high. Shortcut to firefly: When the light is off, press and hold the side switch to get firefly mode. Double click to turn to turbo from any mode. Triple-click to get strobe. Rechargeable Function 2A charging by USB port. During charging, the indicator is RED. After being fully charged, the indicator will be BLUE. When the indicator flashes purple, it means abnormal charging. Only firefly, low modes are available while charging.

Warranty

  1.  2-years free replacement: We will offer free replacement within 2 years of purchase if problems develop with normal use.
  2.  30-days refund by Amazon: You may return most new, unopened items sold and fulfilled by Amazon within 30 days of delivery for a full refund.
  3.  Lifetime limited maintenance: As to those exceeding 2 years of the purchase date, we will still provide with maintenance service, but the cost of parts will be charged and freight should be paid by customers.
    Warnings
    1.  THRUNITE flashlights are high-intensity lighting devices capable of causing eye damage or other harm, so please avoid shining our light directly into anyone’s eyes.
    2.  Please keep flashlights away from children.
    3.  To protect the battery, driver circuit and LED, we Do NOT recommend you run the light at max mode for more than ten minutes.
