Olight Baton 3 Pro Rechargeable Flashlight User Manual

Baton 3 Pro Rechargeable Flashlight
User Manual

Baton 3 Pro Rechargeable Flashlight

A powerful compact rechargeable side switch Flashlight.

IN THE BOX

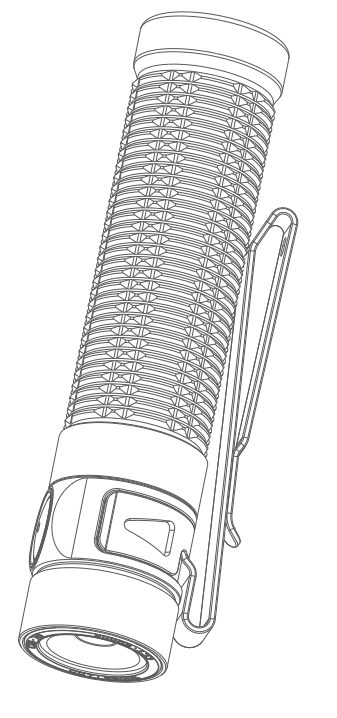

Table 1: Flashlight

COOL WHITE CCT: 5700~6700K CRI:70
NEUTRAL WHITE CCT: 4000~5200K CRI:70

Table 2:USB Magnetic charging cable

Figure 1

Multi-language dictionary, see Table 3;

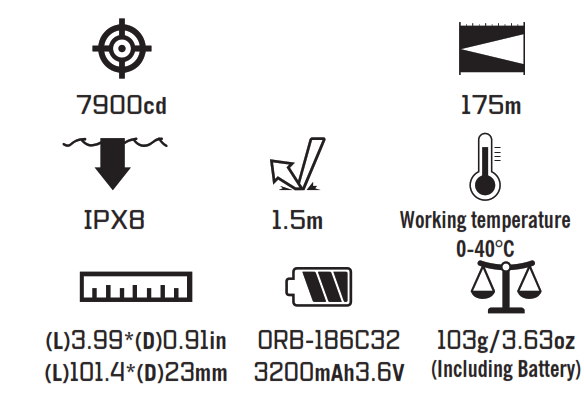

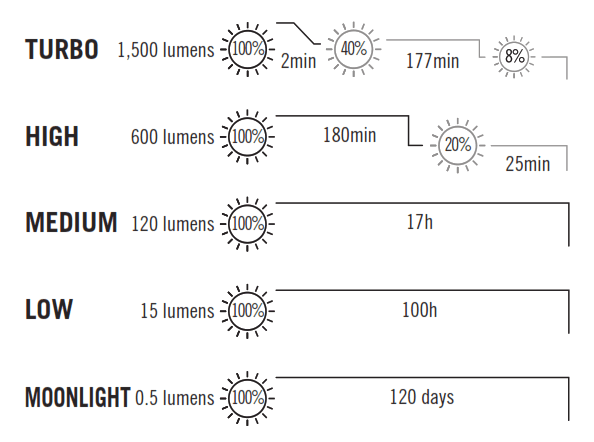

1. Product specification, see Table 1 and Table 2;
2. Operating instructions as below：
   2.1 Remove the insulating film, see Figure 1;

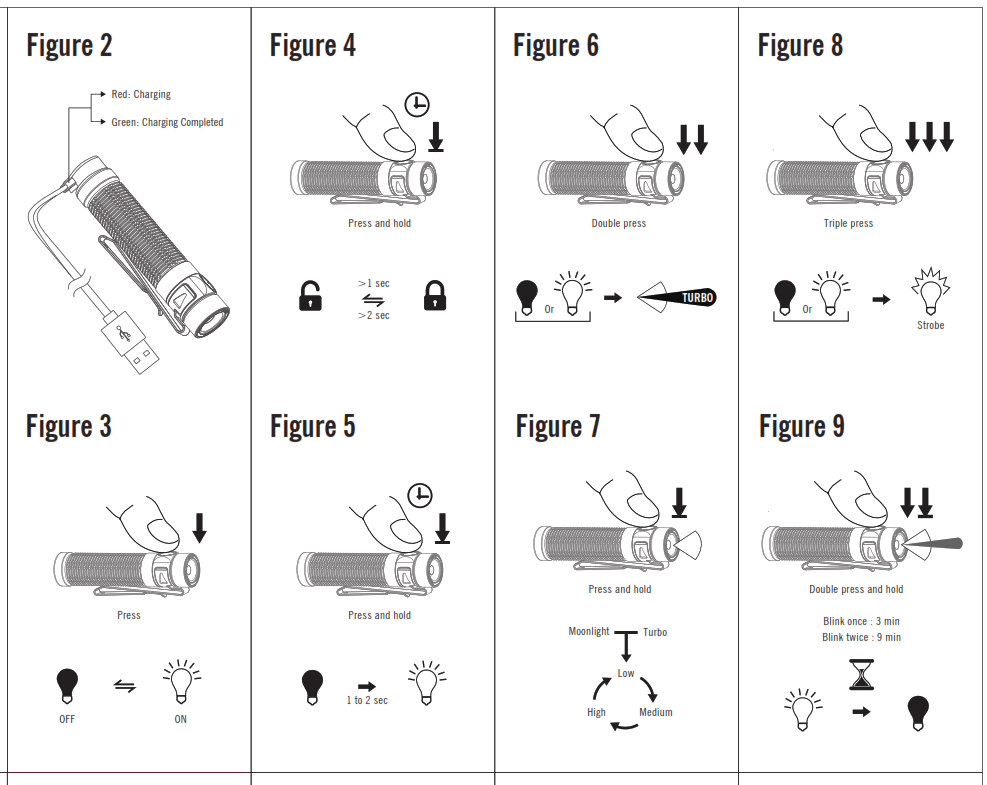

   2.2 Charging, see Figure 2;
   2.3 ON/OFF, see Figure 3;
   2.4 Lockout / unlock, see Figure 4;
   2.5 Moonlight, see Figure 5;
   2.6 TURBO, see Figure 6;
   2.7 Change brightness level, see Figure 7;
   2.8 Strobe, see Figure 8;
   2.9 Set timer, see Figure 9;

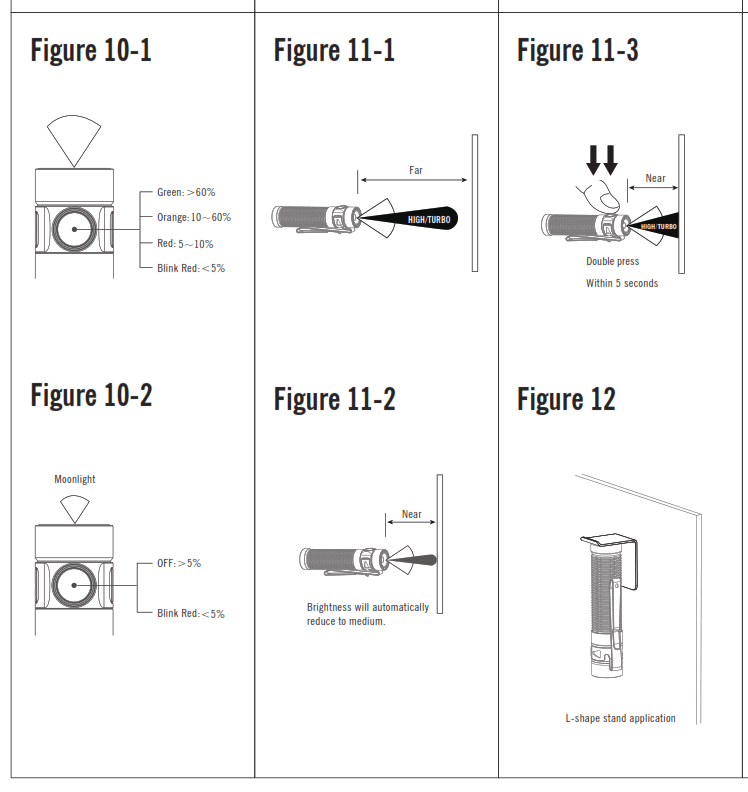

   2.10 Battery Indicator: Normal mode, see Figure 10-1;
   Moonlight mode, see Figure 10-2;
   2.11 Proximity protection function for High or Turbo: Inactivated, see
   Figure 11-1; Activated when the output window is blocked at close range, see.
   Figure 11-2; Disable protection function, see
   Figure 11-3;
   2.12 L-shape stand application, see Figure 12.

Table 3
Multi-language dictionary.

WARRANTY

Within 30 days of purchase: Contact the original seller for repair or replacement.
Within 5 years of purchase: Contact Olight for repair or replacement.
Battery warranty: Olight offers a one-year warranty for all rechargeable batteries.
MCC magnetic USB charging cable: One year.
For any of the fragile or low-value fittings not covered above, like lanyard and clip, you can contact the post-sale within 30 days of the  purchase, if it has any quality drawback damage under normal use condition. If such drawback or damage occurs after 30 days of  the purchase or under abnormal use condition, we will only offer conditional  uality assurance as appropriate.
USA Customer Support
[email protected]
Global Customer Support
[email protected]
Visit www.olightworld.com to see ourcomplete product line of portable illumination tools.

Dongguan Olight E-Commerce Technology Co., Ltd
4th Floor, Building 4, Kegu Industrial Park, No 6
Zhongnan Road, Changan Town, Dongguan City,
Guangdong, China.
Made in China
