USER
MANUAL
A powerful compact rechargeable side switch Flashlight.
IN THE BOX
Flashlight Pouch
L-Shape Stand USB Magnetic Charging Cable
Table 1:
Flashlight
COOL WHITE CCT: 5700~6700K CRI:70
NEUTRAL WHITE CCT: 4000~5200K CRI:70

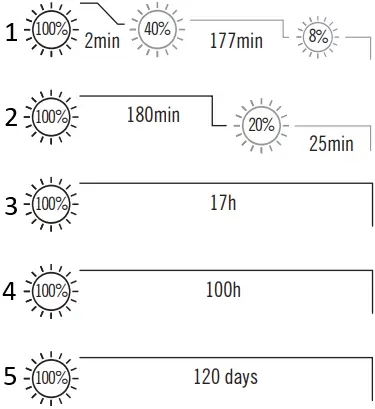

- TURBO 1,500 lumens
- HIGH 600 lumens
- MEDIUM 120 lumens
- LOW 15 lumens
- MOONLIGHT 0.5 lumens
7900cd 175m
IPX8 1.5m Working temperature 0-40°C
(L)3.99* (D)0.91in ORB-186C32
(L)101.4*(D)23mm 3200mAh 3.6V
103g /3.63oz
(Including Battery)
* Above data are tested per ANSI/NEMA FL 1-2009 standard in Olight’s labs for reference.
Table 2:
USB Magnetic charging cable
Cable length 0.5m
Input USB-A 5V 2A
Output CC&CV 4.2V±0.05V 2.0A
Time to fully charge About 3.5 hours

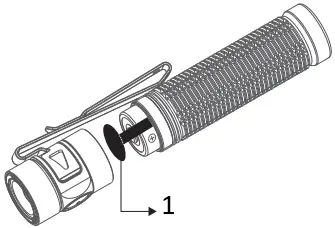

Figure 1
- Remove the insulating film
Figure 2
- Red: Charging
- Green: Charging Completed
Figure 3
Press
OFF ON
Figure 4
Press and hold
Figure 5
Press and hold
Figure 6
Double press
Figure 7
Press and hold
- Moonlight
- Turbo
- Low
- Medium
- High

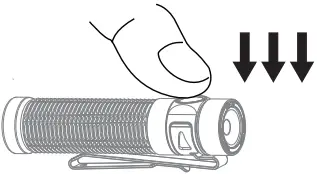

Figure 8
Triple press
Strobe

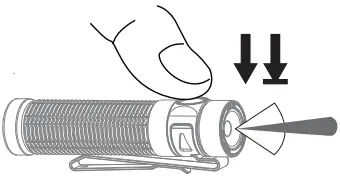

Figure 9
Double press and hold
Blink once : 3 min
Blink twice : 9 min
Figure 10-1
- Green:>60%
- Orange:10~60%
- Red: 5~10%
- Blink Red:<5%
Figure 10-2
Moonlight
- OFF:>5%
- Blink Red:<5%

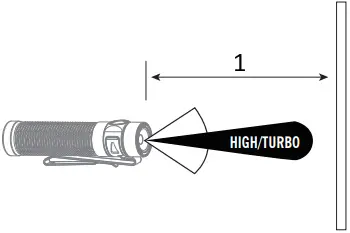

Figure 11-1
- Far
Figure 11-2
Brightness will automatically reduce to medium.
- Near
Figure 11-3
Within 5 seconds
- Near
- Double press

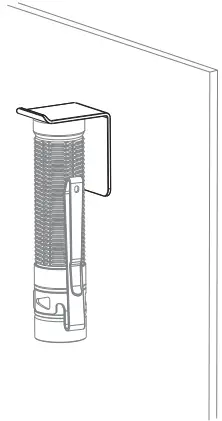

Figure 12
L-shape stand application
Multi-language dictionary, see Table 3;
- Product specification, see Table 1 and Table 2;
- Operating instructions as below：
2.1 Remove the insulating film, see Figure 1;
2.2 Charging, see Figure 2;
2.3 ON/OFF, see Figure 3;
2.4 Lockout / unlock, see Figure 4;
2.5 Moonlight, see Figure 5;
2.6 TURBO, see Figure 6;
2.7 Change brightness level, see Figure 7;
2.8 Strobe, see Figure 8;
2.9 Set timer, see Figure 9;
2.10 Battery Indicator: Normal mode, see Figure 10-1; Moonlight mode, see Figure 10-2;
2.11 Proximity protection function for High or Turbo： Inactivated, see Figure 11-1; Activated when the output window is blocked at close range, see Figure 11-2; Disable protection function, see Figure 11-3;
2.12 L-shape stand application, see Figure 12.
Table 3
Multi-language dictionary
Moonlight
Low
Medium
High
Turbo
Strobe
Press
Double press
Press and hold
Triple press
Blink once
Blink twice
WARRANTY
Within 30 days of purchase: Contact the original seller for repair or replacement.
Within 5 years of purchase: Contact Olight for repair or replacement.
Battery warranty: Olight offers a one-year warranty for all rechargeable batteries.
MCC magnetic USB charging cable: One year.
For any of the fragile or low-value fittings not covered above, like lanyard and clip, you can contact the post-sale within 30 days of the purchase, if it has any quality drawback or damage under normal use condition. If such drawback or damage occurs after 30 days of the purchase or under abnormal use condition, we will only offer conditional quality assurance as appropriate.
USA Customer Support
[email protected]
Global Customer Support
[email protected]
Visit www.olightworld.com to see our complete product line of portable illumination tools.
Dongguan Olight E-Commerce Technology Co., Ltd
4th Floor, Building 4, Kegu Industrial Park, No 6
Zhongnan Road, Changan Town, Dongguan City,
Guangdong, China.
Made in China
3.4000.0485 B. 8, 26, 2022
