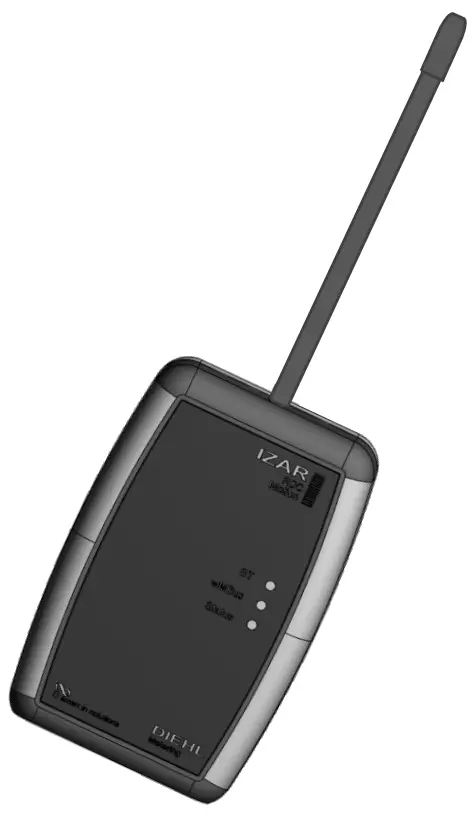

DIEHL IZAR RDC Motion

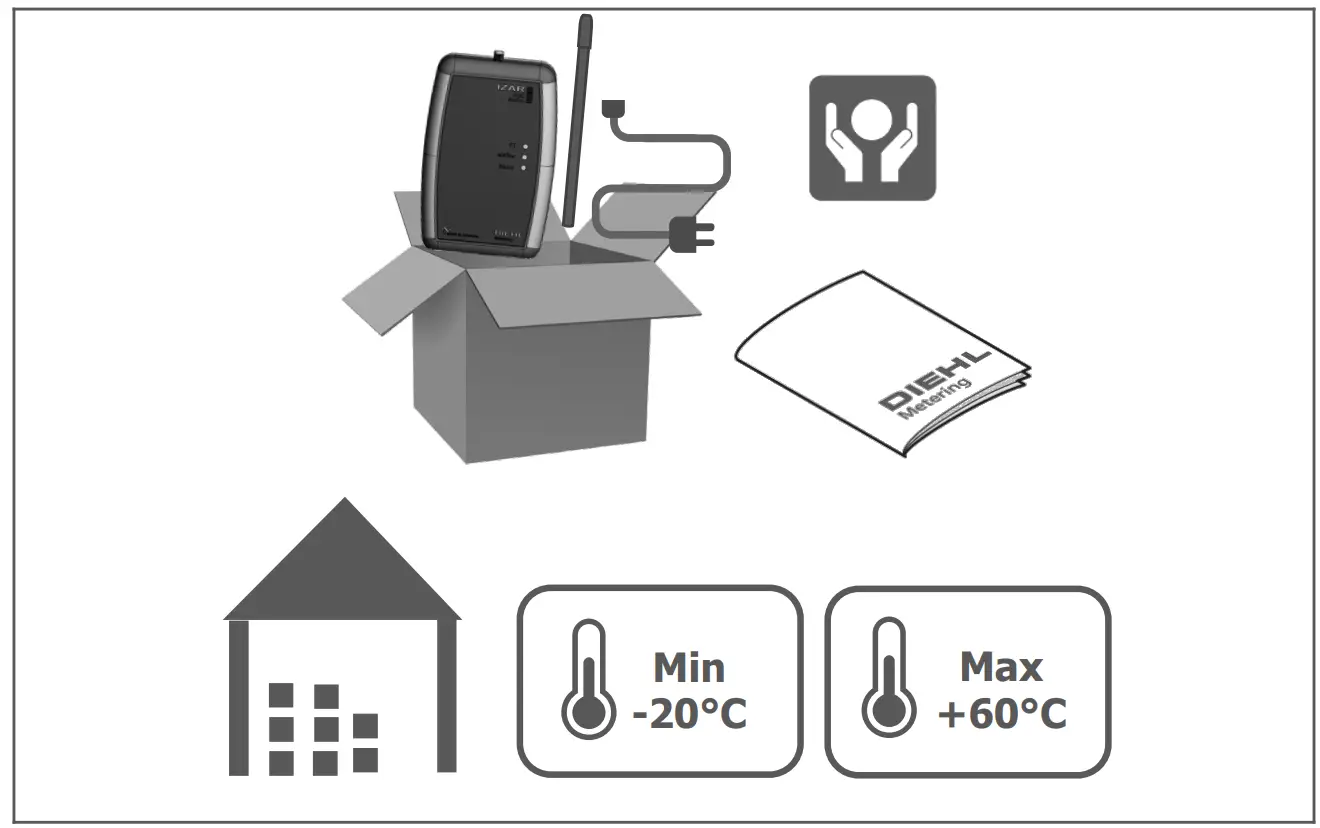

Package Content

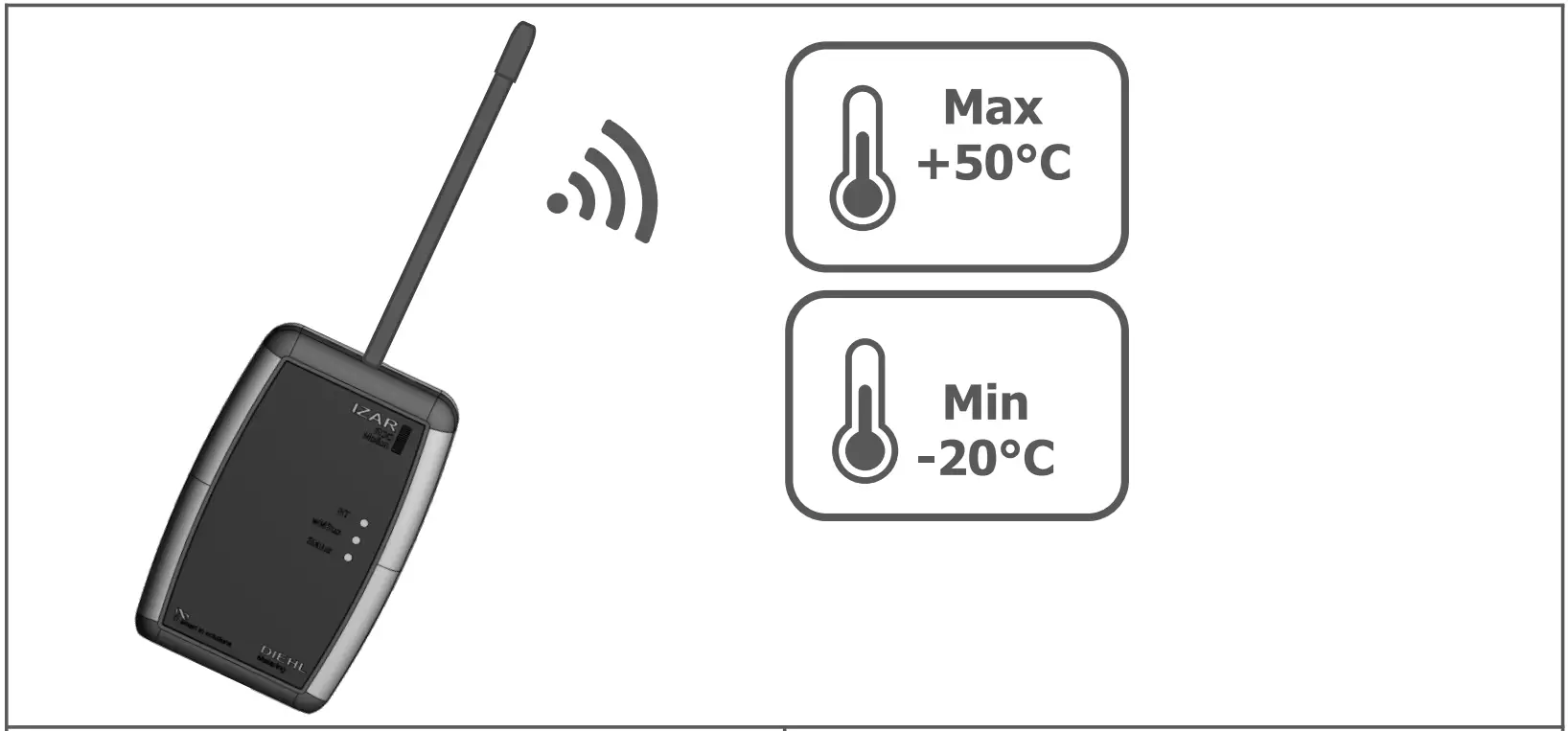

Operating Instructions
Max. operation level 2000m above sea level
Walk-by-Antenna : |
Radio frequencies
wMBus: |
In case of reception issues upon short distances between device and meter, increase the distance between the receiver and the meter.

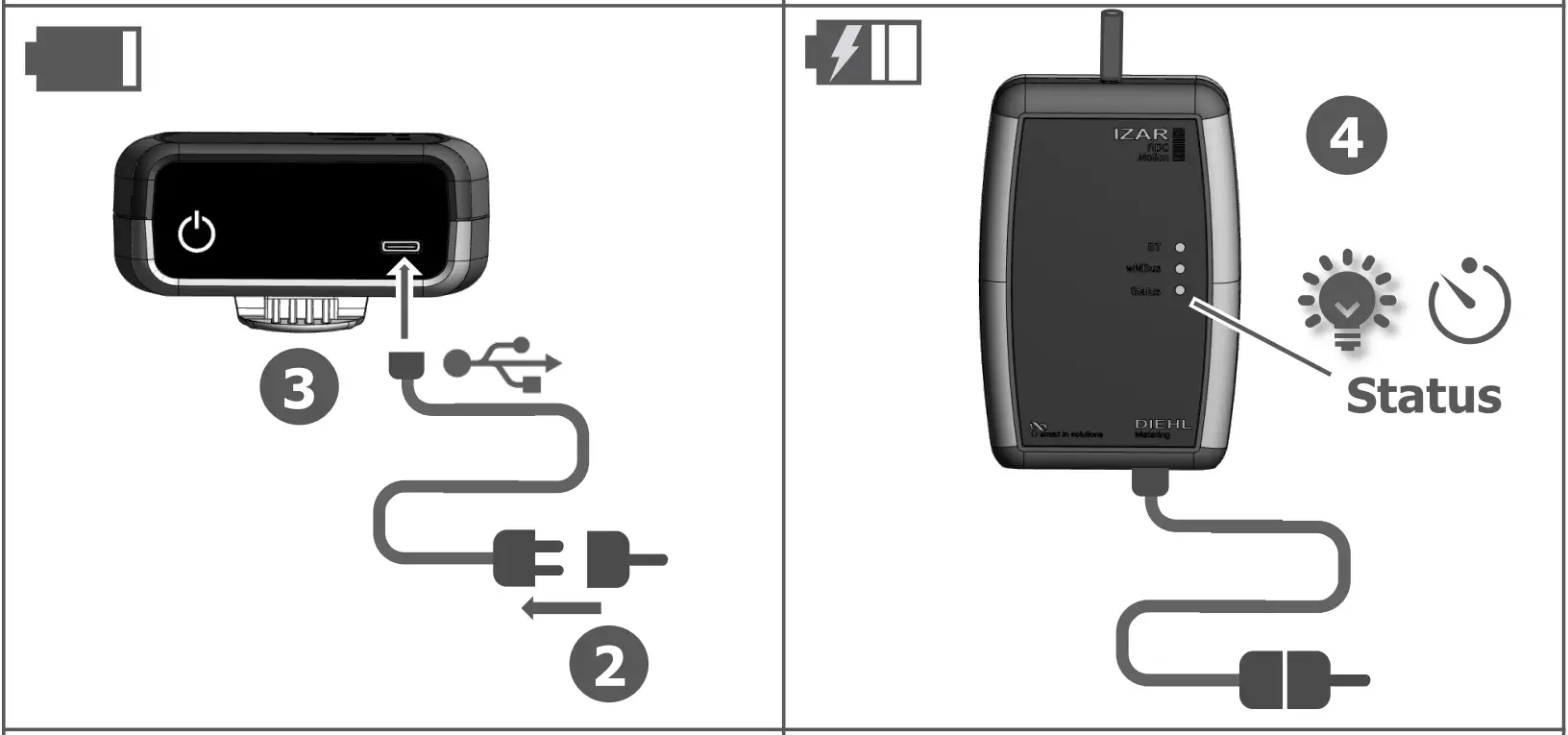

The device must be charged immediately upon receipt.
Only the following chargers should be used:
- Sunny SYS1561-1105-W2E 5C USB-C *
- Ammann In-Car Charger 130Q (1000-0024)
*Use the Sunny main supply charger only between 0°C and +45°C!
When stored, make sure to recharge battery minimum every ½ year to avoid loss of performance.

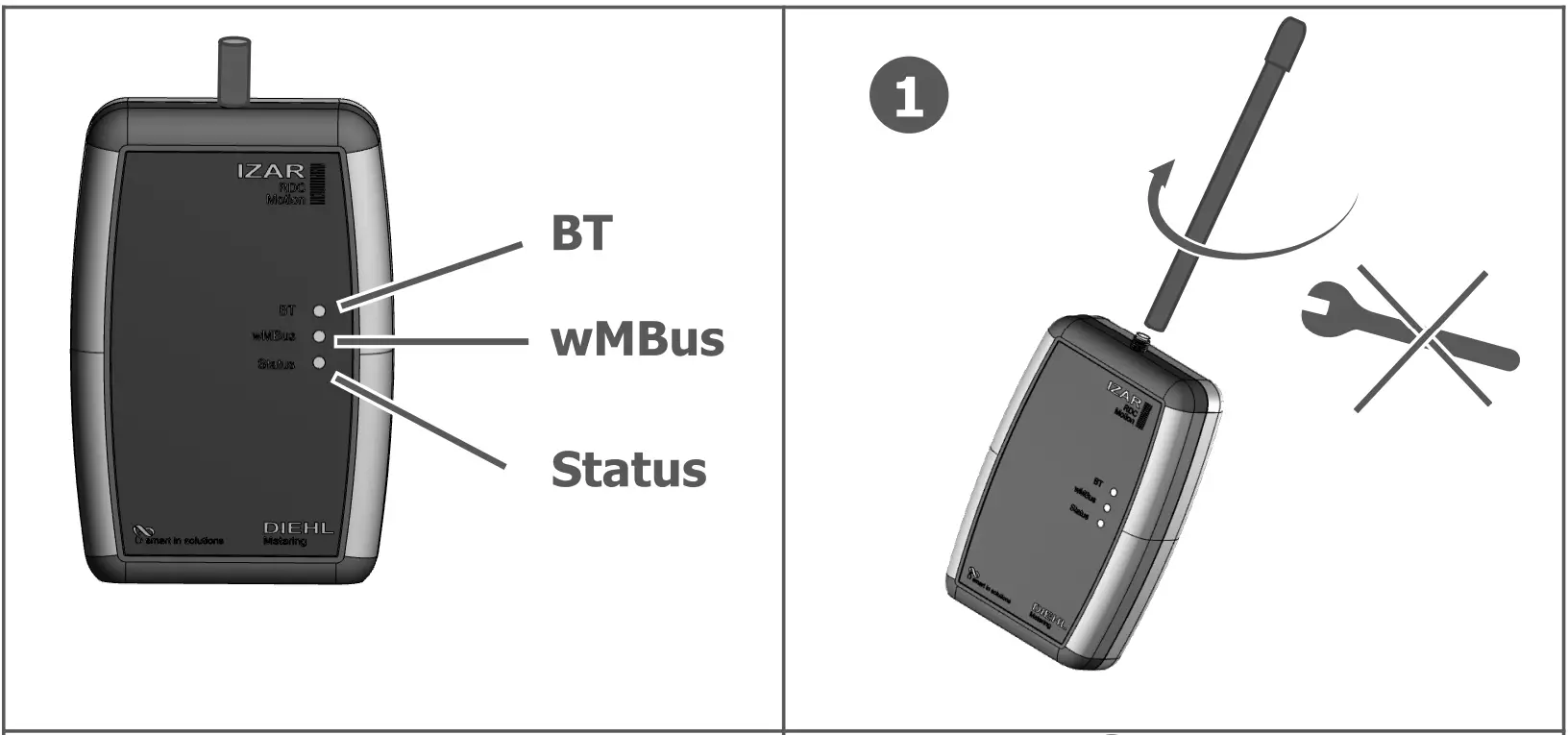

| LED | Color | Operation |
| BT Bluetooth | Blue | Blue blinking: BT pairing possible Blue: BT is connected  |
| wMBus | Green Red | Short green flashing: wMBus message received Short red flashing: message is being sent |

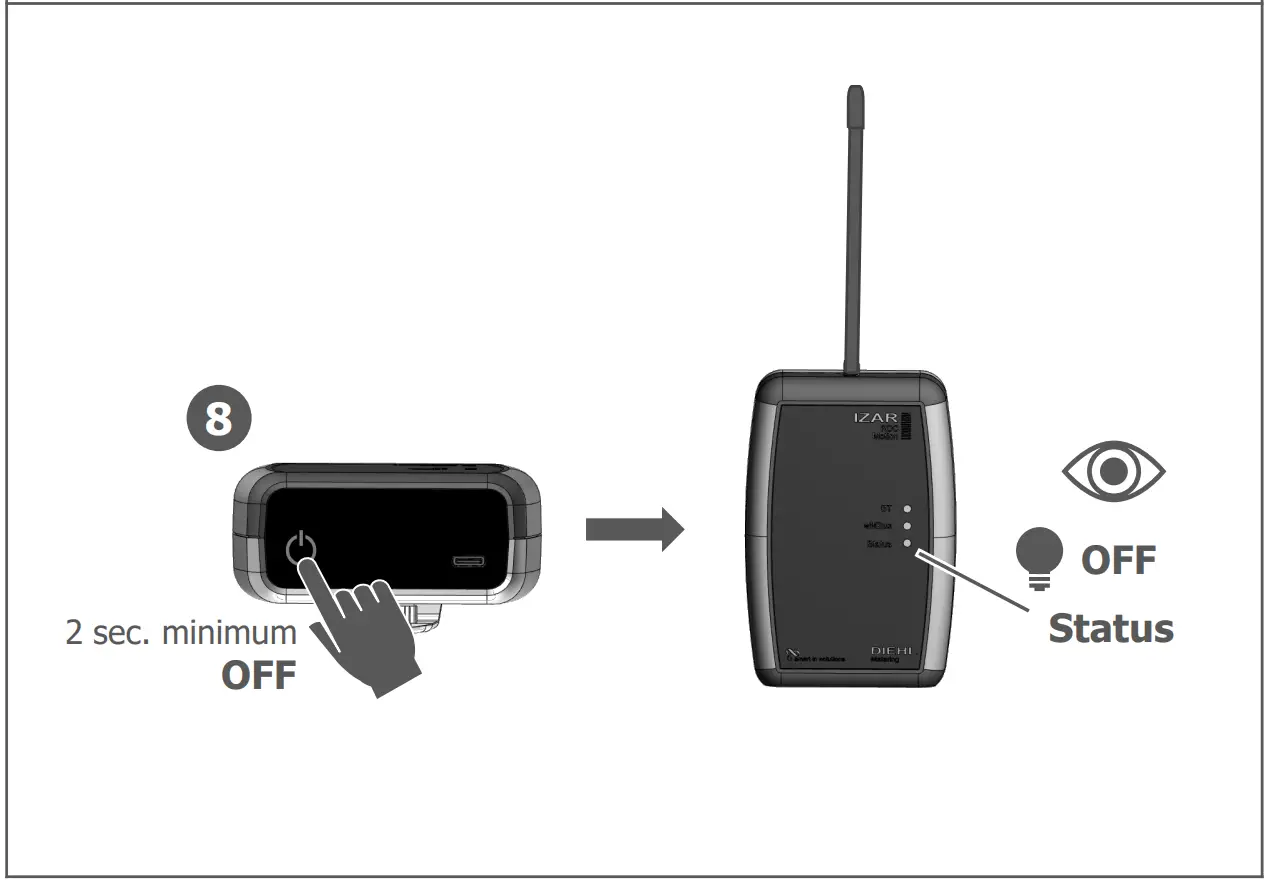

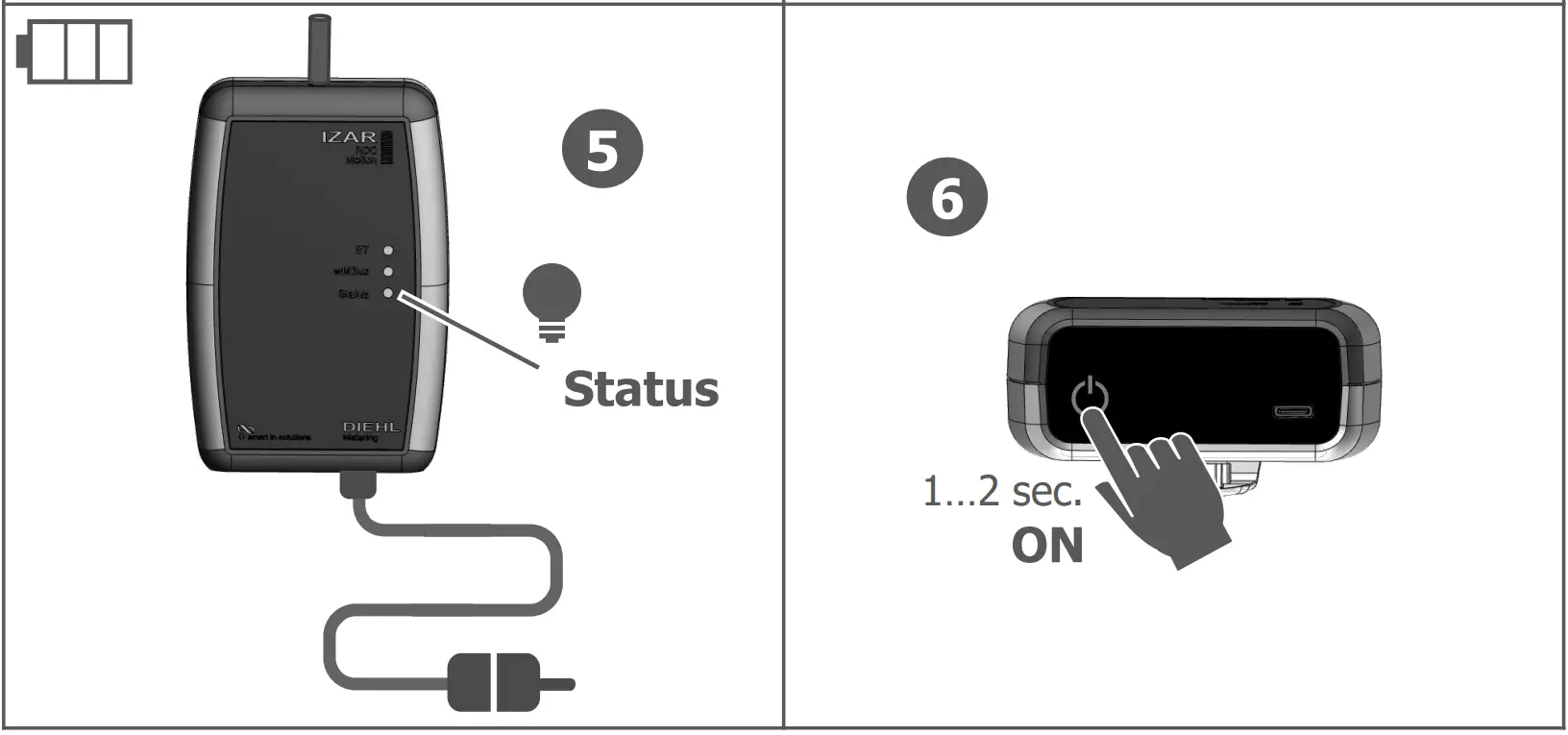

| Status | Green Red Yellow | Red: device is switched off, charging Red blinking: device is switched off and shows charging error Yellow: device is switched on and charging active Green/yellow blinking: device switched on and charging error Green: device is switched on, charging inactive |
 | Open Source Software Notice This product contains open source software components. The use and distribution of any open source software is governed by respective terms and conditions of the applicable open source license. By using this product, you acknowledge that you have reviewed such license terms and notices, and you agree to be obliged by these terms. Please insure that you get yourself familiar with the licenses terms and conditions before using this product. The complete OSS manifest as well as corresponding license terms are made available through third-party software notice document which can be obtained from the download center on Diehl Metering website: https://www.diehl.com/metering/en/supportcenter/download-center/ If you have any questions regarding open source software used in this product, please contact Diehl Metering support: [email protected] |
Simplified EU-/UK Declaration of Conformity
Hereby, Diehl Metering declares that the radio equipment type IZAR RDC MOTION is in compliance with
Directive 2014/53/EU and the Radio Equipement Regulations 2017.
The full text of the EU and UK declarations of conformity is available at the following internet address:
https://www.diehl.com/metering/en/support-center/download-center/
